• LED ARCHITECTURAL

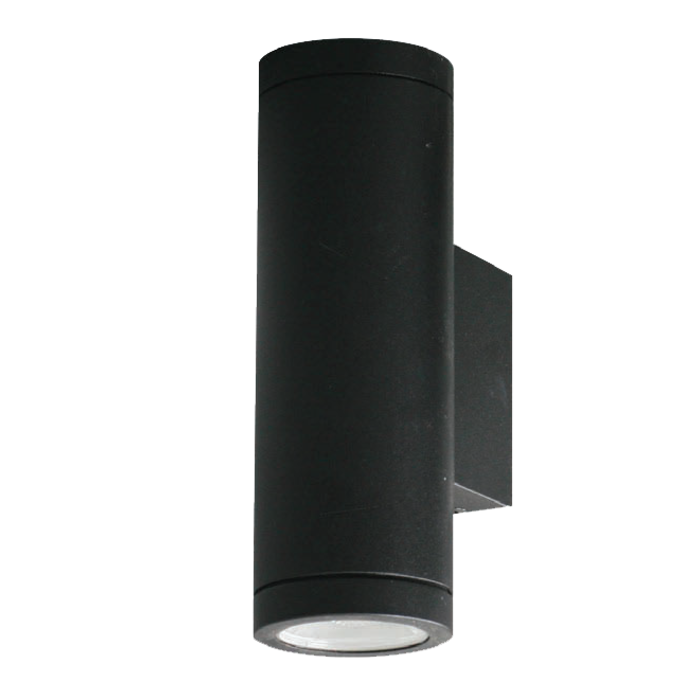

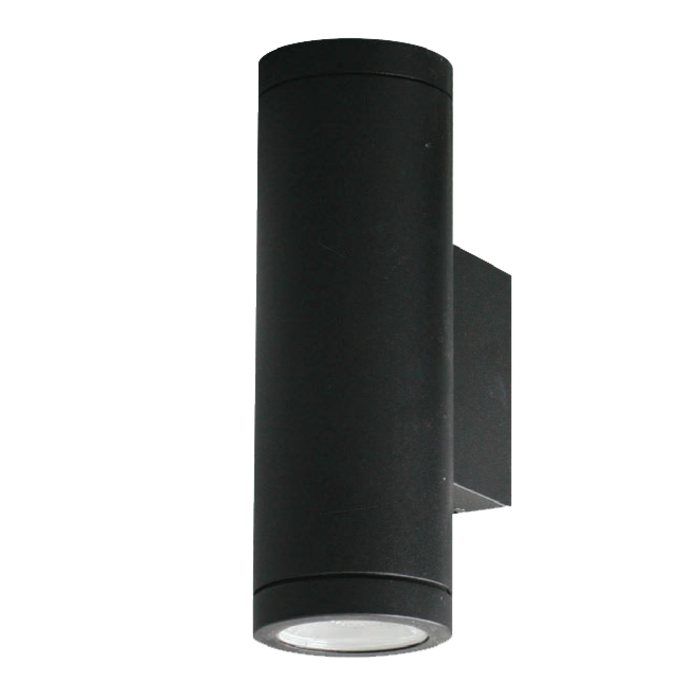

NEW BONDI II SL7224 - 11W

IP65 LED (UP/DOWN) architectural wall luminaire

Application

A decorative residential exterior or interior solution

Design Specifications

  • Aluminium body profile, powder coat black or silver finish

  • Clear tempered glass cover
  • Polycarbonate optical lens

  • High efficiency LED optics

  • Integral constant current non-dimmable LED driver

  • Up and down light distribution

Performance

  • Dimmable - NO
  • WARM WHITE3000K

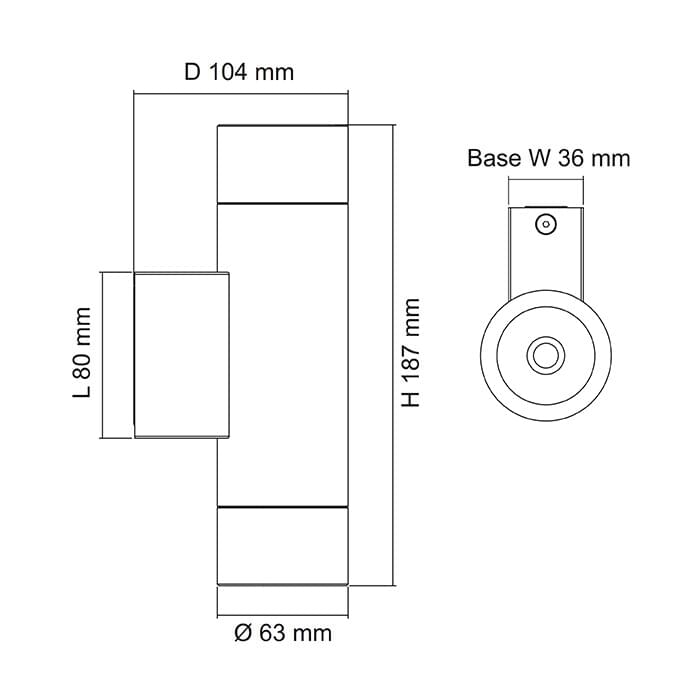

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Power Lumens CCT CRI Beam Angle Mass Diameter Dim Body Colour
      		Model No. SL7224WW/BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 11 Lumens 800 CCT 3000 CRI 80 Beam Angle 38 Mass 0.7 Diameter 63 Dim 104(W) x 187(H) Body Colour BLACK
      Model No. SL7224WW/SL Add to Enquiry Add Remove Remove Input Voltage 240 Power 11 Lumens 800 CCT 3000 CRI 80 Beam Angle 38 Mass 0.7 Diameter 63 Dim 104(W) x 187(H) Body Colour SILVER

      * Lumens and Power shown are TOTAL luminaire lumens (lm) and power (W).


    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
