• LED EMERGENCY

BARRACUDA SL9723TC/MP/EM - 12/40W

MAINTAINED OR NON-MAINTAINED, LED emergency weatherproof batten, 20 or 40 watt models, with selectable CCT and power

Application

Commercial or industrial ceiling or suspended mount applications requiring IP66 and IK10 performance

Design Specifications

  • Selectable CCT 3000K /4000K /5700K

  • Rounded profile design, robust aluminium body and UV stabilized polycarbonate diffuser

  • Integral flickerCONTROLLED non-dimmable, multi-power LED driver, 12/15/18/21 watt or 24/30/35/40 watt models

  • Secure stainless steel fasteners for the diffuser retention, optional accessories - M6 304 stainless steel security screws to fit a T30 TORX key (SL9723TP/SCREW)

  • Installation types - Surface mount (standard), Suspended (two off, SSY1512 wire suspension kits are required).

  • Compliant to AS/NZS2293 Emergency Lighting & Exit Signs, guaranteed minimum 90 minutes emergency mode function with LiFePO4 battery technology. Emergency spacing class - (20W) D63@C0, D40@C90, (40W) D63@C0, D32@C90.

Performance

  • Dimmable - NO
    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage CCT Lumens Multiple Wattage Body Colour Dim

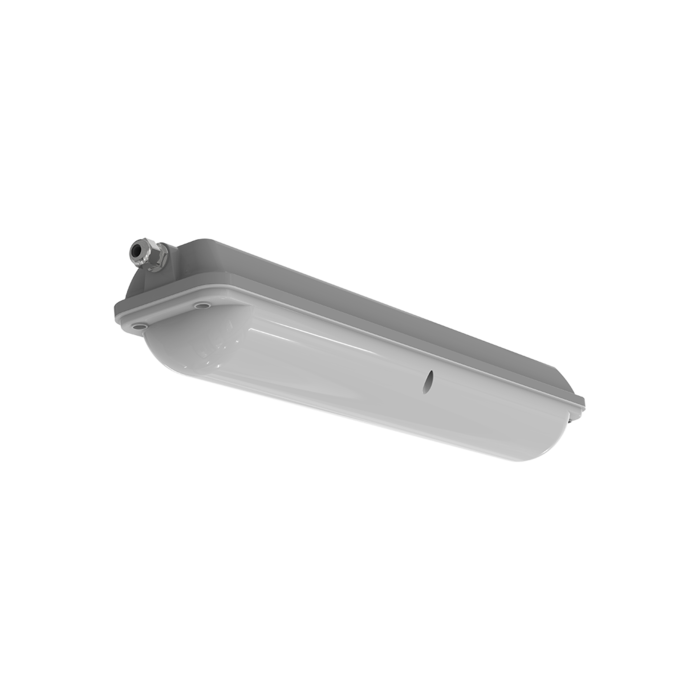

      		Model No. SL9723/20TC/MP/EM Add to Enquiry Add Remove Remove Input Voltage 240 CCT 3000/4000/5700 Lumens 2300/2500/2400 Multiple Wattage 12/15/18/21 Body Colour GREY Dim 698(L) x 137(W) x 115(H)

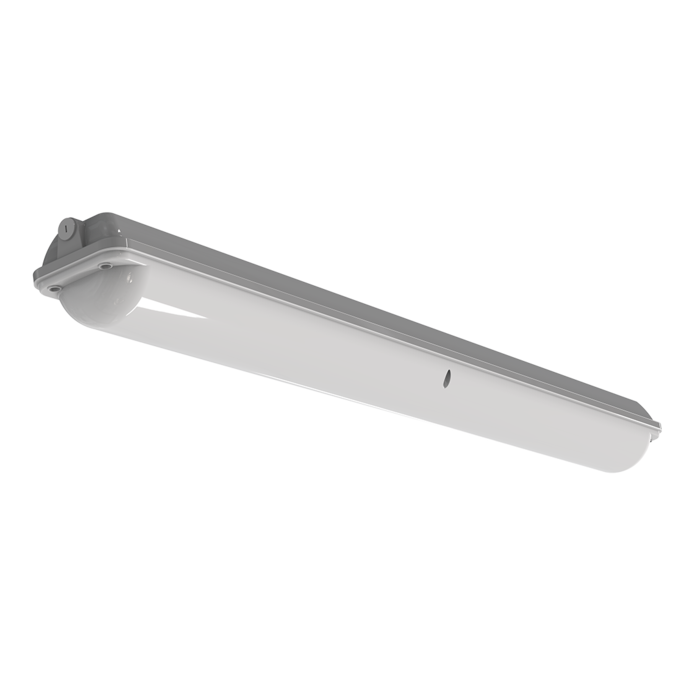

      		Model No. SL9723/40TC/MP/EM Add to Enquiry Add Remove Remove Input Voltage 240 CCT 3000/4000/5700 Lumens 4600/5000/4800 Multiple Wattage 24/30/35/40 Body Colour GREY Dim 1306(L) x 137(W) x 115(H)
      		Model No. SL9723TP/SCREW Add to Enquiry Add Remove Remove Body Colour M6 304 STAINLESS STEEL Dim 137(W)

      Lumens (lm) shown are displayed at FULL power, for switched lumen values, refer installation instructions

    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
