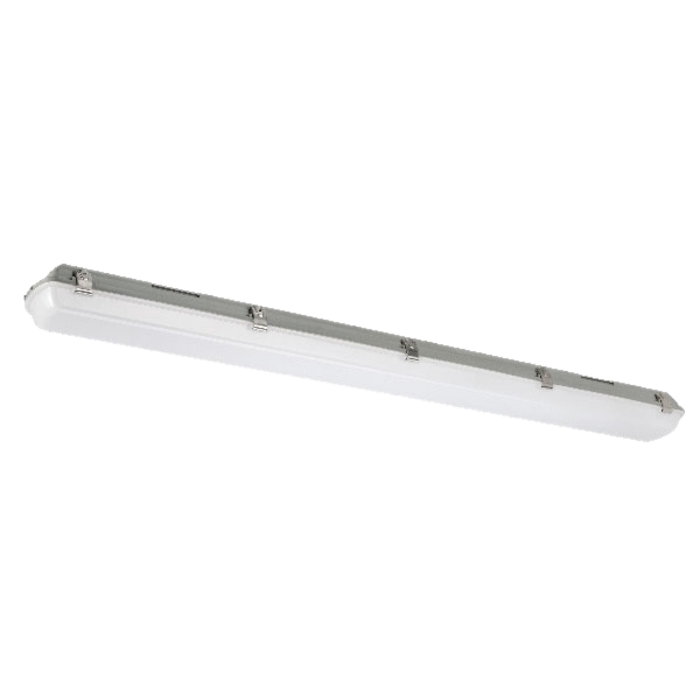

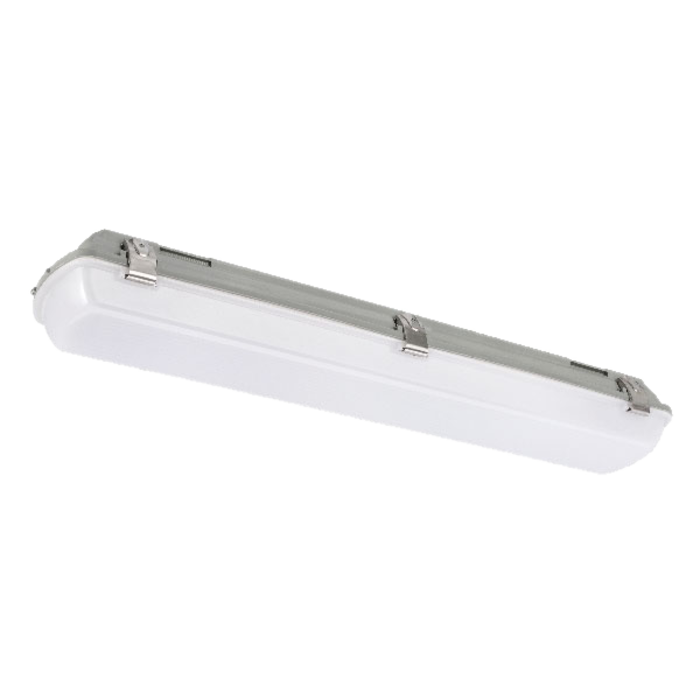

KEW SL9721/EM - 20/35W

MAINTAINED OR NON-MAINTAINED, LED emergency weatherproof batten, 20 or 35 watt models, IK08, IP65

Application

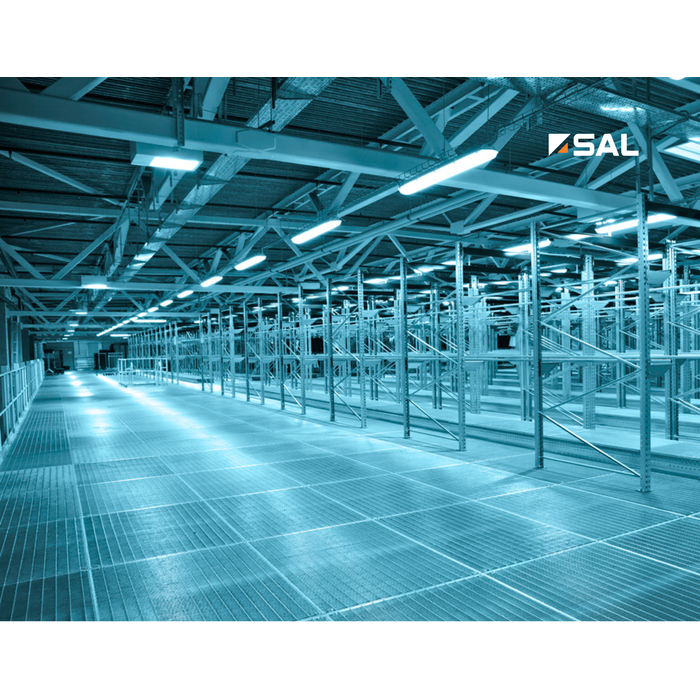

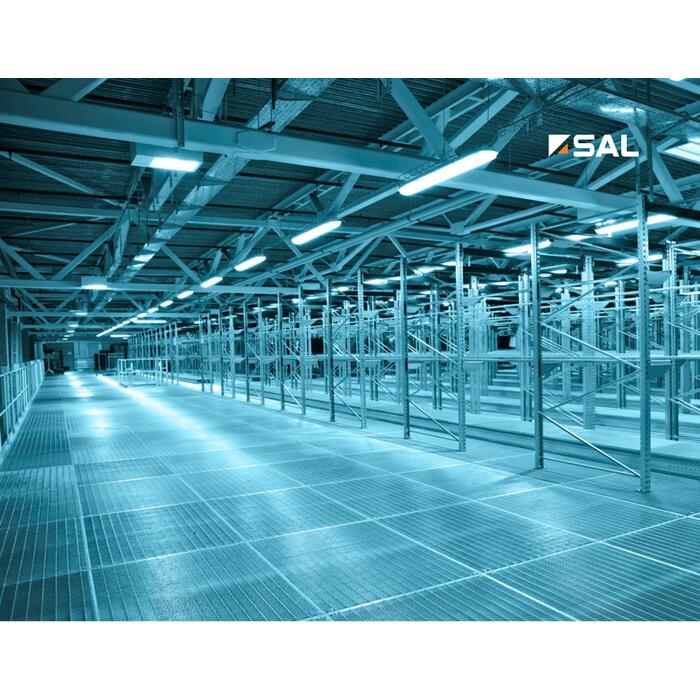

Multi-purpose, ceiling or suspension mount commercial or industrial applications

Design Specifications

  • Vandal resistant design, robust polycarbonate body and UV stabilized polycarbonate diffuser and body, stainless steel clips, brackets and screws, IP65 / IK08

  • Integral non-dimmable LED driver

  • Optional (non-dim) corridorSTANDBY function available for 35 watt EM

  • Compliant to AS/NZS2293 Emergency Lighting & Exit Signs, guaranteed minimum 90 minutes emergency mode function with LiFePO4 battery technology

  • Emergency spacing class -
    (SL9721/20EM) D50@C0, D32@C90,
    (SL9721/35EM) D63@C0, D32@C90.

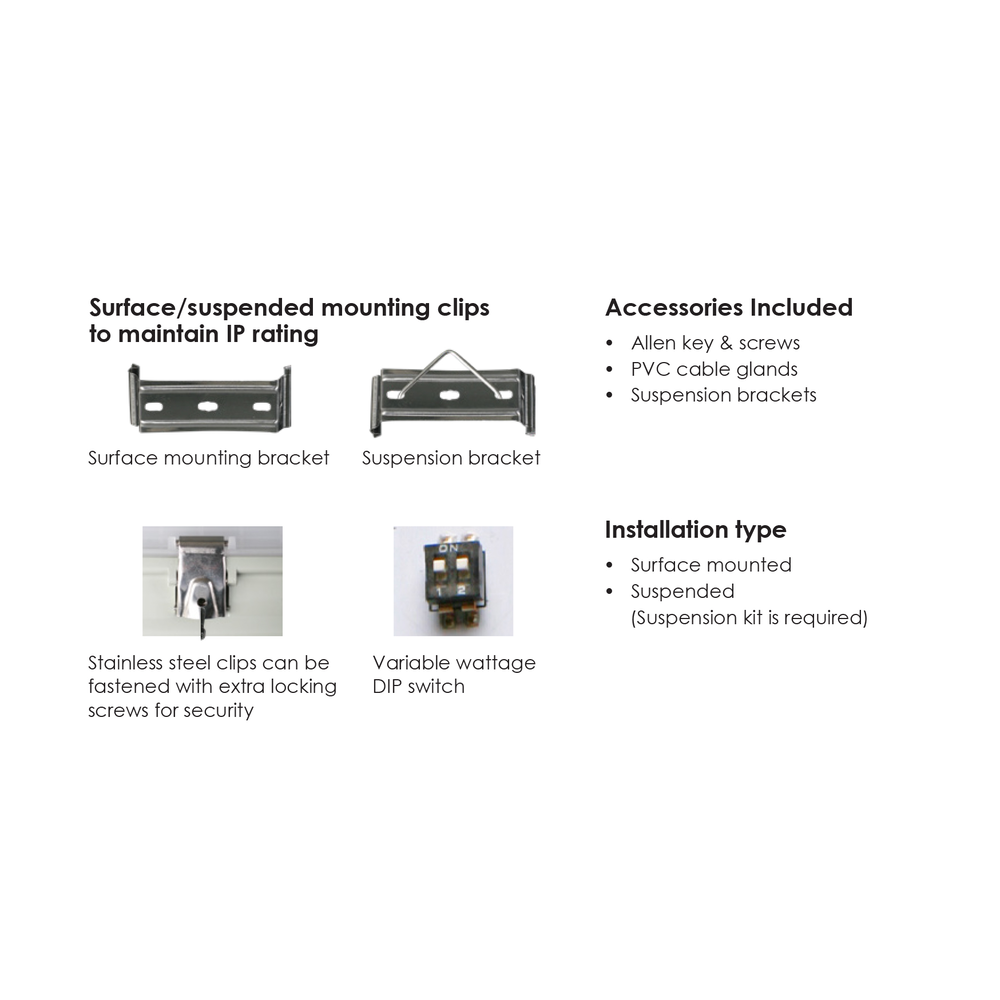

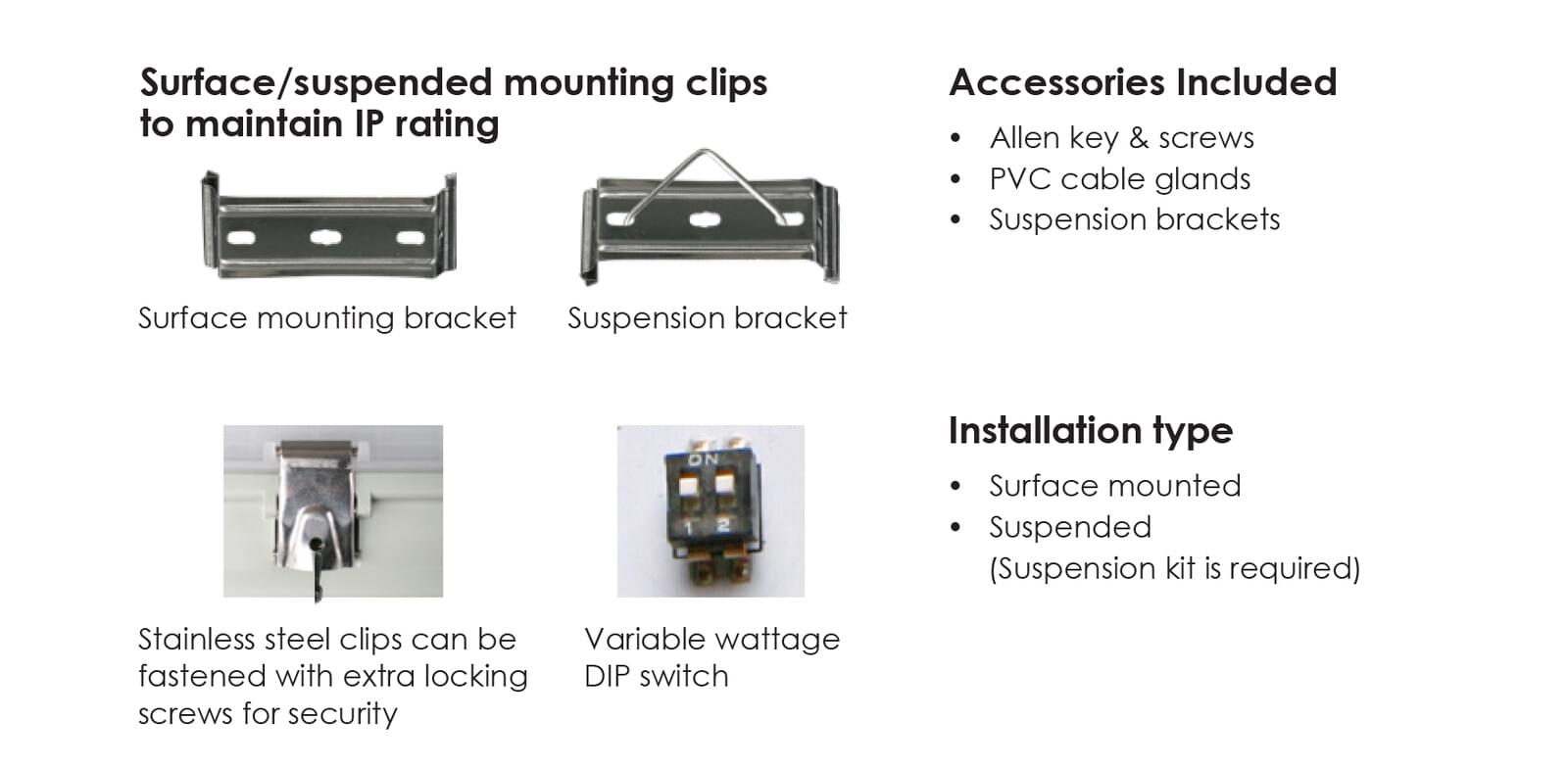

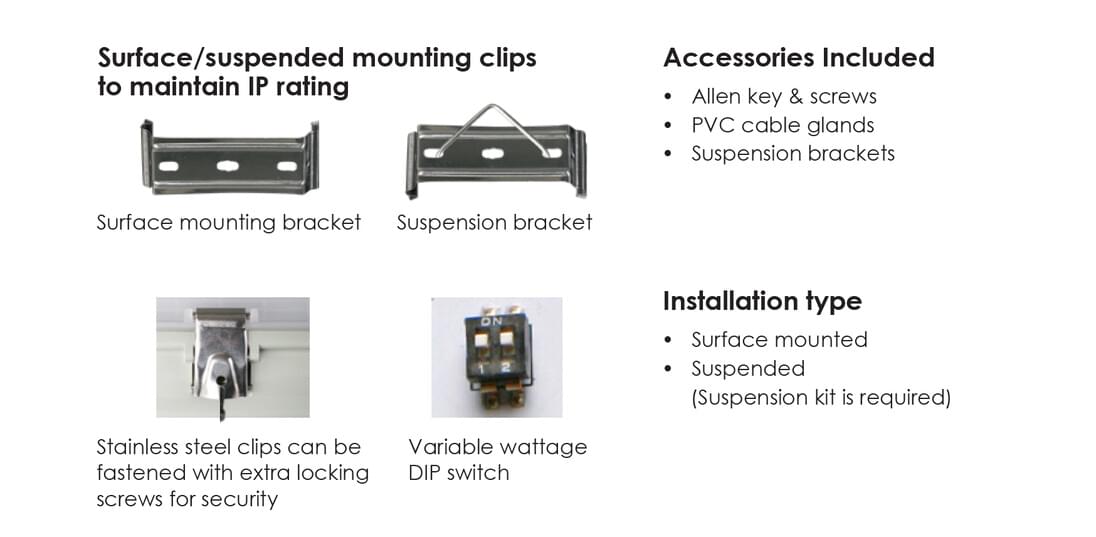

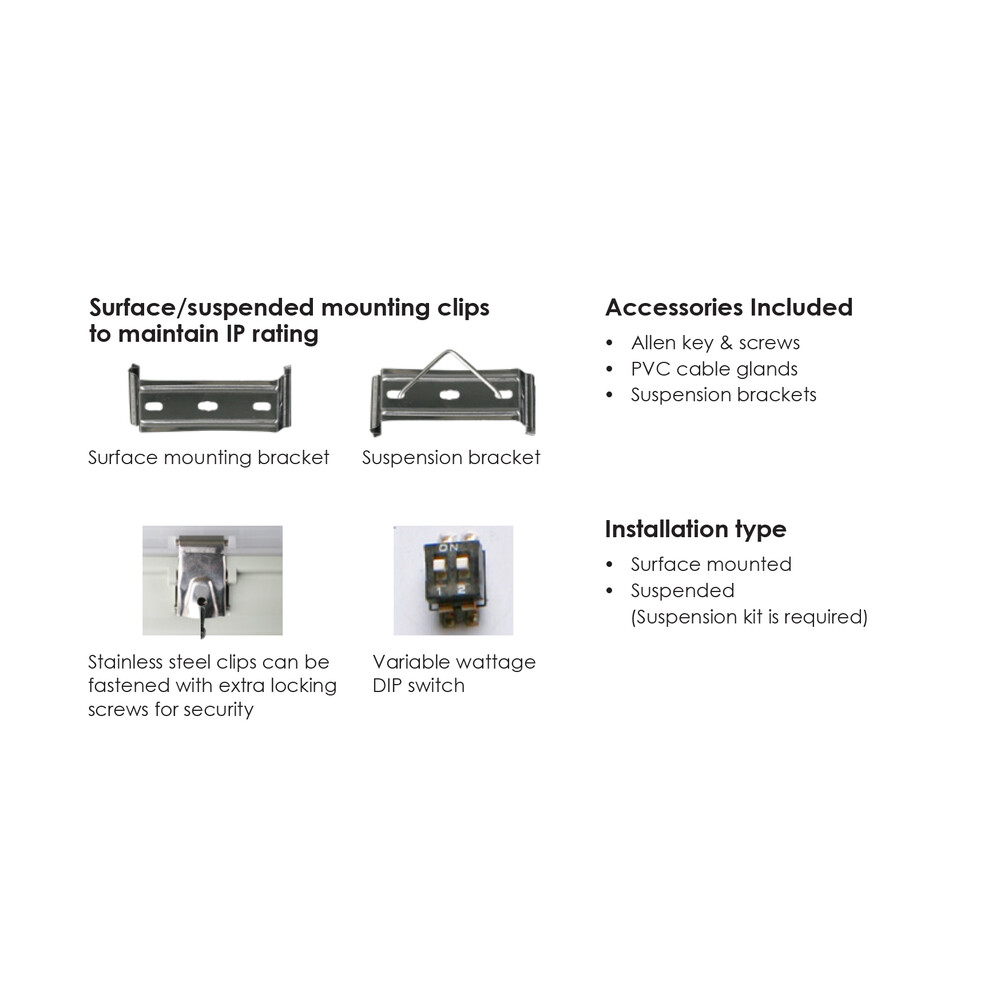

  • Accessories included - PVC cable glands and suspension brackets. Installation types - Surface mount (standard) or if Suspended (a suspension kit is required).

Performance

  • Dimmable - NO
  • WARM WHITE3000K
  • NEUTRAL DAYLIGHT5000K
  • Dimensions - Wiring Diagrams
  • Design Options

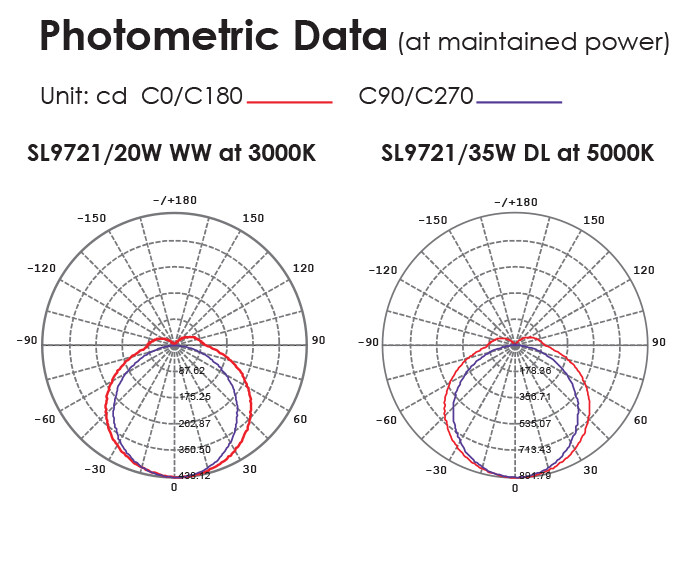

  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power CCT Body Colour Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SL9721/20EM Input Voltage240 Power20 CCT3000/5000 Body ColourGREY Dim618(L) x 116(W) x 74(H) Add to Enquiry Add Remove Remove
    Model No.SL9721/35EM Input Voltage240 Power35 CCT3000/5000 Body ColourGREY Dim1218(L) x 116(W) x 74(H) Add to Enquiry Add Remove Remove

    Important notes: (1) In the interest of transport and safety, emergency products are supplied with the battery disconnected. (2) In addition to specific emergency commissioning instructions, the battery MUST be connected at the time of installation. (3) Continual use in emergency mode greater than 240 hours without recharge, will result in battery failure and void battery warranty.
