• EMERGENCY

SOL SL9726TC/EM - 20/50W

MAINTAINED OR NON-MAINTAINED, premium, IP65 LED weatherproof batten with selectable CCT and power

Application

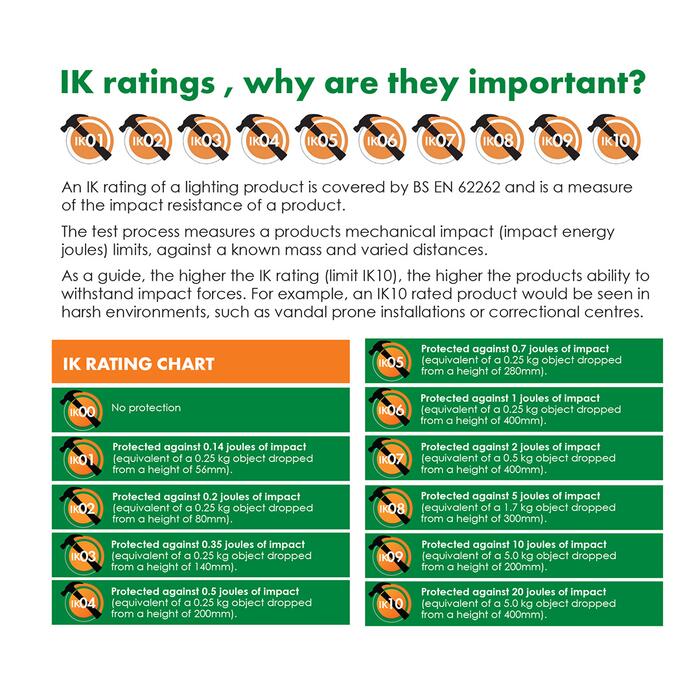

Commercial or industrial utility applications requiring IP65 and IK08 performance

Design Specifications

  • Selectable power and CCT 3000/4000/6000K

  • Vandal resistant design, robust PC body, UV stabilized polycarbonate diffuser, fitted stainless steel clips & screws

  • Integral non-dimmable LED driver

  • Optional (non-dim) corridorSTANDBY function available for 40 watt EM

  • Compliant to AS/NZS2293 Emergency Lighting & Exit Signs, guaranteed minimum 90 minutes emergency mode function with LiFePO4 battery technology. Emergency classification (20w) D32@C0, D25@C90, (40w) D40@C0, D40@C90, (50w) D50@C0, D40@C90

  • Accessories included - PVC cable glands and suspension brackets. Installation types - Surface mount (standard) or if Suspended (a suspension kit is required). DALI option available.

  • Dimensions - Wiring Diagrams
  • Design Options

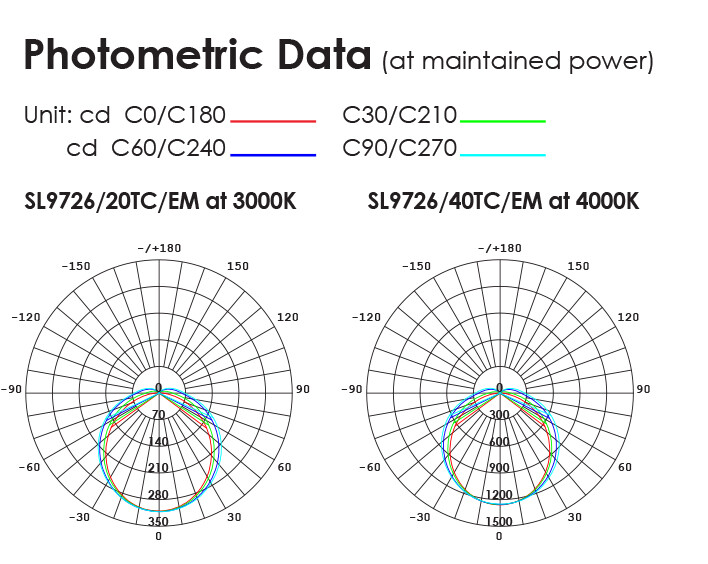

  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Lumens Multiple Wattage IPART VEET Body Colour Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SL9726/20TC/EM Input Voltage240 Lumens2040/2300/2200 Multiple Wattage10/20 IPARTYES VEETYES Body ColourGREY Dim642(L) x 118(W) x 77(H) Add to Enquiry Add Remove Remove
    Model No.SL9726/40TC/EM Input Voltage240 Lumens4370/4990/4720 Multiple Wattage20/42 IPARTYES VEETYES Body ColourGREY Dim1251(L) x 118(W) x 77(H) Add to Enquiry Add Remove Remove
    Model No.SL9726/50TC/EM Input Voltage240 Lumens5480/6070/5920 Multiple Wattage30/50 IPART VEET Body ColourGREY Dim1551(L) x 118(W) x 77(H) Add to Enquiry Add Remove Remove

    Important notes: (1) Lumens (lm) shown are at full rated power  (2) In the interest of transport and safety, emergency products are supplied with the battery disconnected. (3) In addition to specific emergency commissioning instructions, the battery MUST be connected at the time of installation. (4) Continual use in emergency mode greater than 240 hours without recharge, will result in battery failure and void battery warranty.

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
