• FLOODLIGHTS

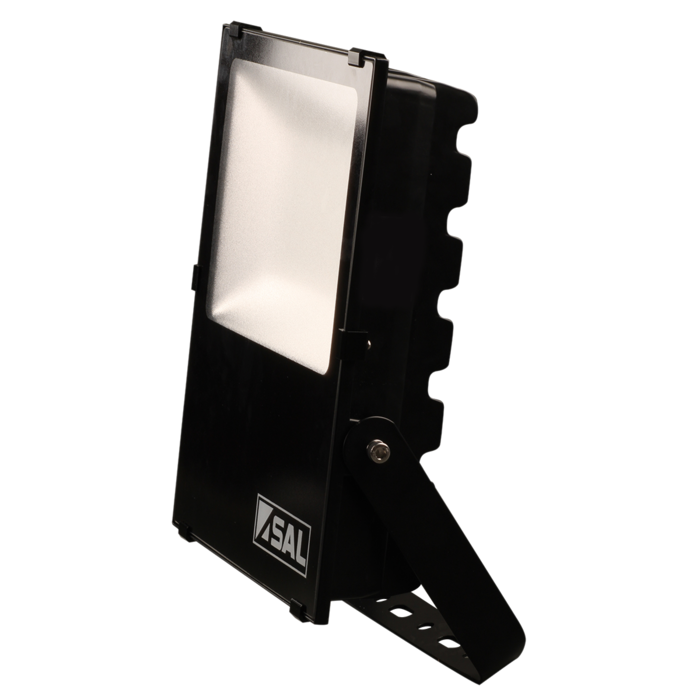

BRIGHTSTAR SE7199 - 20/250W

IP65 LED multi-purpose and multi-wattage floodlight range, IK07(20-50) IK08 (100-250)

Application

A versatile solution for residential and commercial exterior spaces

Design Specifications

  • Robust die-cast aluminium body

  • Five (5) versatile body profiles ranging from 20 - 250 watts

  • Durable black powder coated finish

  • PC diffuser for 20, 30, 50W models, tempered glass cover 100, 200, 250W models

  • Beam distribution 100° (20/30/50watt), 110° (100/200/250 watt)

  • Versatile angled bracket for easy installation. Wired with 3 x core rubber flex for faster installation, 20/30/50 models 1m, 100/200 models 1.5m

Performance

  • Dimmable - NO
  • WARM WHITE3000K
  • NEUTRAL DAYLIGHT5000K

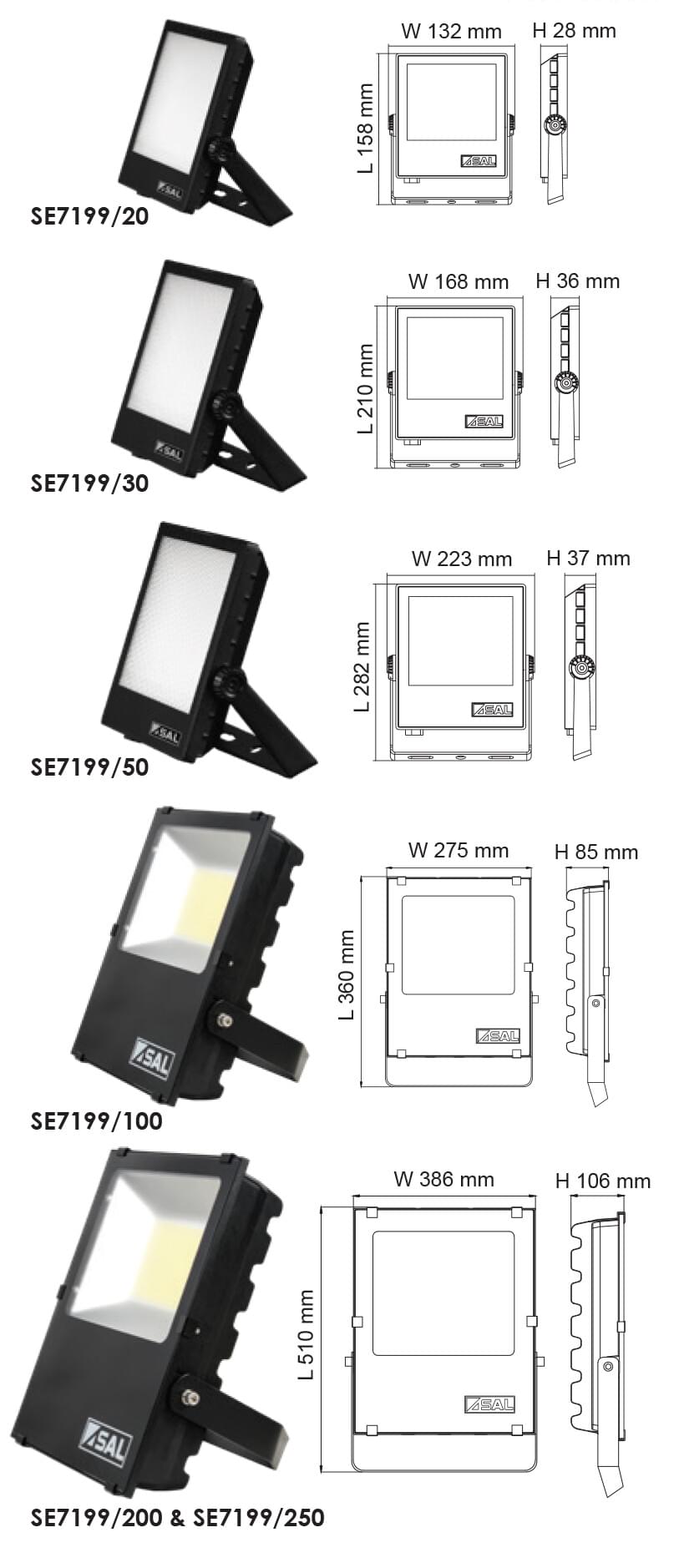

  • Dimensions - Wiring Diagrams
  • Design Options

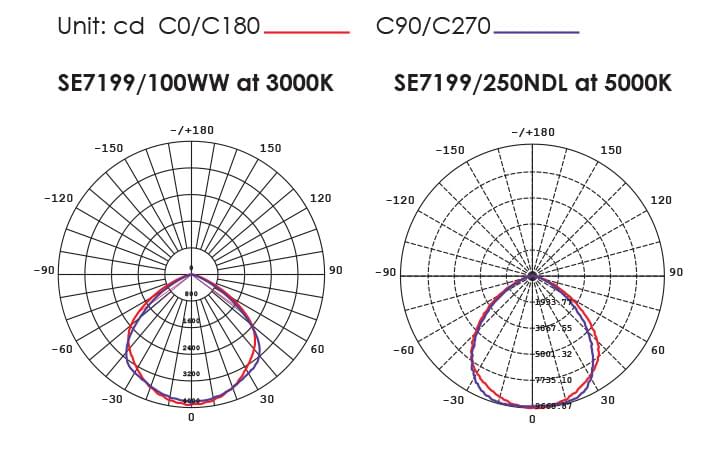

  • Photometric Data
  • FAQ
    • Where can I buy SAL products?

      Where can I buy SAL products?

      SAL distribute their products through authorised Australian Electrical Trade Wholesalers and Lighting Retailers. To find a store near you, simply follow this link and input your postcode, where the nearest location to you will be provided.

    • Does SAL have office locations nationally?

      Does SAL have office locations nationally?

      Yes, SAL has customer service centres in Brisbane, Sydney, Melbourne, Adelaide and Perth.

    • Is aiming orientation important for exterior products?

      Is aiming orientation important for exterior products?

      Absolutely, careful attention is required when installing exterior products to ensure the designated aiming orientation is correct and allows for the natural cleaning of debris/dust from the glass visor surface, in particular when aimed in an upward direction. Products aimed in an upward direction can result in a build-up of dirt on the glass visor, which in turn can thermally stress the product if it is not routinely cleaned. Any aiming restrictions can be found with the installation instructions located in the product carton and or on the relevant product web page.

    • What does IP stand for?

      What does IP stand for?

      IP (or Ingress and Protection) are an international standard reference which defines how well an electrical product seals itself against the intrusion of foreign bodies and moisture. The first digit I stands for intrusion of a solid object and the second digit P stands for the protection against moisture. In brief the higher the rating the more secure the product is against these elements.

      As a guide IP20 is suitable for basic interior spaces eg: office areas, where IP55 and above would be suitable for exterior equipment such as floodlights.

      For more information please refer to AS 60529.


    • What is an IK rating?

      What is an IK rating?

      An IK rating of a lighting product is covered by EN 62262 and is a measure of the impact resistance of a product. In brief the test process measures a products mechanical impact (impact energy joules) limits against a known mass and varied distances. As a guide the higher the IK rating (limit 10) the higher the products ability to withstand impact force.

      High IK rated products (IK10) would be seen used in environments such as vandal prone installations, prisons as a guide.


    • What is a ta rating?

      What is a ta rating?

      (thermal ambient) is the recommended maximum environmental thermal limit for the safe continued operation of an electrical device. The ta rating can be found on the rating label and installation sheet, which is located on the relevant product web page. Typically, you will find ta ratings of 25 degree C for Interior products, where ta ratings of up to 50 degree C can be found for exterior products. Operating products beyond their designed ta limit is not recommended as it will stress the product components beyond their rated limits, resulting in reduced product performance or premature failure.


    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Beam Angle Body Colour Dim Diameter Mass IPART VEET Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.SE7199/20WW/BK Input Voltage240 Power20 Lumens1400 CCT3000 CRI80 Beam Angle100 Body ColourBlack Dim158(L) x 132(W) x 28(H) Diameter Mass2.5 IPART VEET Add to Enquiry Add Remove Remove
    Model No.SE7199/20NDL/BK Input Voltage240 Power20 Lumens1600 CCT5000 CRI80 Beam Angle100 Body ColourBlack Dim158(L) x 132(W) x 28(H) Diameter Mass2.5 IPART VEET Add to Enquiry Add Remove Remove
    Model No.SE7199/30WW/BK Input Voltage240 Power30 Lumens2100 CCT3000 CRI80 Beam Angle100 Body ColourBlack Dim210(L) x 168(W) x 36(H) Diameter Mass2.6 IPART VEET Add to Enquiry Add Remove Remove
    Model No.SE7199/30NDL/BK Input Voltage240 Power30 Lumens2400 CCT5000 CRI80 Beam Angle100 Body ColourBlack Dim210(L) x 168(W) x 36(H) Diameter Mass2.6 IPART VEET Add to Enquiry Add Remove Remove
    Model No.SE7199/50WW/BK Input Voltage240 Power50 Lumens3500 CCT3000 CRI80 Beam Angle100 Body ColourBlack Dim282(L) x 223(W) x 37(H) Diameter Mass3 IPART VEET Add to Enquiry Add Remove Remove
    Model No.SE7199/50NDL/BK Input Voltage240 Power50 Lumens4000 CCT5000 CRI80 Beam Angle100 Body ColourBlack Dim282(L) x 223(W) x 37(H) Diameter Mass3 IPART VEET Add to Enquiry Add Remove Remove
    Model No.SE7199/100WW/BK Input Voltage240 Power100 Lumens9500 CCT3000 CRI80 Beam Angle110 Body ColourBlack Dim360(L) x 275(W) x 85(H) Diameter Mass3.9 IPARTYES VEETYES Add to Enquiry Add Remove Remove
    Model No.SE7199/100NDL/BK Input Voltage240 Power100 Lumens9500 CCT5000 CRI80 Beam Angle100 Body ColourBlack Dim360(L) x 275(W) x 85(H) Diameter Mass3.9 IPARTYES VEETYES Add to Enquiry Add Remove Remove
    Model No.SE7199/200WW/BK Input Voltage240 Power200 Lumens19000 CCT3000 CRI80 Beam Angle110 Body ColourBlack Dim510(L) x 386(W) x 106(H) Diameter Mass8.1 IPARTYES VEETYES Add to Enquiry Add Remove Remove
    Model No.SE7199/200NDL/BK Input Voltage240 Power200 Lumens19000 CCT5000 CRI80 Beam Angle110 Body ColourBlack Dim510(L) x 386(W) x 106(H) Diameter Mass8.1 IPARTYES VEETYES Add to Enquiry Add Remove Remove
    Model No.SE7199/250WW/BK Input Voltage240 Power250 Lumens22800 CCT3000 CRI80 Beam Angle100 Body ColourBlack Dim510(L) x 386(W) x 106(H) Diameter Mass8.2 IPARTYES VEETYES Add to Enquiry Add Remove Remove
    Model No.SE7199/250NDL/BK Input Voltage240 Power250 Lumens22800 CCT5000 CRI80 Beam Angle100 Body ColourBlack Dim510(L) x 386(W) x 106(H) Diameter Mass8.2 IPARTYES VEETYES Add to Enquiry Add Remove Remove
    Model No.SE7099PMB/BK Input Voltage Power Lumens CCT CRI Beam Angle Body ColourBlack Dim62(W) x 200(H) Diameter62 Mass IPART VEET Add to Enquiry Add Remove Remove
    Model No.SE7099AMB/BK5 Input Voltage Power Lumens CCT CRI Beam Angle Body ColourBlack Dim500(L) x 71(W) x 71(H) Diameter71 Mass IPART VEET Add to Enquiry Add Remove Remove
    Model No.SE7099AMB/BK8 Input Voltage Power Lumens CCT CRI Beam Angle Body ColourBlack Dim800(L) x 71(W) x 71(H) Diameter71 Mass IPART VEET Add to Enquiry Add Remove Remove
    Model No.SE7099AMB/BK10 Input Voltage Power Lumens CCT CRI Beam Angle Body ColourBlack Dim1000(L) x 71(W) x 71(H) Diameter71 Mass IPART VEET Add to Enquiry Add Remove Remove

    (1) Minimum order quantity applies for 3000K 100-250watt models.  (2) Sustainable program approvals (VEET, IPART, REES) are valid only for 100w, 200w and 250w models.

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
