• FLOODLIGHTS

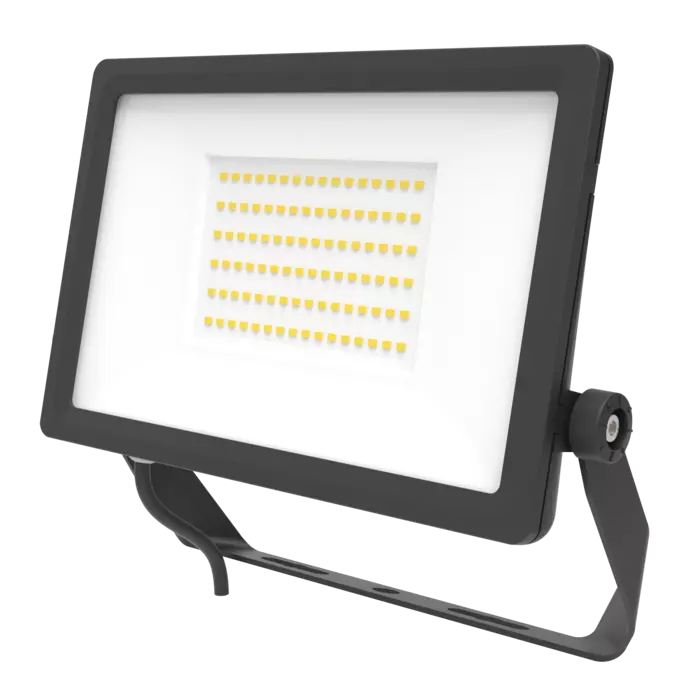

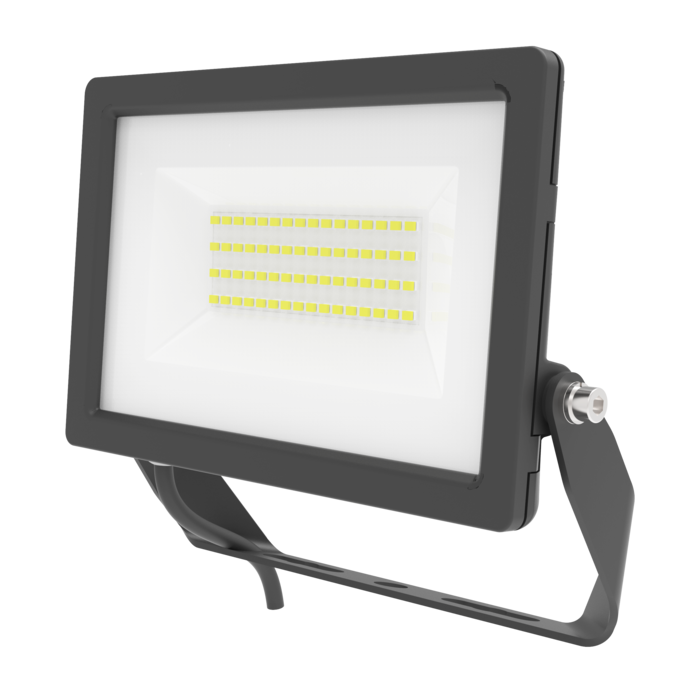

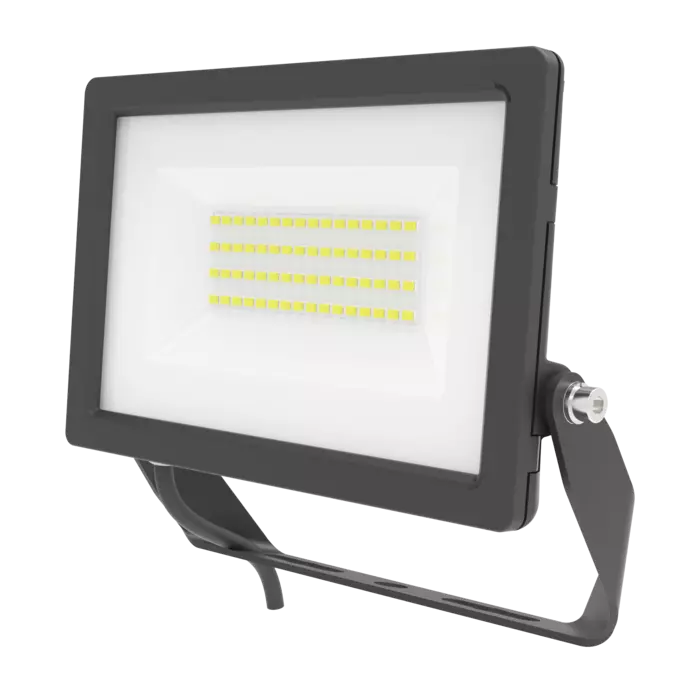

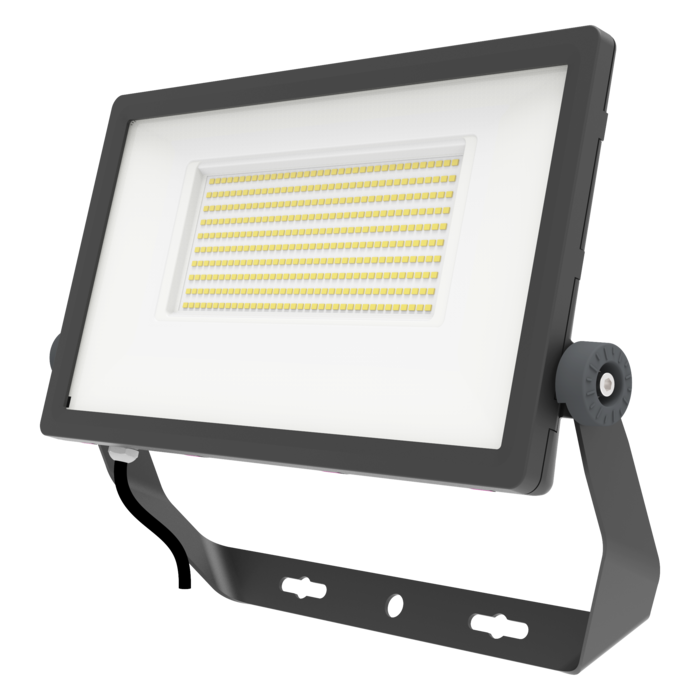

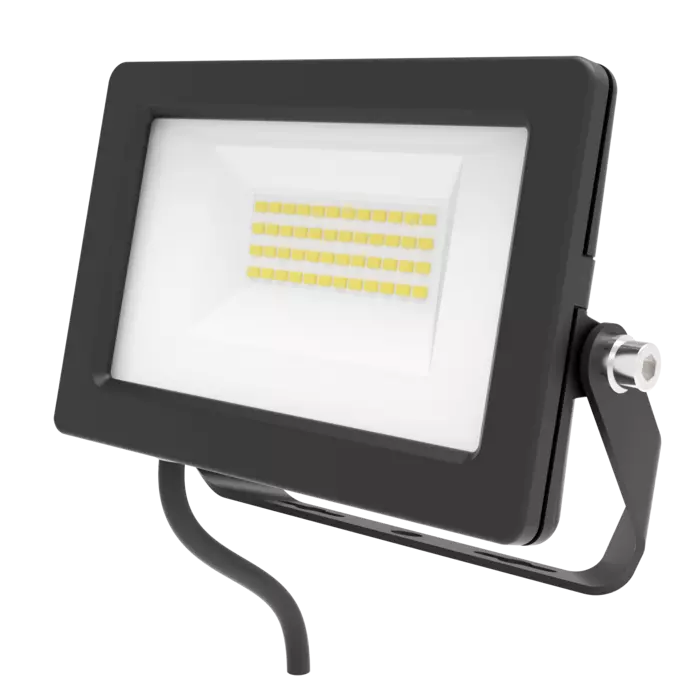

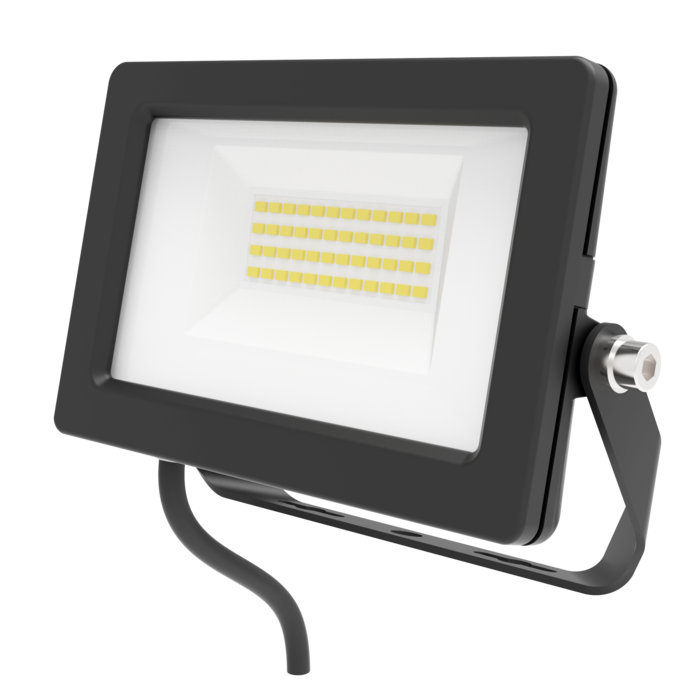

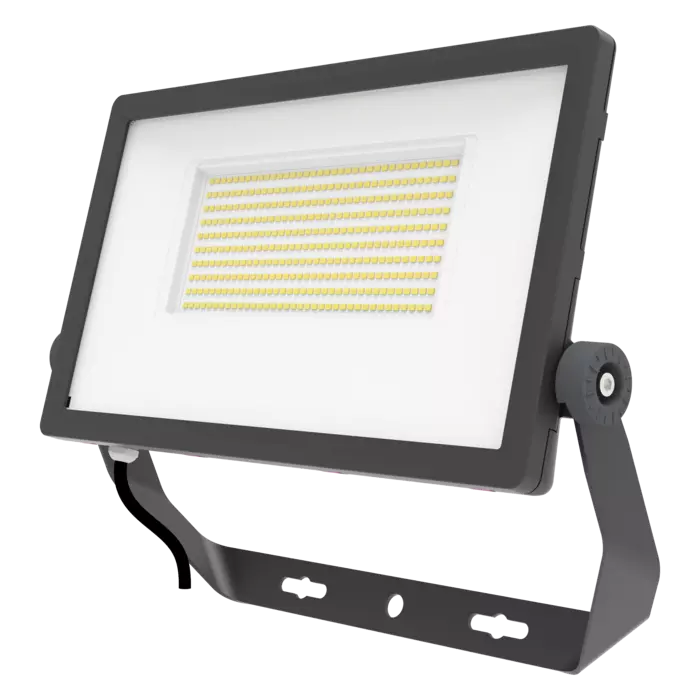

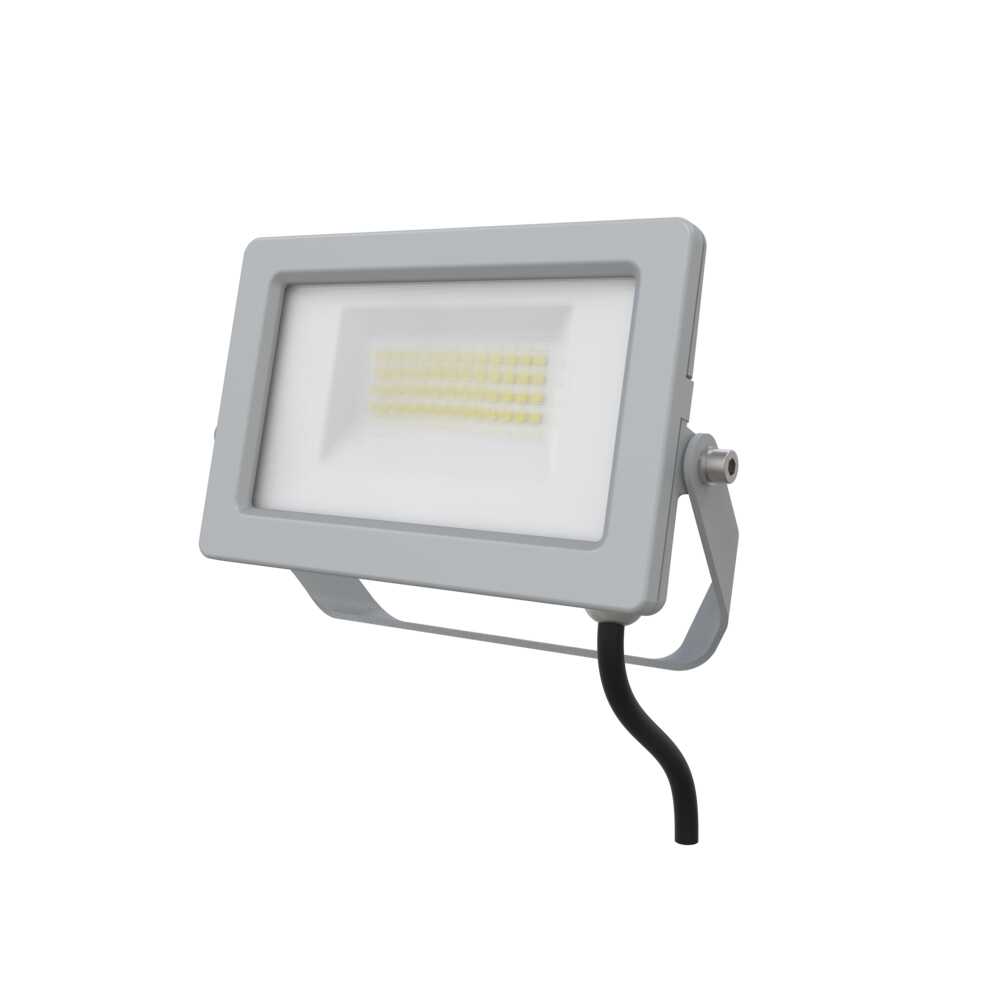

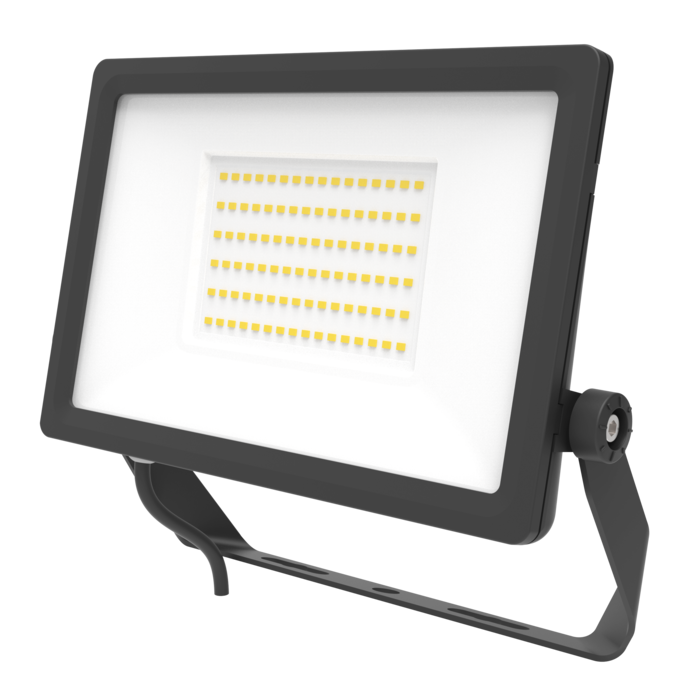

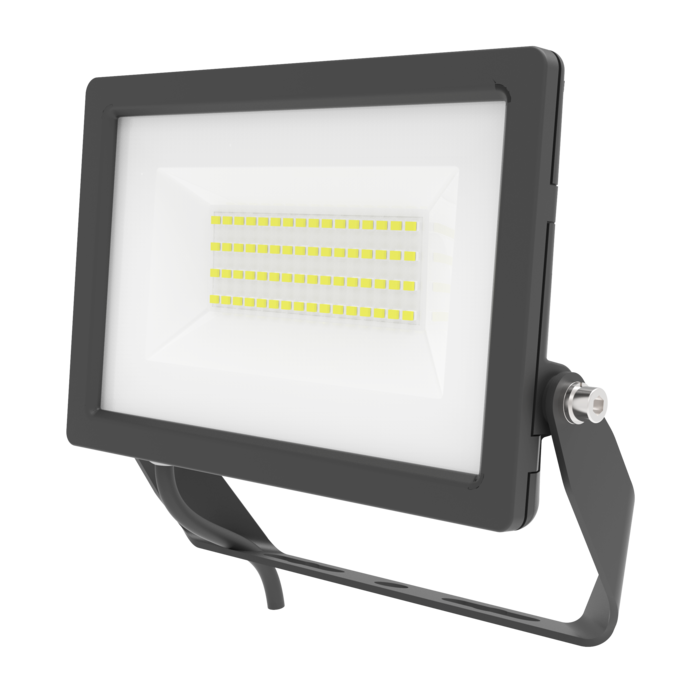

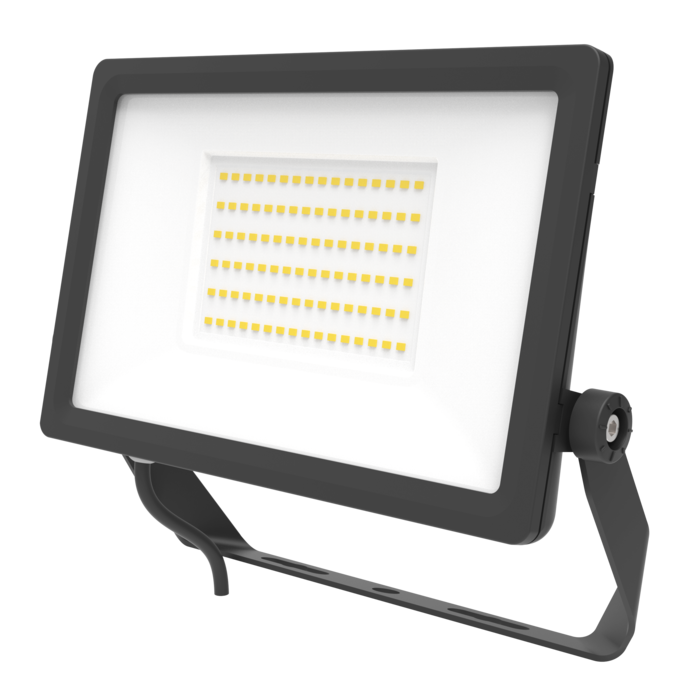

STARPAD II SE7071TC2 - 15/100W

15/100 watt IP65 LED floodlight with selectable CCT

Application

A versatile floodlight solution for residential and commercial exterior spaces

Design Specifications

  • Robust die-cast aluminium body, IK 07 rated

  • Durable black, silver or white powder coated finish

  • Textured, tempered glass front cover

  • High efficiency LED optics, CRI >80, selectable CCT 3000K/4000K/5000K

  • Non-dimmable LED driver, high performance aluminium reflector, beam distribution 110°

  • Nickel plated copper cable gland with 600 mm 3 core rubber flex (15-30 watt models), 800mm for (50-100 watt models)

Performance

  • Dimmable - NO
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ
    • Where can I buy SAL products?

      Where can I buy SAL products?

      SAL distribute their products through authorised Australian Electrical Trade Wholesalers and Lighting Retailers. To find a store near you, simply follow this link and input your postcode, where the nearest location to you will be provided.

    • Does SAL have office locations nationally?

      Does SAL have office locations nationally?

      Yes, SAL has customer service centres in Brisbane, Sydney, Melbourne, Adelaide and Perth.

    • Is aiming orientation important for exterior products?

      Is aiming orientation important for exterior products?

      Absolutely, careful attention is required when installing exterior products to ensure the designated aiming orientation is correct and allows for the natural cleaning of debris/dust from the glass visor surface, in particular when aimed in an upward direction. Products aimed in an upward direction can result in a build-up of dirt on the glass visor, which in turn can thermally stress the product if it is not routinely cleaned. Any aiming restrictions can be found with the installation instructions located in the product carton and or on the relevant product web page.

    • What does IP stand for?

      What does IP stand for?

      IP (or Ingress and Protection) are an international standard reference which defines how well an electrical product seals itself against the intrusion of foreign bodies and moisture. The first digit I stands for intrusion of a solid object and the second digit P stands for the protection against moisture. In brief the higher the rating the more secure the product is against these elements.

      As a guide IP20 is suitable for basic interior spaces eg: office areas, where IP55 and above would be suitable for exterior equipment such as floodlights.

      For more information please refer to AS 60529.


    • What is a ta rating?

      What is a ta rating?

      (thermal ambient) is the recommended maximum environmental thermal limit for the safe continued operation of an electrical device. The ta rating can be found on the rating label and installation sheet, which is located on the relevant product web page. Typically, you will find ta ratings of 25 degree C for Interior products, where ta ratings of up to 50 degree C can be found for exterior products. Operating products beyond their designed ta limit is not recommended as it will stress the product components beyond their rated limits, resulting in reduced product performance or premature failure.

    • What is an IK rating?

      What is an IK rating?

      An IK rating of a lighting product is covered by EN 62262 and is a measure of the impact resistance of a product. In brief the test process measures a products mechanical impact (impact energy joules) limits against a known mass and varied distances. As a guide the higher the IK rating (limit 10) the higher the products ability to withstand impact force.

      High IK rated products (IK10) would be seen used in environments such as vandal prone installations, prisons as a guide.



    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Beam Angle Body Colour Dim Mass IPART Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.SE7071/15TC2BK Input Voltage240 Power15 Lumens1575/1800/1650 CCT3000/4000/5000 CRI80 Beam Angle110 Body ColourBLACK Dim153(W) x 99(H) x 36(D) Mass0.54 IPART Add to Enquiry Add Remove Remove
    Model No.SE7071/15TC2SL Input Voltage240 Power15 Lumens1575/1800/1650 CCT3000/4000/5000 CRI80 Beam Angle110 Body ColourSILVER Dim153(W) x 99(H) x 36(D) Mass0.54 IPART Add to Enquiry Add Remove Remove
    Model No.SE7071/15TC2WH Input Voltage240 Power15 Lumens1575/1800/1650 CCT3000/4000/5000 CRI80 Beam Angle110 Body ColourWHITE Dim153(W) x 99(H) x 36(D) Mass0.54 IPART Add to Enquiry Add Remove Remove
    Model No.SE7071/30TC2BK Input Voltage240 Power30 Lumens3150/3600/3300 CCT3000/4000/5000 CRI80 Beam Angle110 Body ColourBLACK Dim207(W) x 135(H) x 36(D) Mass0.84 IPART Add to Enquiry Add Remove Remove
    Model No.SE7071/30TC2SL Input Voltage240 Power30 Lumens3150/3600/3300 CCT3000/4000/5000 CRI80 Beam Angle110 Body ColourSILVER Dim207(W) x 135(H) x 36(D) Mass0.84 IPART Add to Enquiry Add Remove Remove
    Model No.SE7071/30TC2WH Input Voltage240 Power30 Lumens3150/3600/3300 CCT3000/4000/5000 CRI80 Beam Angle110 Body ColourWHITE Dim207(W) x 135(H) x 36(D) Mass0.84 IPART Add to Enquiry Add Remove Remove
    Model No.SE7071/50TC2BK Input Voltage240 Power50 Lumens5250/6000/5500 CCT3000/4000/5000 CRI80 Beam Angle110 Body ColourBLACK Dim261(W) x 171(H) x 39(D) Mass1.25 IPARTN/A Add to Enquiry Add Remove Remove
    Model No.SE7071/50TC2SL Input Voltage240 Power50 Lumens5250/6000/5500 CCT3000/4000/5000 CRI80 Beam Angle110 Body ColourSILVER Dim261(W) x 171(H) x 39(D) Mass1.25 IPARTN/A Add to Enquiry Add Remove Remove
    Model No.SE7071/50TC2WH Input Voltage240 Power50 Lumens5250/6000/5500 CCT3000/4000/5000 CRI80 Beam Angle110 Body ColourWHITE Dim261(W) x 171(H) x 39(D) Mass1.25 IPARTN/A Add to Enquiry Add Remove Remove
    Model No.SE7071/100TC2/BK Input Voltage240 Power100 Lumens10500/12000/11000 CCT3000/4000/5000 CRI80 Beam Angle110 Body ColourBLACK Dim343(W) x 200(H) x 42(D) Mass2.45 IPART Add to Enquiry Add Remove Remove
    Model No.SE7071/100TC2/SL Input Voltage240 Power100 Lumens10500/12000/11000 CCT3000/4000/5000 CRI80 Beam Angle110 Body ColourSILVER Dim343(W) x 200(H) x 42(D) Mass2.45 IPART Add to Enquiry Add Remove Remove
    Model No.SE7071/100TC2/WH Input Voltage240 Power100 Lumens10500/12000/11000 CCT3000/4000/5000 CRI80 Beam Angle110 Body ColourWHITE Dim343(W) x 200(H) x 42(D) Mass2.45 IPART Add to Enquiry Add Remove Remove

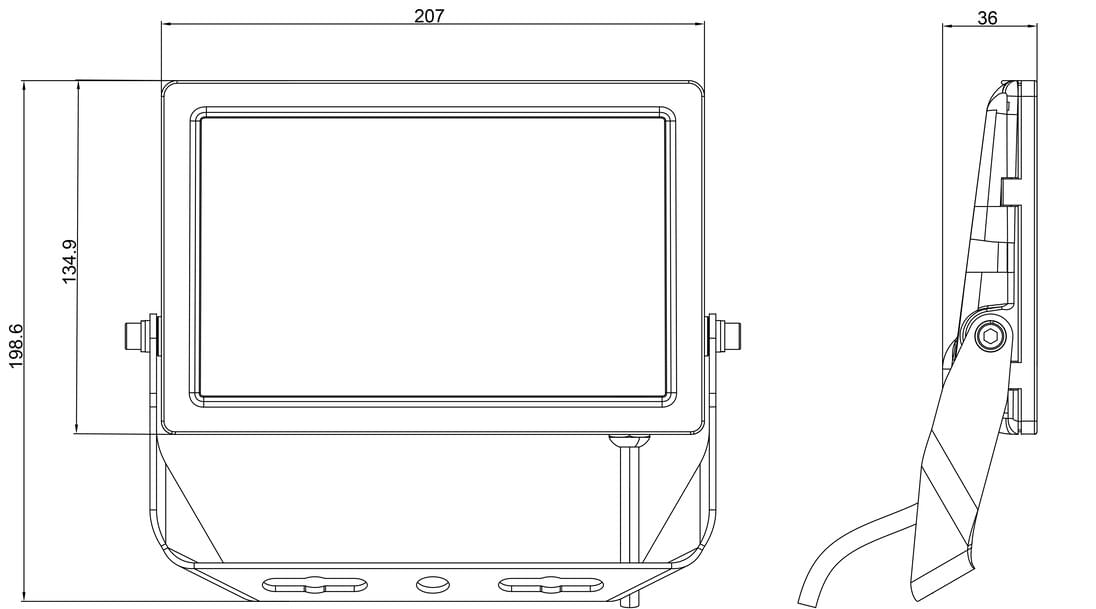

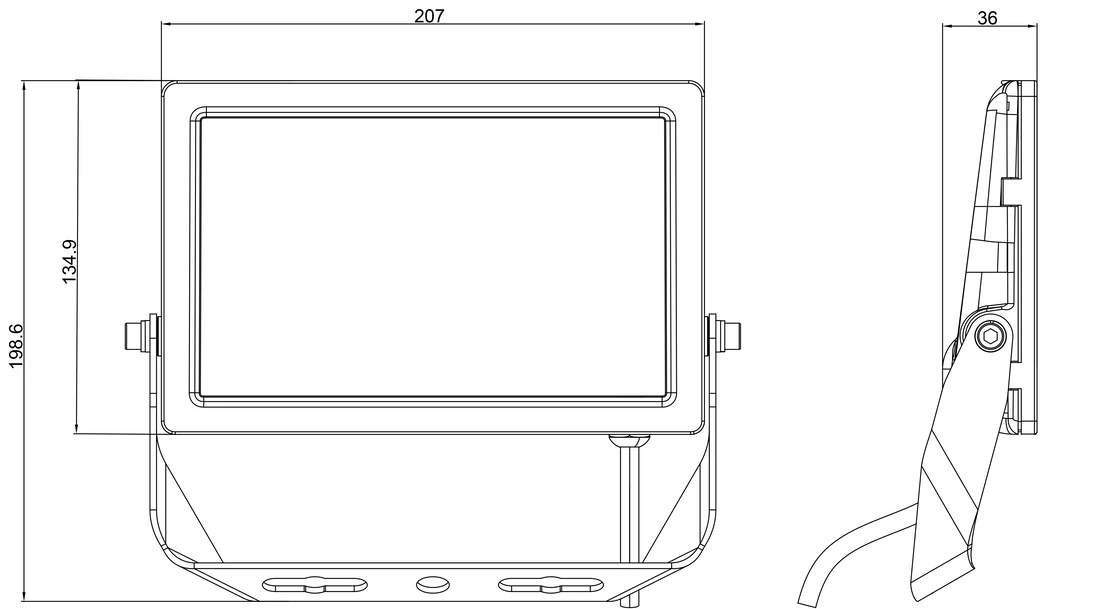

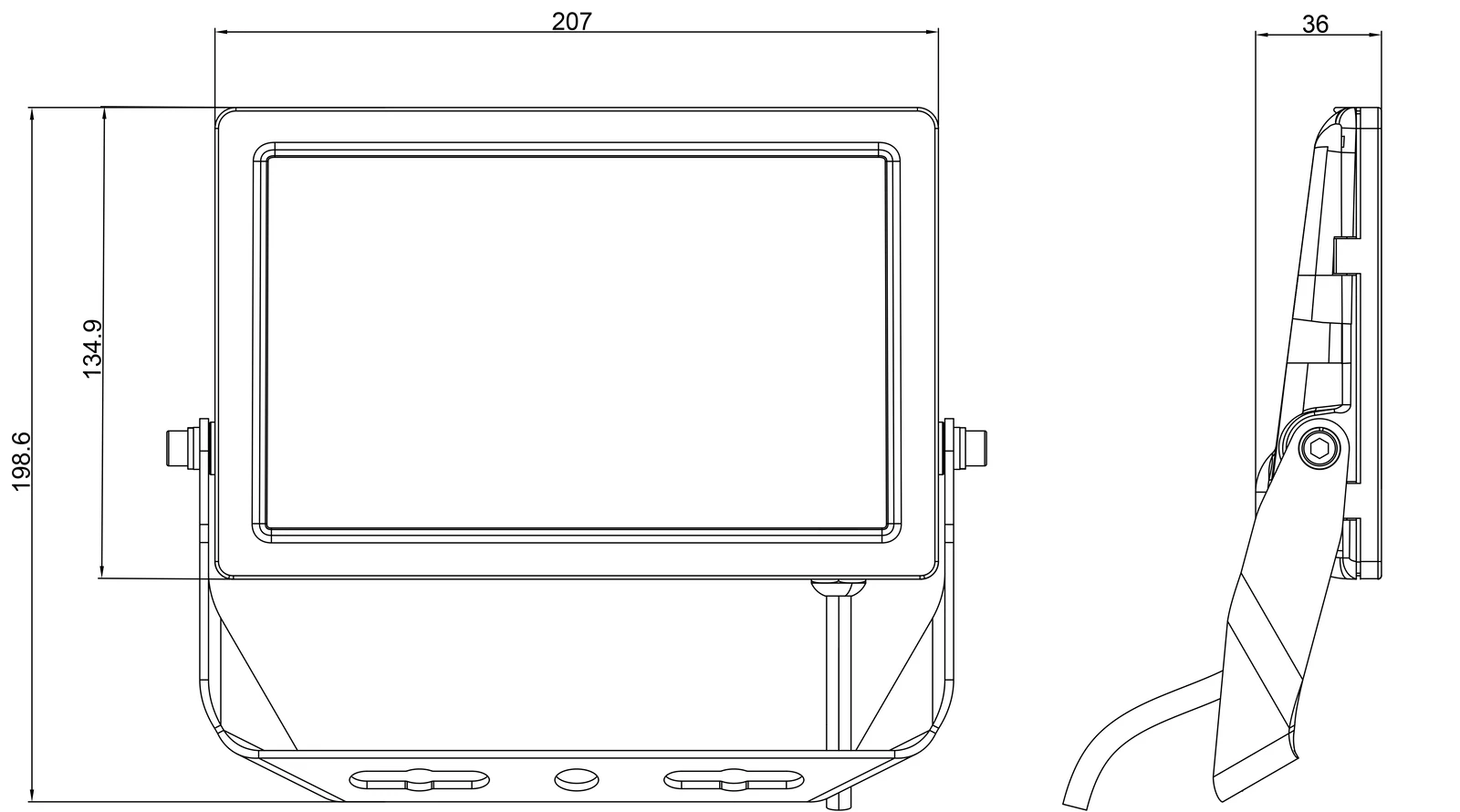

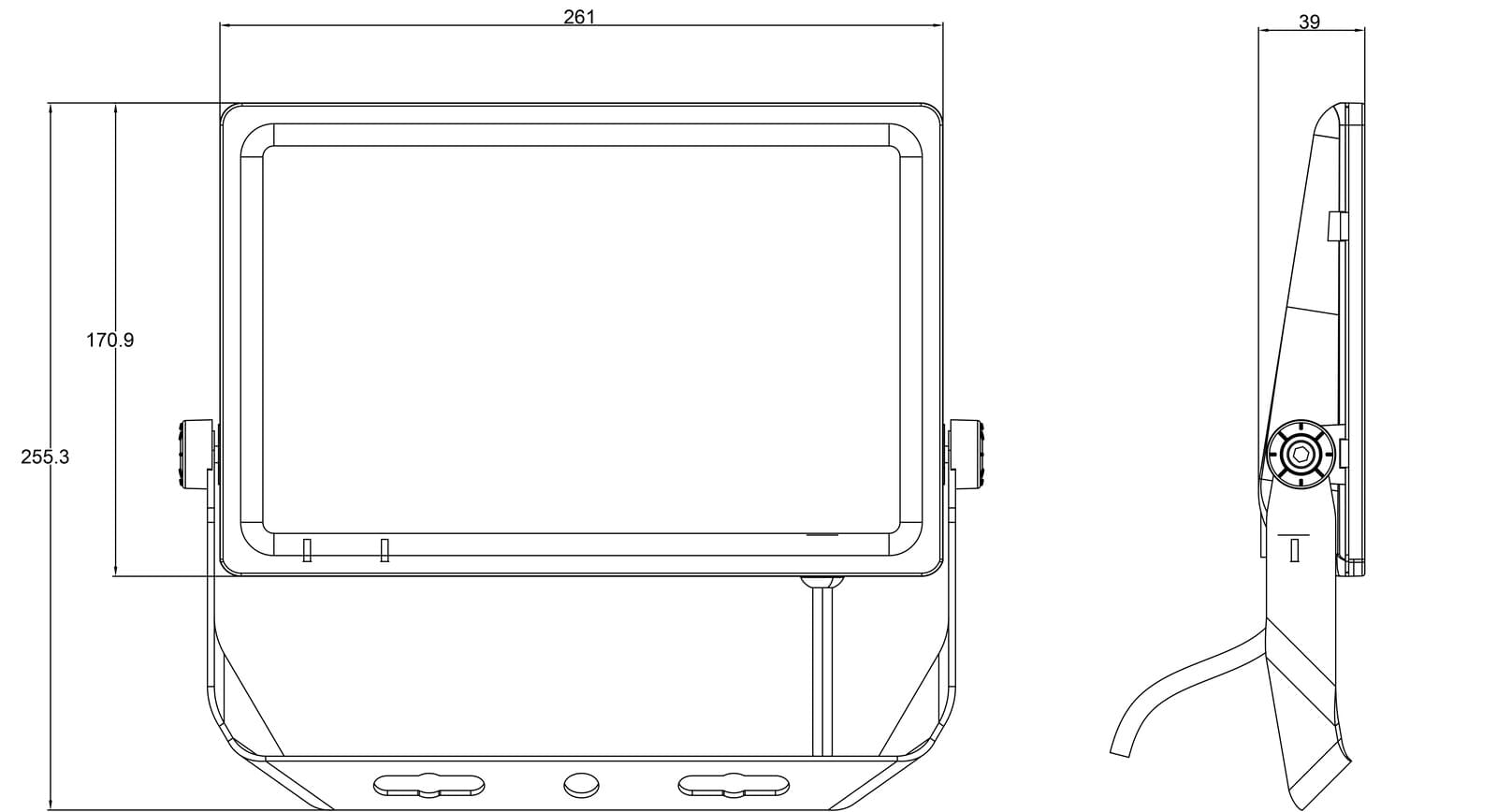

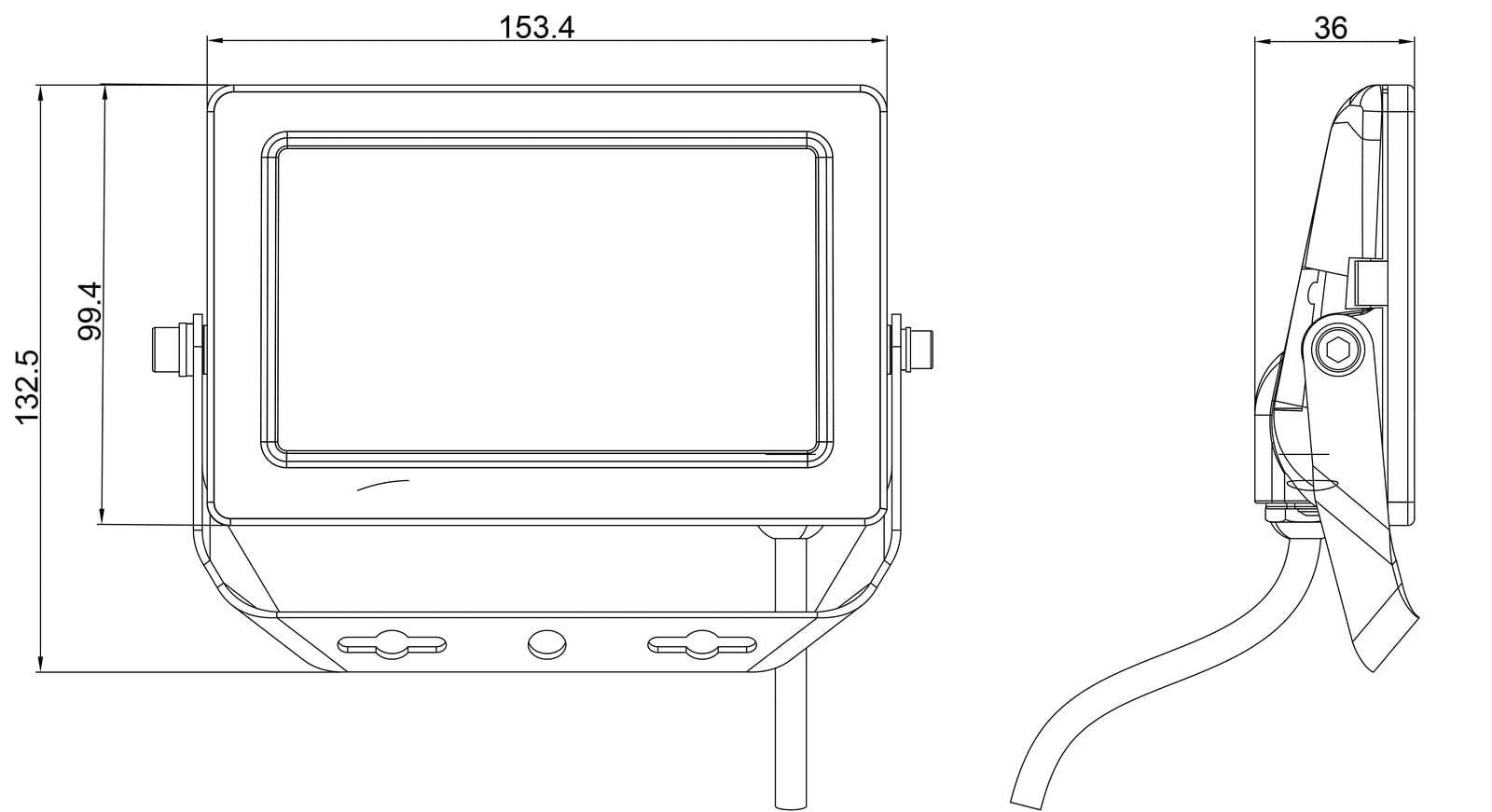

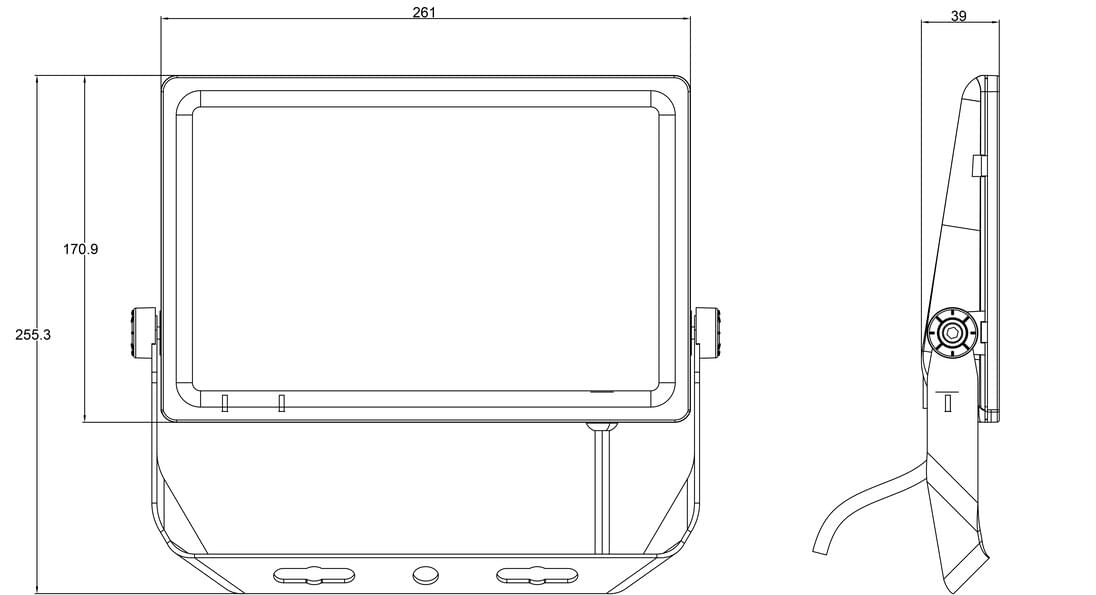

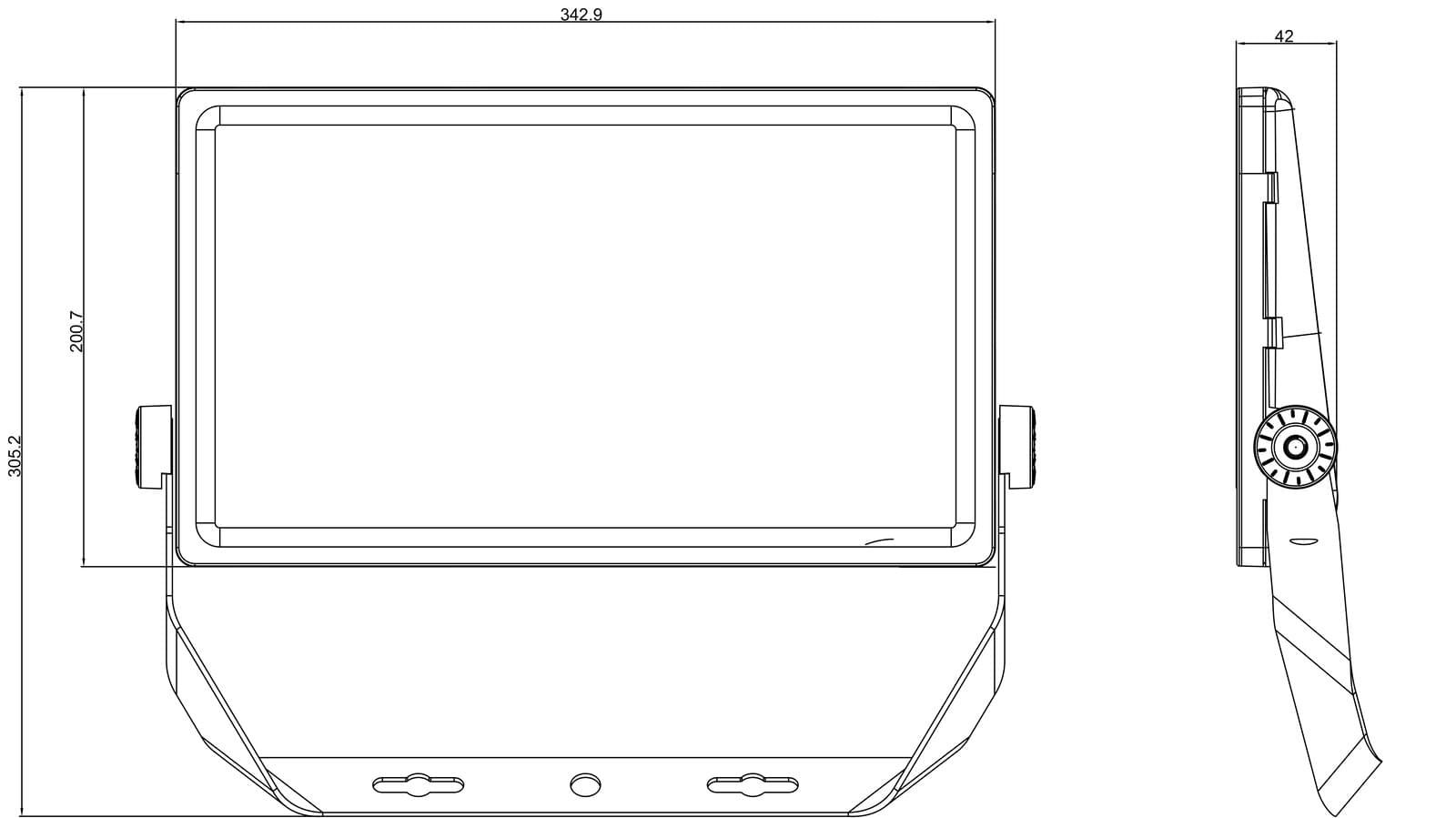

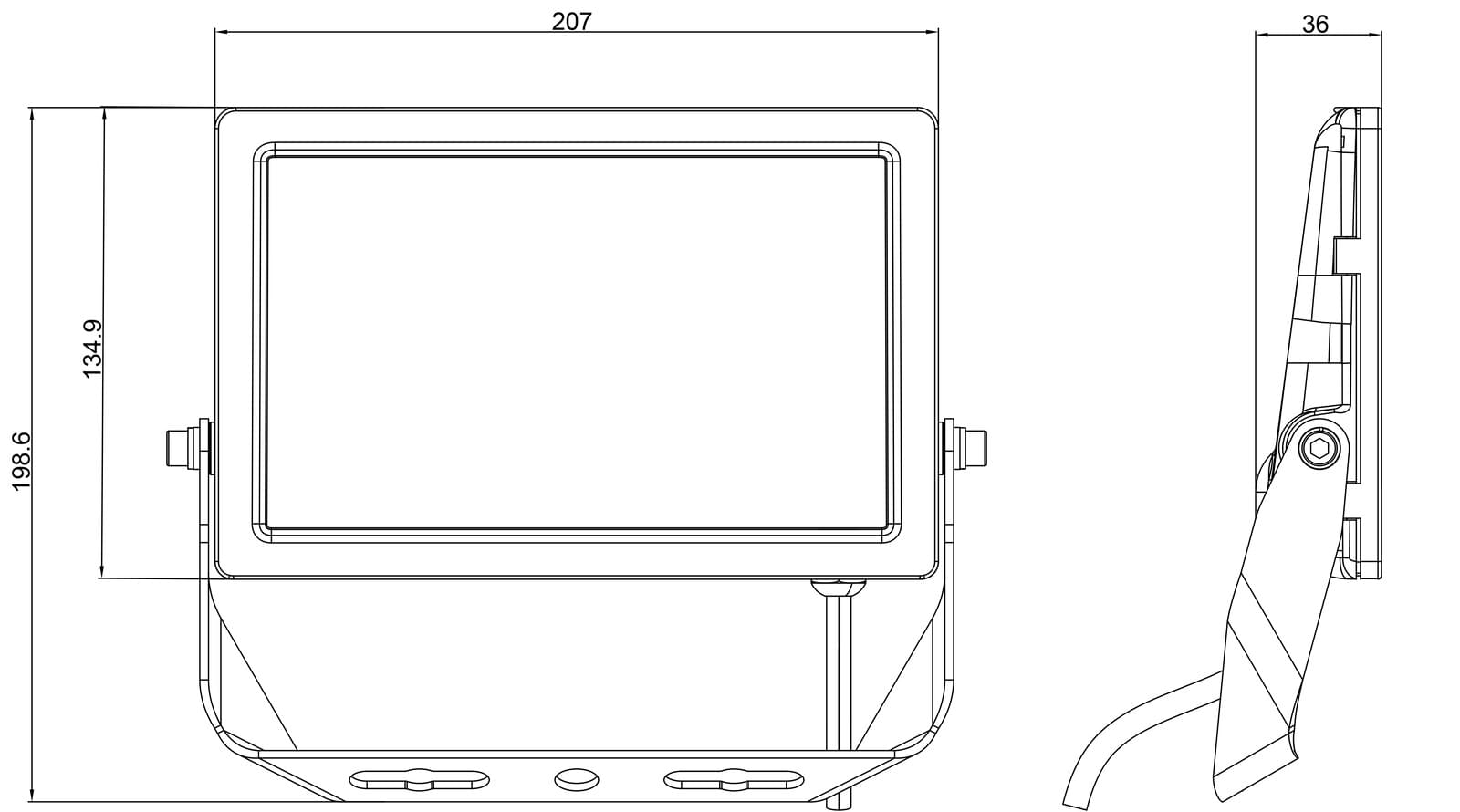

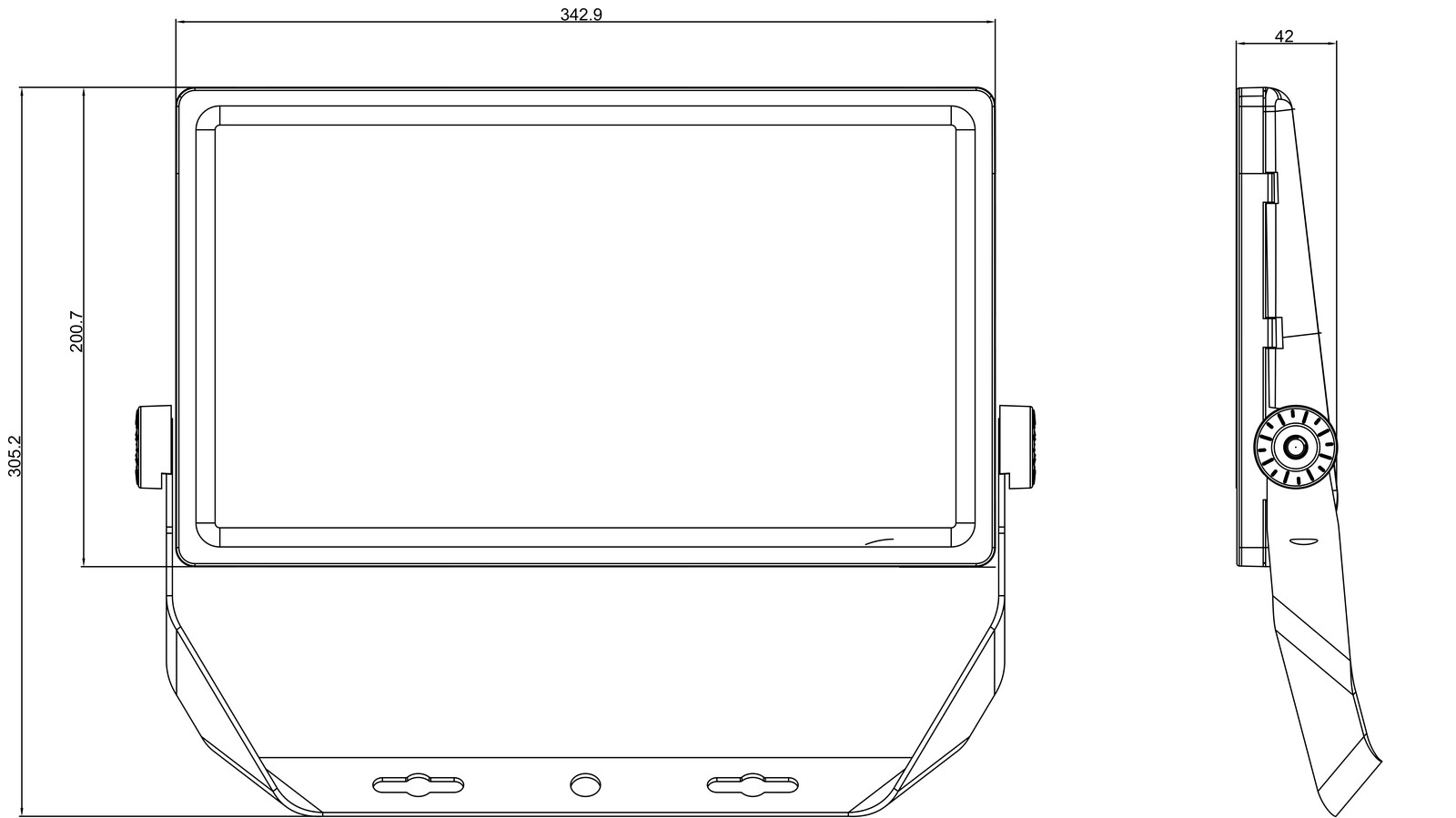

    NOTE: dimensions listed exclude trunnion assembly, refer to DIMENSION drawings for details.

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
