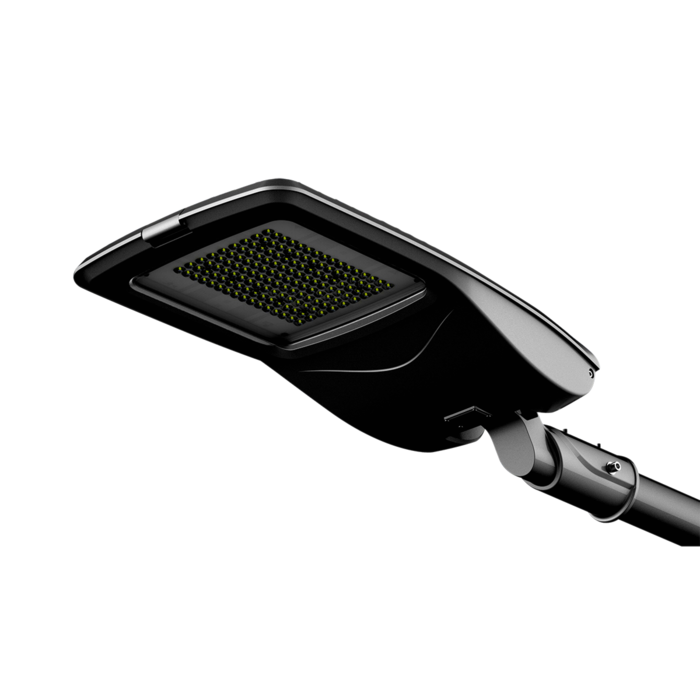

• LED STREETLIGHT

DRIVE SHP305 - 70/180W

70 - 180 watt, IP66 LED street luminaire, IK08 rated

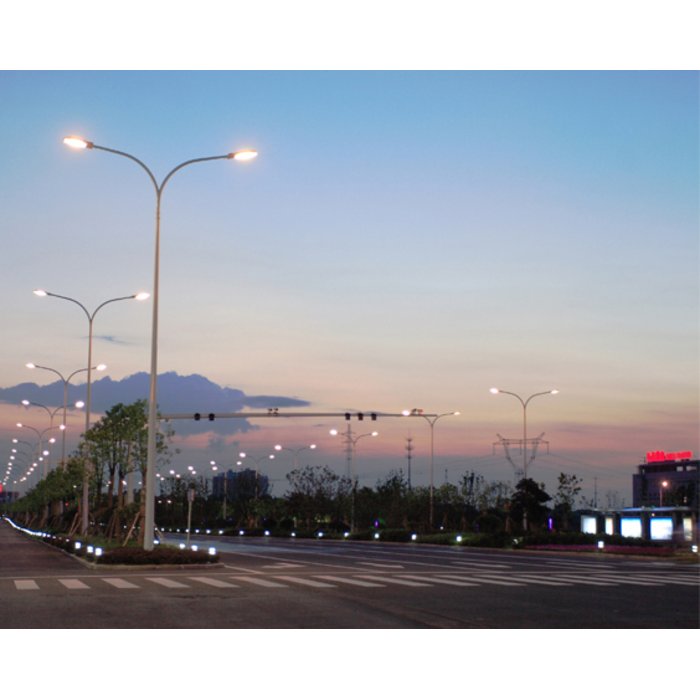

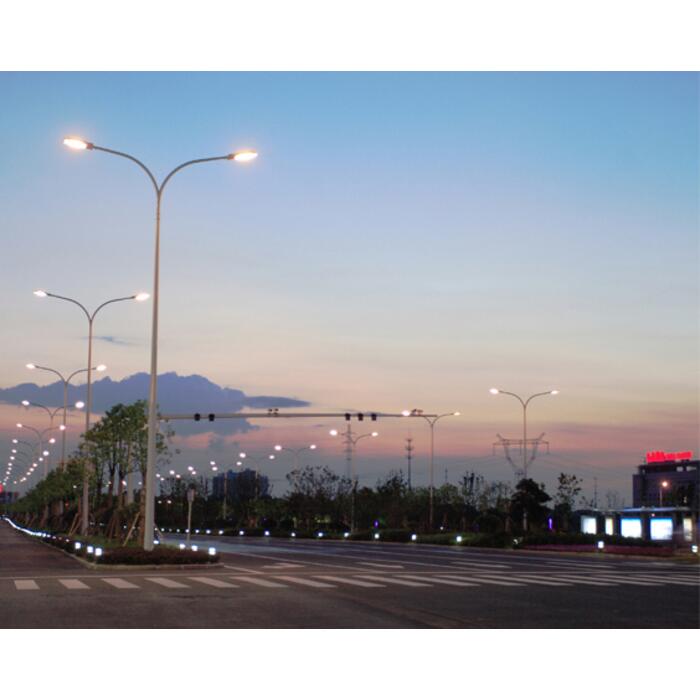

Application

A decorative, streamline exterior commercial solution

Design Specifications

  • Stylish die-cast aluminium body, durable powder coated finish

  • Integral constant current non-dimmable LED driver as standard, CCT 5000K, optional 4000K

  • Asymmetrical light distribution (TYPE II) fitted, 0% upward light ratio, clear tempered glass diffuser

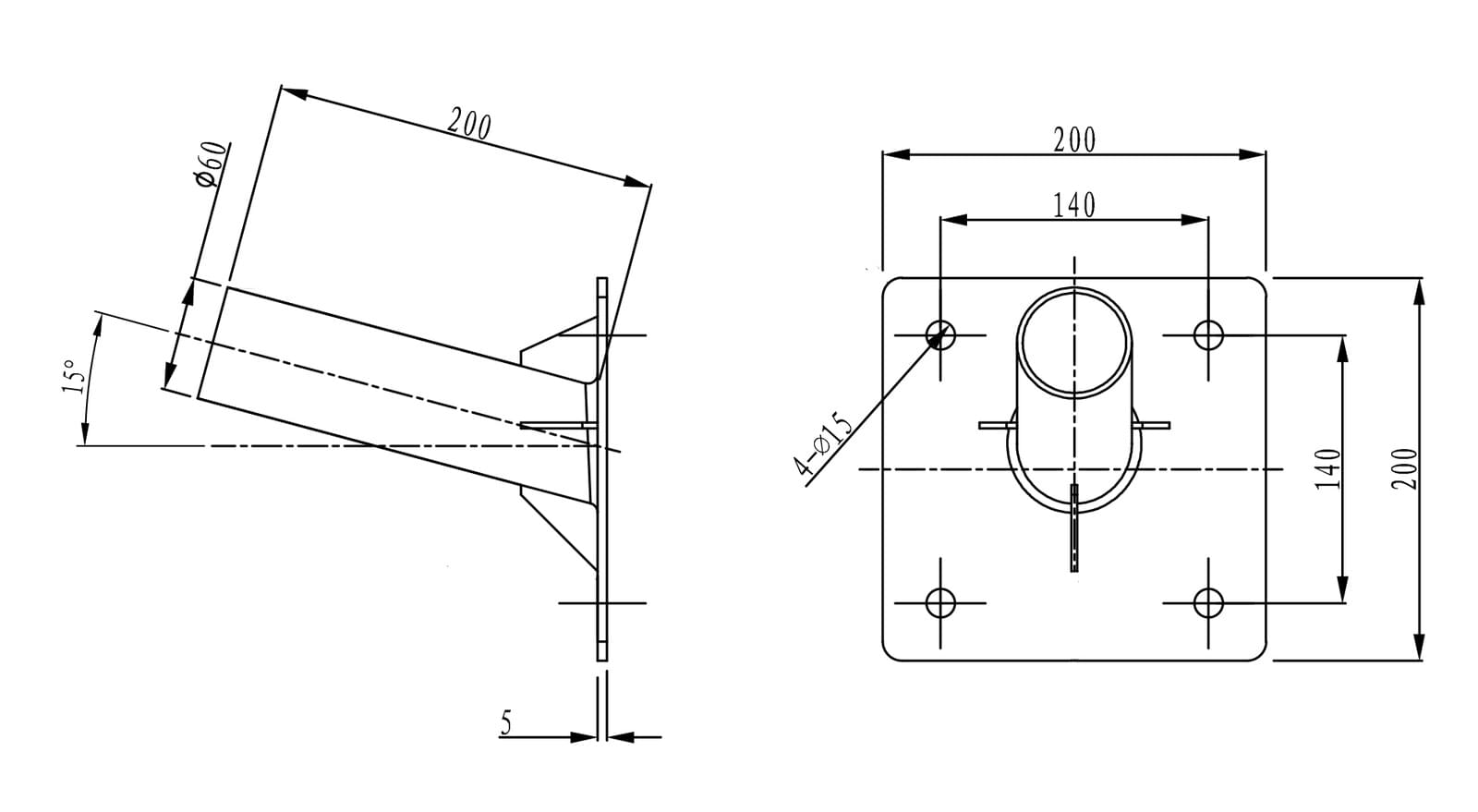

  • Standard 3G.ANSI C.136.31-2010 Ø 60 pole mounting bracket, 800 mm 3 core rubber flex

  • Optional constant current dimmable LED driver with 3 IN 1 dimming LED driver (1-10V DC, PWM signal & resistance)

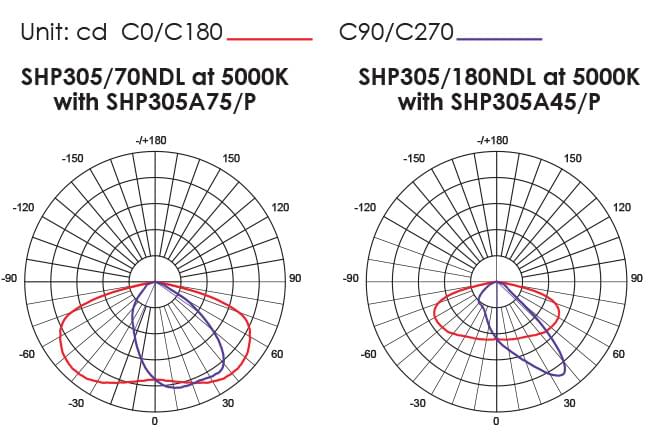

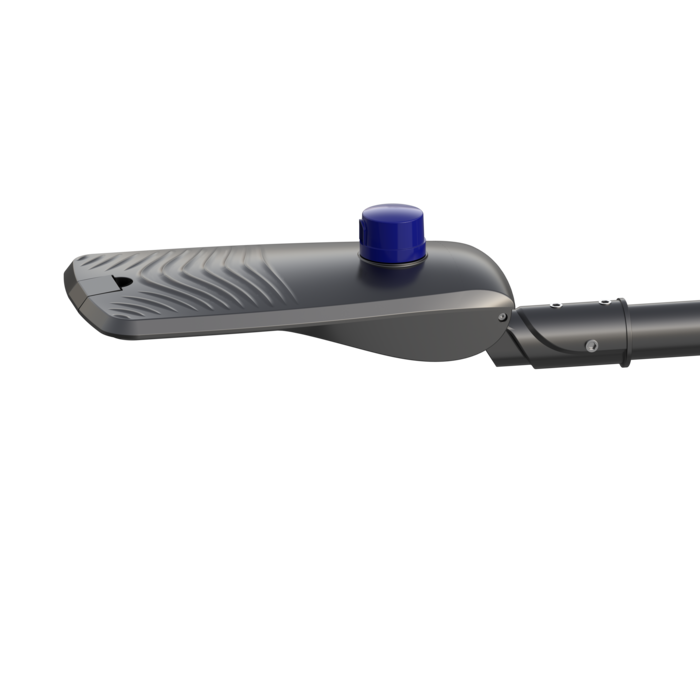

  • Lens option (refer to Photometric data below) SHP305A75/P (standard), SHP305A45/P (option), optional PE cell configurations available

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - 1-10V DC

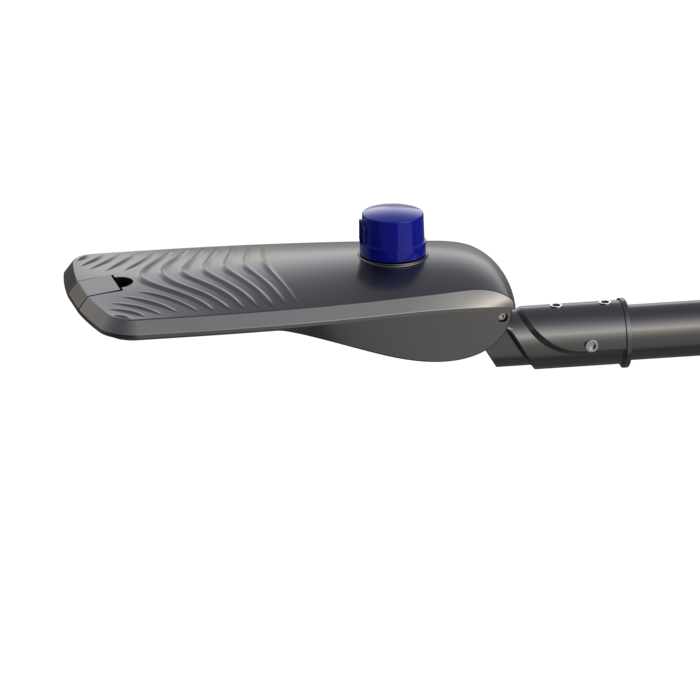

  • In Built Sensor - OPTIONAL
  • NEUTRAL DAYLIGHT5000K

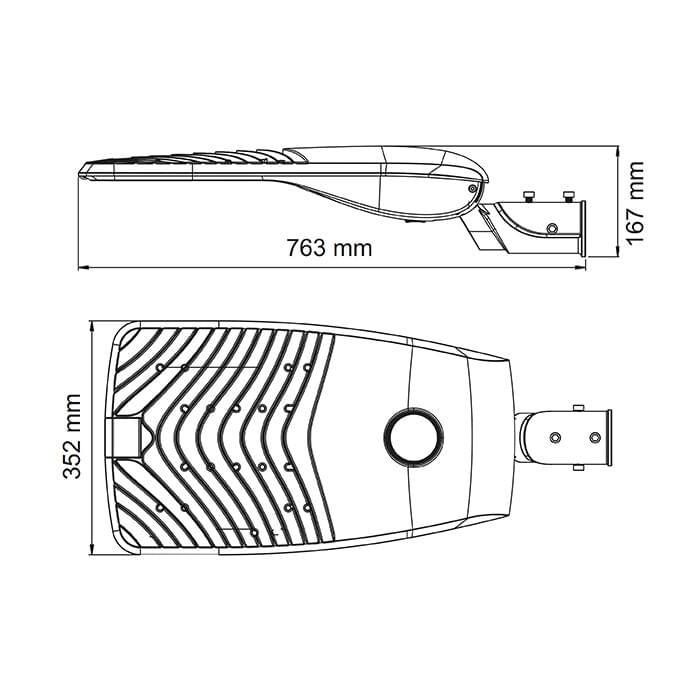

    • Dimensions - Wiring Diagrams

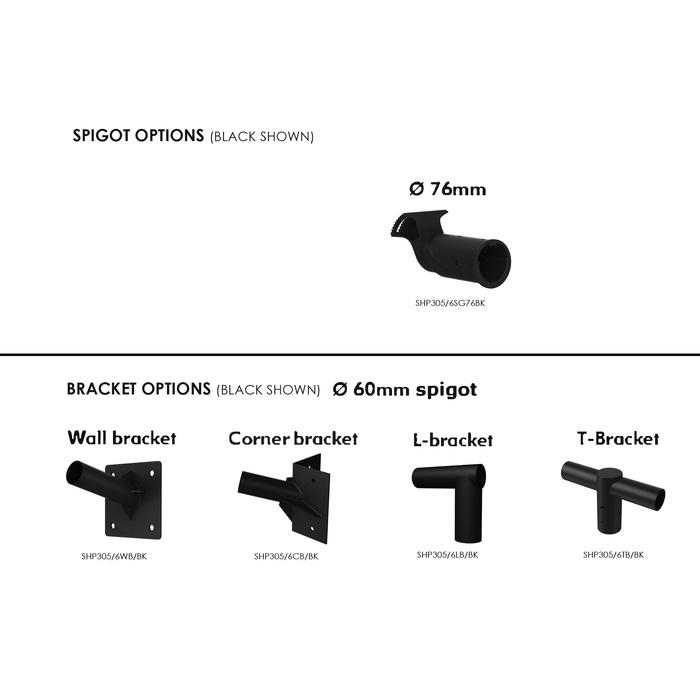

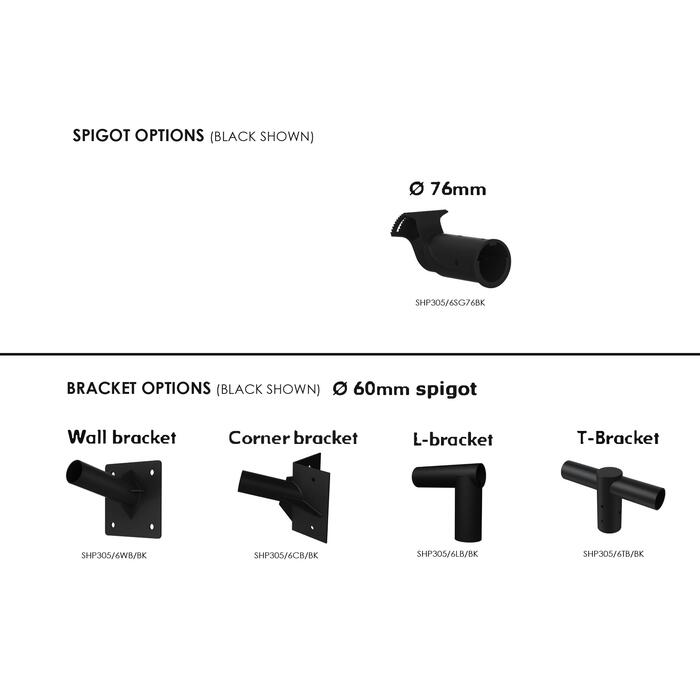

    • Design Options

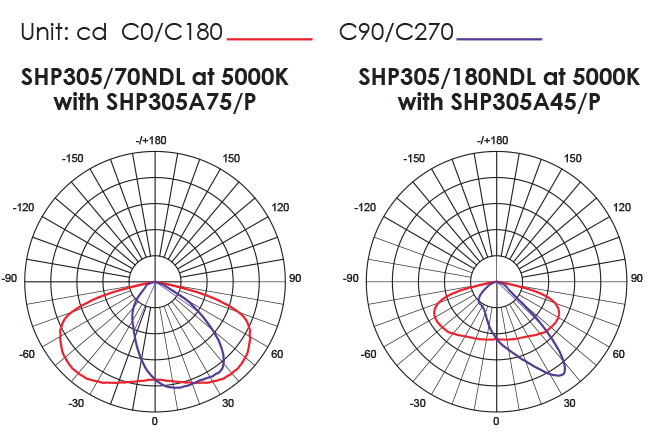

    • Photometric Data
    • FAQ

      • Where can I buy SAL products?

        Where can I buy SAL products?

        SAL distribute their products through authorised Australian Electrical Trade Wholesalers and Lighting Retailers. To find a store near you, simply follow this link and input your postcode, where the nearest location to you will be provided.

      • Does SAL have office locations nationally?

        Does SAL have office locations nationally?

        Yes, SAL has customer service centres in Brisbane, Sydney, Melbourne, Adelaide and Perth.

      • What is a ta rating?

        What is a ta rating?

        (thermal ambient) is the recommended maximum environmental thermal limit for the safe continued operation of an electrical device. The ta rating can be found on the rating label and installation sheet, which is located on the relevant product web page. Typically, you will find ta ratings of 25 degree C for Interior products, where ta ratings of up to 50 degree C can be found for exterior products. Operating products beyond their designed ta limit is not recommended as it will stress the product components beyond their rated limits, resulting in reduced product performance or premature failure.

      • What does IP stand for?

        What does IP stand for?

        IP (or Ingress and Protection) are an international standard reference which defines how well an electrical product seals itself against the intrusion of foreign bodies and moisture. The first digit I stands for intrusion of a solid object and the second digit P stands for the protection against moisture. In brief the higher the rating the more secure the product is against these elements.

        As a guide IP20 is suitable for basic interior spaces eg: office areas, where IP55 and above would be suitable for exterior equipment such as floodlights.

        For more information please refer to AS 60529.


      • What is an IK rating?

        What is an IK rating?

        An IK rating of a lighting product is covered by EN 62262 and is a measure of the impact resistance of a product. In brief the test process measures a products mechanical impact (impact energy joules) limits against a known mass and varied distances. As a guide the higher the IK rating (limit 10) the higher the products ability to withstand impact force.

        High IK rated products (IK10) would be seen used in environments such as vandal prone installations, prisons as a guide.



      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Power Lumens CCT CRI Body Colour Mass Length Width Height
      		Model No. SHP305/70NDL/BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 70 Lumens 9100 CCT 5000 CRI 70 Body Colour BLACK Mass 10.4 Length 763 Width 352 Height 167
      		Model No. SHP305/90NDL/BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 90 Lumens 11700 CCT 5000 CRI 70 Body Colour BLACK Mass 10.7 Length 763 Width 352 Height 167
      		Model No. SHP305/90CWL/BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 90 Lumens 10800 CCT 4000 CRI 70 Body Colour BLACK Mass 9 Length 763 Width 352 Height 167
      		Model No. SHP305/120NDL/BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 120 Lumens 15600 CCT 5000 CRI 70 Body Colour BLACK Mass 10.9 Length 763 Width 352 Height 167
      		Model No. SHP305/150NDL/BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 150 Lumens 19500 CCT 5000 CRI 70 Body Colour BLACK Mass 10.9 Length 763 Width 352 Height 167
      		Model No. SHP305/180NDL/BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 180 Lumens 23400 CCT 5000 CRI 70 Body Colour BLACK Mass 11.2 Length 763 Width 352 Height 167
    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
