• LED STREETLIGHT

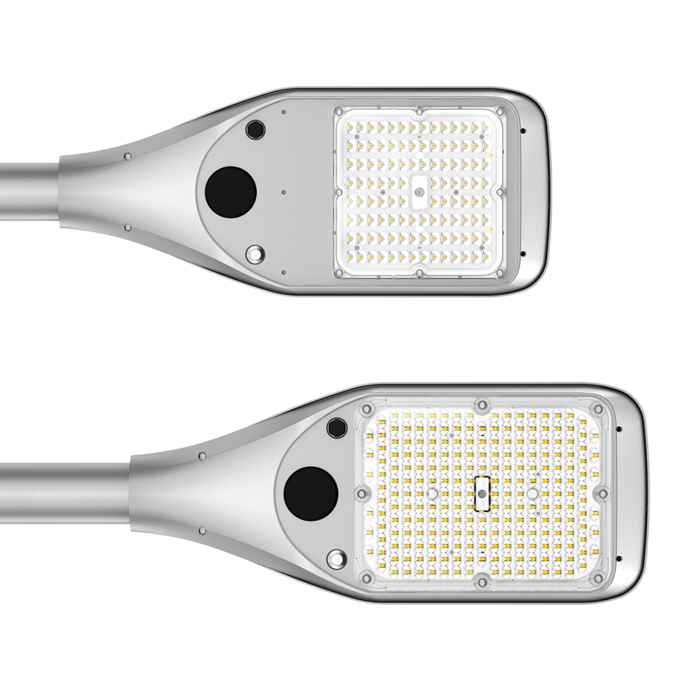

PERIMELED - SSPA6000/12000

IP66 LED SOLAR area luminaire - 6000 / 12000 lumens, remote solar panel with sensor functions

Application

A sustainable area luminaire solution for commerical exterior spaces

Design Specifications

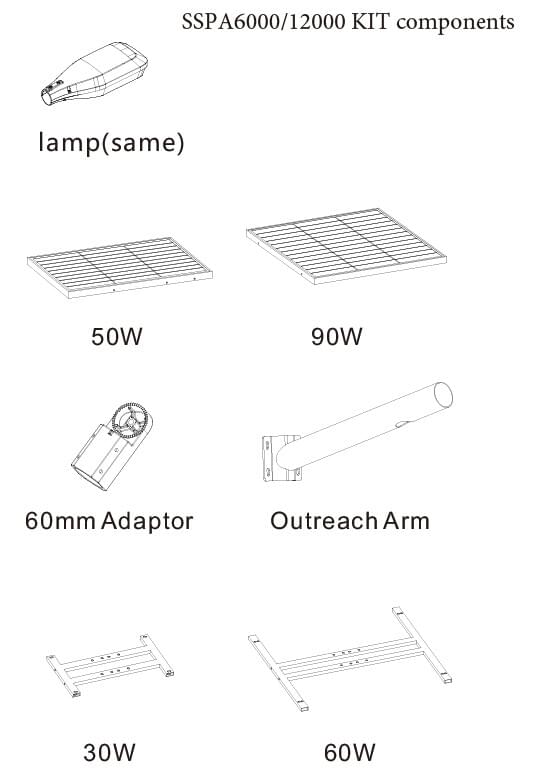

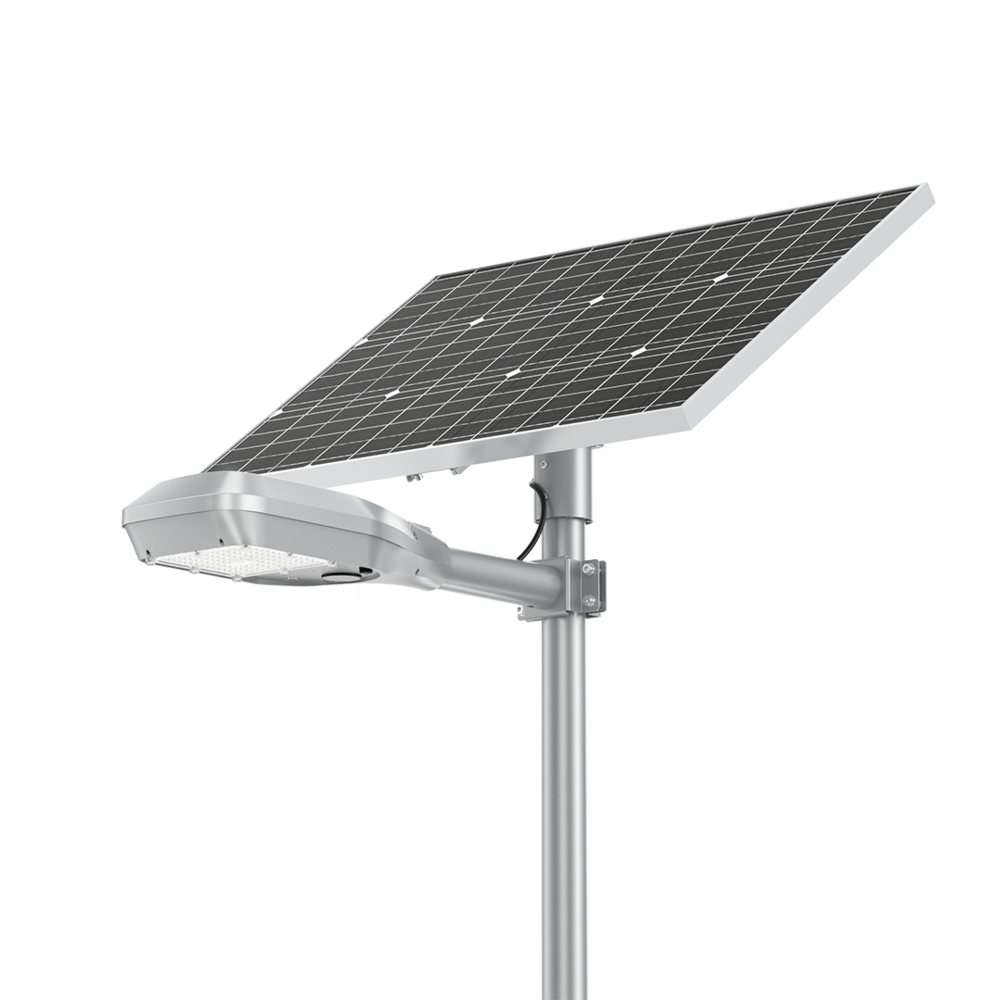

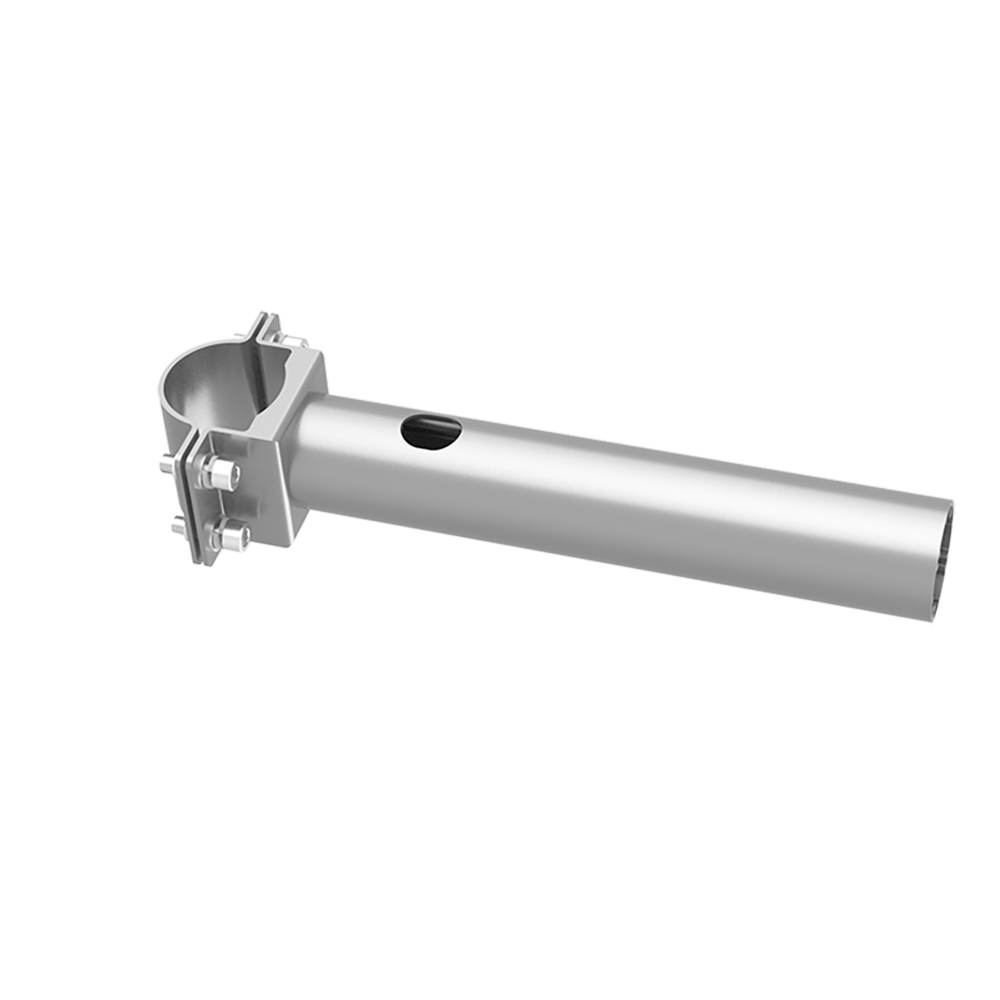

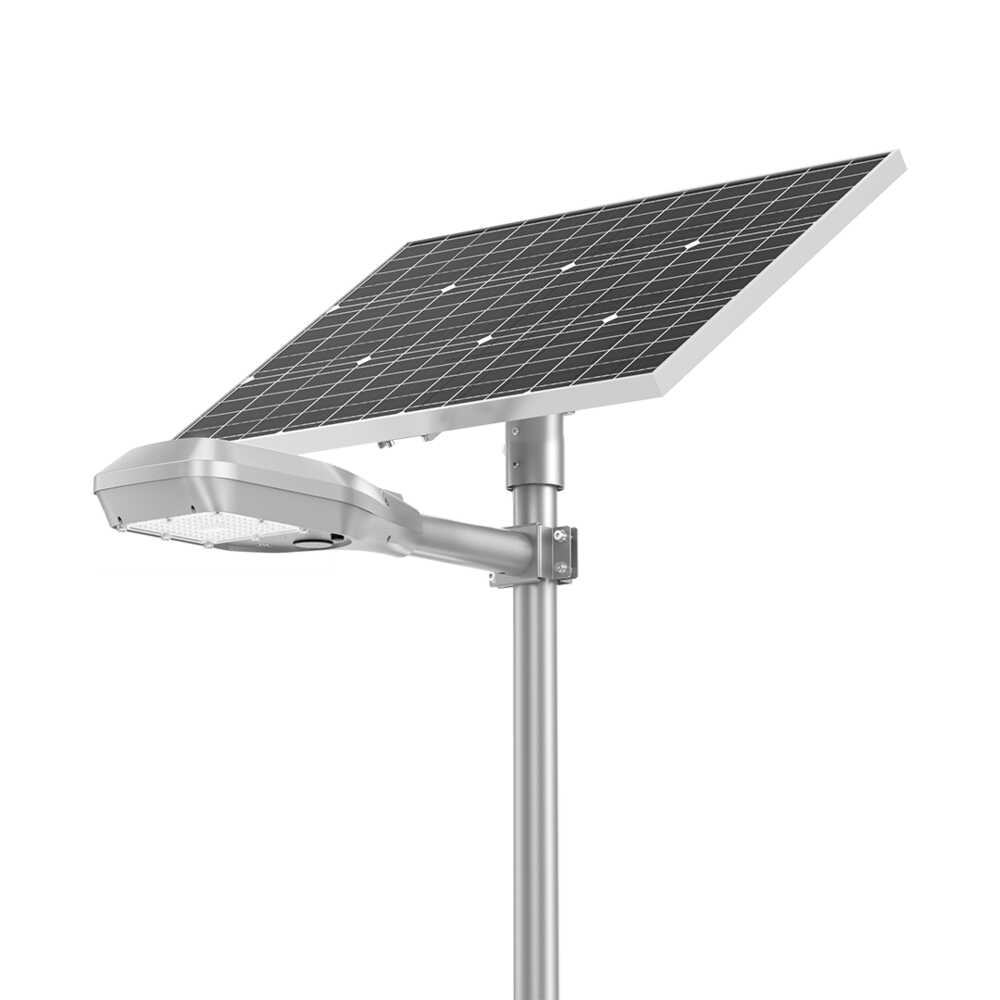

  • Supplied as a buildable kit including a solar charging panel and column mount bracket system, LiFePO4 technology battery, remote control for mode selections, cable array, luminaire with integral gear and out-reach arm. (column sourced separately).

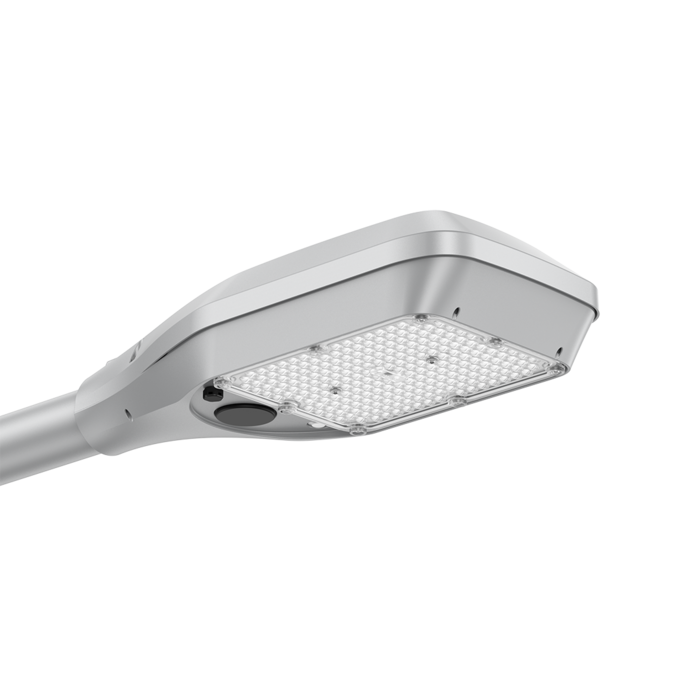

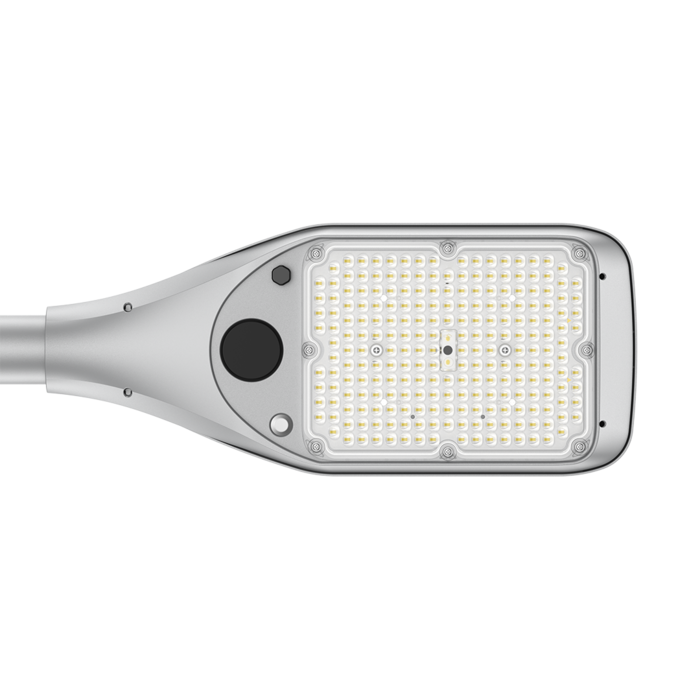

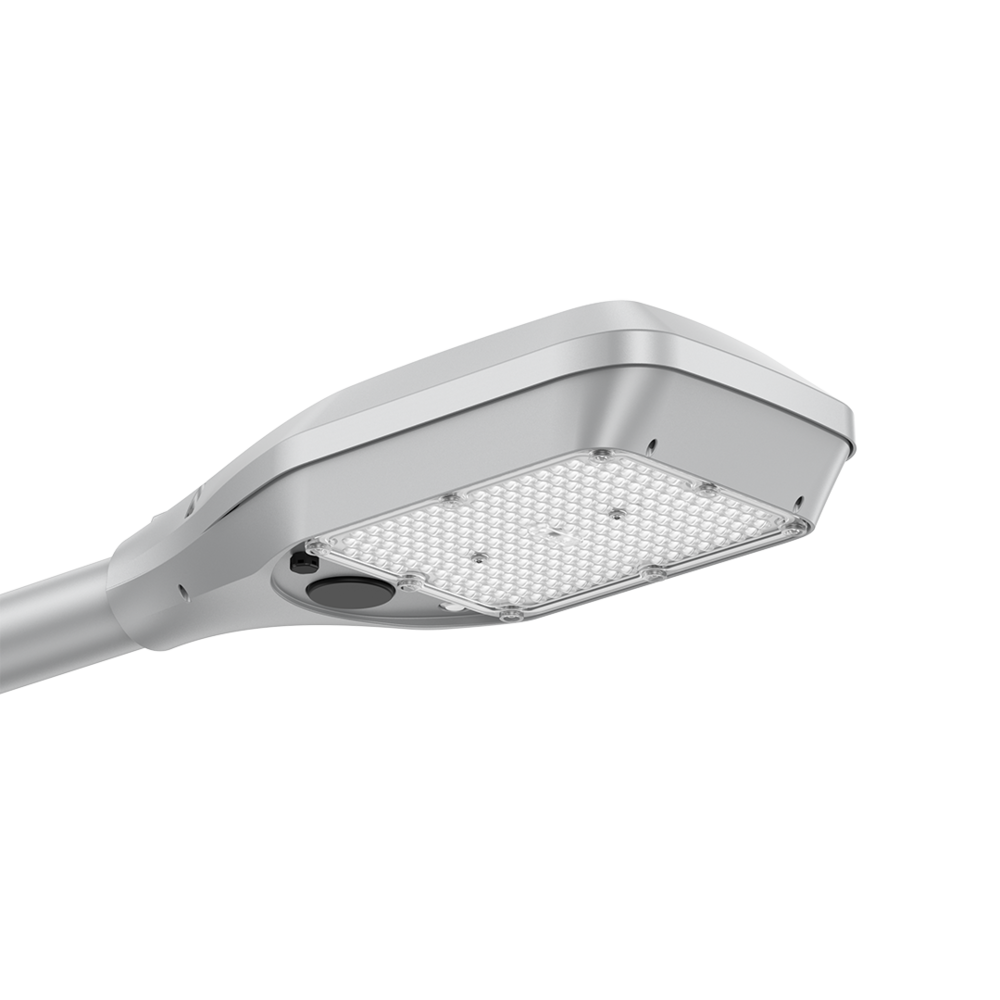

  • High efficiency LED optics, choice of 6000 or 12000 lm systems, CRI >80, CCT 4000K, non-dimmable integral driver, beam distribution type II.

  • Lithium battery technology, with overcharge, over-discharge and load short circuit protection, with selectable sensor and dusk to dawn modes.

  • Charge time 4 hours full sun (1000W/m²)

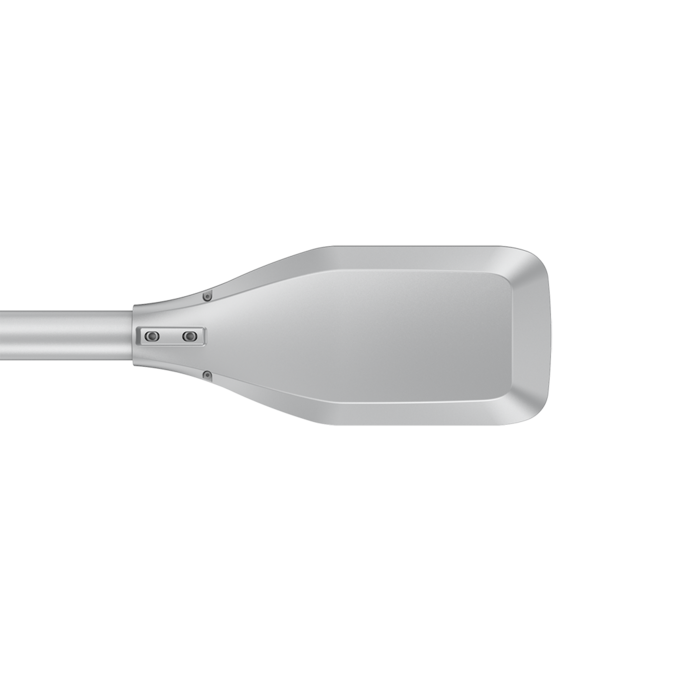

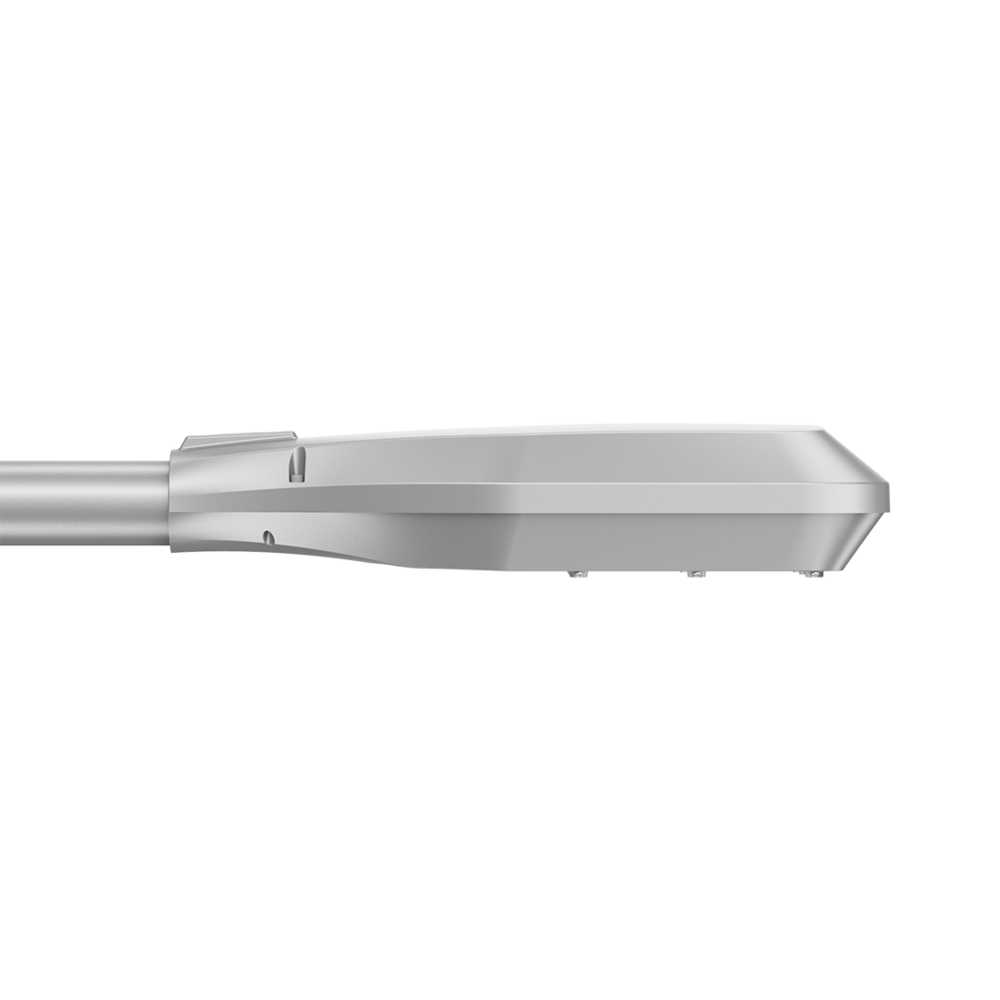

  • Luminaire is a robust aluminium design, finished in silver powercoat

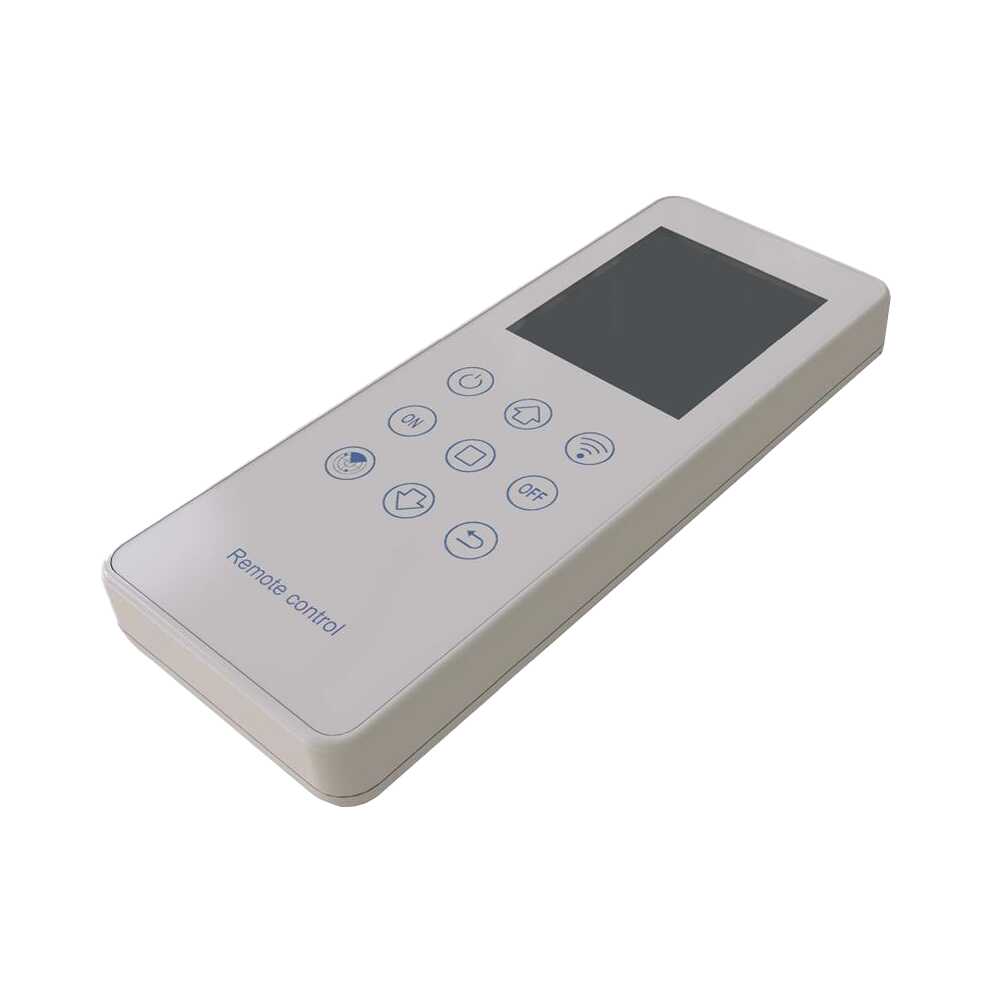

  • Remote control included with multi-function modes and dusk to dawn control - refer installation instructions for settings.

Performance

  • In Built Sensor - YES
  • COOL WHITE4000K

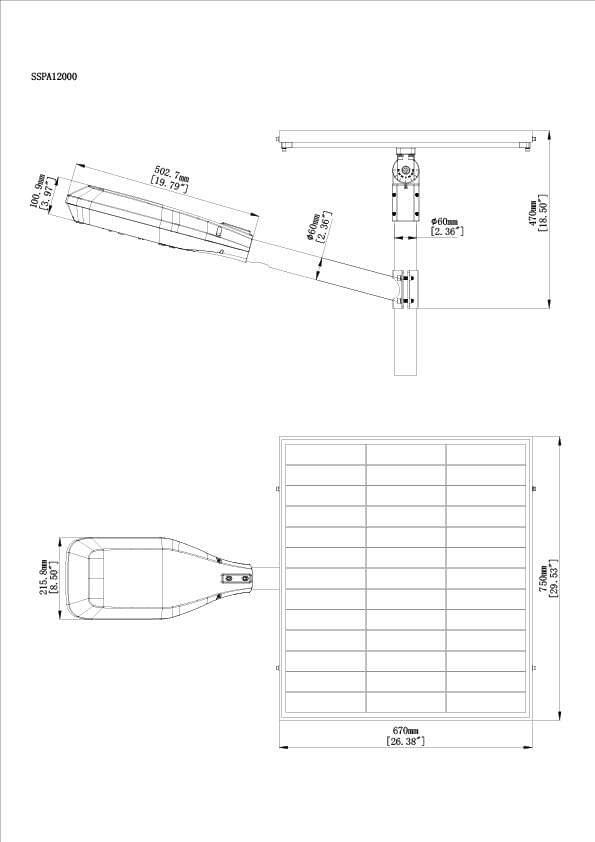

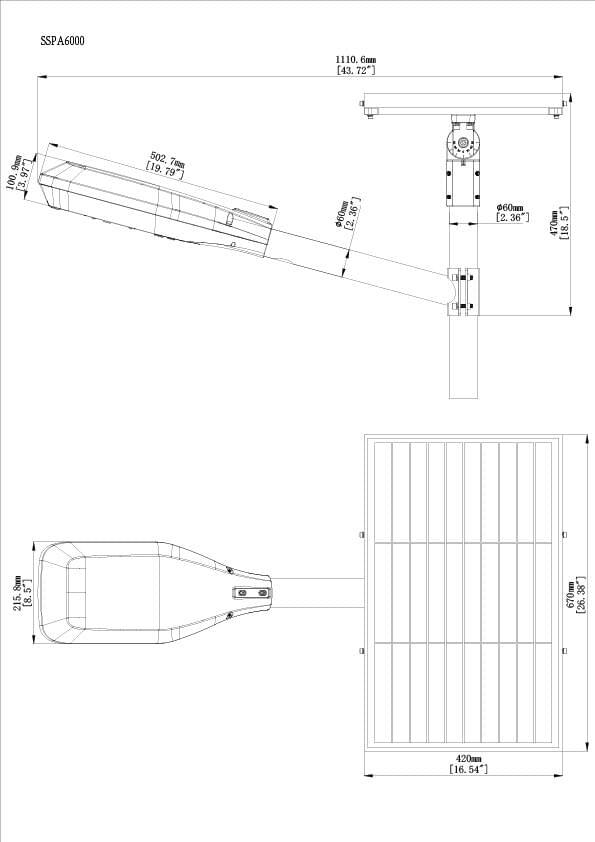

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Power Lumens CCT CRI Body Colour Mass Length Width Height Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close

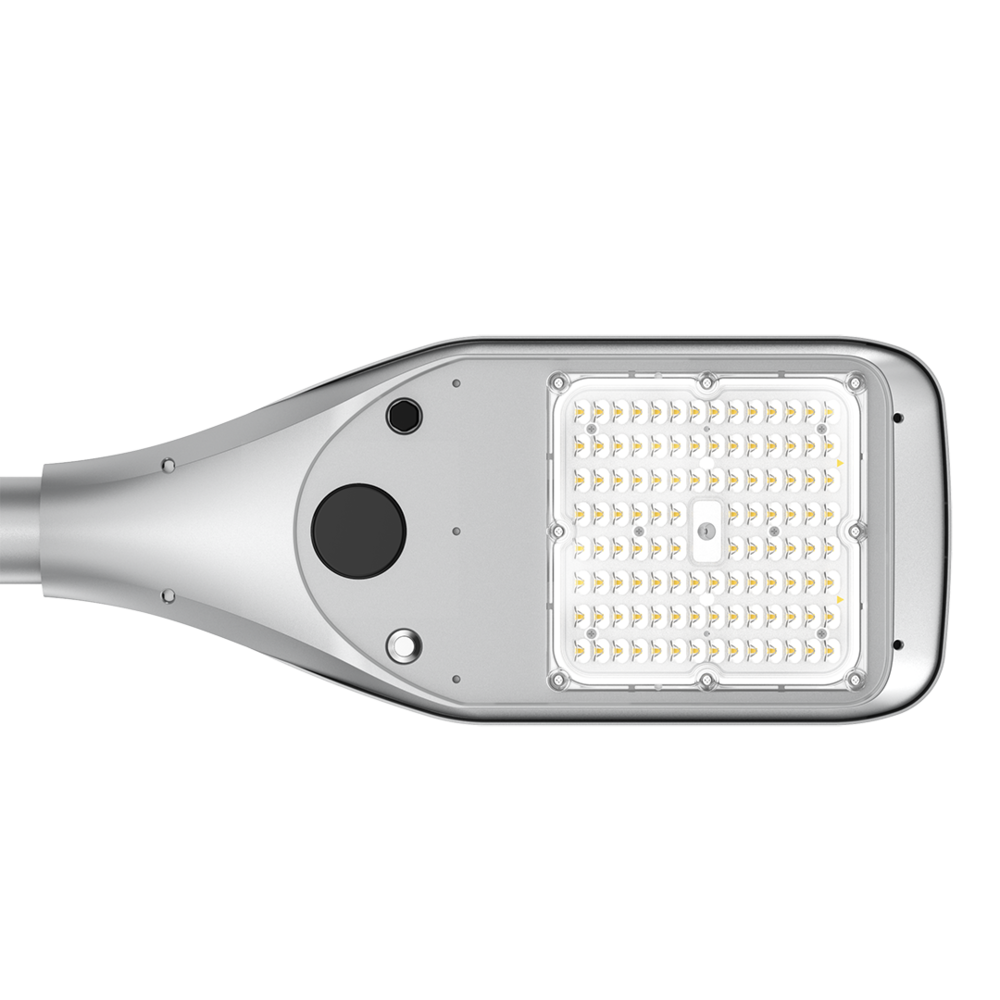

    Model No.SSPA6000 Power30 Lumens6000 CCT4000 CRI80 Body ColourSILVER Mass4 Length502 Width216 Height106 Add to Enquiry Add Remove Remove

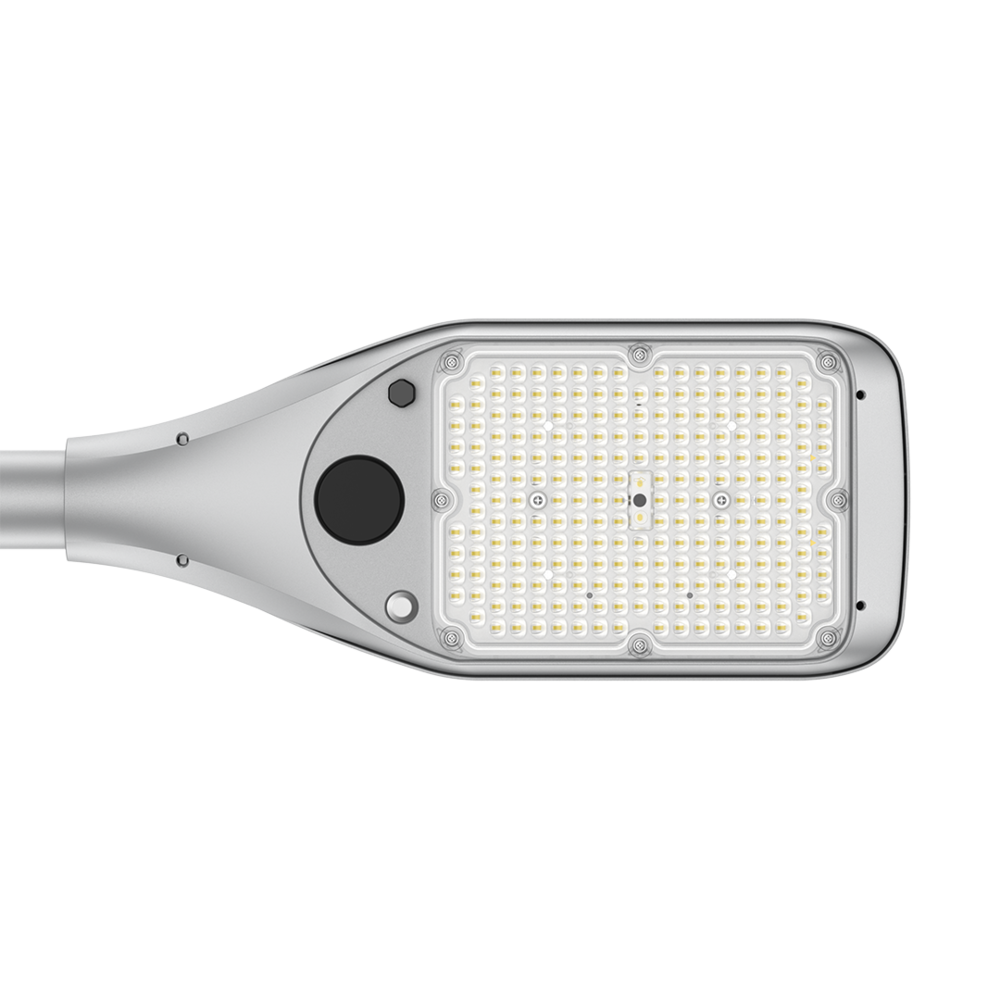

    Model No.SSPA12000 Power60 Lumens12000 CCT4000 CRI80 Body ColourSILVER Mass5.2 Length502 Width216 Height106 Add to Enquiry Add Remove Remove
    Model No.SSPA/RC Power Lumens CCT CRI80 Body ColourREMOTE CONTROL Mass0.2 Length Width Height Add to Enquiry Add Remove Remove

    note: IP rating of IP66 is luminaire head only.
