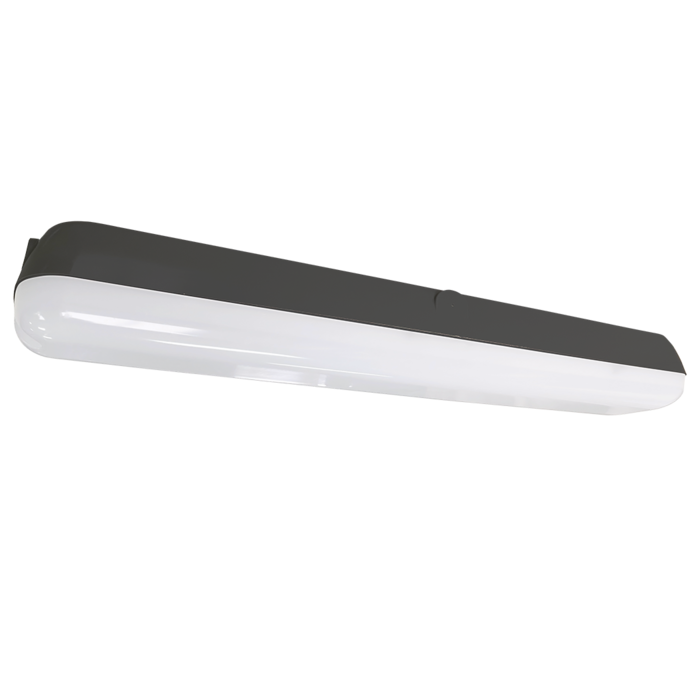

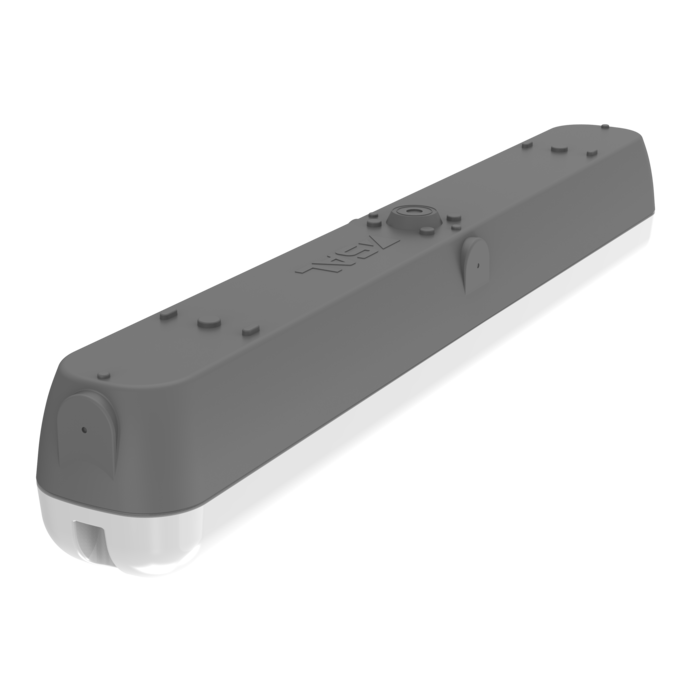

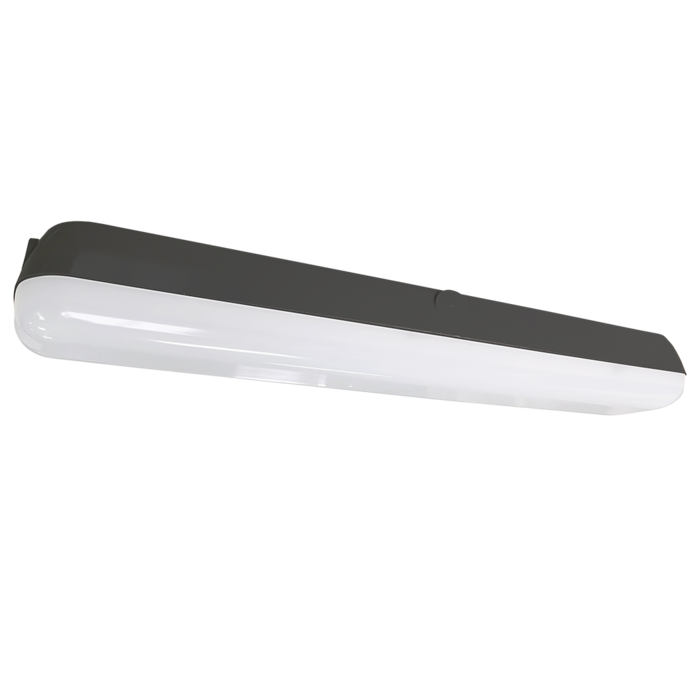

IP66 LED 15 watt vandal proof LED batten with selectable colour temperature


Multi-purpose commercial or industrial utility applications

Design Specifications

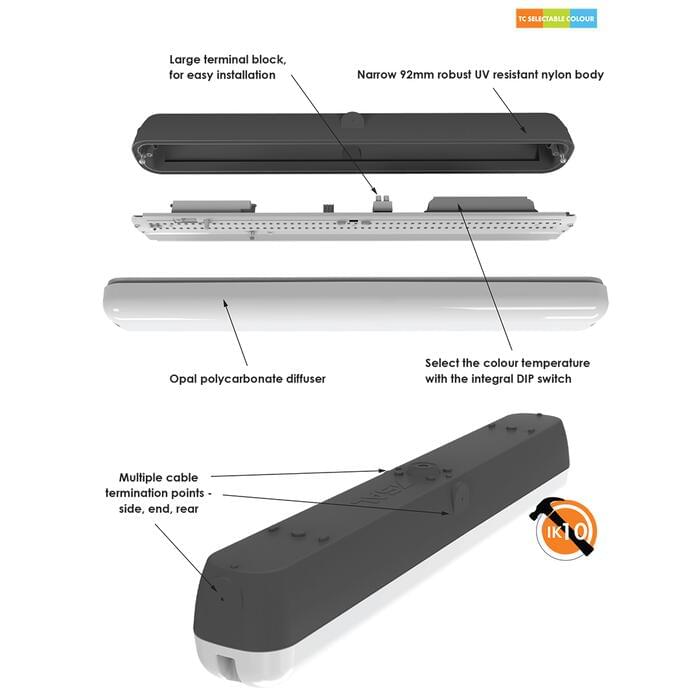

  • Rounded narrow 92mm profile design,
    robust UV resistant glass fibre (dark grey) body

  • Stainless steel secure fastening screws, IK10 protection

  • Operating temperature -20 to +40 degree C

  • Integral constant current non-dimmable LED driver, with selectable colour temperature 3000/4000/5700K

  • Large terminal block for easy installation

  • Opal polycarbonate diffuser

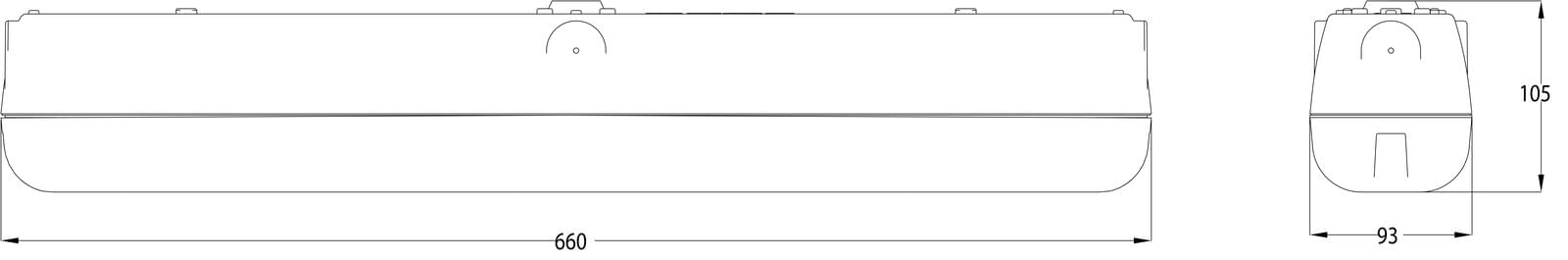

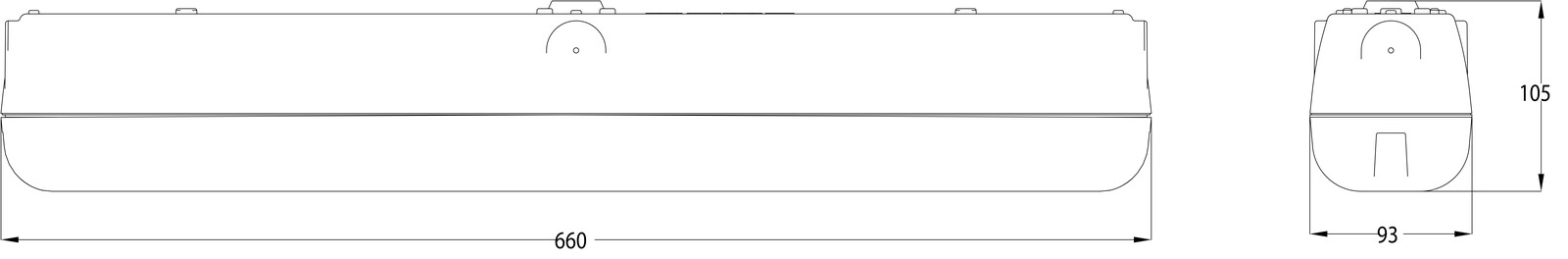

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.

  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CRI CCT Beam Angle Body Colour Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.SL9722/15TC Input Voltage240 Power15 Lumens1500/1650/1650 CRI80 CCT3000/4000/5700 Beam Angle120 Body ColourGREY Dim660(L) x 92(W) x 105(H) Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
