• LED WEATHERPROOF

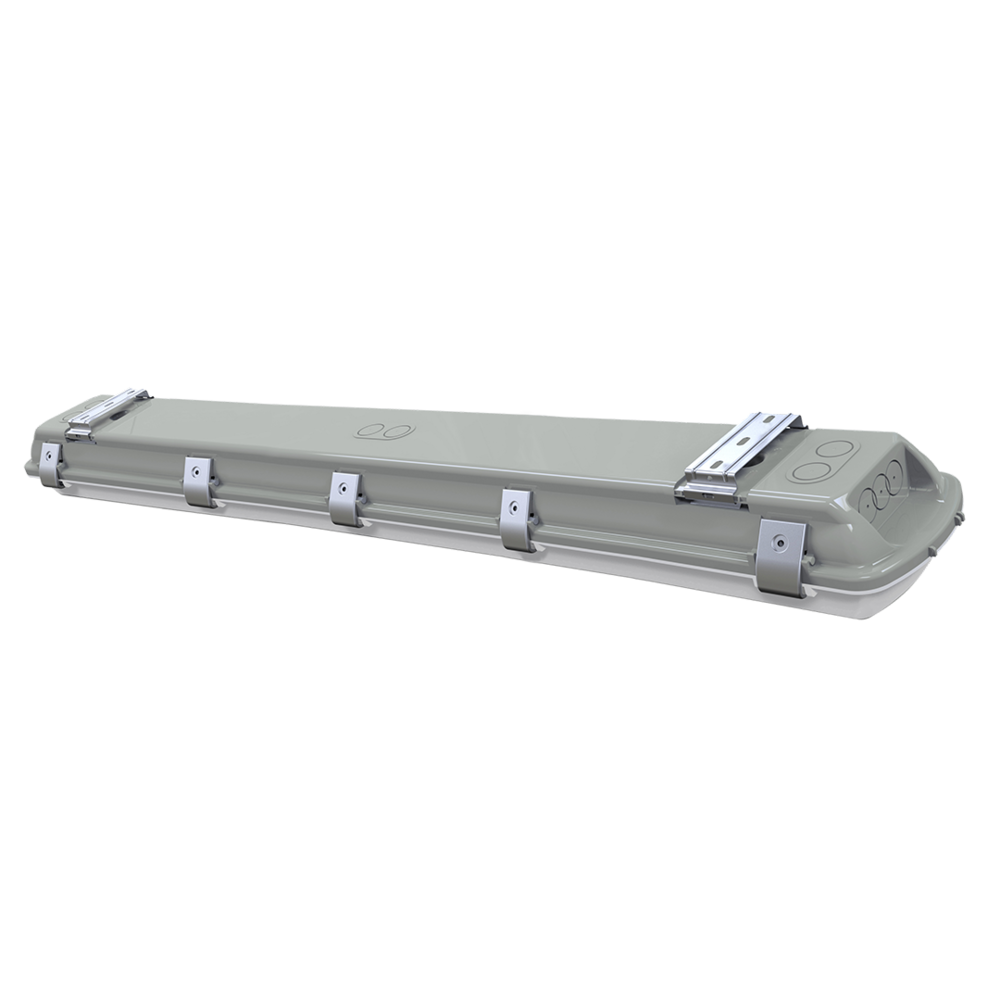

KEW II SL9721TC/MP - 20/40W

IP65 LED weatherproof batten 20/40 watt with selectable power and CCT

Application

Multi-purpose ceiling mount or suspended, commercial or industrial applications

Design Specifications

  • Vandal resistant design, robust polycarbonate body and UV stabilized polycarbonate diffuser

  • 301 Stainless steel clips & screws, IP65, IK08, sensor and emergency options

  • Operating temperature -20°C to +40°C

  • Integral, non-dimmable flickerCONTROLLED LED driver

  • Selectable power choices;  20W - 11/14/17/20 and 40W - 22/28/34/40

  • Optional corridorSTANDBY functions available

    Product selections compliant to AS/NZS2293 Emergency Lighting & Exit Signs are located in the interior and exterior emergency sections of this web catalogue



Performance

  • In Built Sensor - OPTIONAL
  • Sensor Type - MICROWAVE
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT5700K
    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      • Where can I buy SAL products?

        Where can I buy SAL products?

        SAL distribute their products through authorised Australian Electrical Trade Wholesalers and Lighting Retailers. To find a store near you, simply follow this link and input your postcode, where the nearest location to you will be provided.

      • Does SAL have office locations nationally?

        Does SAL have office locations nationally?

        Yes, SAL has customer service centres in Brisbane, Sydney, Melbourne, Adelaide and Perth.

      • What does IP stand for?

        What does IP stand for?

        IP (or Ingress and Protection) are an international standard reference which defines how well an electrical product seals itself against the intrusion of foreign bodies and moisture. The first digit I stands for intrusion of a solid object and the second digit P stands for the protection against moisture. In brief the higher the rating the more secure the product is against these elements.

        As a guide IP20 is suitable for basic interior spaces eg: office areas, where IP55 and above would be suitable for exterior equipment such as floodlights.

        For more information please refer to AS 60529.


      • What is a ta rating?

        What is a ta rating?

        (thermal ambient) is the recommended maximum environmental thermal limit for the safe continued operation of an electrical device. The ta rating can be found on the rating label and installation sheet, which is located on the relevant product web page. Typically, you will find ta ratings of 25 degree C for Interior products, where ta ratings of up to 50 degree C can be found for exterior products. Operating products beyond their designed ta limit is not recommended as it will stress the product components beyond their rated limits, resulting in reduced product performance or premature failure.

      • What is an IK rating?

        What is an IK rating?

        An IK rating of a lighting product is covered by EN 62262 and is a measure of the impact resistance of a product. In brief the test process measures a products mechanical impact (impact energy joules) limits against a known mass and varied distances. As a guide the higher the IK rating (limit 10) the higher the products ability to withstand impact force.

        High IK rated products (IK10) would be seen used in environments such as vandal prone installations, prisons as a guide.



      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Power Multiple Wattage Lumens CRI CCT Beam Angle Body Colour Dim
      		Model No. SL9721/20TC/MP Add to Enquiry Add Remove Remove Input Voltage 240 Power 20 Multiple Wattage 11/14/17/20 Lumens 2550/2550/2500 CRI 90 CCT 3000/4000/5700 Beam Angle 120 Body Colour GREY Dim 618(L) x 116(W) x 74(H)
      		Model No. SL9721/40TC/MP Add to Enquiry Add Remove Remove Input Voltage 240 Power 40 Multiple Wattage 22/28/34/40 Lumens 5050/5250/5400 CRI 80 CCT 3000/4000/5700 Beam Angle 120 Body Colour GREY Dim 1215(L) x 116(W) x 74(H)

      NOTE; Lumens (lm) display are at full power

      NOTE: Minimum ta for emergency configuations zero C°.

    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
