• WEATHERPROOF

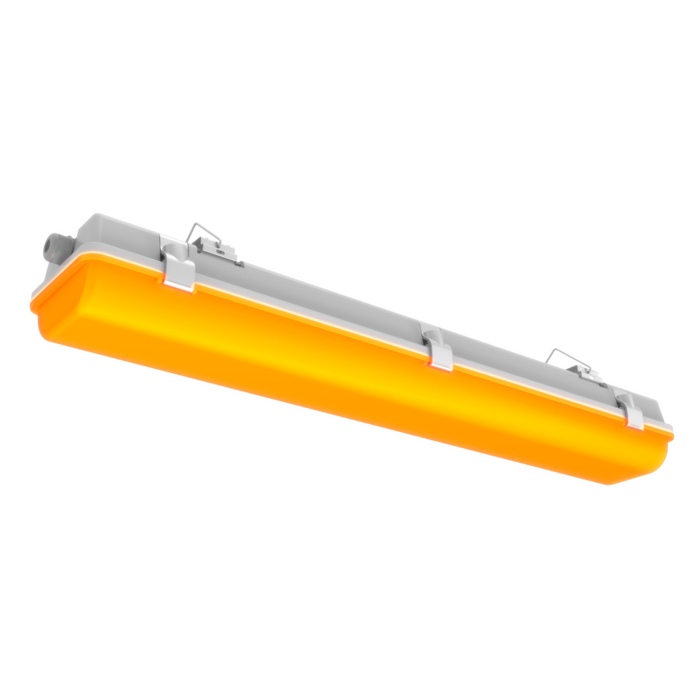

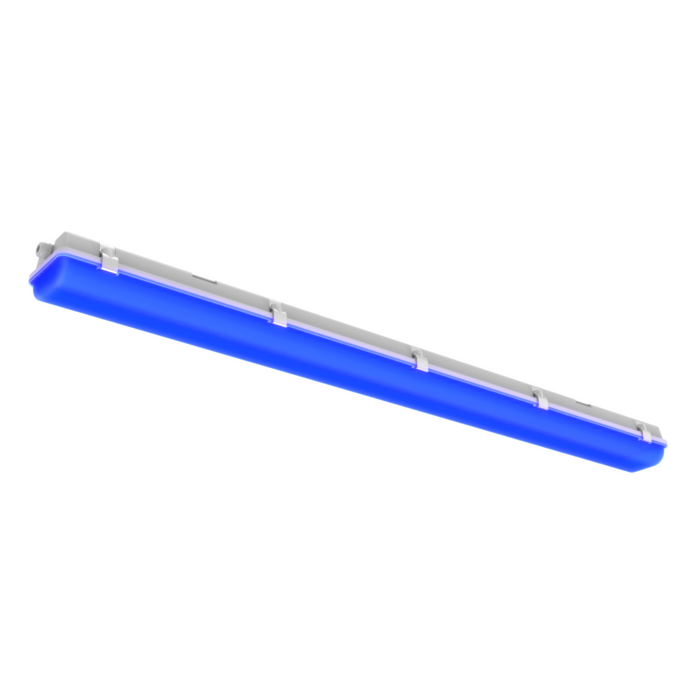

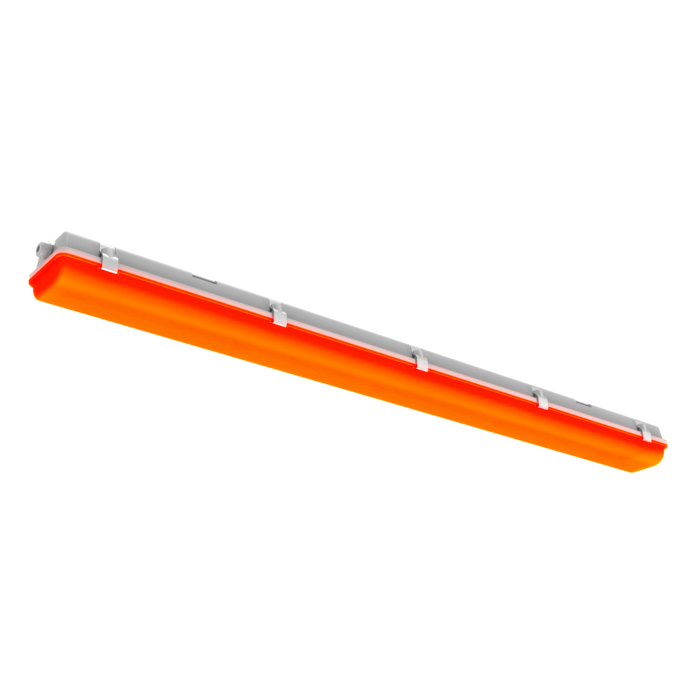

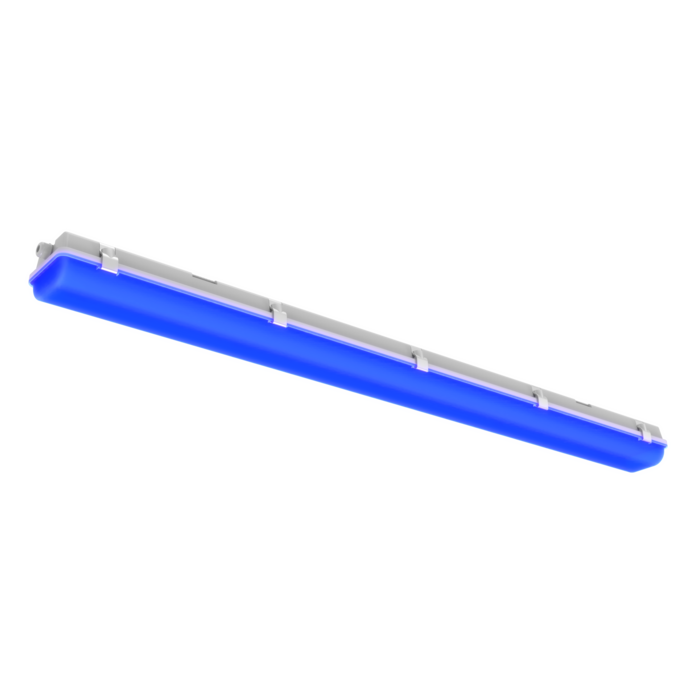

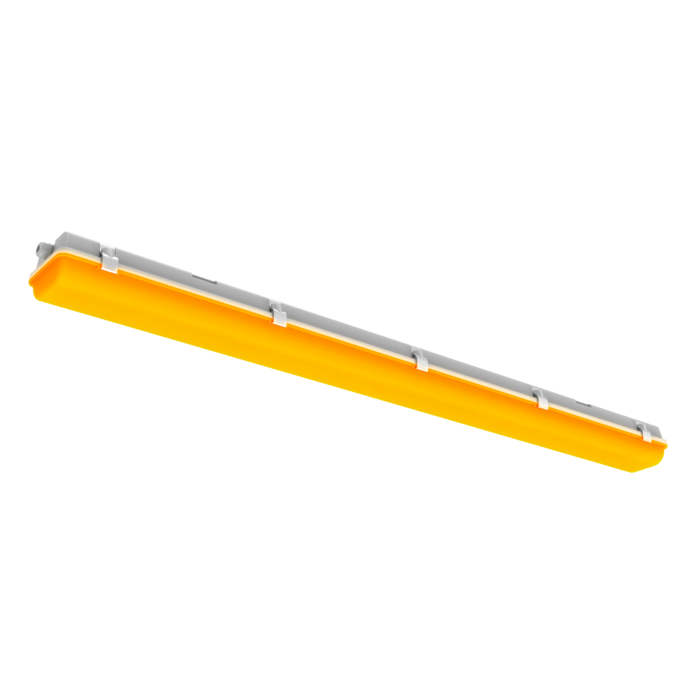

SOL SL9726 - 10/42W

IP65 LED weatherproof batten with dual colour selections and power

Application

Commercial or industrial ceiling or suspended mount applications requiring IP65 and IK08 performance

Design Specifications

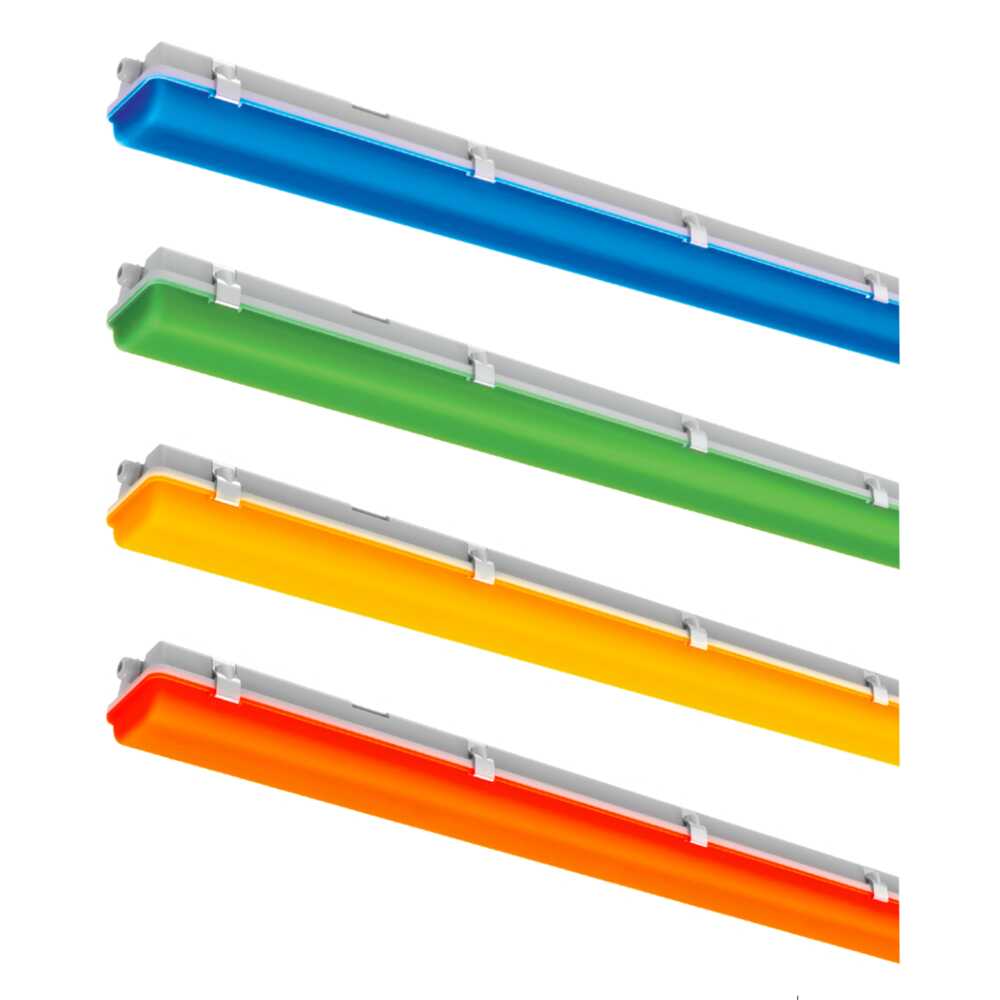

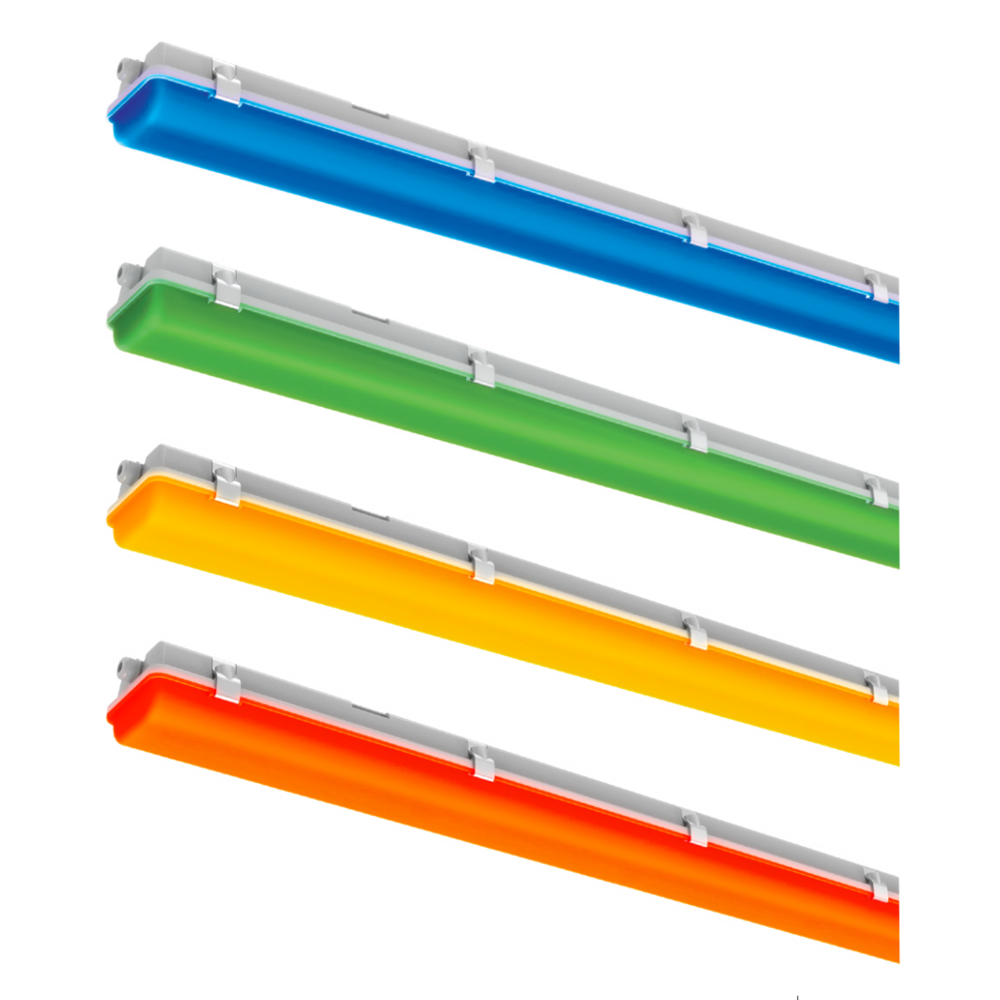

  • Dual colour selections Blue or Green, Red or Amber

  • Rounded profile design, robust polycarbonate body and UV stabilized polycarbonate diffuser

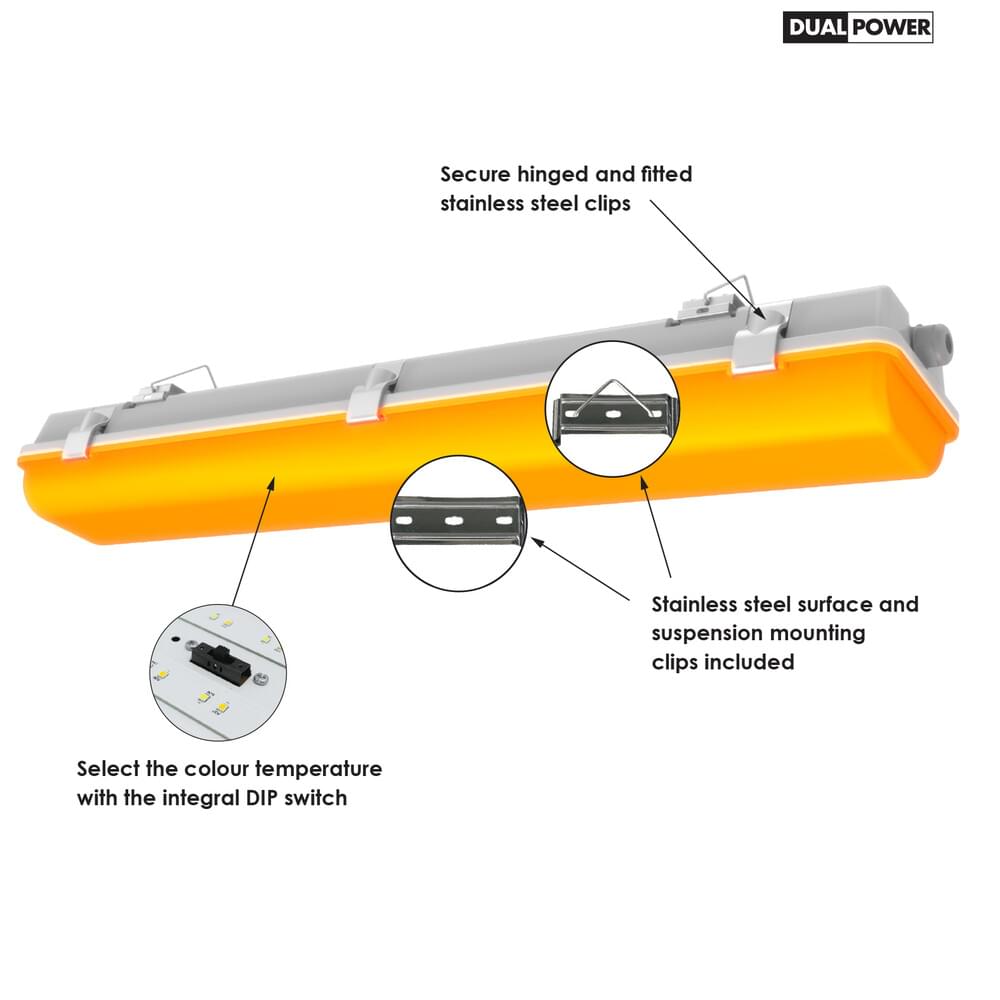

  • 304 Stainless steel clips & screws, 20mm cable gland entry

  • Integral constant current non-dimmable LED driver, with dual power selections

  • Optional (non-dim) corridorSTANDBY functions available

  • Wavelength / CCT - Blue: 450 - 470 nm, Green: 510 - 530 nm, Amber: 1800 K, Red: 615 - 635 nm

Performance

  • Dimmable - OPTIONAL
  • In Built Sensor - OPTIONAL
  • Sensor Type - MICROWAVE
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ
    • Where can I buy SAL products?

      Where can I buy SAL products?

      SAL distribute their products through authorised Australian Electrical Trade Wholesalers and Lighting Retailers. To find a store near you, simply follow this link and input your postcode, where the nearest location to you will be provided.

    • Does SAL have office locations nationally?

      Does SAL have office locations nationally?

      Yes, SAL has customer service centres in Brisbane, Sydney, Melbourne, Adelaide and Perth.

    • What does IP stand for?

      What does IP stand for?

      IP (or Ingress and Protection) are an international standard reference which defines how well an electrical product seals itself against the intrusion of foreign bodies and moisture. The first digit I stands for intrusion of a solid object and the second digit P stands for the protection against moisture. In brief the higher the rating the more secure the product is against these elements.

      As a guide IP20 is suitable for basic interior spaces eg: office areas, where IP55 and above would be suitable for exterior equipment such as floodlights.

      For more information please refer to AS 60529.


    • What is a ta rating?

      What is a ta rating?

      (thermal ambient) is the recommended maximum environmental thermal limit for the safe continued operation of an electrical device. The ta rating can be found on the rating label and installation sheet, which is located on the relevant product web page. Typically, you will find ta ratings of 25 degree C for Interior products, where ta ratings of up to 50 degree C can be found for exterior products. Operating products beyond their designed ta limit is not recommended as it will stress the product components beyond their rated limits, resulting in reduced product performance or premature failure.

    • What is an IK rating?

      What is an IK rating?

      An IK rating of a lighting product is covered by EN 62262 and is a measure of the impact resistance of a product. In brief the test process measures a products mechanical impact (impact energy joules) limits against a known mass and varied distances. As a guide the higher the IK rating (limit 10) the higher the products ability to withstand impact force.

      High IK rated products (IK10) would be seen used in environments such as vandal prone installations, prisons as a guide.



    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Multiple Wattage Beam Angle Body Colour Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.SL9726/20BU/GN Input Voltage240 Multiple Wattage10/20 Beam Angle120 Body ColourBLUE/GREEN Dim642(L) x 118(W) x 77(H) Add to Enquiry Add Remove Remove
    Model No.SL9726/20AM/RD Input Voltage240 Multiple Wattage10/20 Beam Angle120 Body ColourAMBER/RED Dim642(L) x 118(W) x 77(H) Add to Enquiry Add Remove Remove
    Model No.SL9726/40BU/GN Input Voltage240 Multiple Wattage20/42 Beam Angle120 Body ColourBLUE/GREEN Dim1251(L) x 118(W) x 77(H) Add to Enquiry Add Remove Remove
    Model No.SL9726/40AM/RD Input Voltage240 Multiple Wattage20/42 Beam Angle120 Body ColourAMBER/RED Dim1251(L) x 118(W) x 77(H) Add to Enquiry Add Remove Remove

    Product orders are subject to a MOQ

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
