• WEATHERPROOF

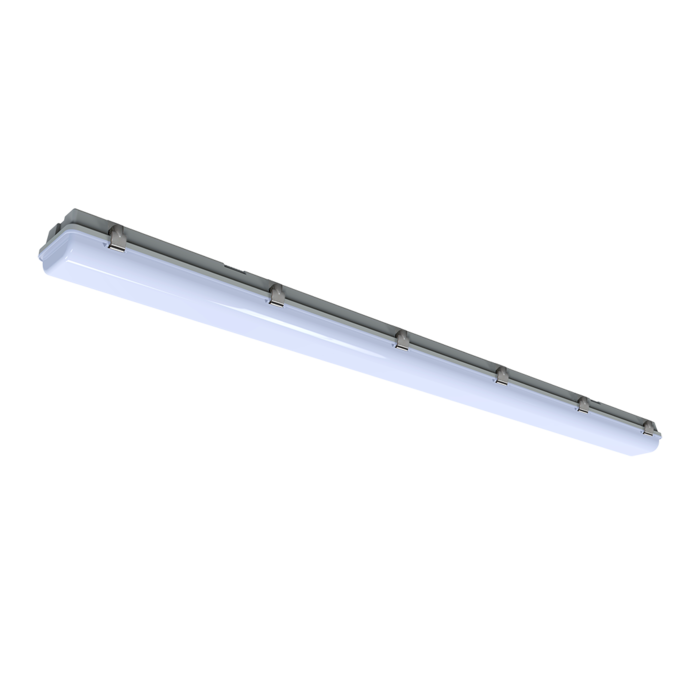

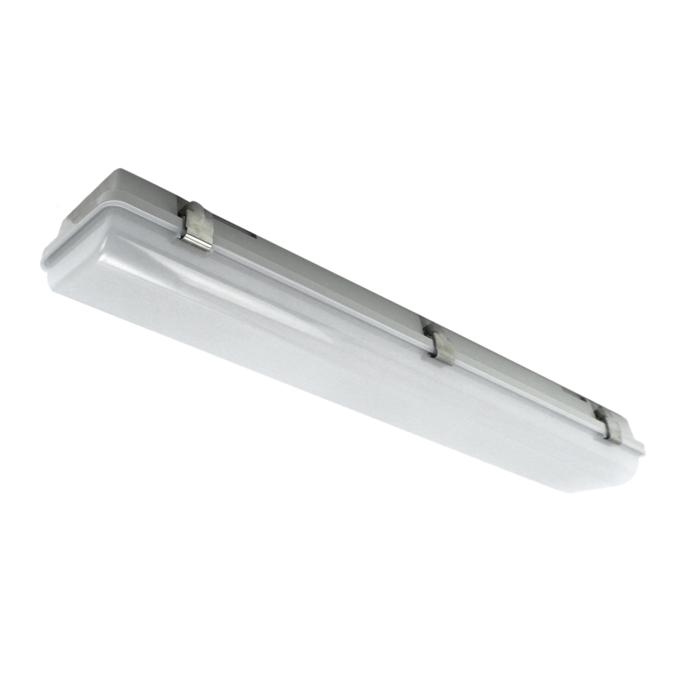

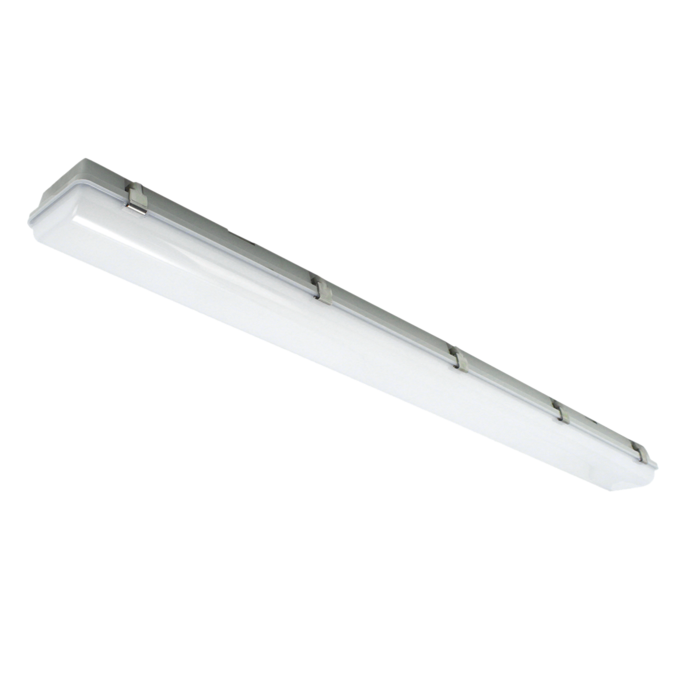

SOL SL9726TC / DP - 10/50W

Premium, IP65 LED weatherproof batten with selectable CCT and power

Application

Commercial or industrial ceiling or suspended mount applications requiring IP65 and IK08 performance

Design Specifications

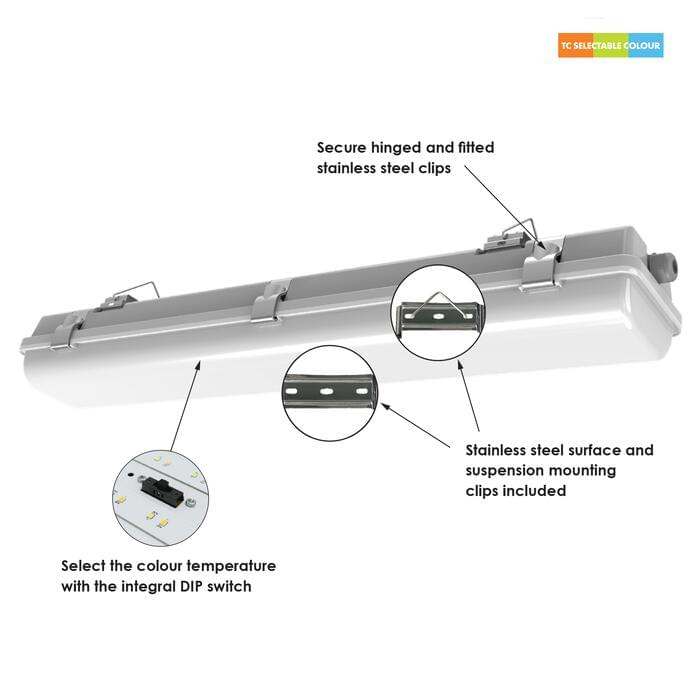

  • Selectable CCT 3000K /4000K /6000K

  • Vandal resistant design, robust polycarbonate body and UV stabilized polycarbonate diffuser

  • Stainless steel clips & screws, 20mm cable gland entry

  • Integral constant current non-dimmable, DUAL POWER LED driver, 10/20, 20/42 or 30/50 watt models.

  • Product selections compliant to AS/NZS2293 Emergency Lighting & Exit Signs are located in the interior and exterior emergency sections of this web catalogue

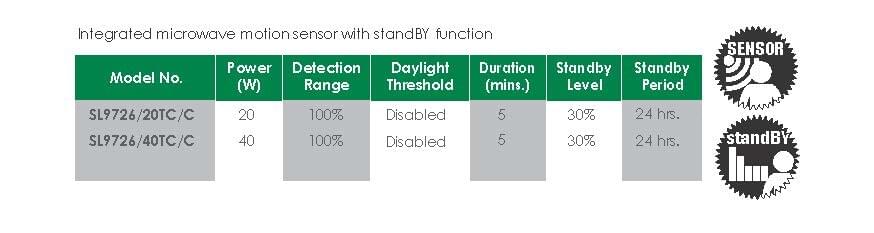

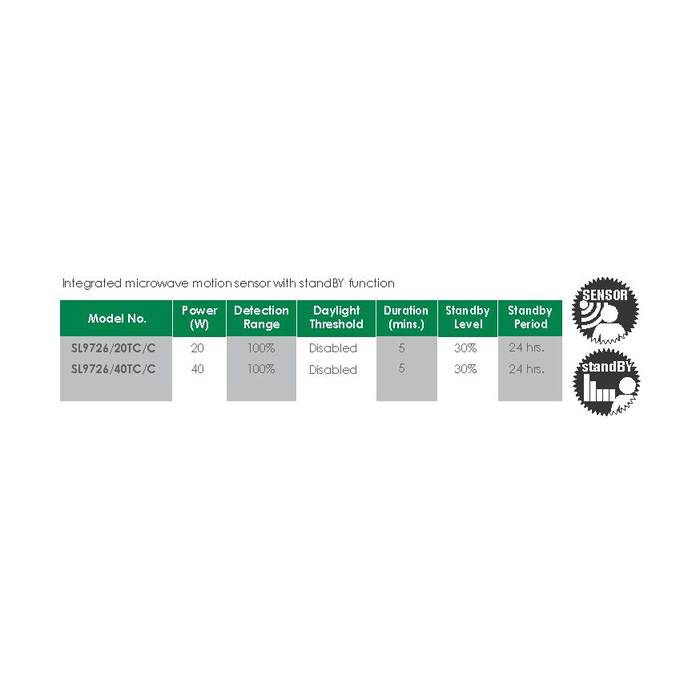

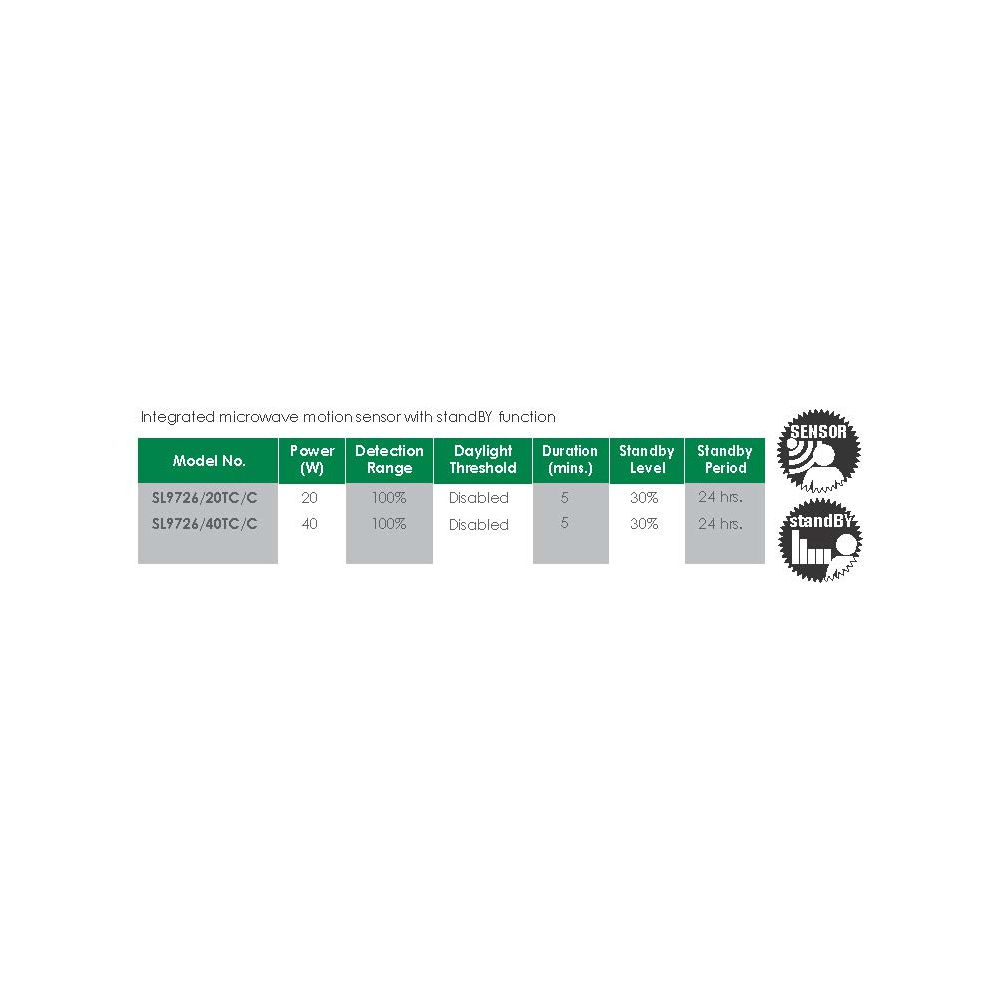

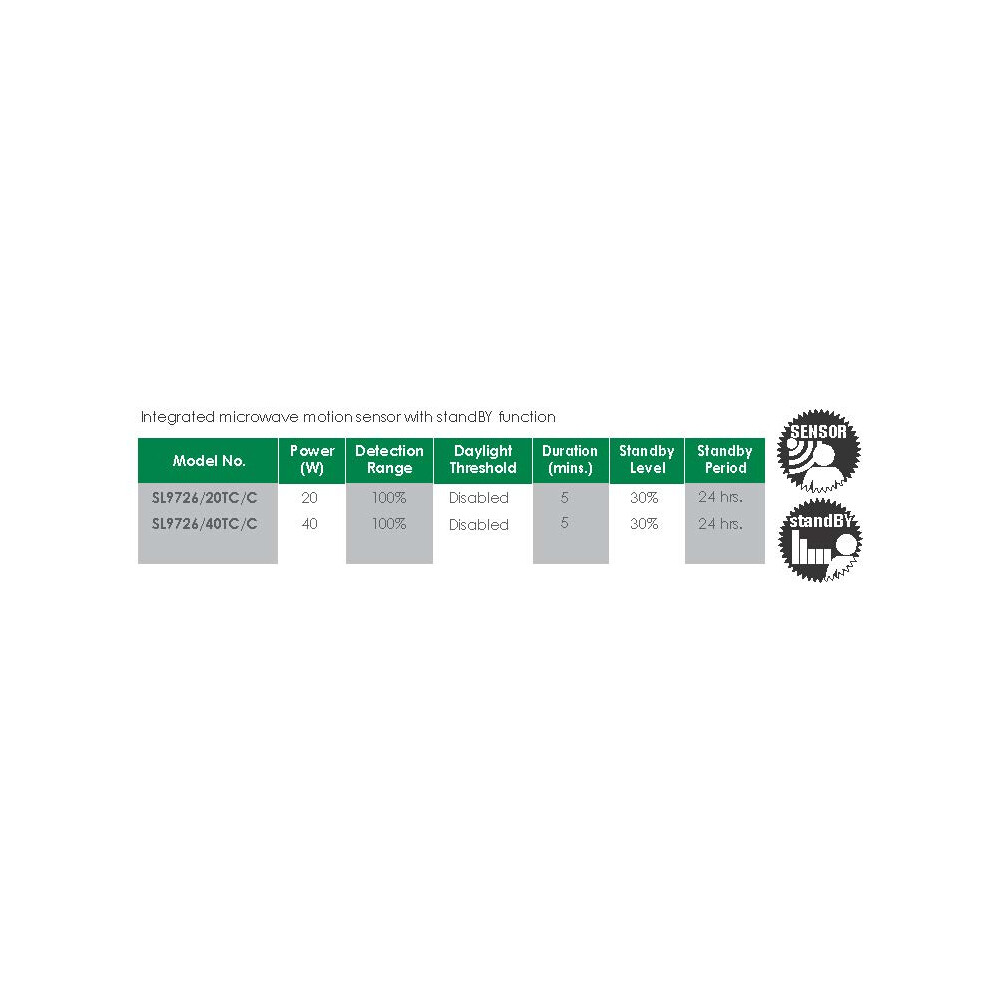

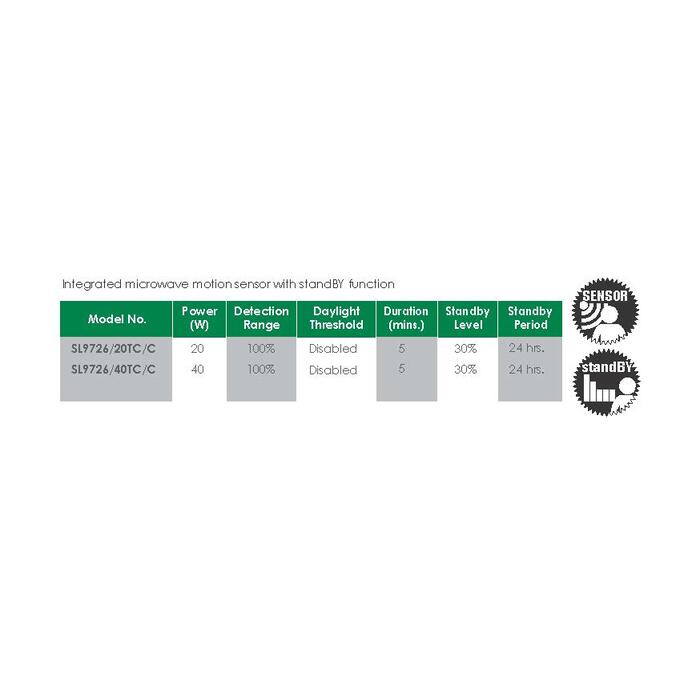

  • Optional (non-dim) corridorSTANDBY function available,
    Note: StandBy options have fixed driver power.

    Accessories included - PVC cable glands and suspension brackets. Installation types - Surface mount (standard) or if Suspended (a suspension kit is required), corridorSTANDBY options available

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - Trailing edge, 1-10V, DALI, DSI
  • In Built Sensor - OPTIONAL
  • Sensor Type - MICROWAVE
  • Dimensions - Wiring Diagrams
  • Design Options
    Dimmer Trailing Edge YES
    Dimmer 1-10V YES
    Dimmer DSI YES
    Dimmer DALI YES

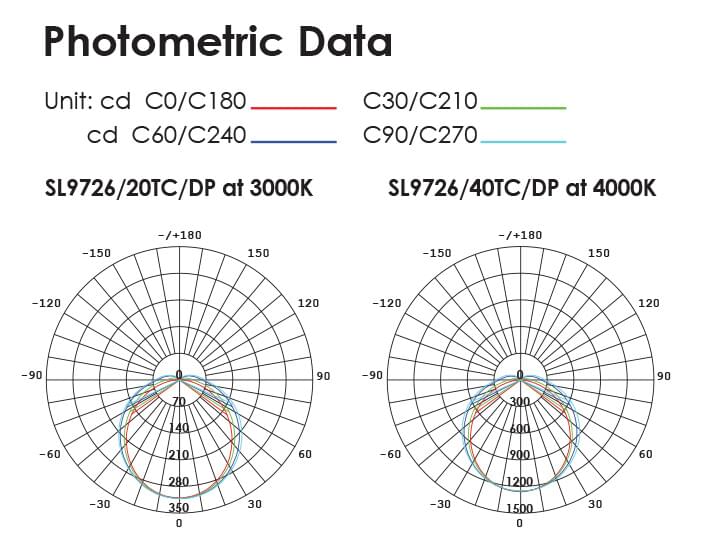

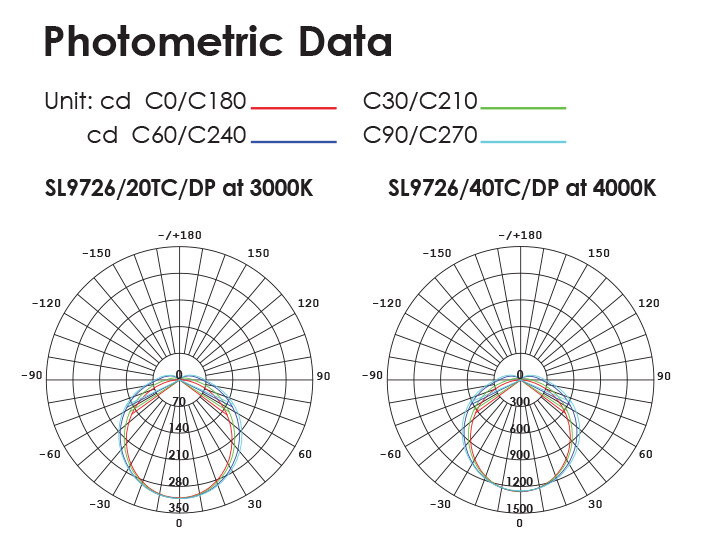

  • Photometric Data
  • FAQ
    • Where can I buy SAL products?

      Where can I buy SAL products?

      SAL distribute their products through authorised Australian Electrical Trade Wholesalers and Lighting Retailers. To find a store near you, simply follow this link and input your postcode, where the nearest location to you will be provided.

    • Does SAL have office locations nationally?

      Does SAL have office locations nationally?

      Yes, SAL has customer service centres in Brisbane, Sydney, Melbourne, Adelaide and Perth.

    • What does IP stand for?

      What does IP stand for?

      IP (or Ingress and Protection) are an international standard reference which defines how well an electrical product seals itself against the intrusion of foreign bodies and moisture. The first digit I stands for intrusion of a solid object and the second digit P stands for the protection against moisture. In brief the higher the rating the more secure the product is against these elements.

      As a guide IP20 is suitable for basic interior spaces eg: office areas, where IP55 and above would be suitable for exterior equipment such as floodlights.

      For more information please refer to AS 60529.


    • What is a ta rating?

      What is a ta rating?

      (thermal ambient) is the recommended maximum environmental thermal limit for the safe continued operation of an electrical device. The ta rating can be found on the rating label and installation sheet, which is located on the relevant product web page. Typically, you will find ta ratings of 25 degree C for Interior products, where ta ratings of up to 50 degree C can be found for exterior products. Operating products beyond their designed ta limit is not recommended as it will stress the product components beyond their rated limits, resulting in reduced product performance or premature failure.

    • What is an IK rating?

      What is an IK rating?

      An IK rating of a lighting product is covered by EN 62262 and is a measure of the impact resistance of a product. In brief the test process measures a products mechanical impact (impact energy joules) limits against a known mass and varied distances. As a guide the higher the IK rating (limit 10) the higher the products ability to withstand impact force.

      High IK rated products (IK10) would be seen used in environments such as vandal prone installations, prisons as a guide.



    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Multiple Wattage Lumens CRI CCT Beam Angle Body Colour Dim IPART VEET REES Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.SL9726/20TC/DP Input Voltage240 Power20 Multiple Wattage10/20 Lumens2040/2300/2200 CRI80 CCT3000/4000/6000 Beam Angle120 Body ColourGREY Dim642(L) x 118(W) x 77(H) IPARTYES VEETYES REESYES Add to Enquiry Add Remove Remove
    Model No.SL9726/20TC/C Input Voltage240 Power20 Multiple Wattage Lumens2200 CRI80 CCT3000/4000/6000 Beam Angle120 Body ColourGREY Dim642(L) x 118(W) x 77(H) IPART VEET REES Add to Enquiry Add Remove Remove
    Model No.SL9726/40TC/DP Input Voltage240 Power42 Multiple Wattage20/42 Lumens4370/4990/4720 CRI80 CCT3000/4000/6000 Beam Angle120 Body ColourGREY Dim1251(L) x 118(W) x 77(H) IPARTYES VEETYES REESYES Add to Enquiry Add Remove Remove
    Model No.SL9726/40TC/C Input Voltage240 Power42 Multiple Wattage Lumens4720 CRI80 CCT3000/4000/6000 Beam Angle120 Body ColourGREY Dim1251(L) x 118(W) x 77(H) IPART VEET REES Add to Enquiry Add Remove Remove
    Model No.SL9726/40TC/S Input Voltage240 Power42 Multiple Wattage20/42 Lumens4370/4990/4720 CRI80 CCT3000/4000/6000 Beam Angle120 Body ColourGREY Dim1251(L) x 118(W) x 77(H) IPART VEET REES Add to Enquiry Add Remove Remove
    Model No.SL9726/50TC/DP Input Voltage240 Power50 Multiple Wattage30/50 Lumens5480/6070/5920 CRI80 CCT3000/4000/6000 Beam Angle120 Body ColourGREY Dim1551(L) x 118(W) x 77(H) IPARTN/A VEETN/A REESN/A Add to Enquiry Add Remove Remove

    Note: Lumens (lm) shown are displayed at FULL power

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
