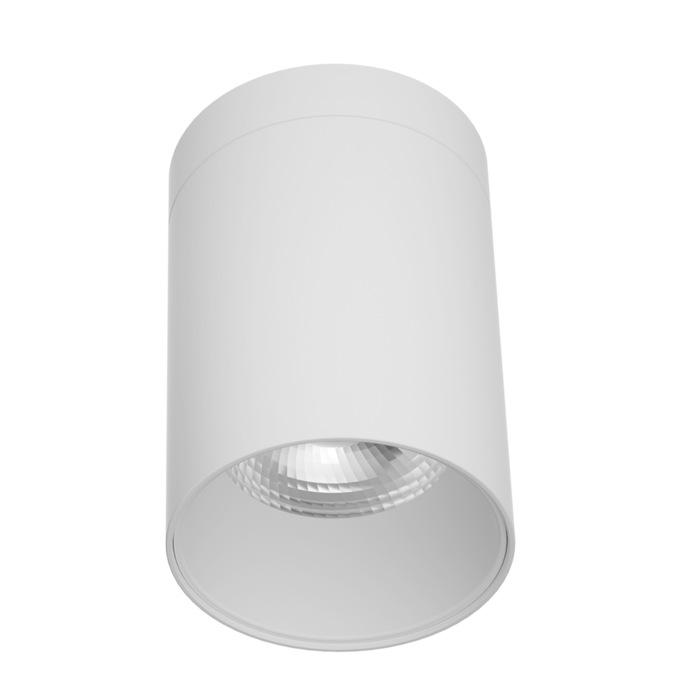

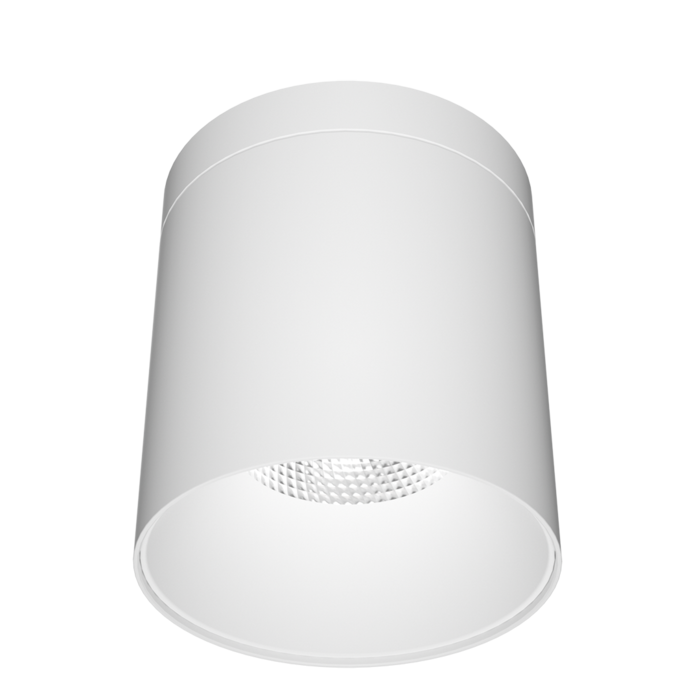

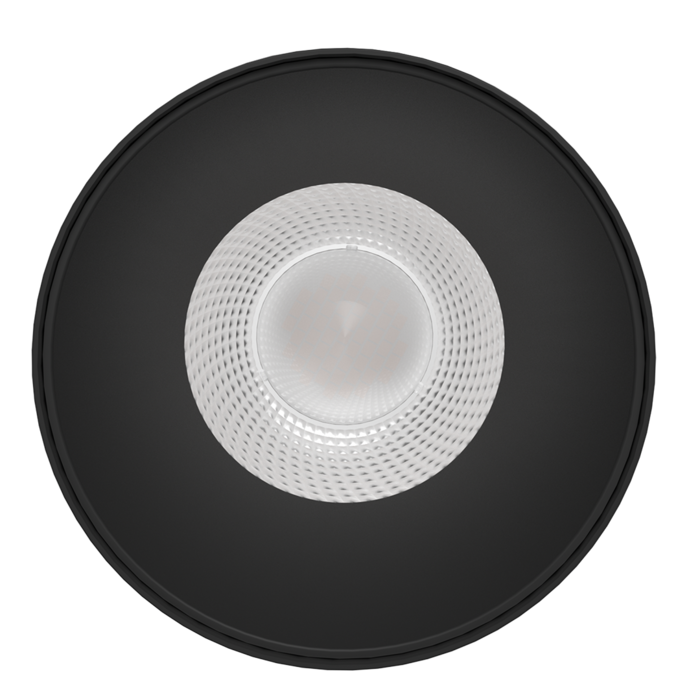

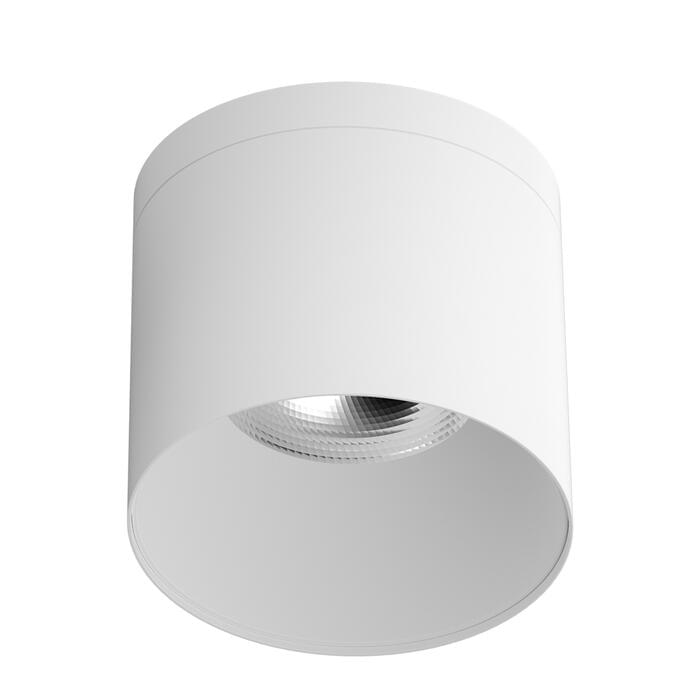

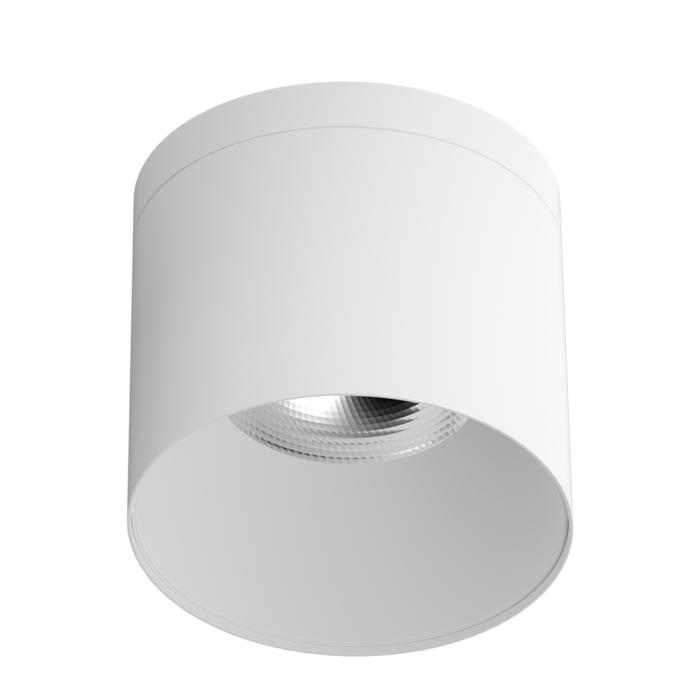

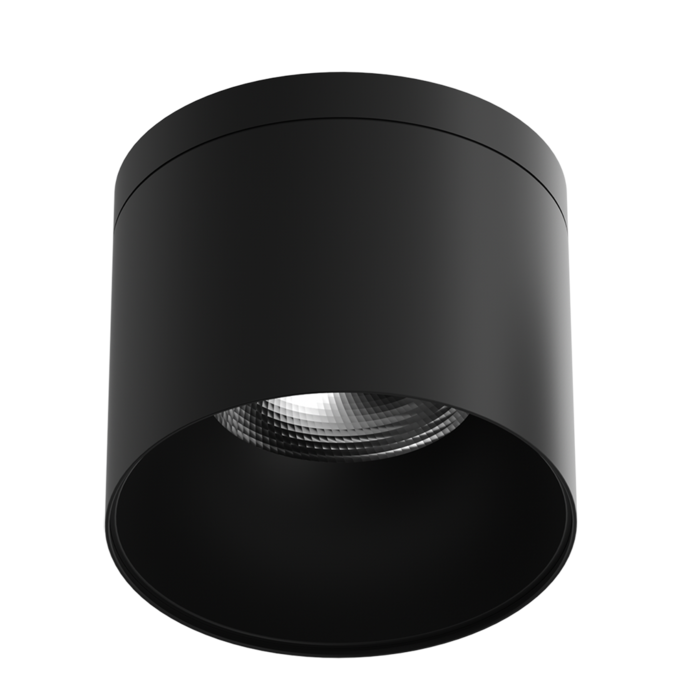

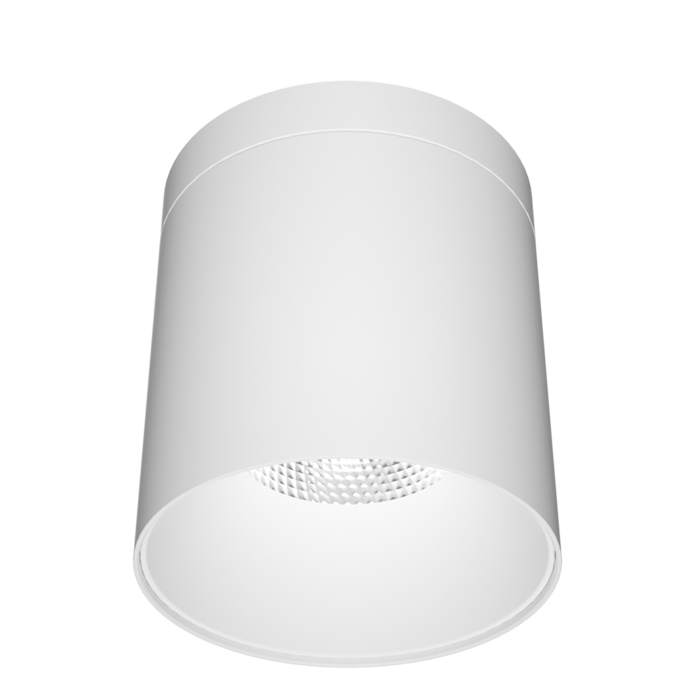

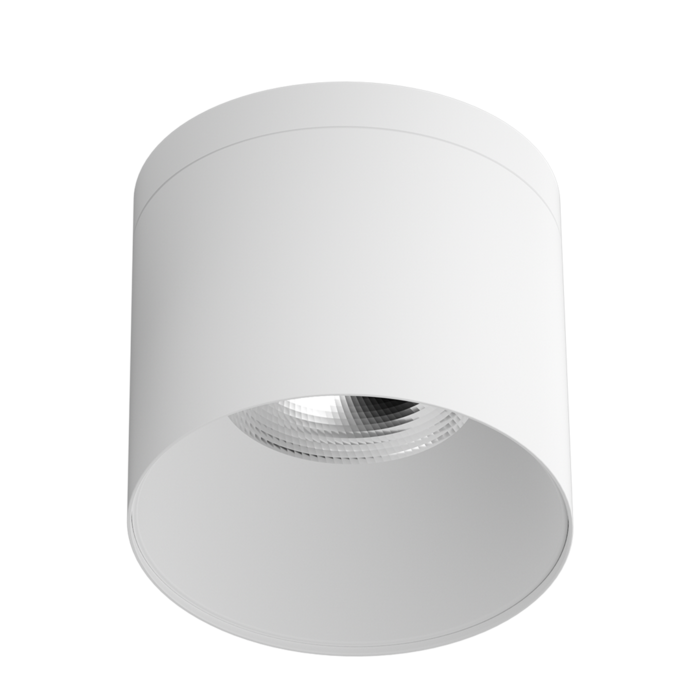

AIRLEE S9605TC - 15/40W

15 - 40 watt IP65 surface mount downlight with dimmable options

Application

Ideal for any retail, residential or commercial interior space

Design Specifications

  • Choice of 15, 30 or 40 watt integral control gear, with flickerCONTROLLED performance

  • Selectable CCT 3000 / 4000 / 5700K

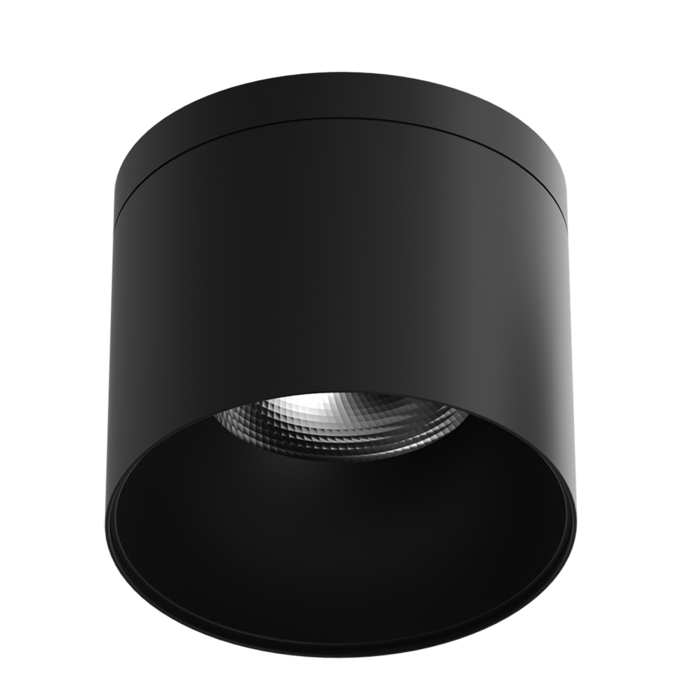

  • Choice of black or white powdercoat finish

  • Robust IP65 die-cast aluminium body profile

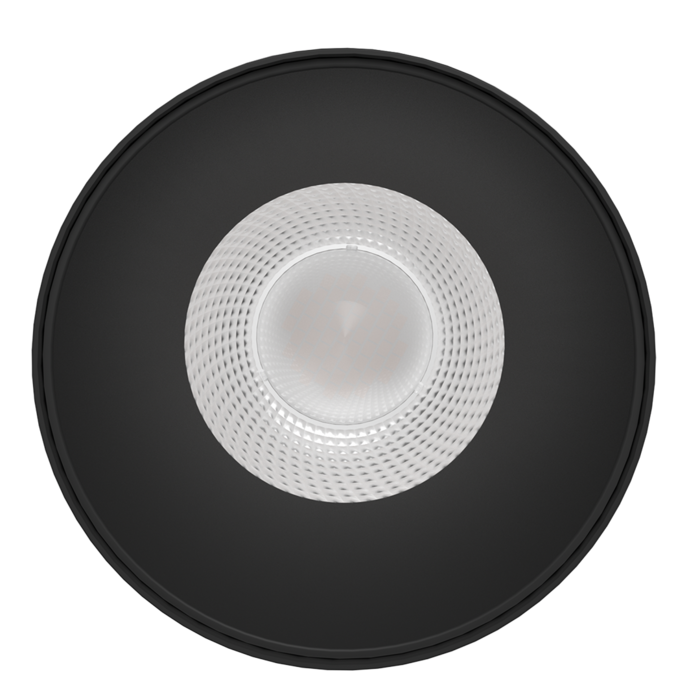

  • High performance multi-faceted reflector profile, beam 60°, CRI>90

  • IK06 rated

Performance

  • Dimmable - YES
  • Dimmer Type - REFER MODEL NUMBER
AIRLEE S9605TC -
AIRLEE S9605TC -
AIRLEE S9605TC -
AIRLEE S9605TC -
AIRLEE S9605TC -
AIRLEE S9605TC -
AIRLEE S9605TC -
COMING SOON
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT5700K

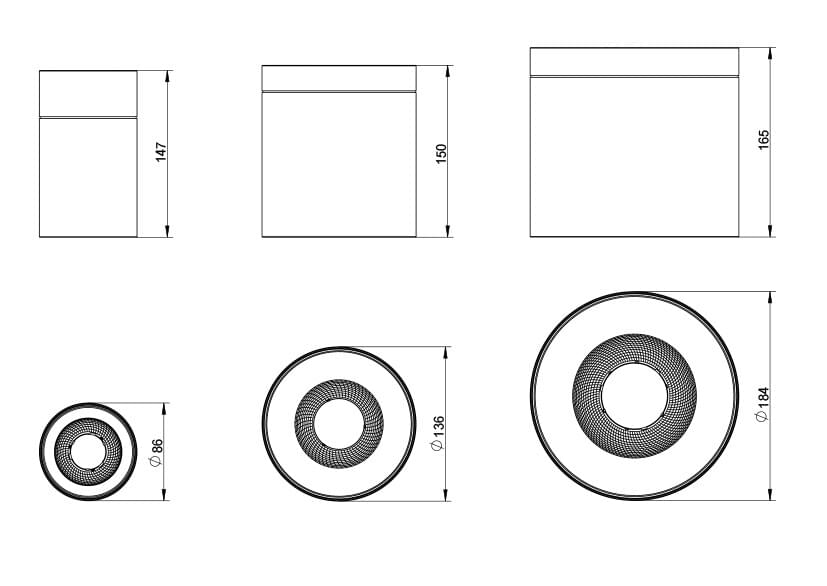

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Body Colour Diameter Dim
      		Model No. S9605/85/15TC/WH Add to Enquiry Add Remove Remove Input Voltage 240 Power 15 Lumens 1350/1500/1425 CCT 3000/4000/5700 Beam Angle 60 Dimmable YES CRI 90 Body Colour WHITE Diameter 86 Dim 147(H)
      		Model No. S9605/85/15TC/BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 15 Lumens 1125/1275/1200 CCT 3000/4000/5700 Beam Angle 60 Dimmable YES CRI 90 Body Colour BLACK Diameter 86 Dim 147(H)
      		Model No. S9605/135/30TC/WH Add to Enquiry Add Remove Remove Input Voltage 240 Power 30 Lumens 3000/3300/3150 CCT 3000/4000/5700 Beam Angle 60 Dimmable NO CRI 90 Body Colour WHITE Diameter 136 Dim 150(H)
      		Model No. S9605/135/30TC/BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 30 Lumens 2400/2700/2550 CCT 3000/4000/5700 Beam Angle 60 Dimmable NO CRI 90 Body Colour BLACK Diameter 136 Dim 150(H)
      		Model No. S9605/185/40TC/WH Add to Enquiry Add Remove Remove Input Voltage 240 Power 40 Lumens 4000/4400/4200 CCT 3000/4000/5700 Beam Angle 60 Dimmable NO CRI 90 Body Colour WHITE Diameter 165 Dim 184(H)
      		Model No. S9605/185/40TC/WH Add to Enquiry Add Remove Remove Input Voltage 240 Power 40 Lumens 3200/3600/3400 CCT 3000/4000/5700 Beam Angle 60 Dimmable NO CRI 90 Body Colour BLACK Diameter 165 Dim 184(H)
    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
