• LED DOWNLIGHTS

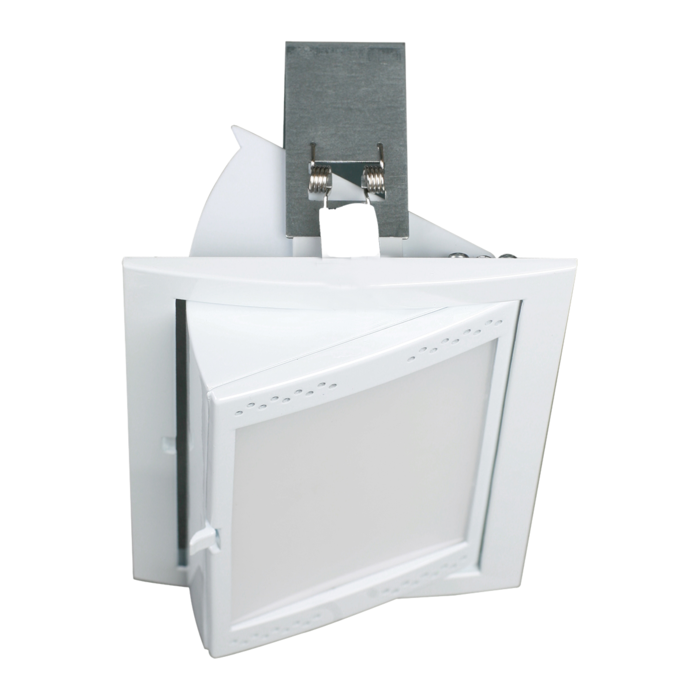

ALBANY S9514TC - 28W/36W

Recessed LED rectangular Shop Light with selectable CCT and power.

Application

Ideal for any retail or commercial interior spaces

Design Specifications

  • Selectable CCT 3000K /4000K / 5500K

  • Selectable power setting 28W/36W

  • Adjustable tilt up to 60°

  • Constant current non-dimmable LED driver,
    complete with flex and plug.

  • Remote non-dimmable LED driver, complete with flex & plug

  • Stylish white or silver powder coat finish, high efficiency LED optics, double insulated

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - Trailing edge, 1-10V, DALI/DSI

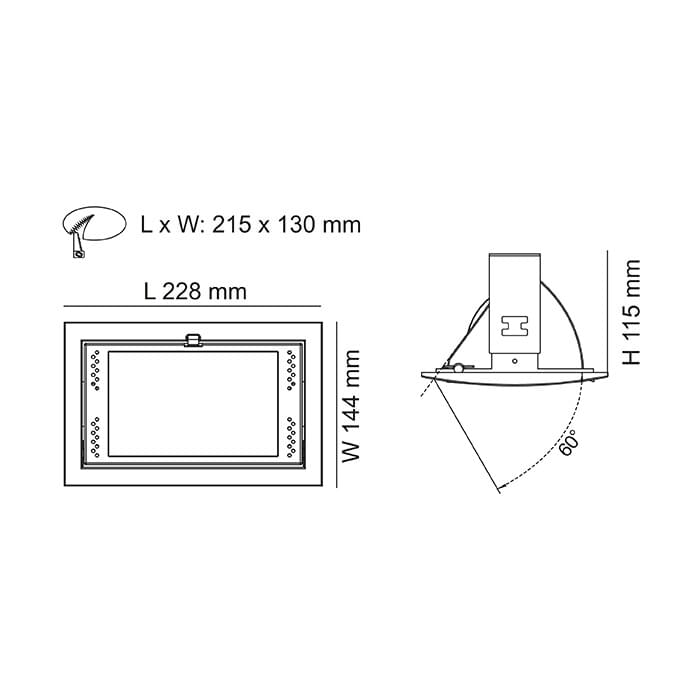

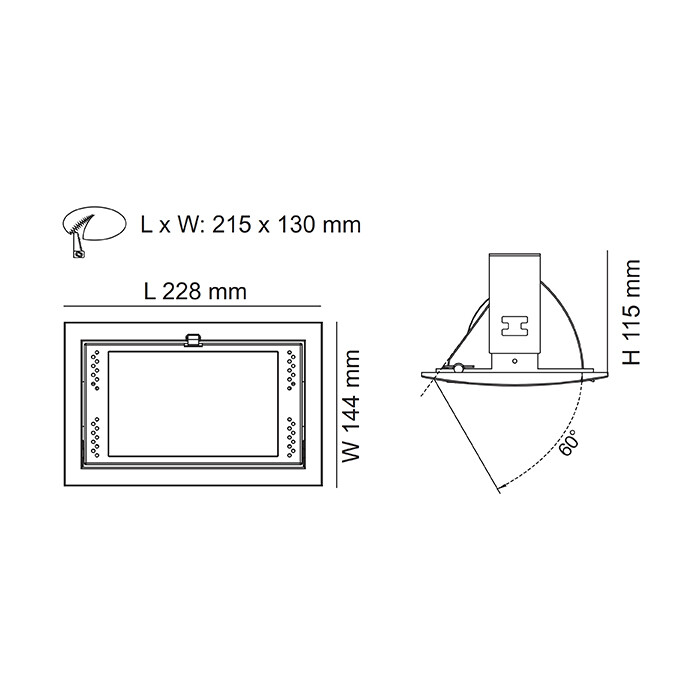

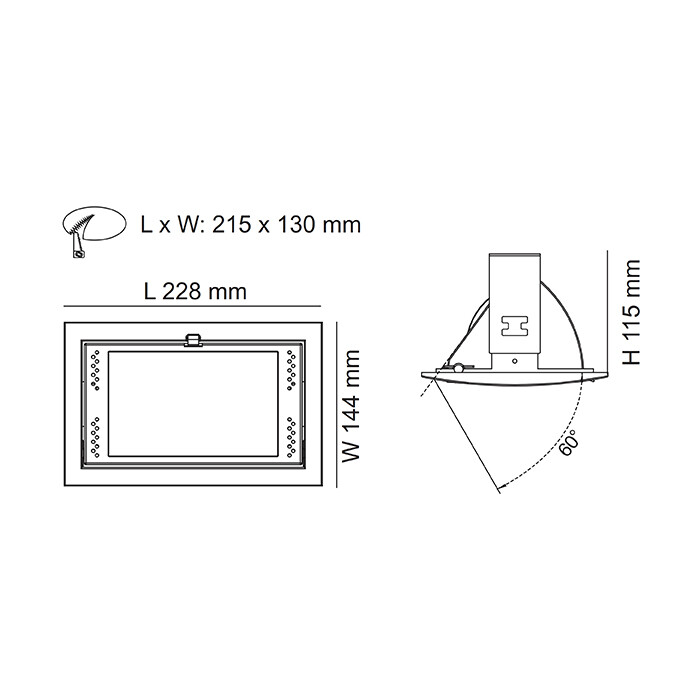

  • Dimensions - Wiring Diagrams
  • Design Options

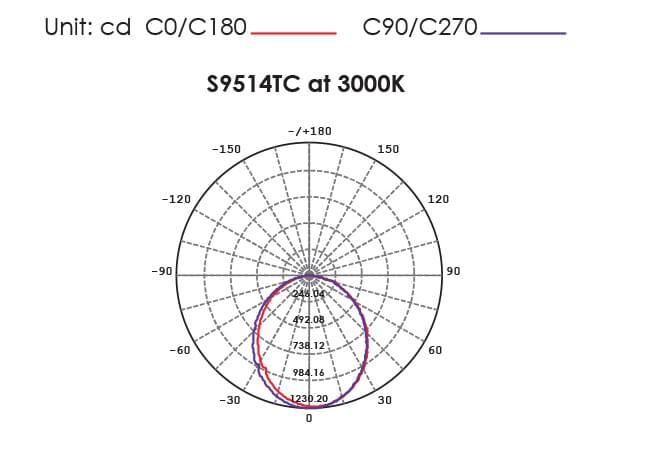

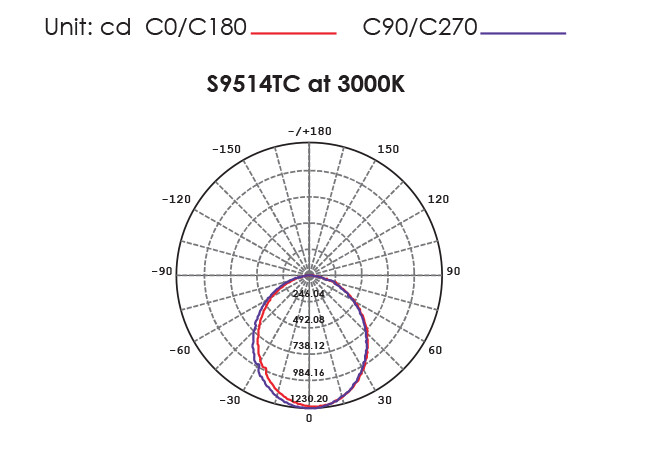

  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Multiple Wattage Lumens CCT Beam Angle Dimmable CRI Body Colour Dim IPART REES Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.S9514TC WH Input Voltage240 Multiple Wattage28/36 Lumens2800/3600 CCT3000/4000/5500 Beam Angle100 Dimmable OPTIONAL CRI80 Body ColourWHITE Dim228(L) x 144(W) x 115(H) IPARTYES REESYES Add to Enquiry Add Remove Remove
    Model No.S9514TC SL Input Voltage240 Multiple Wattage28/36 Lumens2800/3600 CCT3000/4000/5500 Beam Angle100 Dimmable OPTIONAL CRI80 Body ColourSILVER Dim228(L) x 144(W) x 115(H) IPARTYES REESYES Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
