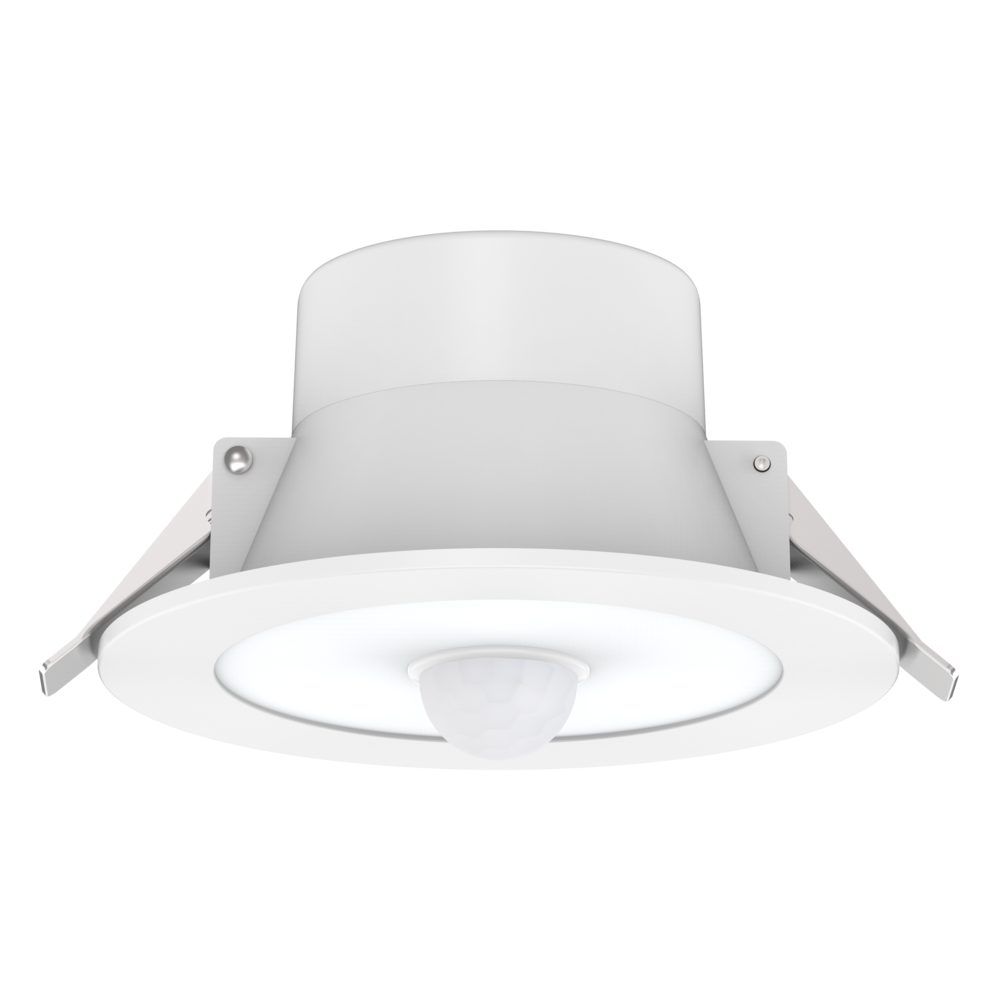

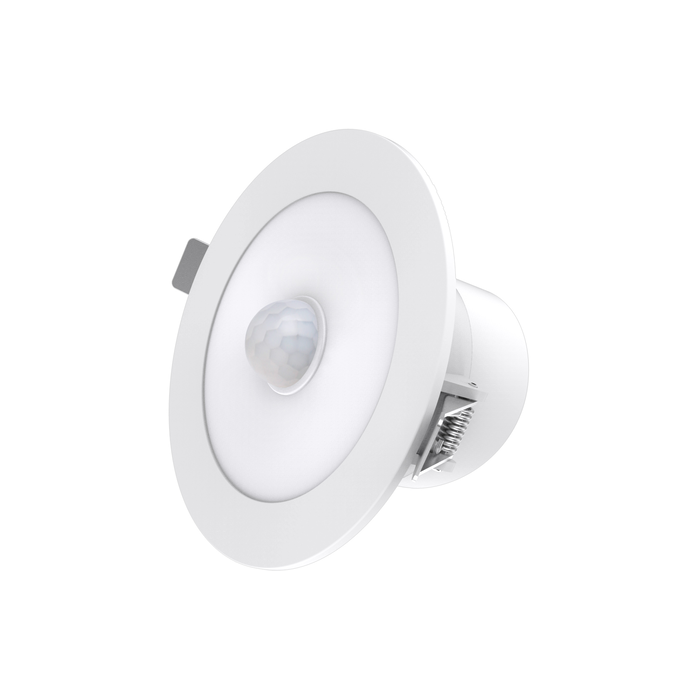

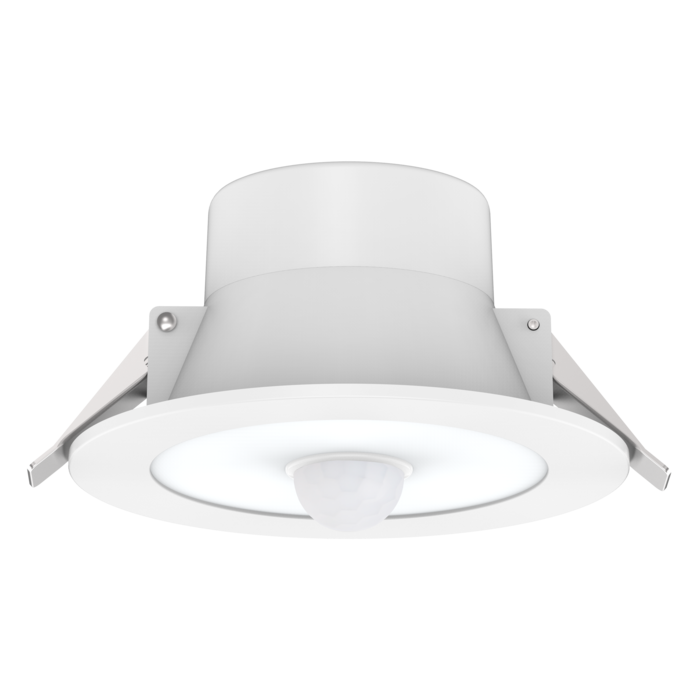

CLARE S9062TC/S - 10W

Recessed LED downlight with PIR sensor control and selectable CCT

Application

Ideal for interior service areas, bathrooms and storage spaces

Design Specifications

  • Selectable CCT 3000K / 4000K / 5700K

  • Integral PIR sensor control with a fixed 90 seconds ON motion detection function incorporating a light sensor function to engage when the lighting levels are <20lux

  • Integral non-dimmable LED 10 watt control gear, IC - 4 rated, complete with flex & plug

  • Stylish white trim with an opal PC diffuser

  • Double insulated

  • Cut - out 92mm

Performance

  • In Built Sensor - YES
  • Sensor Type - PIR

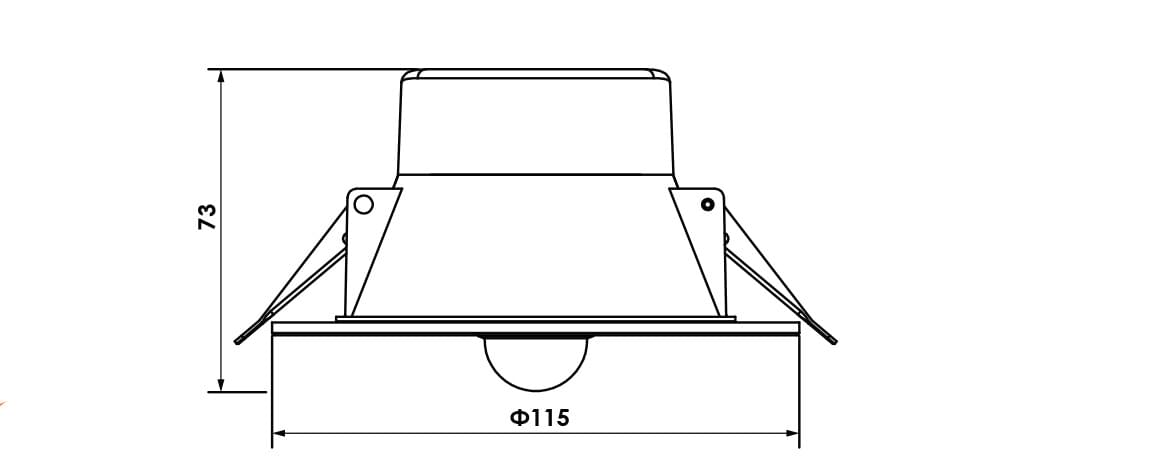

    • Dimensions - Wiring Diagrams
    • Design Options

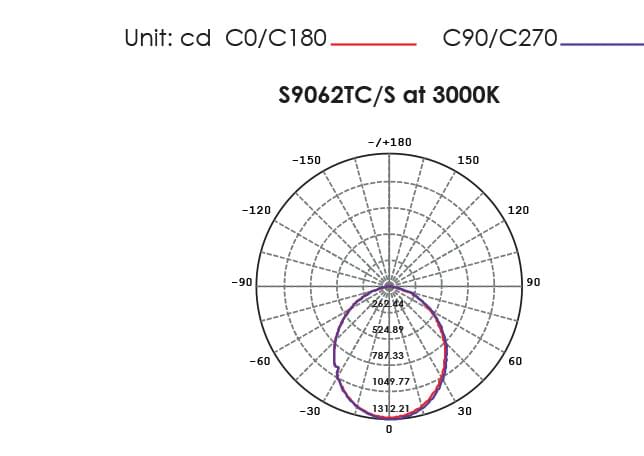

    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads

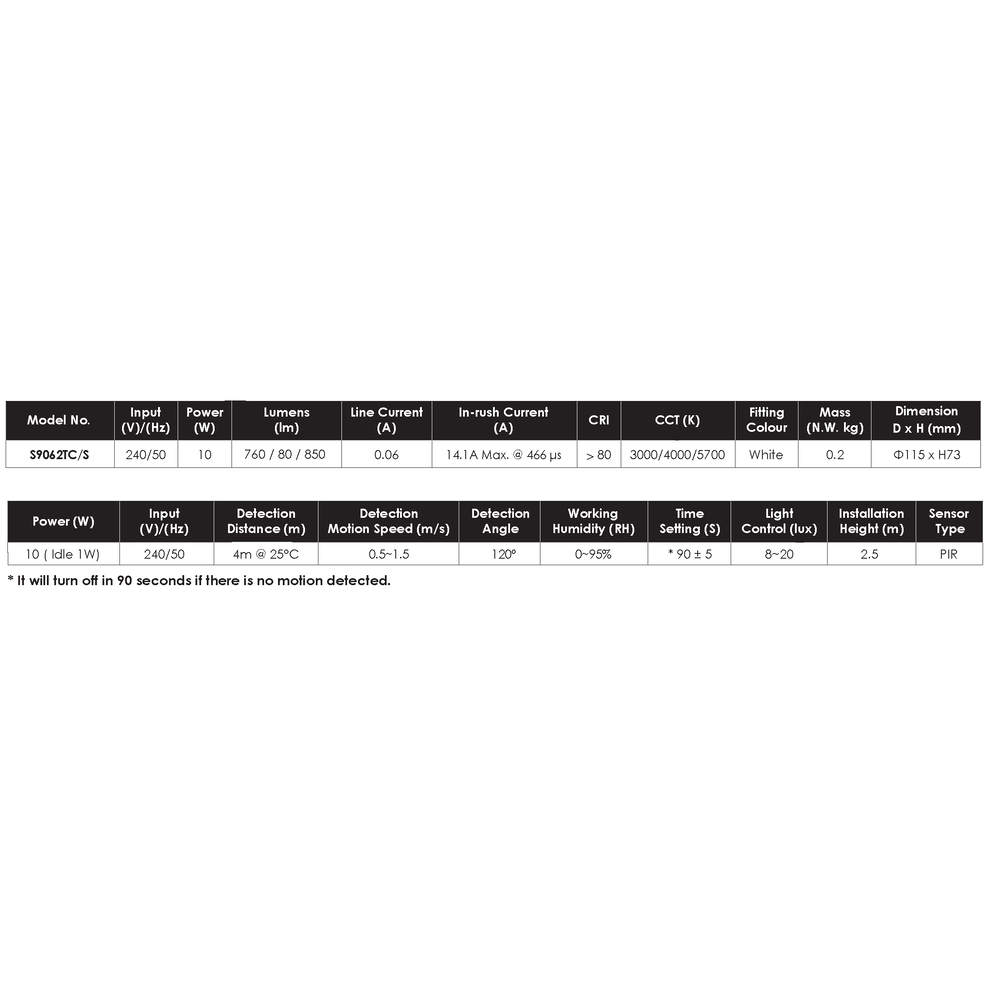

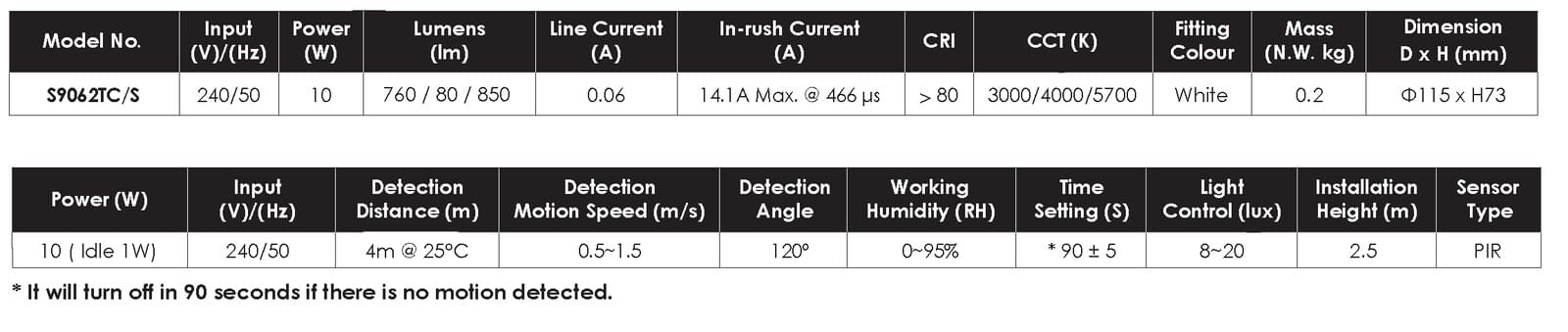

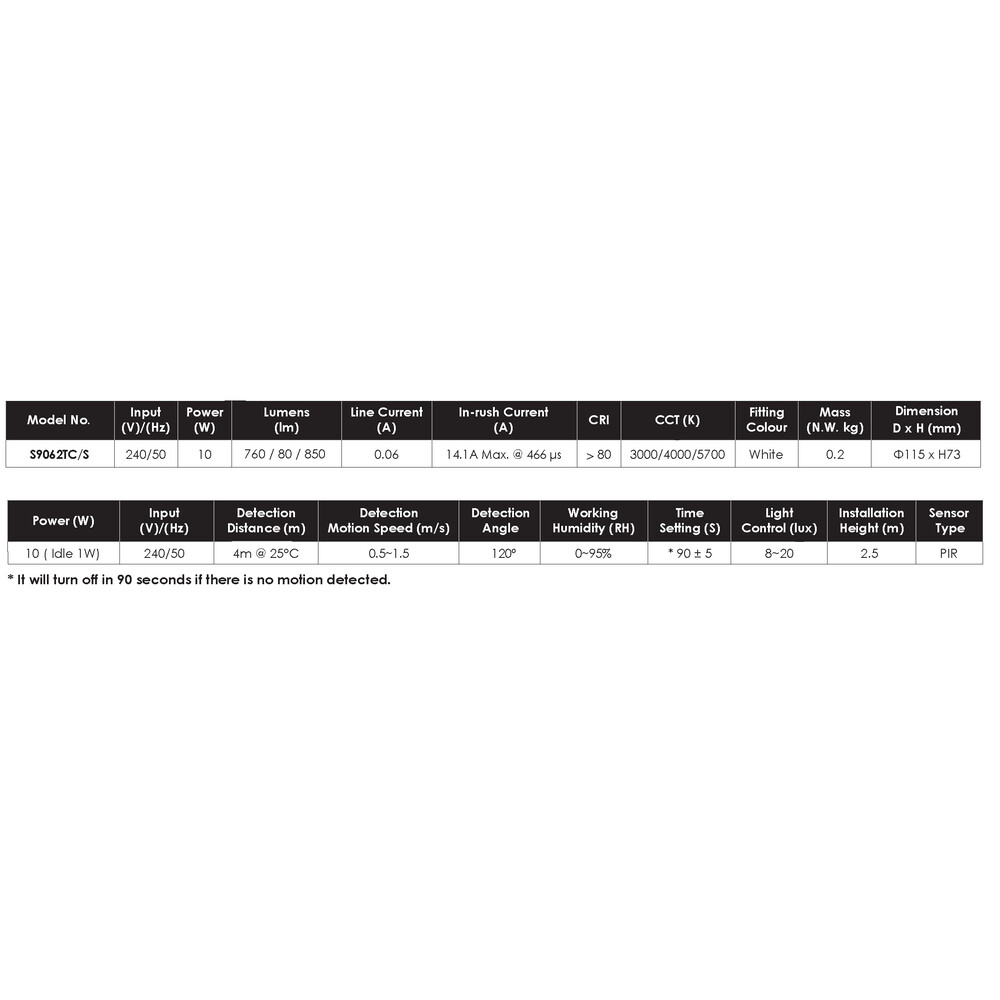

    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Power Lumens CCT Beam Angle CRI Body Colour Cut Out Dim
      		Model No. S9062TC/S Add to Enquiry Add Remove Remove Input Voltage 240 Power 10 Lumens 760/800/850 CCT 3000/4000/5700 Beam Angle 90 CRI 80 Body Colour WHITE Cut Out 92 Dim 115(W) x 73(H)
    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
