• LED DOWNLIGHTS

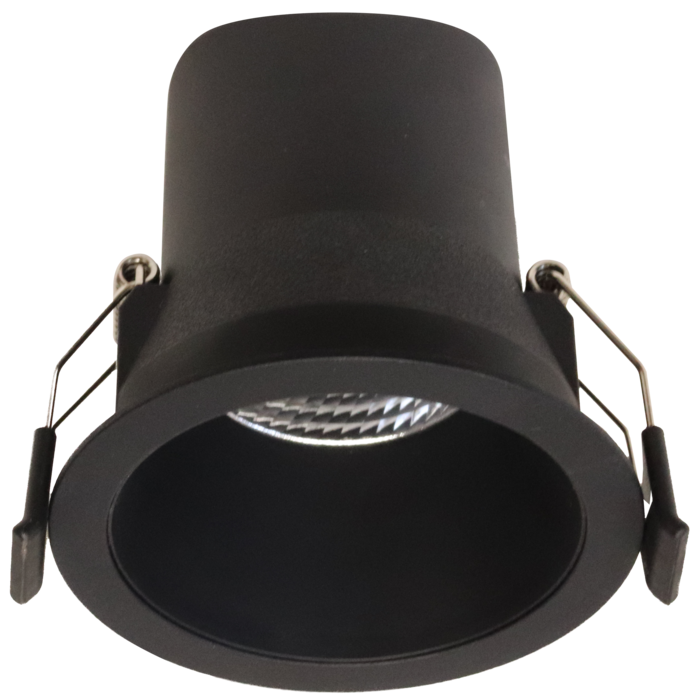

COOLUM PLUS TC S9067/TC - 6W

6 watt dimmable LED downlight, CRI90, UGR<19, with selectable CCT

Application

Ideal for residential or commercial interior applications

Design Specifications

  • 6 watt integral flickerCONTROLLED dimmable driver, complete with flex & plug

  • High efficiency LED optics, multi-faceted optical system

  • Selectable CCT 3000K / 4000K / 5700K, CRI 90, 60° beam distribution, UGR<19

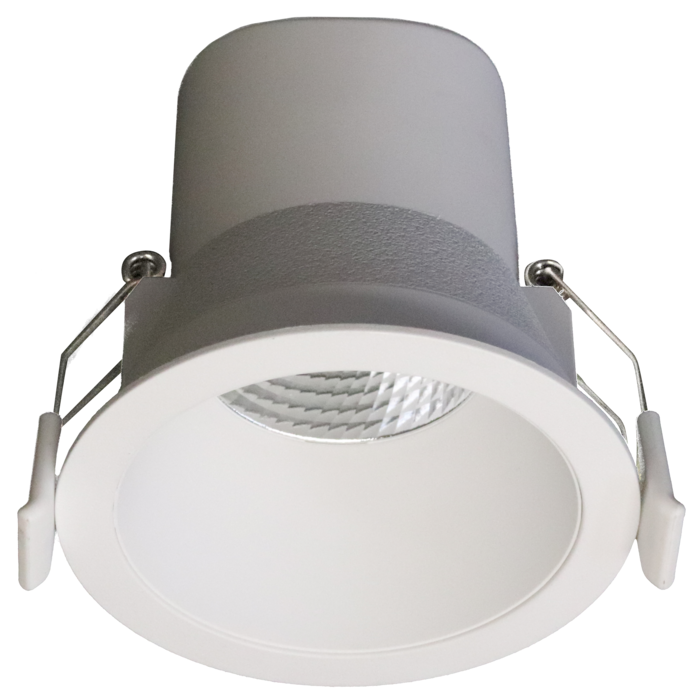

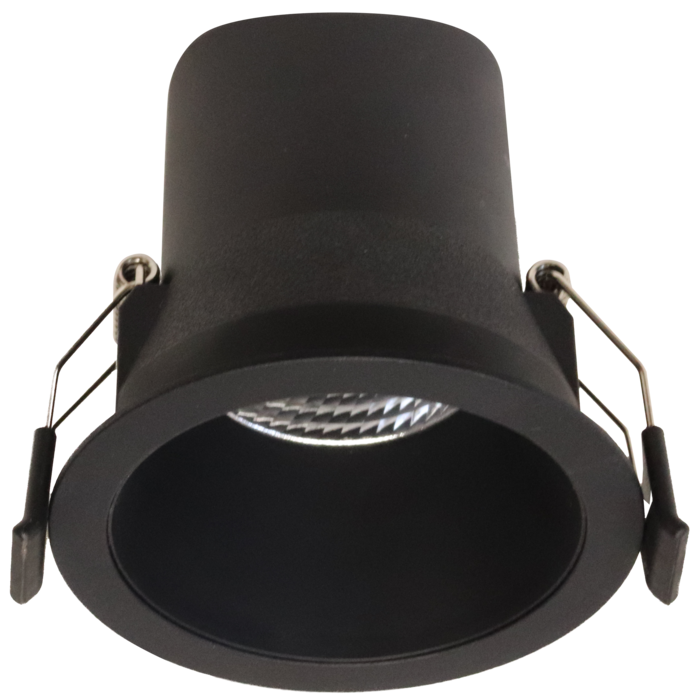

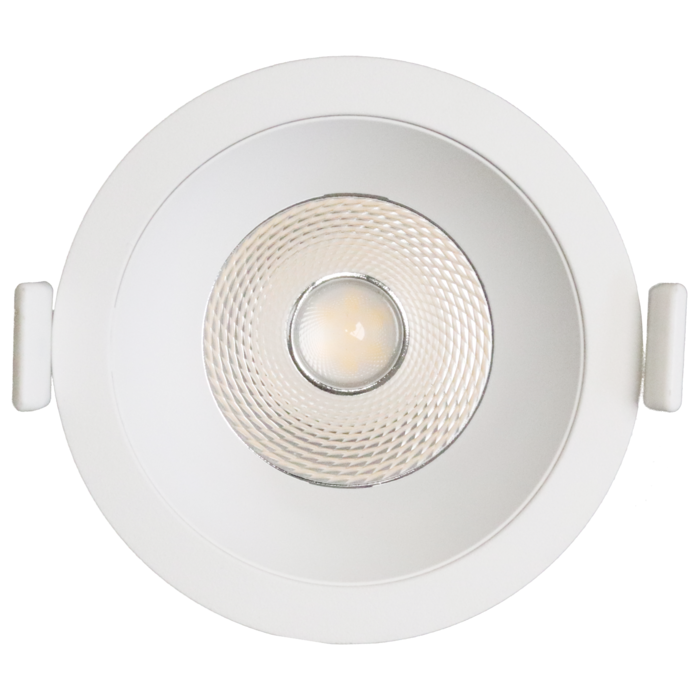

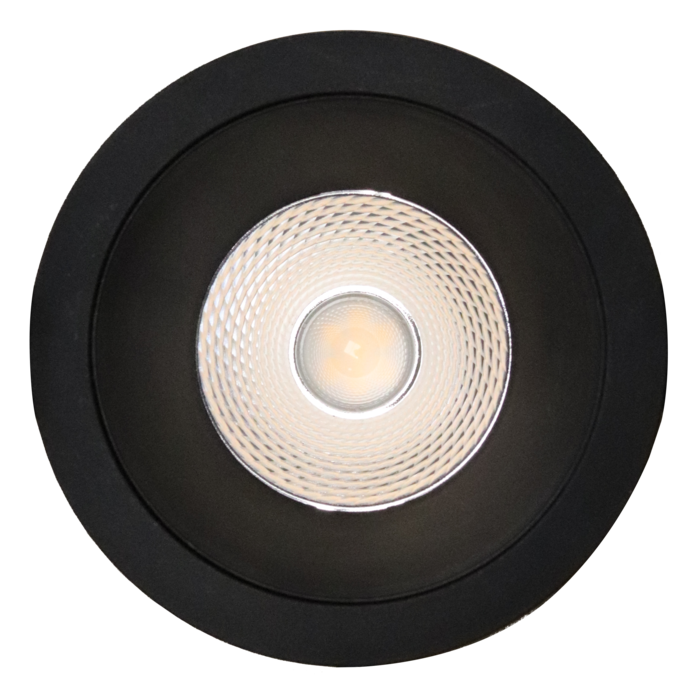

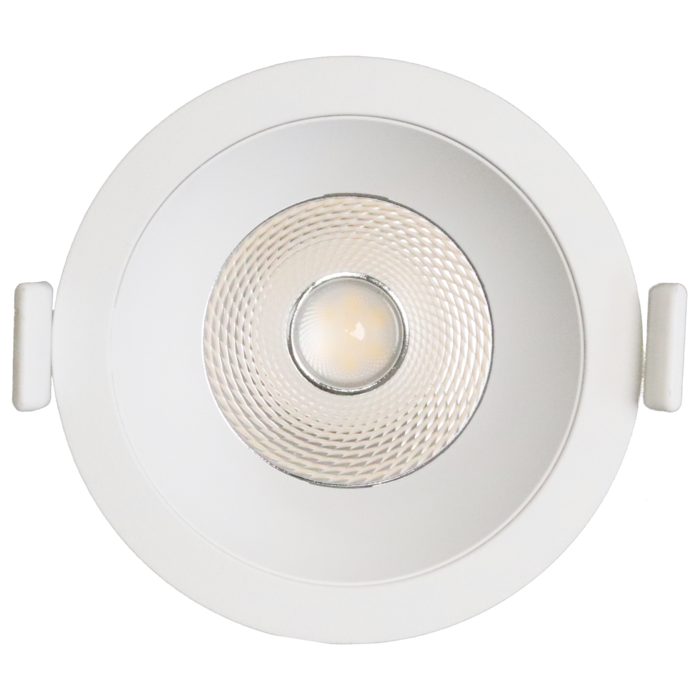

  • Polyamide trim and body in white or black

  • Double insulated

  • IC - 4 rated

Performance

  • Dimmable - YES
  • Dimmer Type - TRAILING EDGE

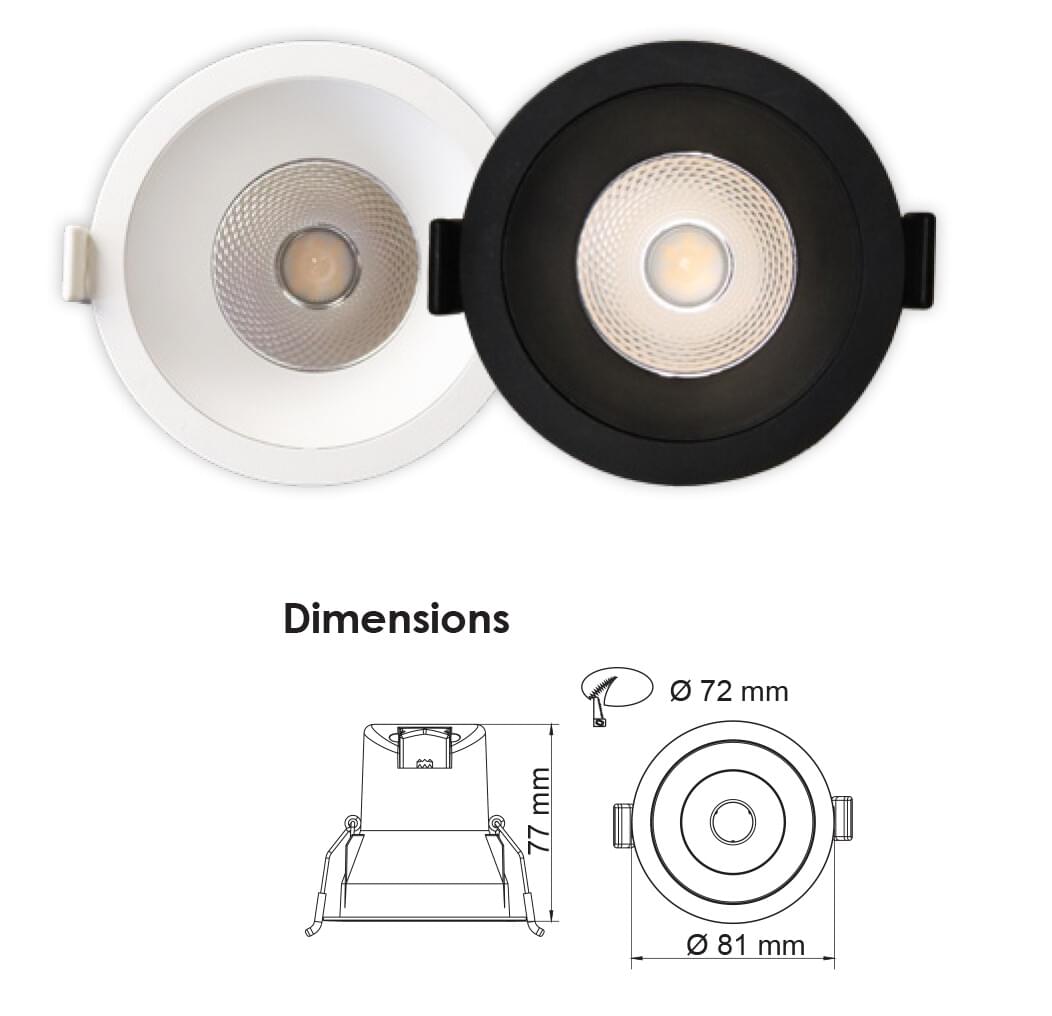

  • Dimensions - Wiring Diagrams
  • Design Options

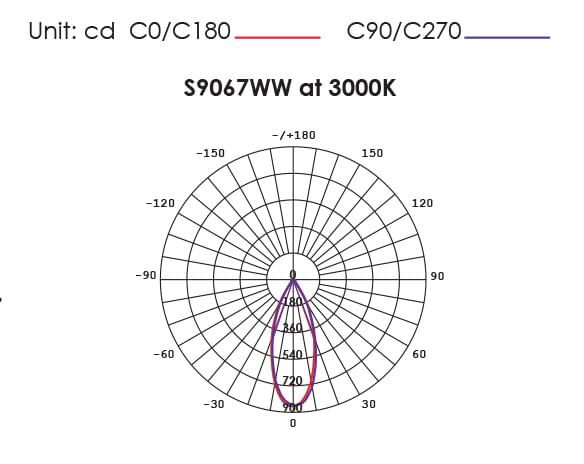

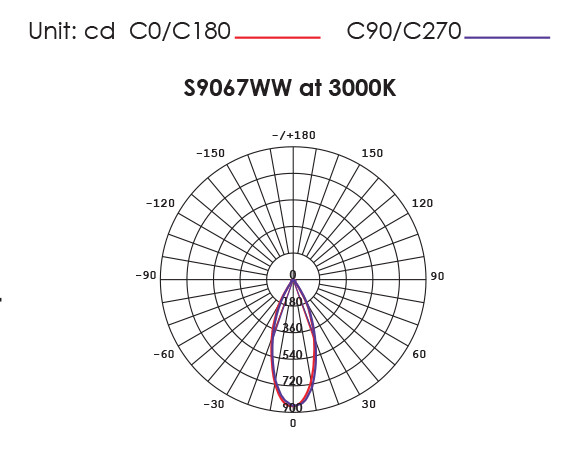

  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Diameter Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.S9067TC/WH Input Voltage240 Power6 Lumens480/530/510 CCT3000/4000/5700 Beam Angle60 Dimmable YES CRI90 Diameter81 Dim77(H) Add to Enquiry Add Remove Remove
    Model No.S9067TC/BK Input Voltage240 Power6 Lumens420/470/440 CCT3000/4000/5700 Beam Angle60 Dimmable YES CRI90 Diameter81 Dim77(H) Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
