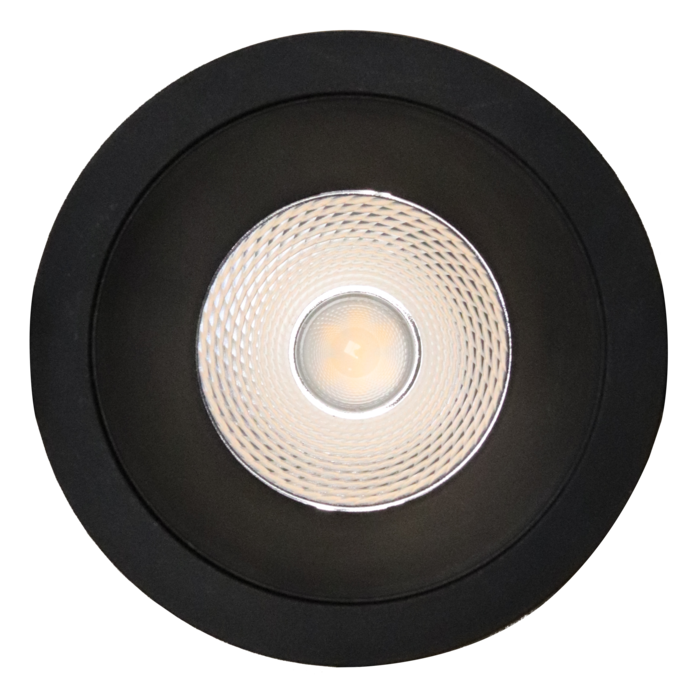

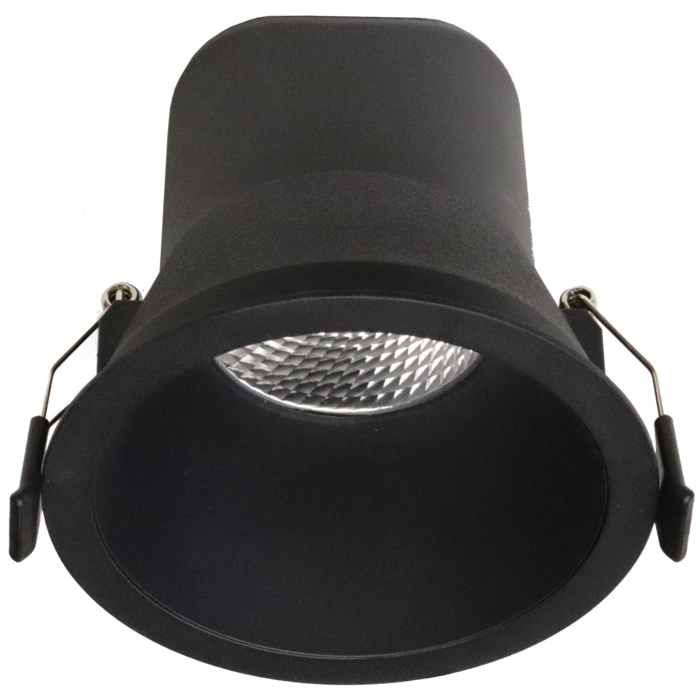

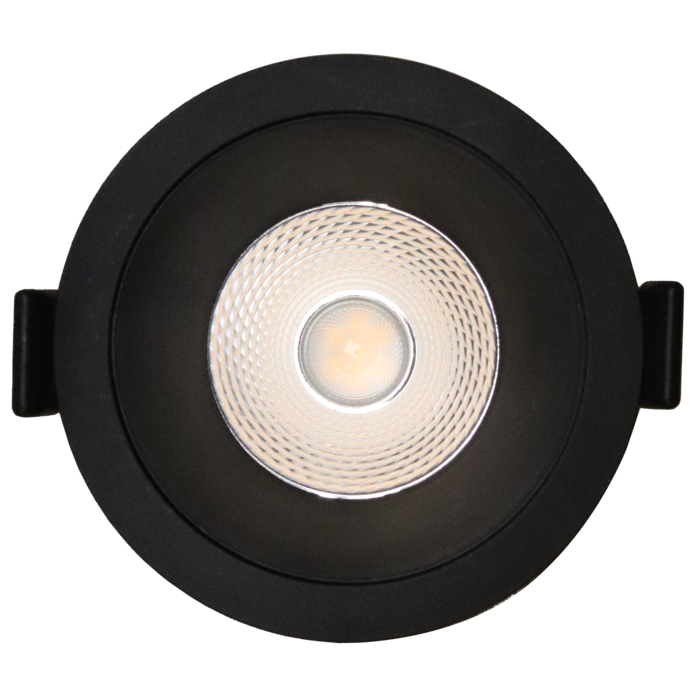

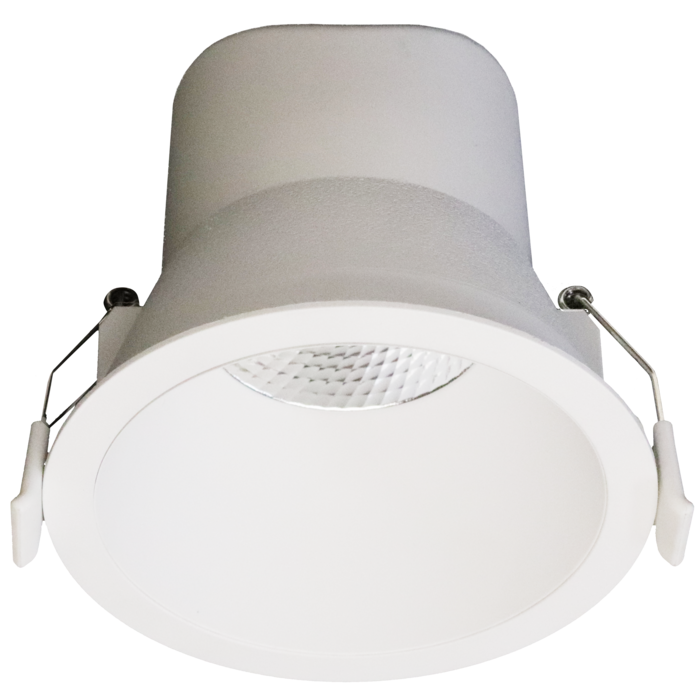

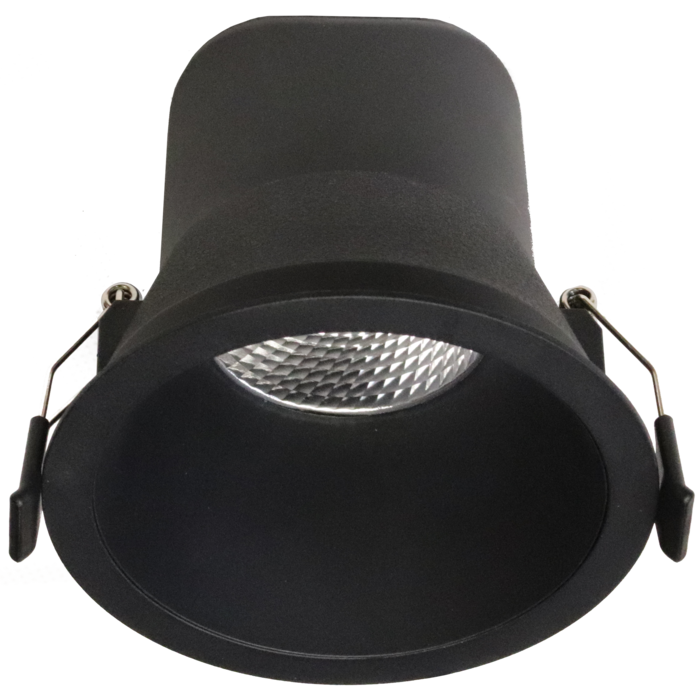

COOLUM PLUS S9068/TC - 9W

9 watt dimmable LED downlight, CRI90, UGR<19, with selectable CCT

Application

Perfect for residential or commercial applications

Design Specifications

  • 9 watt integral flickerCONTROLLED dimmable driver, complete with flex & plug

  • High efficiency LED optics, multi-faceted optical system

  • Selectable CCT 3000K / 4000K / 5700K, CRI>90, 60° beam distribution, UGR<19

  • Polyamide trim and body in white or black

  • IC - 4 rated, double insulated UGR < 19

Performance

  • Dimmable - YES
  • Dimmer Type - TRAILING EDGE

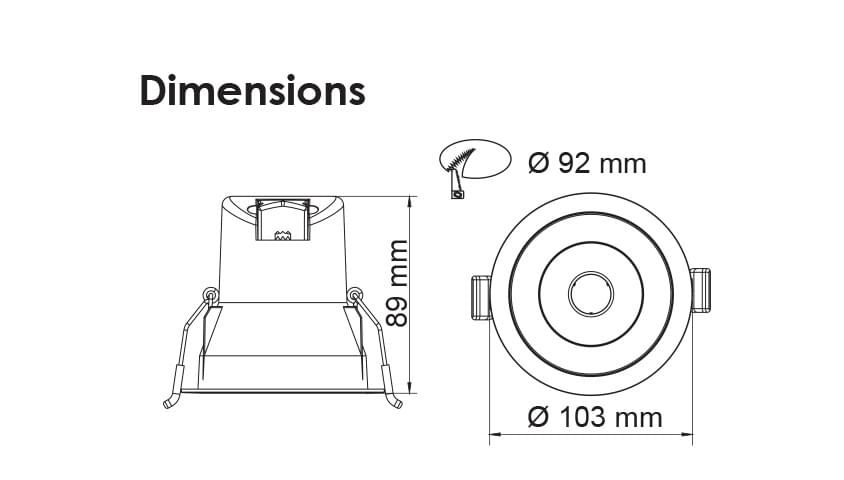

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Cut Out Diameter Dim
      		Model No. S9068TC/WH Add to Enquiry Add Remove Remove Input Voltage 240 Power 9 Lumens 700/780/750 CCT 3000/4000/5700 Beam Angle 60 Dimmable YES CRI 90 Cut Out 92 Diameter 103 Dim 89(H)
      		Model No. S9068TC/BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 9 Lumens 570/630/610 CCT 3000/4000/5700 Beam Angle 60 Dimmable YES CRI 90 Cut Out 92 Diameter 103 Dim 89(H)
    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
