• LED DOWNLIGHTS

ECOGEM S9041TC - 10W

Dimmable 10 watt LED downlight, with selectable CCT, IP44

Application

Ideal for any residential or commercial interior space

Design Specifications

  • Selectable CCT 3000K/4200K/5700K

  • IC - 4 rated, durable die-cast aluminium body profile

  • Choice of White or Black powder coat finish or Satin Nickel

  • Remote trailing edge dimmable, flickerCONTROLLED LED driver, with flex and plug

  • High efficiency LED optics CRI90, with an opal polycarbonate diffuser

  • White surface mount options available, colour trim options: Black (S9041 BK RING), Silver (S9041 SL RING)

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing edge, optional 1-10V, DALI / DSI

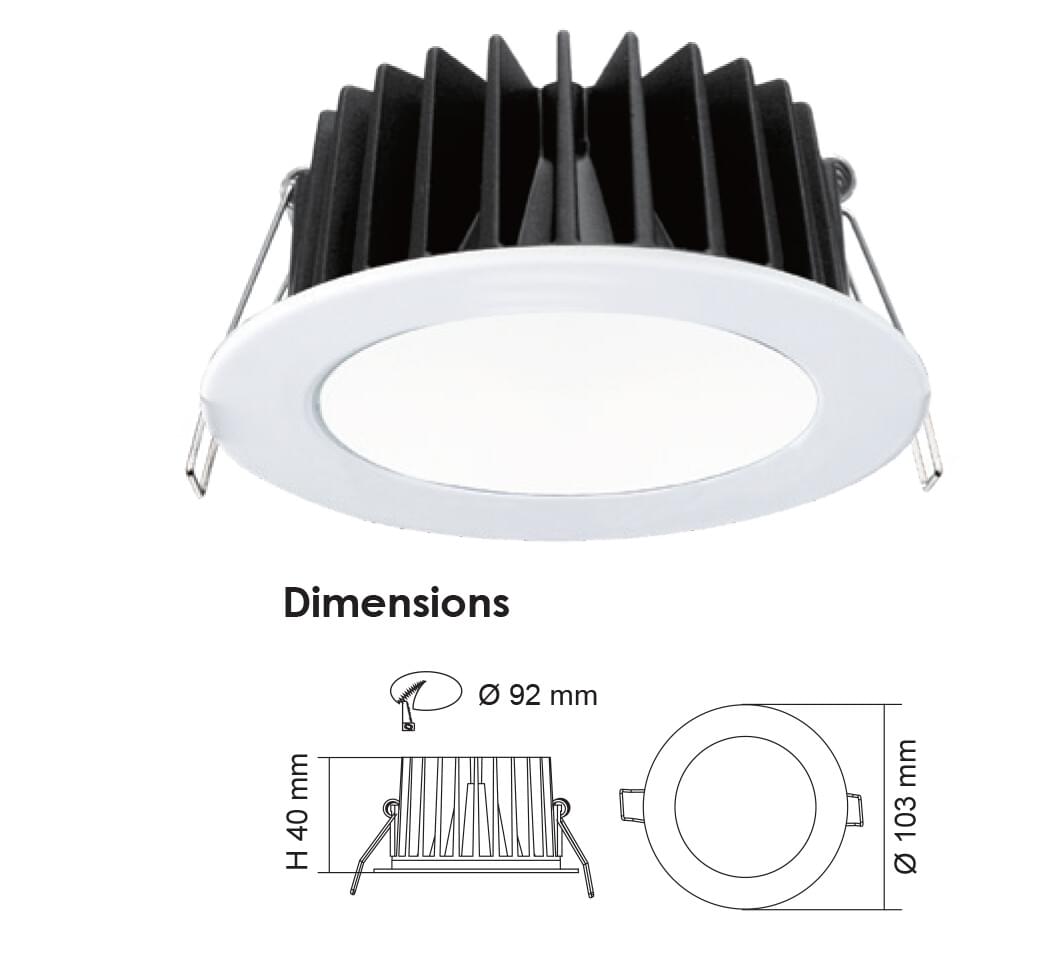

    • Dimensions - Wiring Diagrams
    • Design Options

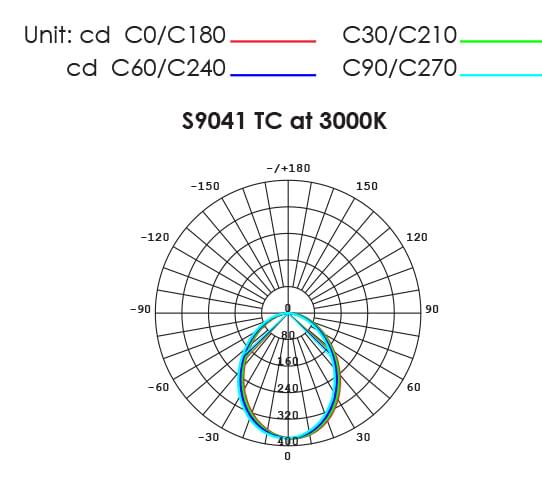

    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Body Colour Cut Out Diameter Dim IPART REES
      		Model No. S9041 TC WH Add to Enquiry Add Remove Remove Input Voltage 240 Power 10 Lumens 850/1000/900 CCT 3000/4200/5700 Beam Angle 90 Dimmable YES CRI 90 Body Colour WHITE Cut Out 92 Diameter 103 Dim 40(H) IPART YES REES YES
      		Model No. S9041 TC SN Add to Enquiry Add Remove Remove Input Voltage 240 Power 10 Lumens 850/1000/900 CCT 3000/4200/5700 Beam Angle 90 Dimmable YES CRI 90 Body Colour SATIN NICKEL Cut Out 92 Diameter 103 Dim 40(H) IPART YES REES YES
      		Model No. S9041TC BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 10 Lumens 800/950/850 CCT 3000/4200/5700 Beam Angle 90 Dimmable YES CRI 90 Body Colour BLACK Cut Out 92 Diameter 103 Dim 40(H)
      		Model No. S9041BK RING Add to Enquiry Add Remove Remove CRI 90 Body Colour BLACK
      		Model No. S9041SL RING Add to Enquiry Add Remove Remove CRI 90 Body Colour SILVER
    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
