• LED DOWNLIGHTS

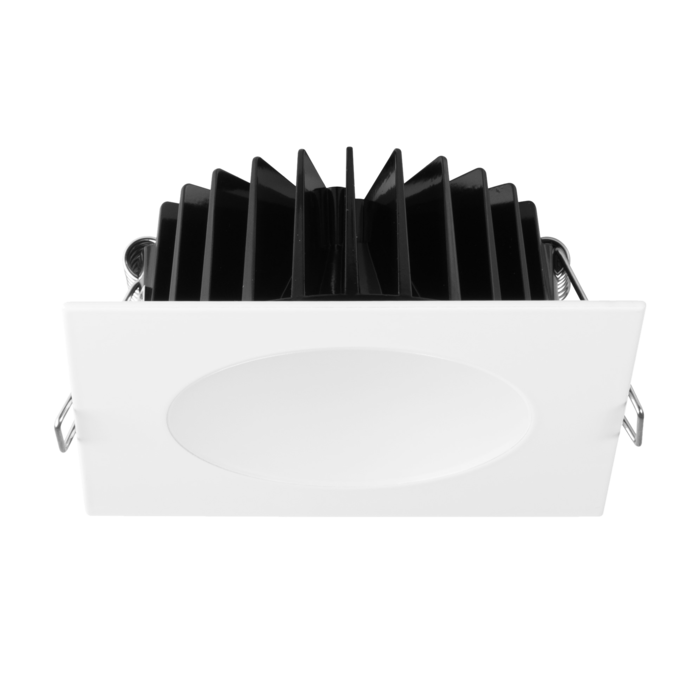

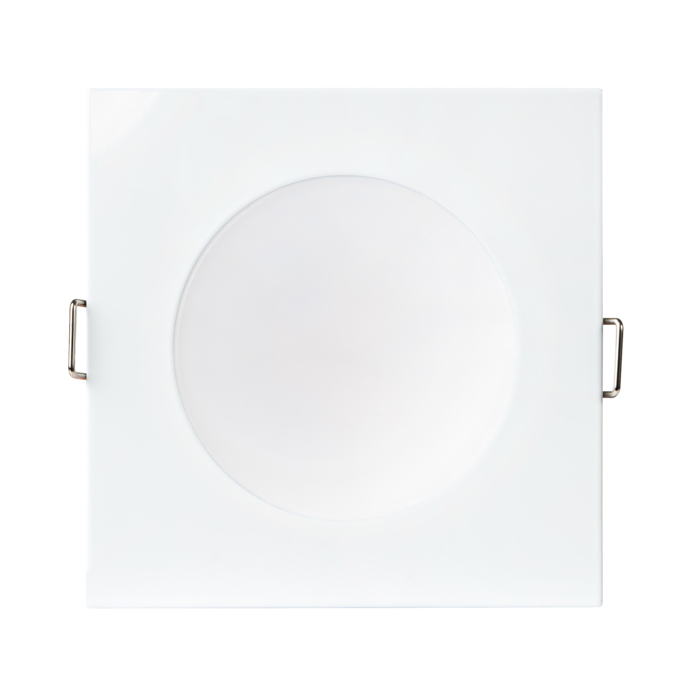

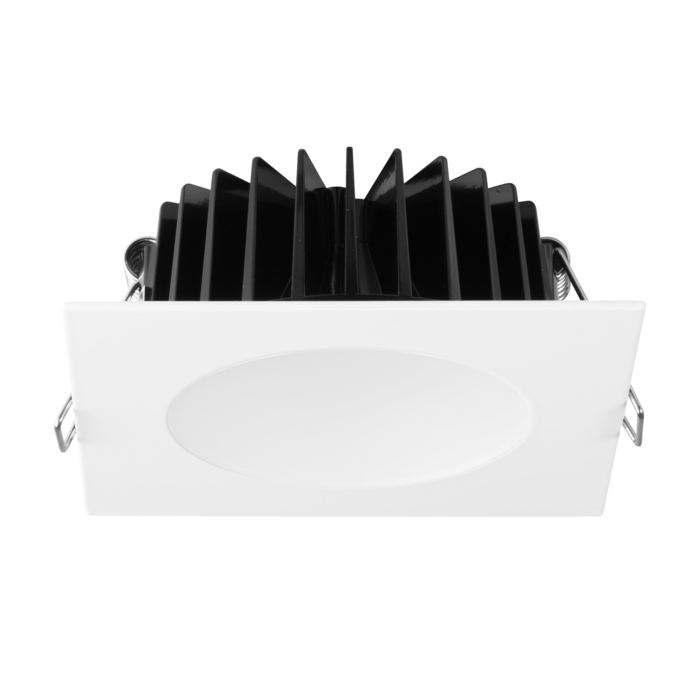

ECOGEM S9041TC SQUARE - 10W

Dimmable 10 watt LED downlight with selectable CCT, IP44.

Application

Ideal for any residential or commercial interior space

Design Specifications

  • Selectable CCT 3000/4200/5700K

  • Durable die-cast aluminium square body profile, IC-4 rated

  • Trim colour choice of white or satin nickel

  • Remote constant current trailing edge dimmable LED driver, with flex and plug

  • High efficiency LED optics, opal polycarbonate diffuser, high performance, HO 13W model available to order

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing edge, optional 1-10V, DALI / DSI

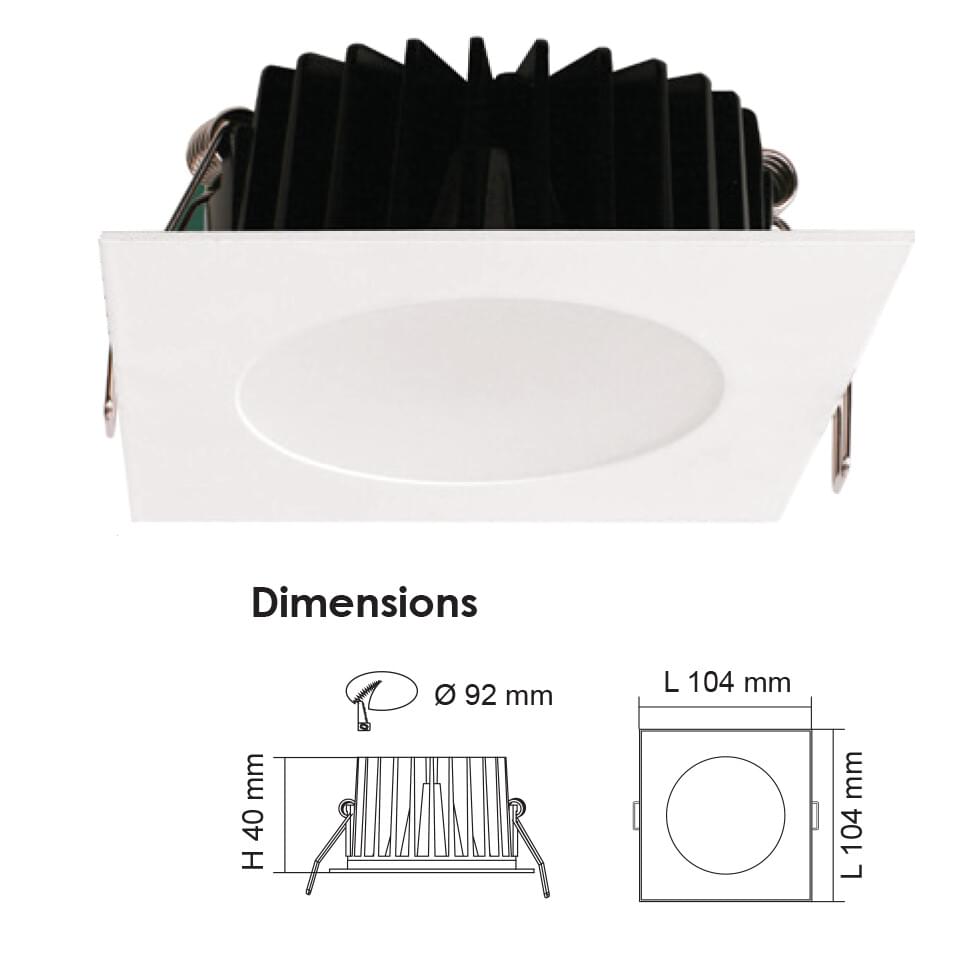

  • Dimensions - Wiring Diagrams
  • Design Options
    Colour 1 Black (S9041 BK RING)

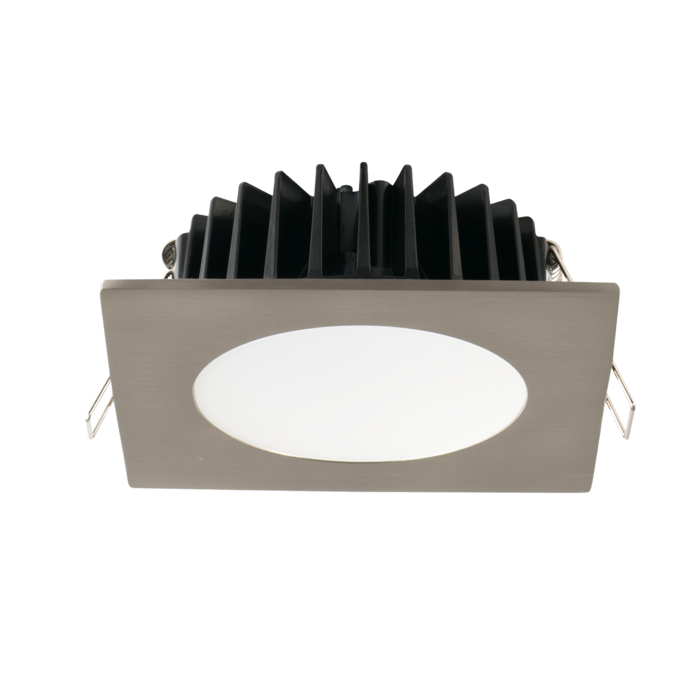

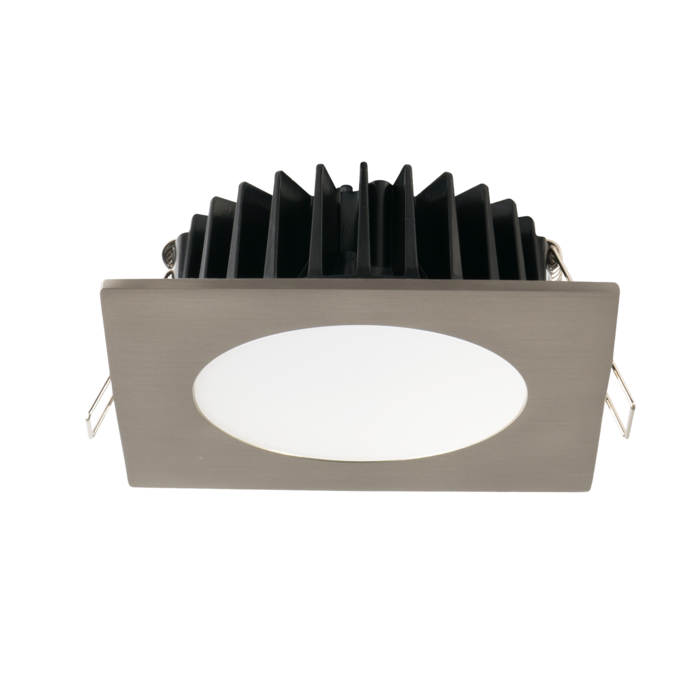

    Colour 2 Satin Nickel (S9041 SN RING)

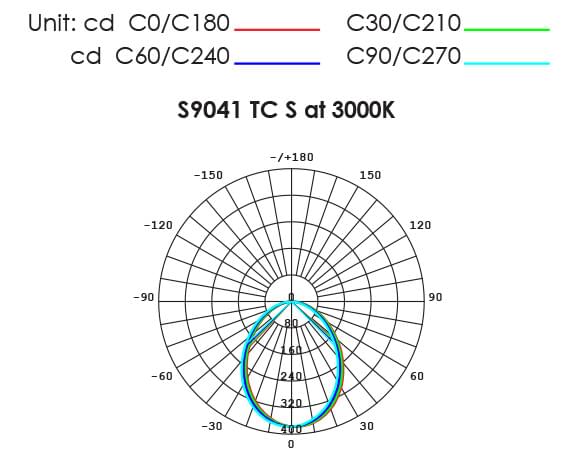

  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Body Colour Cut Out Dim IPART REES Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.S9041 TC S WH Input Voltage240 Power10 Lumens800/900/850 CCT3000/4200/5700 Beam Angle90 Dimmable YES CRI80 Body ColourWHITE Cut Out92 Dim104(L) x 104(W) x 40(H) IPARTYES REESYES Add to Enquiry Add Remove Remove
    Model No.S9041 TC S SN Input Voltage240 Power10 Lumens800/900/850 CCT3000/4200/5700 Beam Angle90 Dimmable YES CRI80 Body ColourSATIN NICKEL Cut Out92 Dim104(L) x 104(W) x 40(H) IPARTYES REESYES Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
