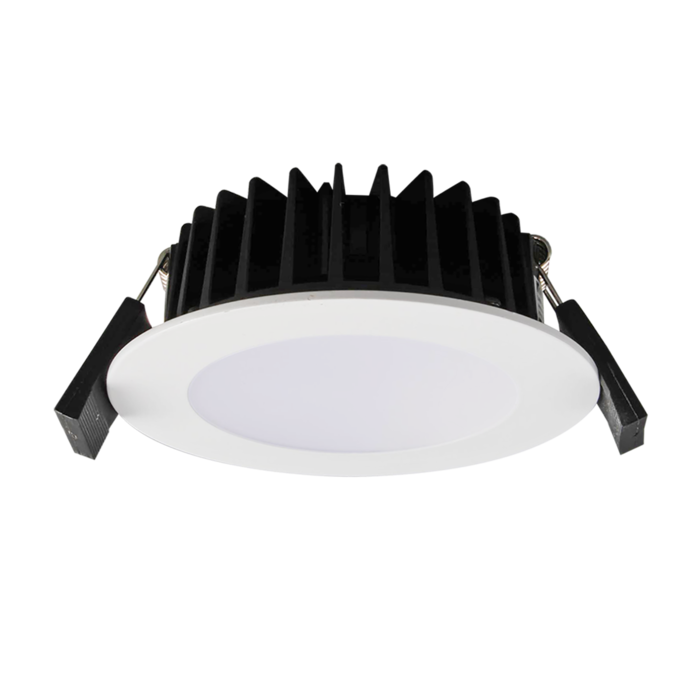

ECOGEM S9041TC2 - 10W
Dimmable 10 watt LED downlight, with selectable CCT, IP44.
Application
Ideal for any residential or commercial interior space
Design Specifications
Selectable CCT 3000K / 4200K / 5700K
Durable Polyamide, reinforced aluminium body profile, white trim
Trailing edge dimmable LED driver, with flex and plug
High efficiency LED optics with an opal polycarbonate diffuser
White surface mount options available, 145hm, x Ø152mm (S9041SM/TC2WH)

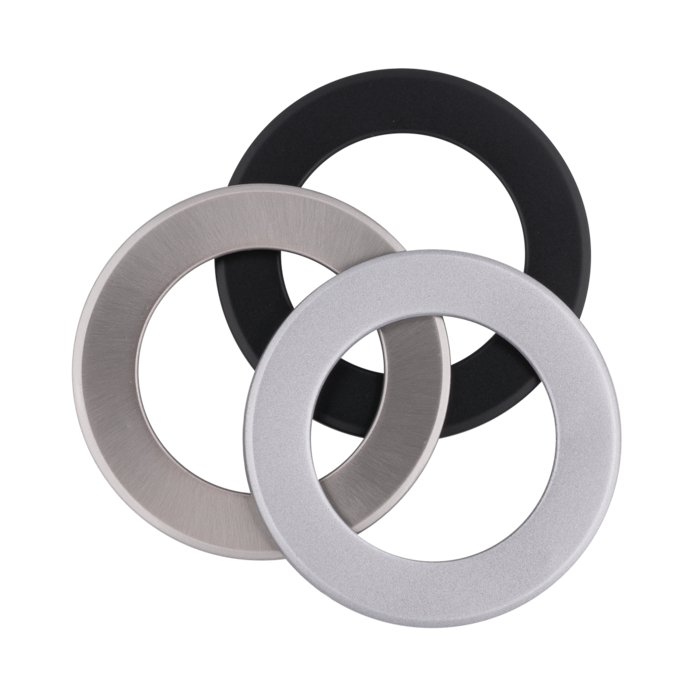

Colour trim options: Black (S9041 BK RING), Silver (S9041 SL RING), Satin Nickel (S9041 SN RING), IC - 4 rated, double insulated
Performance
- Dimmable - YES
- Dimmer Type - Trailing edge
- Dimensions - Wiring Diagrams
-
- Technical Specifications
Product Model No. Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Body Colour Cut Out Diameter Dim Add to Enquiry - Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
Model No.S9041TC2WH Input Voltage240 Power10 Lumens850/1000/900 CCT3000/4200/5700 Beam Angle90 Dimmable YES CRI80 Body ColourWHITE Cut Out92 Diameter103 Dim41(H) Add to Enquiry Add Remove Remove
Model No.S9041SM/TC2WH Input Voltage240 Power10 Lumens850/1000/900 CCT3000/4200/5700 Beam Angle90 Dimmable YES CRI80 Body ColourWHITE Cut Out Diameter152 Dim145(H) Add to Enquiry Add Remove Remove
Model No.S9041BK RING Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Body ColourBLACK Cut Out Diameter Dim Add to Enquiry Add Remove Remove
Model No.S9041SL RING Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Body ColourSILVER Cut Out Diameter Dim Add to Enquiry Add Remove Remove
Model No.S9041SN RING Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Body ColourSATIN NICKEL Cut Out Diameter Dim Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
