• LED DOWNLIGHTS

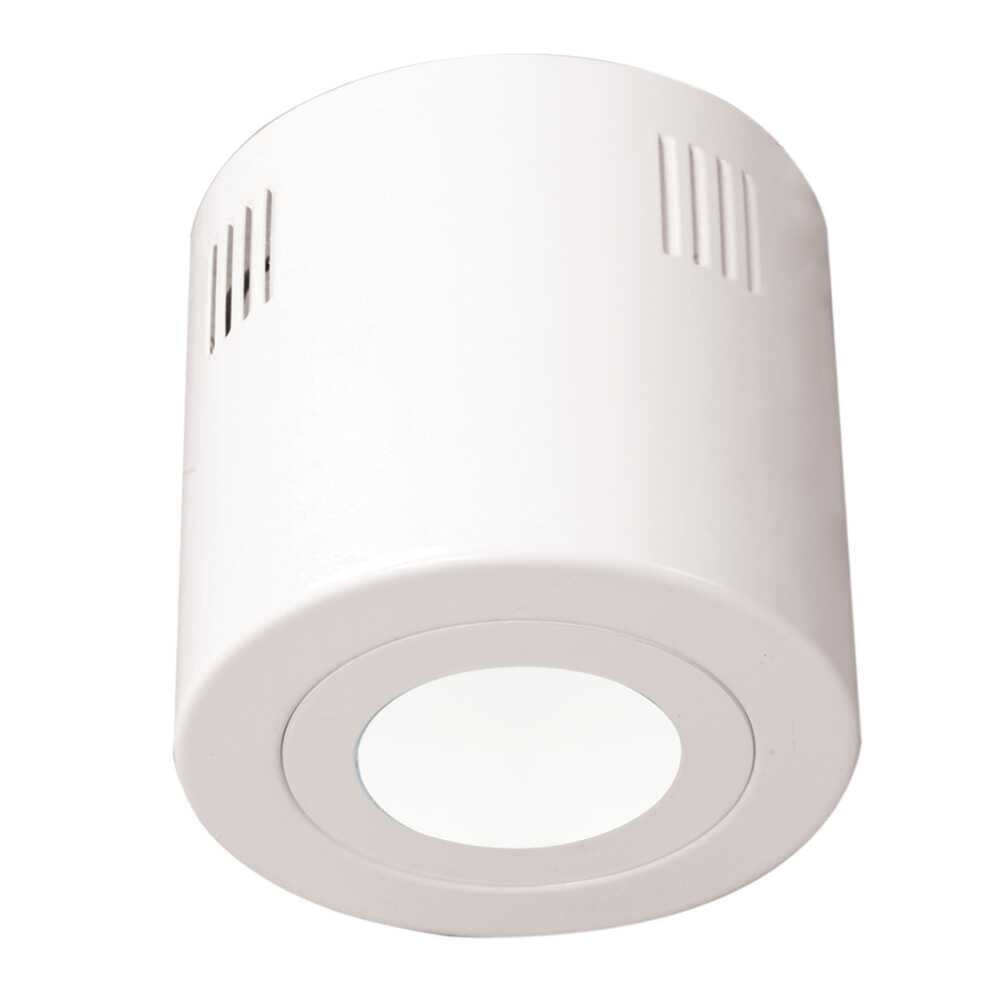

ECOGEM S9041SM/TC - 10W

Surface mount dimmable LED downlight with selectable CCT

Application

Ideal for residential or commercial interior spaces

Design Specifications

  • Selectable CCT 3000K / 4200K / 5700

  • Precise pressed metal surface mount profile

  • White powder coat finish

  • SAL S9041TC LED downlight kit included

  • High efficiency LED optics with an opal polycarbonate diffuser

  • IP20

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing edge, optional 1-10V, DALI / DSI

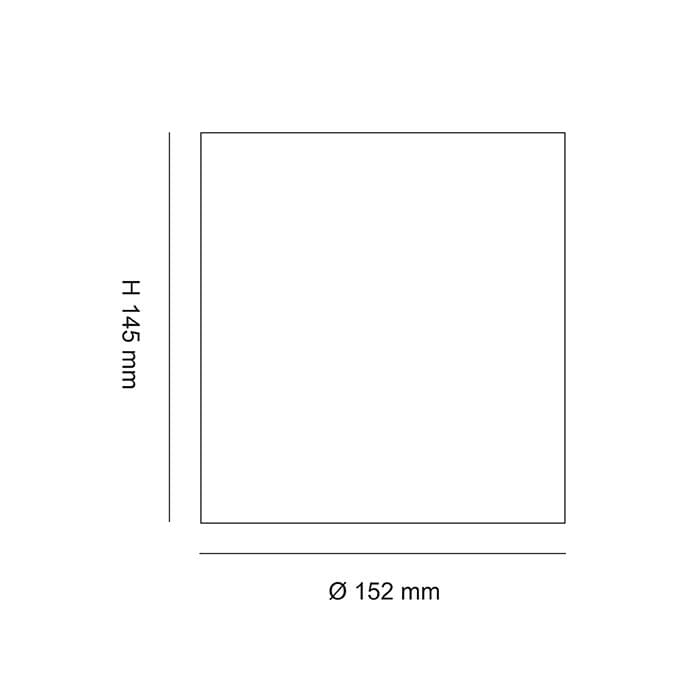

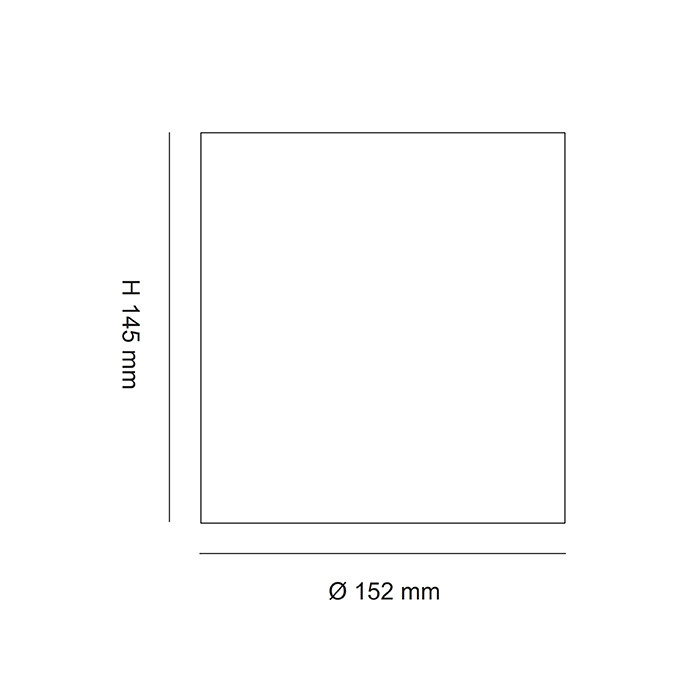

    • Dimensions - Wiring Diagrams
    • Design Options

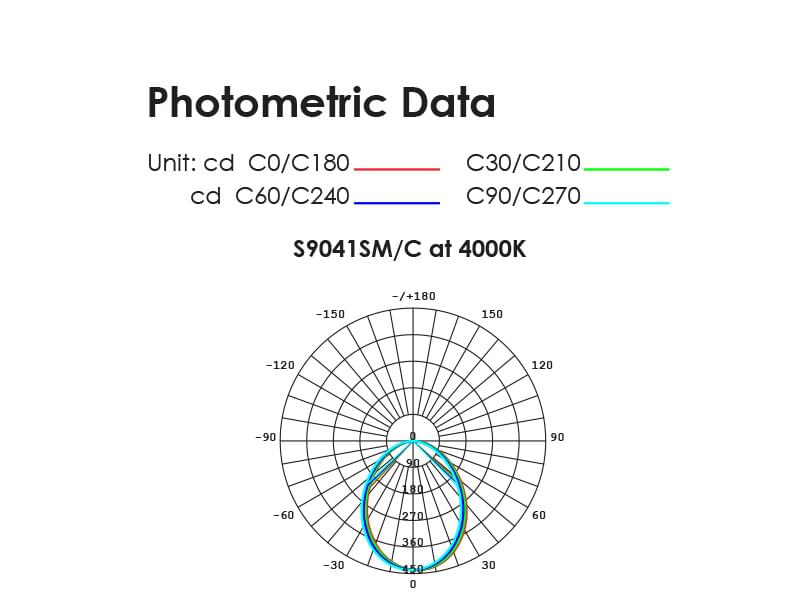

    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Body Colour Diameter Dim
      		Model No. S9041SM/C TC WH Add to Enquiry Add Remove Remove Input Voltage 240 Power 10 Lumens 850/1000/900 CCT 3000/4200/5700 Beam Angle 90 Dimmable YES CRI 80 Body Colour WHITE Diameter 152 Dim 152(W) x 145(H)
    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
