• LED DOWNLIGHTS

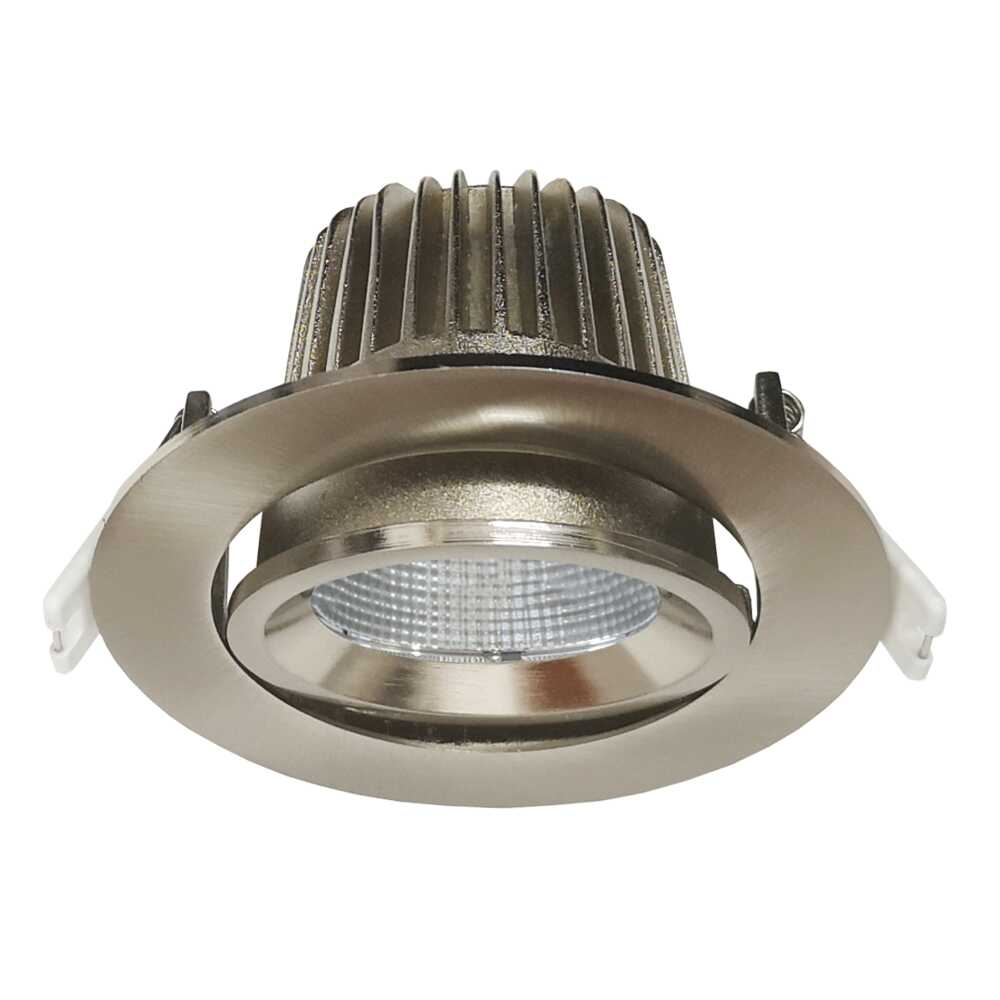

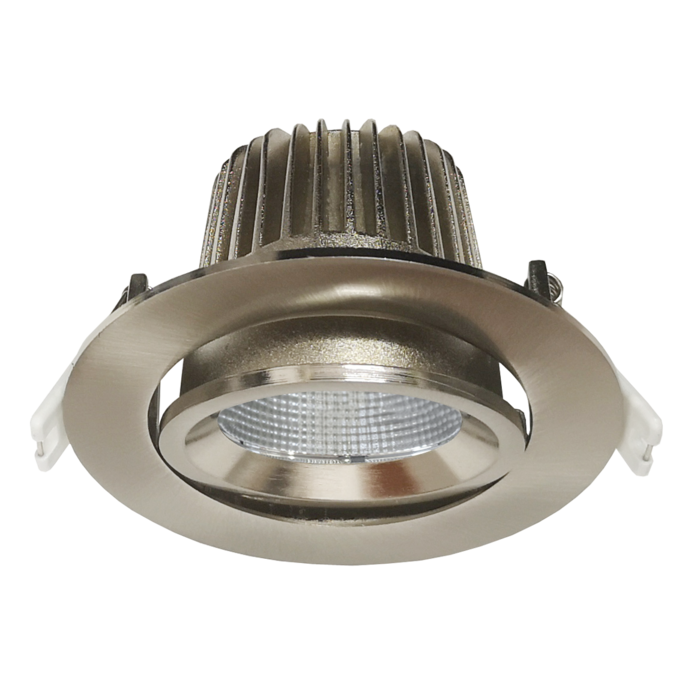

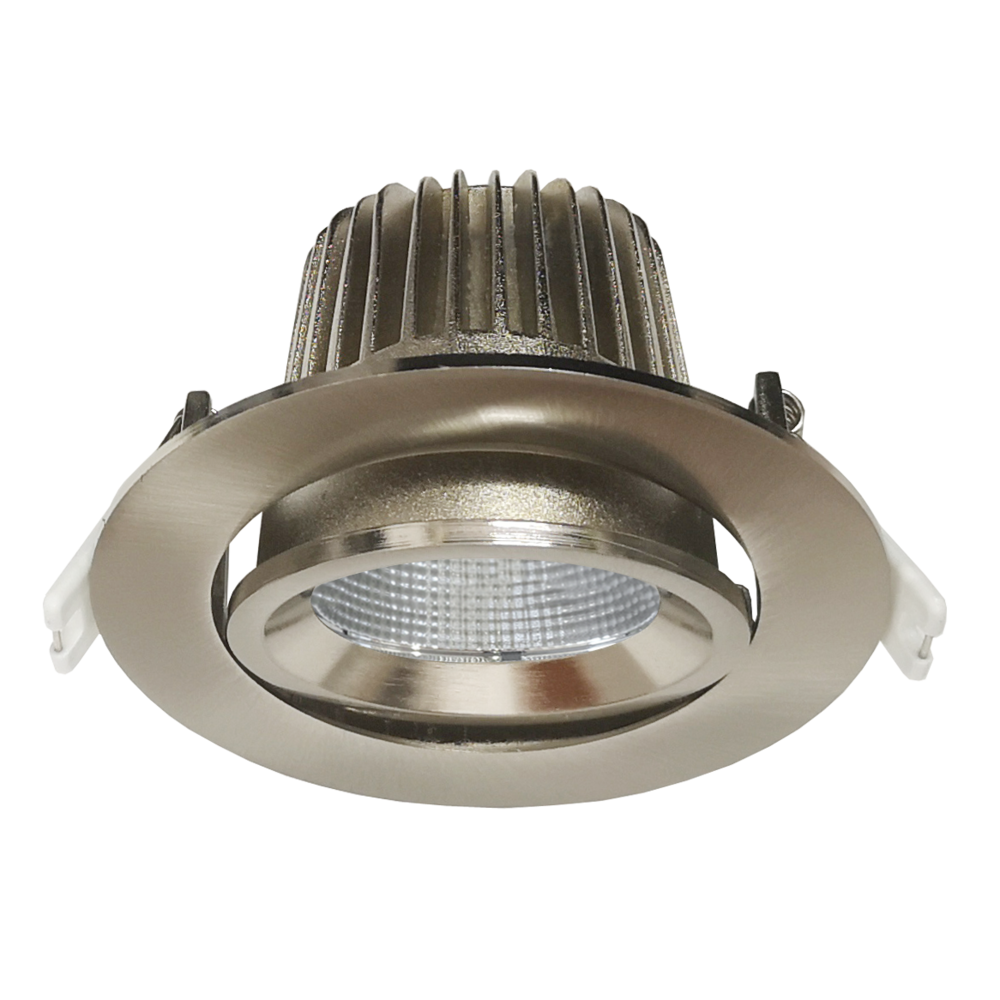

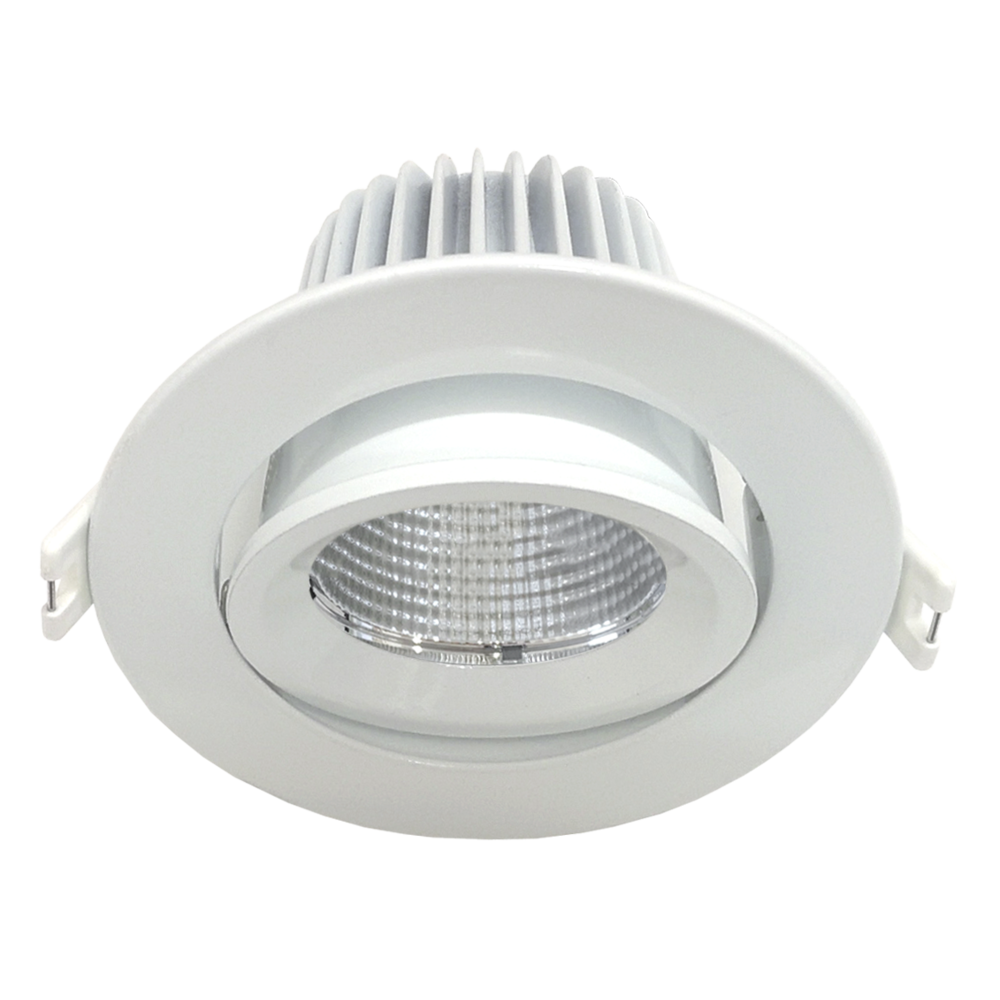

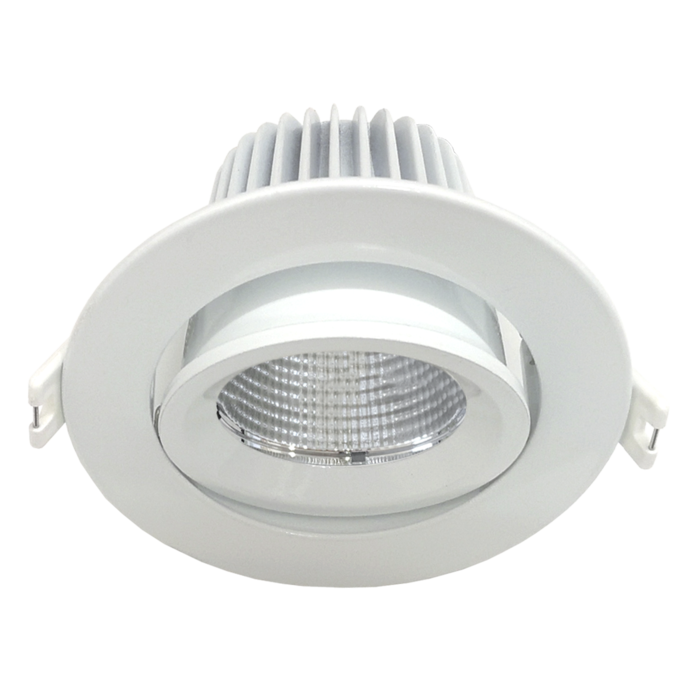

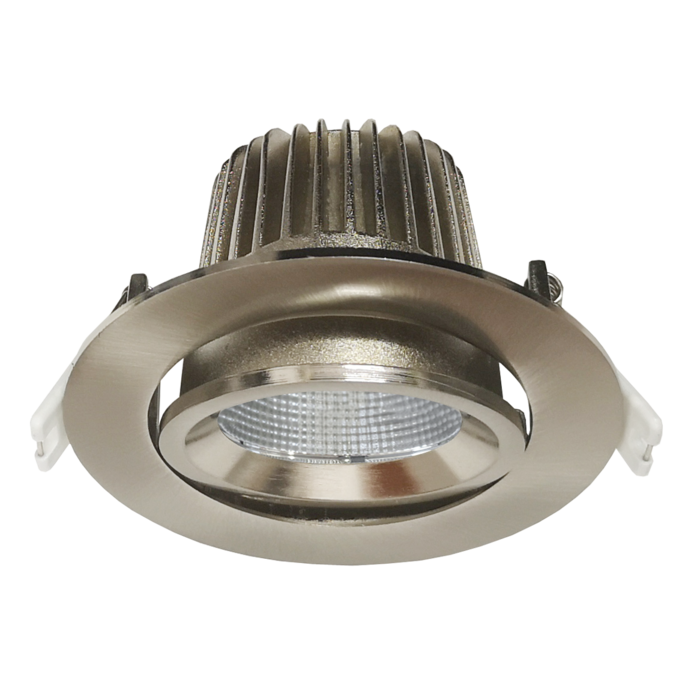

ECOSTAR S9046TC - 9W

Dimmable 9 watt GIMBAL LED downlight, with selectable CCT.

Application

Ideal for any residential or commercial interior spaces

Design Specifications

  • Durable die-cast aluminium body profile

  • Stylish powder coat finish in white or plated satin nickel

  • Versatile gimbal head with 30° tilt

  • High output LED optics, CRI > 80

  • Selectable CCT 3000K/4000K/5700K

  • Remote, trailing edge, dimmable LED driver with flex and plug, white surface mount options available, 145hm, x Ø152mm (S9046SM/TC/WH), IC - 4 rated, double insulated

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing edge. Optional - 1-10V, DALI / DSI

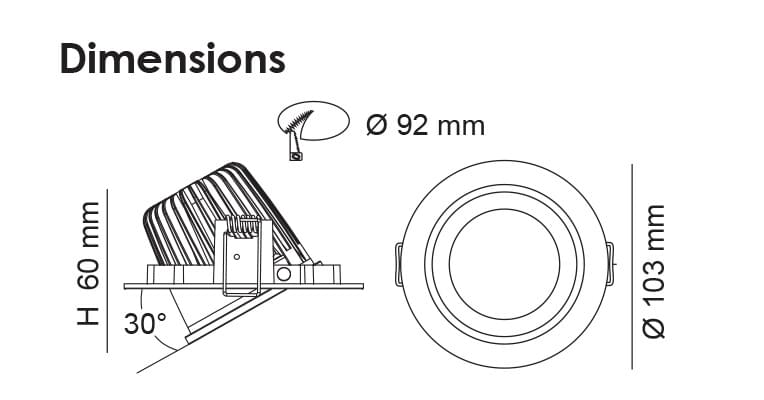

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Body Colour Cut Out Diameter Dim IPART REES
      		Model No. S9046TC/WH Add to Enquiry Add Remove Remove Input Voltage 240 Power 9 Lumens 800/800/850 CCT 3000/4000/5700 Beam Angle 60 Dimmable YES CRI 80 Body Colour WHITE Cut Out 92 Diameter 103 Dim 60(H) IPART N/A REES N/A
      		Model No. S9046TC/SN Add to Enquiry Add Remove Remove Input Voltage 240 Power 9 Lumens 800/800/850 CCT 3000/4000/5700 Beam Angle 60 Dimmable YES CRI 80 Body Colour SATIN NICKEL Cut Out 92 Diameter 103 Dim 60(H) IPART N/A REES N/A
      Model No. S9046SM/TC/WH Add to Enquiry Add Remove Remove Input Voltage 240 Power 9 Lumens 800/800/850 CCT 3000/4000/5700 Beam Angle 60 Dimmable YES CRI 80 Body Colour WHITE Diameter 152 Dim 145(H) IPART N/A REES N/A
    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
