• LED DOWNLIGHTS

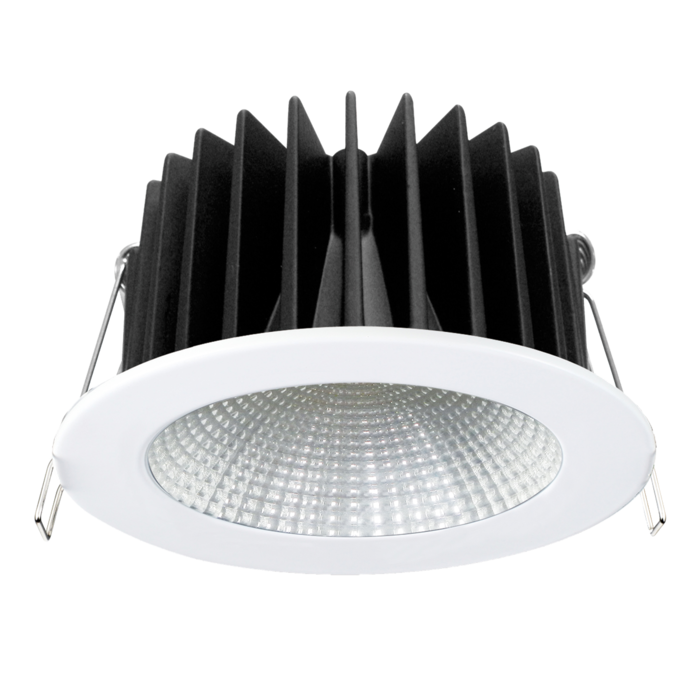

ECOSTAR S9048TC - 12W

Dimmable 12 watt LED downlight with selectable CCT, IP54

Application

Ideal for any residential or commercial interior space

Design Specifications

  • Selectable CCT 3000K / 4000K / 5000K

  • Durable die-cast aluminium body profile

  • Stylish powder coat or plated finish

  • High output LED optics

  • Multi-faceted reflector, 55° beam

  • Remote, trailing edge dimmable LED driver, with flex and plug, white surface mount options available, 145hm, x Ø152mm (S9048SM/TC/WH), IC - 4 rated, double insulated

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing edge, optional 1-10V, DALI / DSI

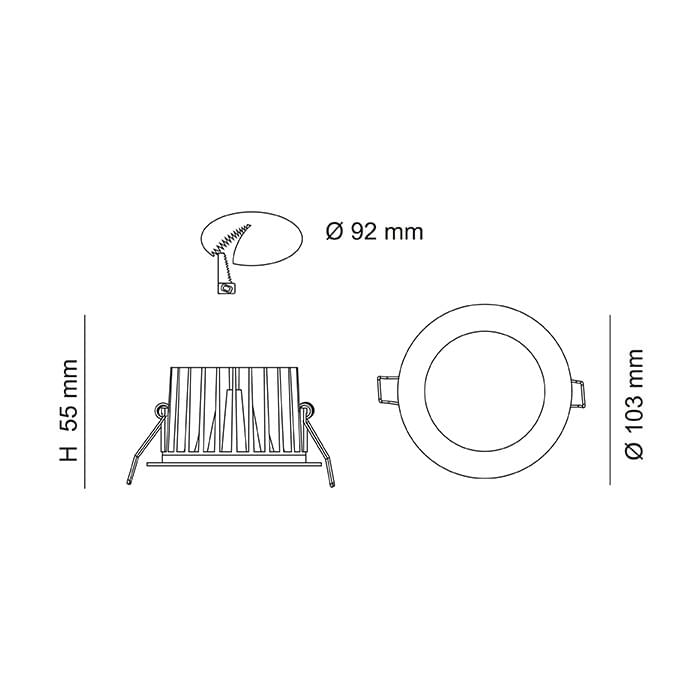

  • Dimensions - Wiring Diagrams
  • Design Options
    Colour 1 Black S9041 BK RING
    Colour 2 Satin Nickel S9041 SN RING
    Colour 3 Silver S9041 SL RING
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Body Colour Cut Out Diameter Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.S9048TC/WH Input Voltage240 Power12 Lumens1000/1200/1100 CCT3000/4000/5000 Beam Angle55 Dimmable YES CRI80 Body ColourWHITE Cut Out90 Diameter103 Dim57(H) Add to Enquiry Add Remove Remove
    Model No.S9048SM/TC/WH Input Voltage240 Power12 Lumens1000/1200/1100 CCT3000/4000/5000 Beam Angle55 Dimmable YES CRI80 Body ColourWHITE Cut Out Diameter152 Dim145(H) Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
