• LED DOWNLIGHTS

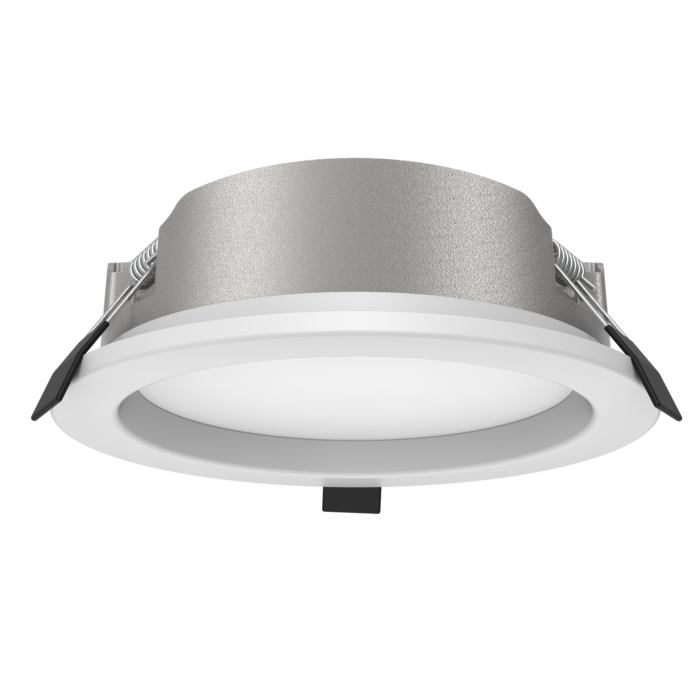

EXMOUTH S9522TC - 15W/22W

Recessed 15/22 watt LED circular shop light with selectable CCT and power

Application

Ideal for any retail or commercial interior spaces

Design Specifications

  • Selectable CCT 3000K / 4000K / 5500K

  • Selectable power 15W/22W

  • Durable die-cast aluminium body profile, with white or silver trim

  • Remote, non-dimmable LED driver, with flex and plug

  • High efficiency LED optics with an opal polycarbonate diffuser

  • Do Not Cover rated, double insulated

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - Trailing edge, 1-10V, DALI / DSI

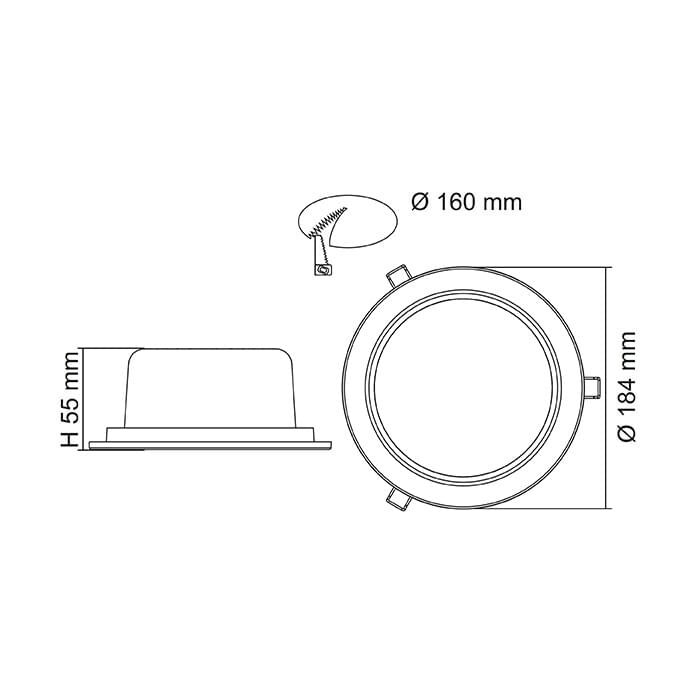

  • Dimensions - Wiring Diagrams
  • Design Options

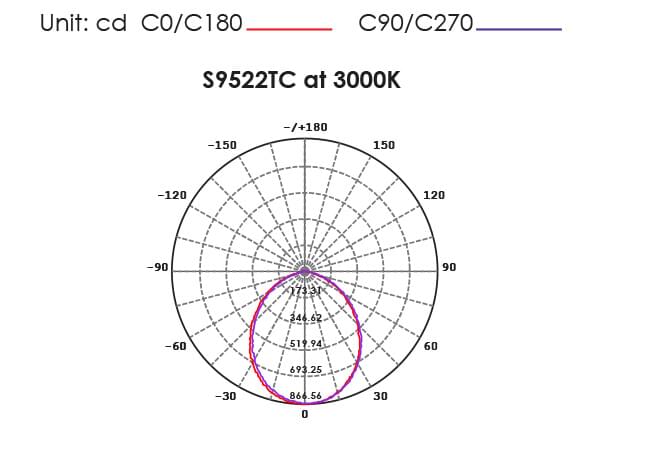

  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Multiple Wattage Lumens CCT Beam Angle Dimmable CRI Body Colour Cut Out Diameter Dim IPART REES Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.S9522TC WH Input Voltage240 Multiple Wattage15/22 Lumens1500/2100 CCT3000/4000/5500 Beam Angle105 Dimmable OPTIONAL CRI80 Body ColourWHITE Cut Out160 Diameter184 Dim55(H) IPARTYES REESYES Add to Enquiry Add Remove Remove
    Model No.S9522TC SL Input Voltage240 Multiple Wattage15/22 Lumens1500/2100 CCT3000/4000/5500 Beam Angle105 Dimmable OPTIONAL CRI80 Body ColourSILVER Cut Out160 Diameter184 Dim55(H) IPARTYES REESYES Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
