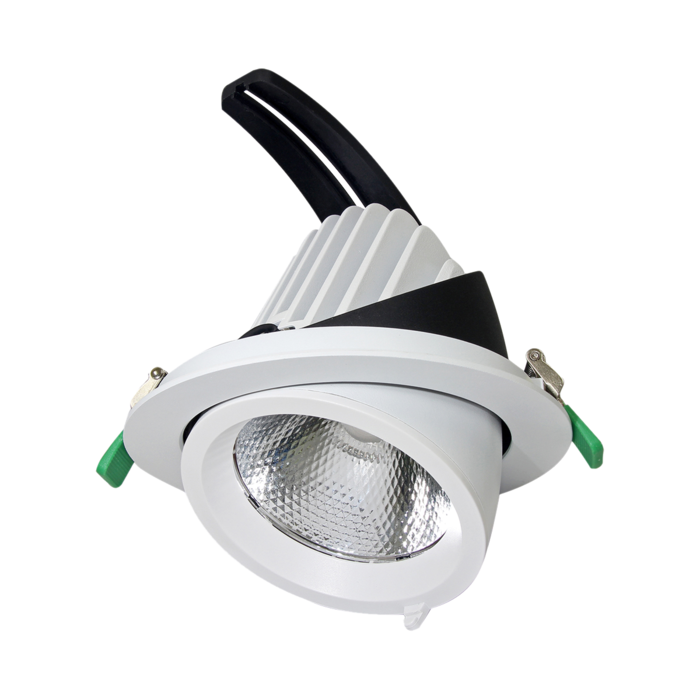

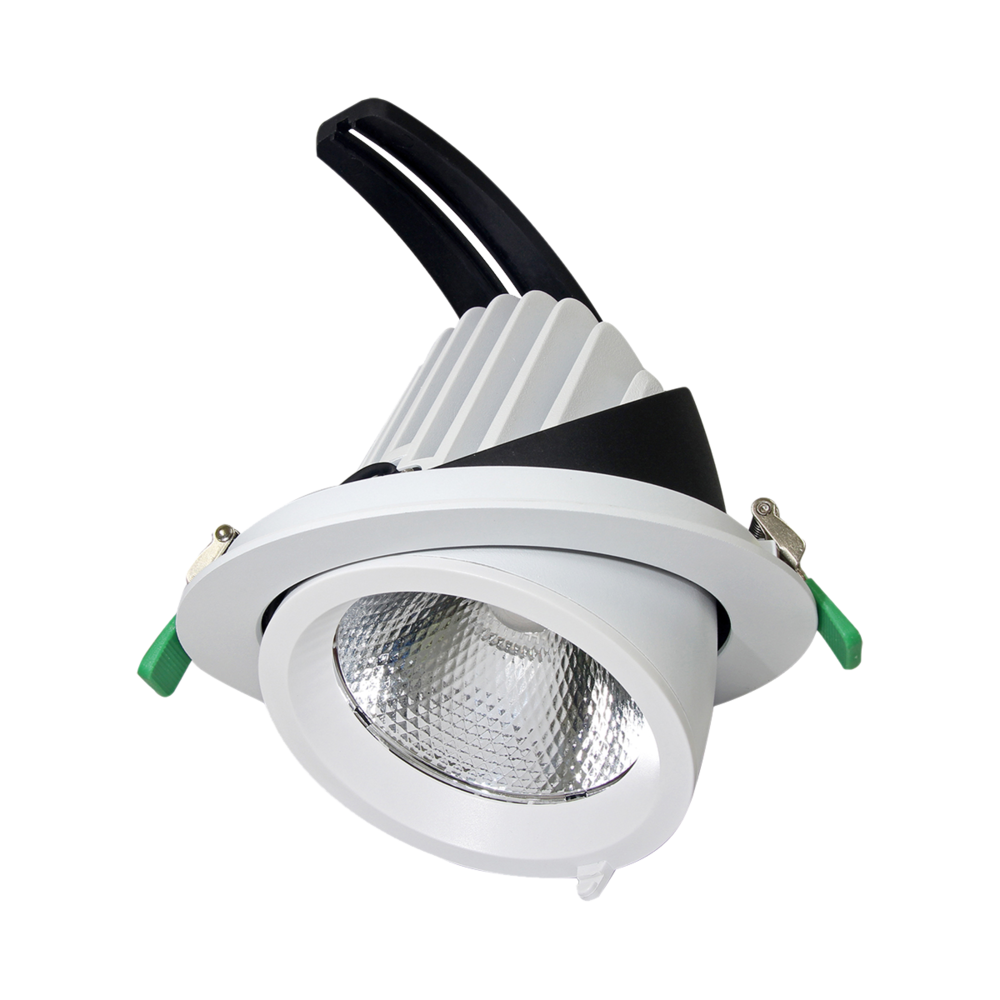

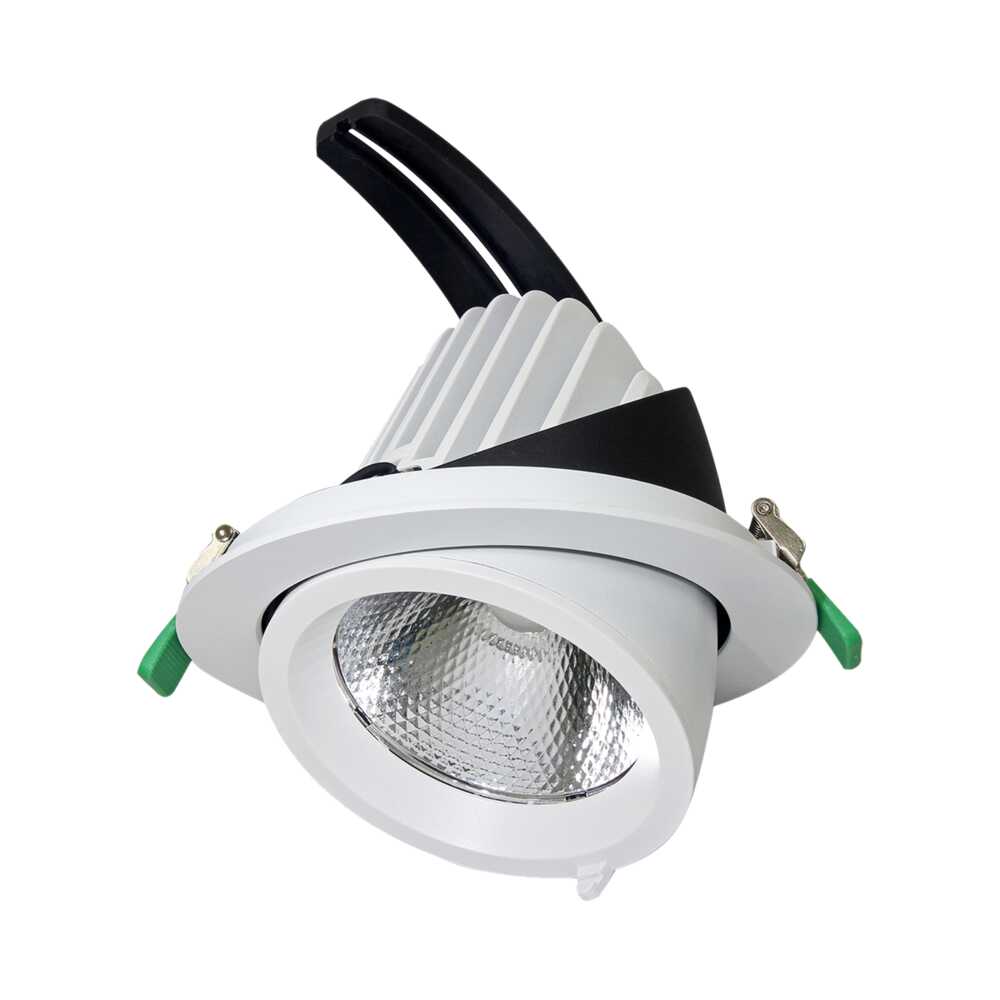

NEWMAN III S9525 - 15/25/35W

Rotable scoop LED Shoplight

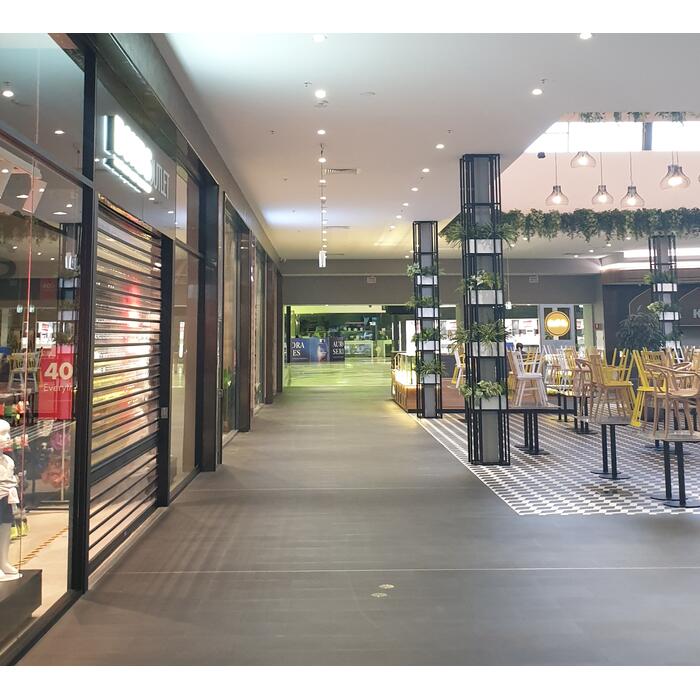

Application

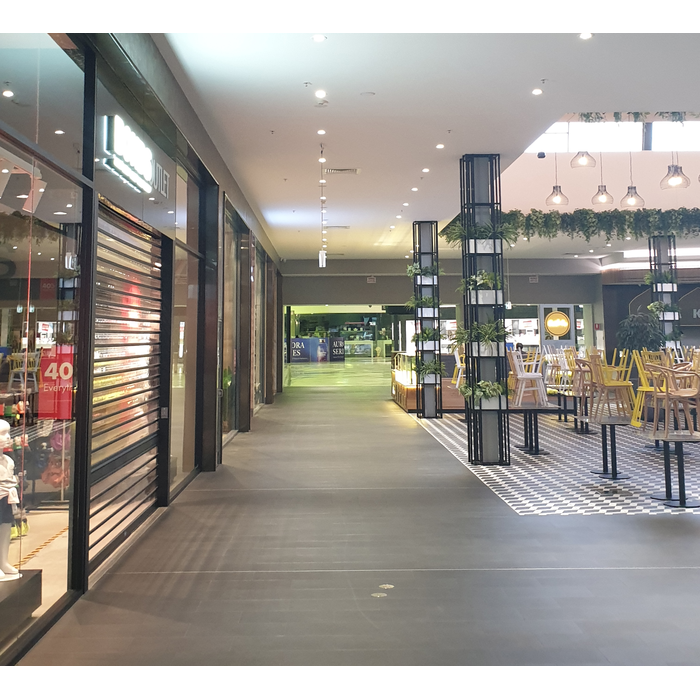

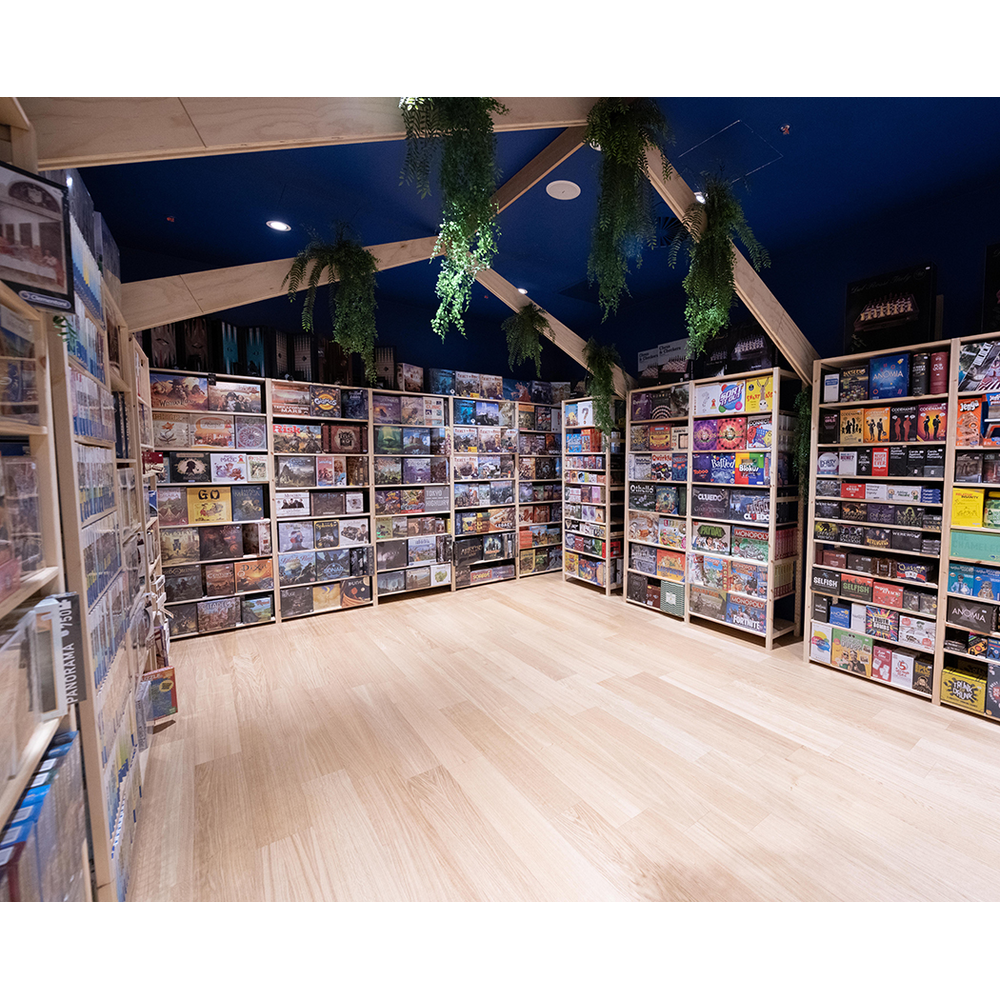

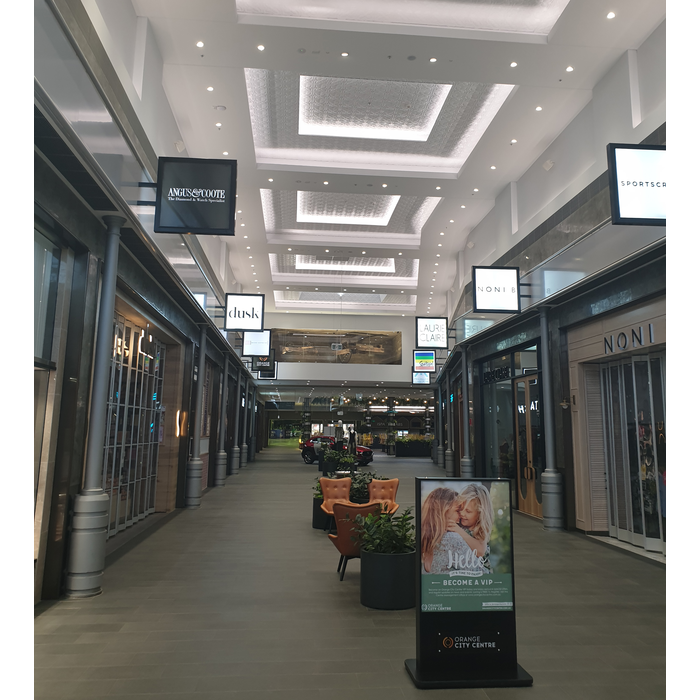

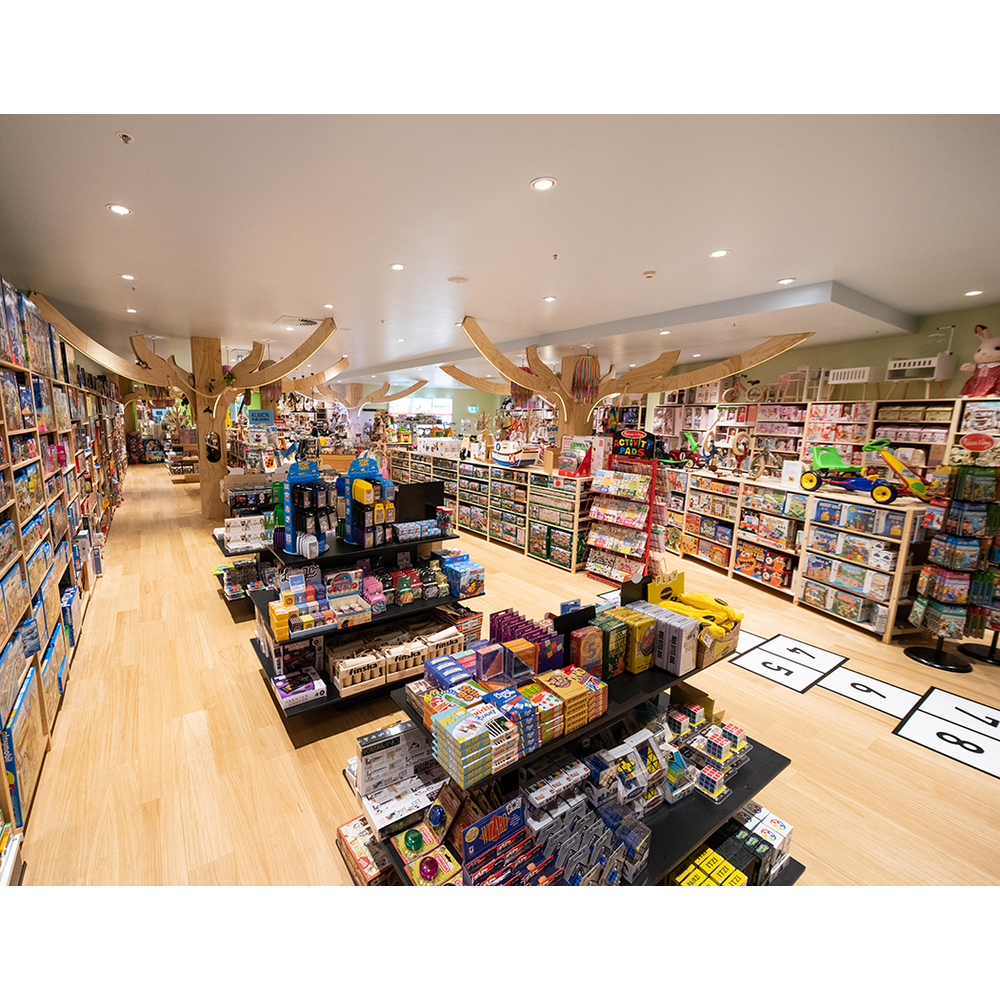

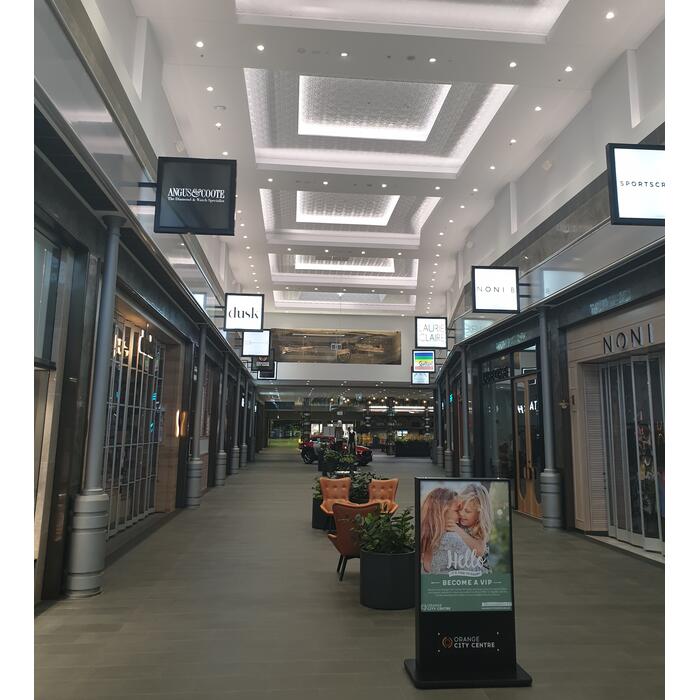

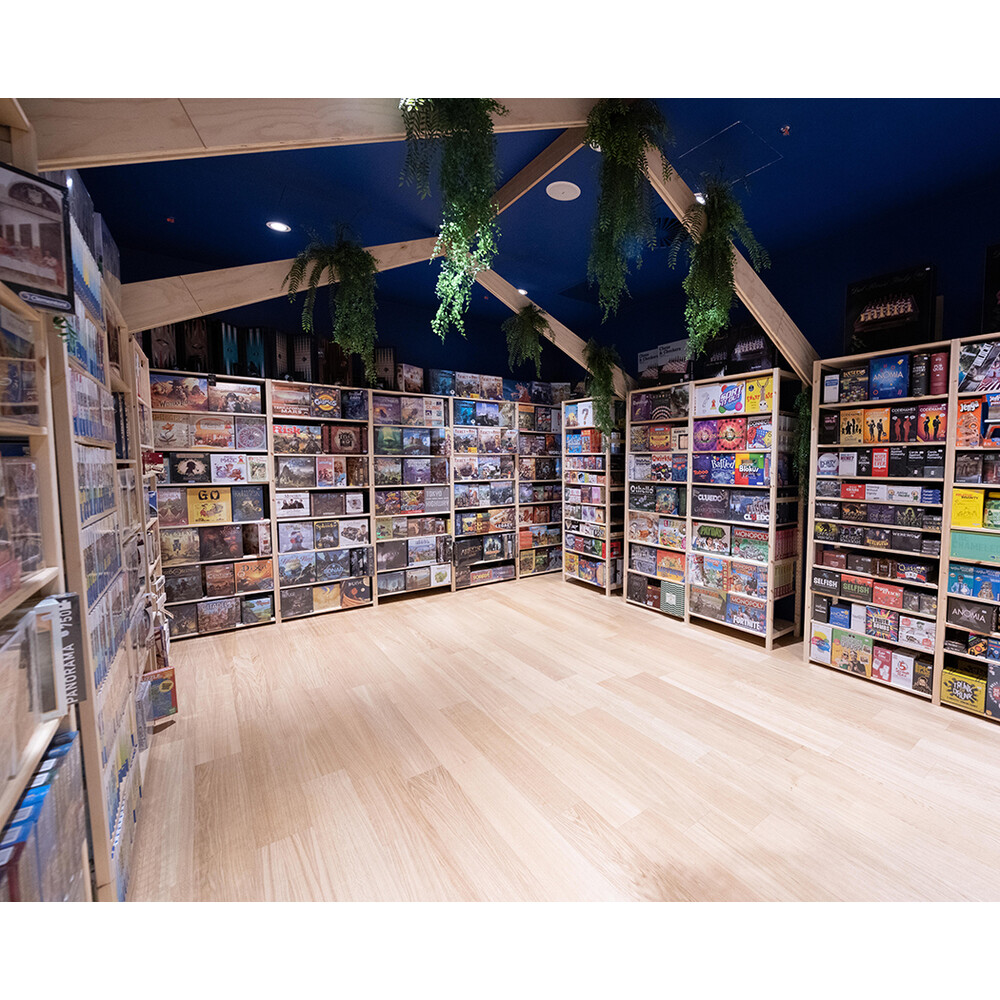

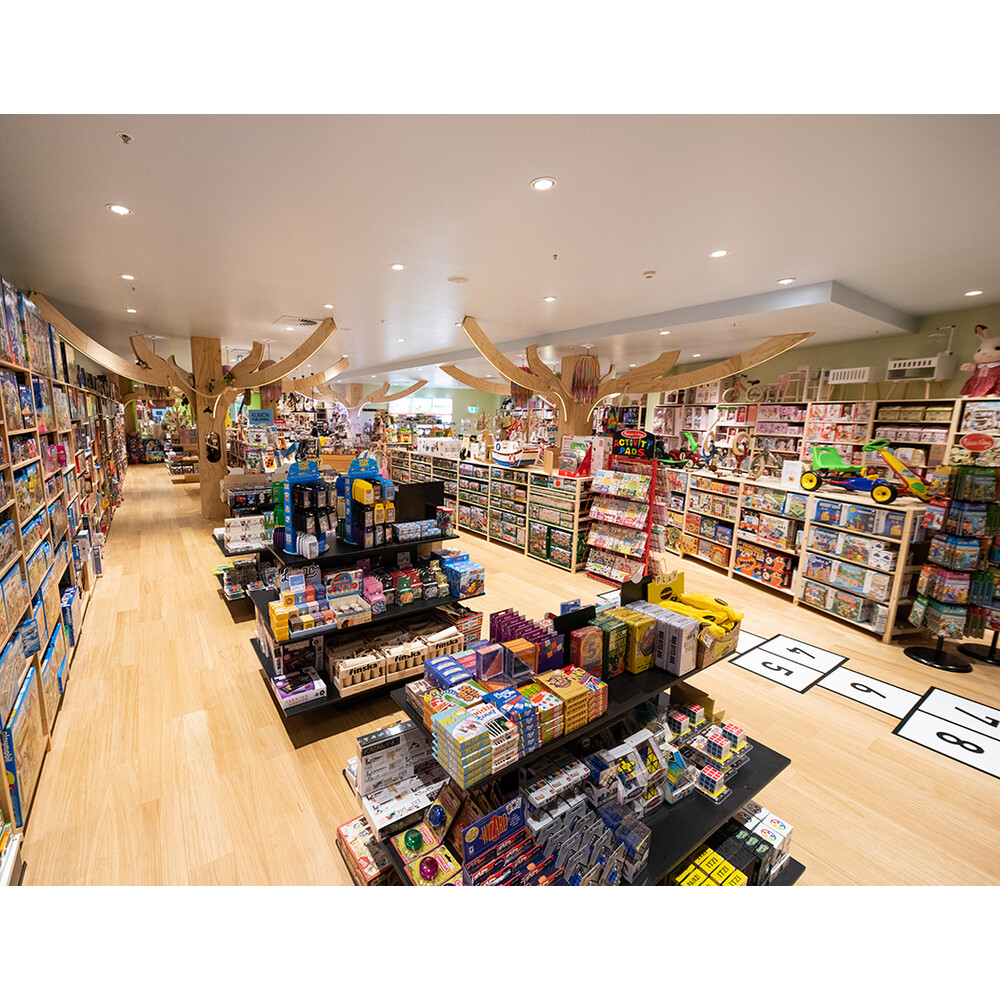

Ideal for any retail or commercial interior space

Design Specifications

  • Durable die-cast aluminium body profile

  • Stylish white powder coat finish

  • The bracket mechanism ensures optimum tilting function 60° (-15° ~ +45°) and horizontal rotation of 340°

  • High output LED optics, beam angle 40 degree standard, optional 24 degree

  • High performance optical lens with a changeable multi-faceted reflector system

  • Constant current trailing edge dimmable and non-dimmable driver configurations fitted with flex and plug - refer to model number.

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - Trailing edge, 1-10V, DALI / DSI
  • WARM WHITE3000K
  • COOL WHITE4000K
  • NEUTRAL DAYLIGHT5000K
  • WARM WHITE3000K
  • COOL WHITE4000K
  • NEUTRAL DAYLIGHT5000K

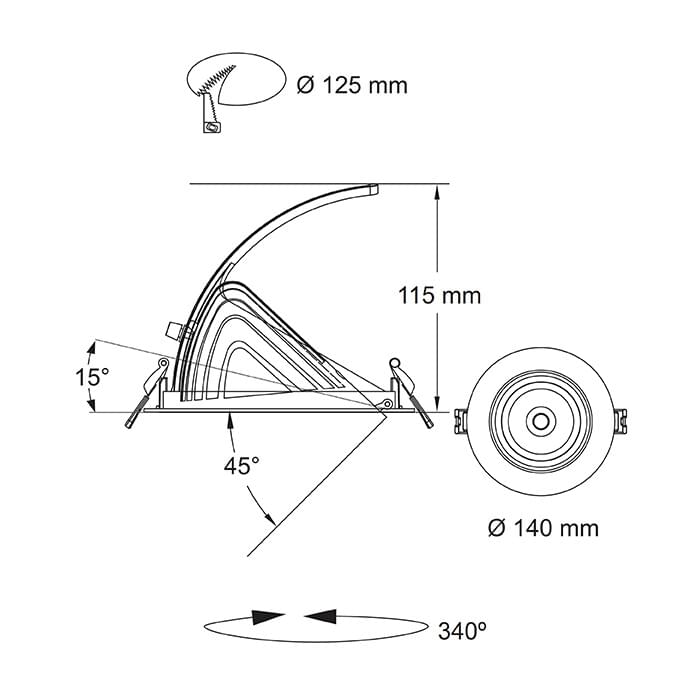

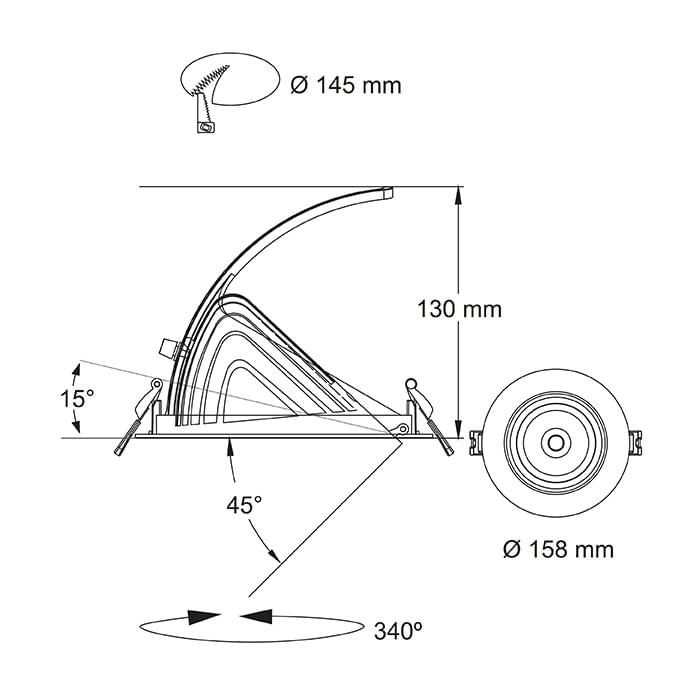

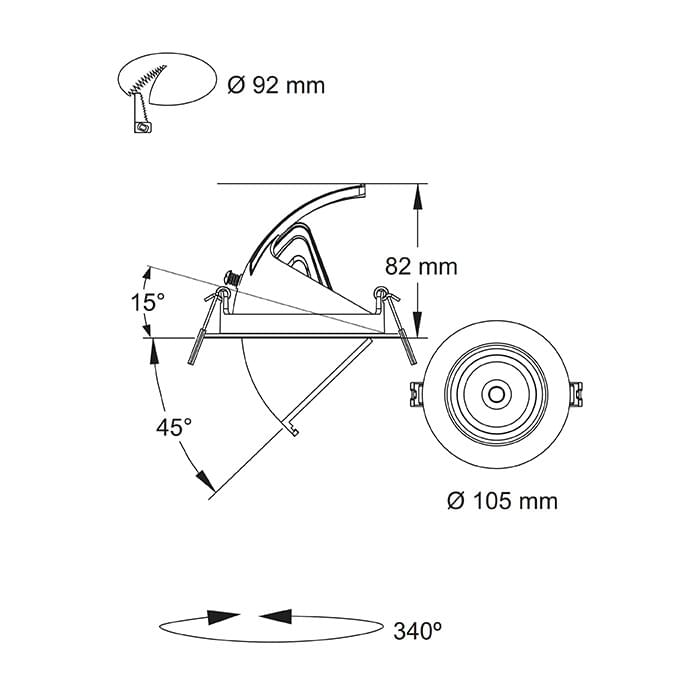

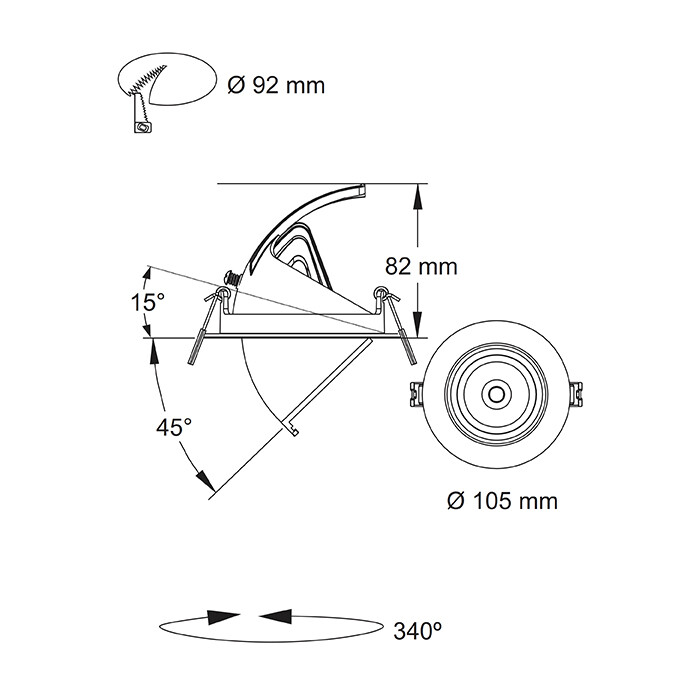

  • Dimensions - Wiring Diagrams
  • Design Options

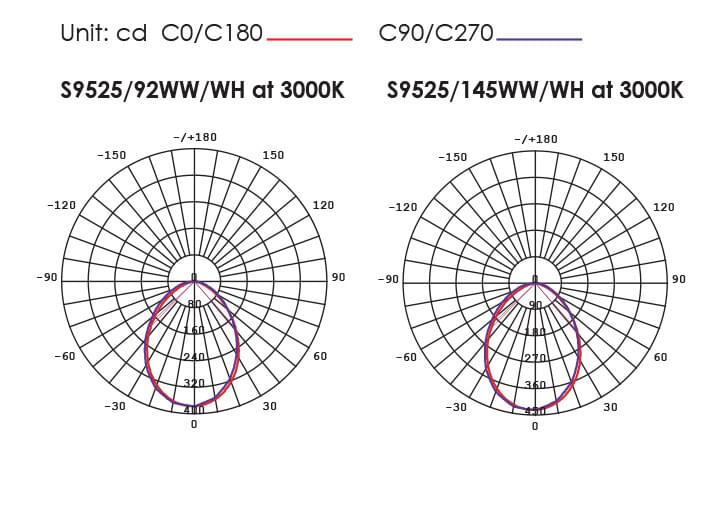

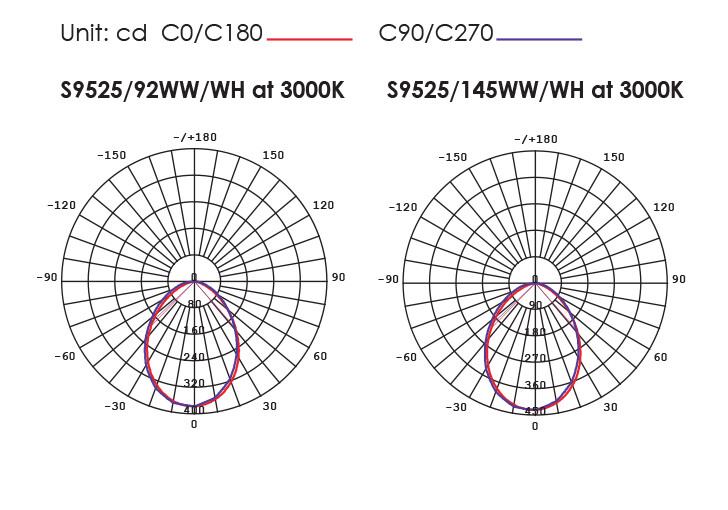

  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Body Colour Cut Out Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.S9525/92WW/WH Input Voltage240 Power15 Lumens1400 CCT3000 Beam Angle40 Dimmable YES CRI80 Body ColourWHITE Cut Out92 Add to Enquiry Add Remove Remove
    Model No.S9525/92CW/WH Input Voltage240 Power15 Lumens1500 CCT4000 Beam Angle40 Dimmable YES CRI80 Body ColourWHITE Cut Out92 Add to Enquiry Add Remove Remove
    Model No.S9525/92DL/WH Input Voltage240 Power15 Lumens1600 CCT5000 Beam Angle40 Dimmable YES CRI80 Body ColourWHITE Cut Out92 Add to Enquiry Add Remove Remove
    Model No.S9525/125WW/WH Input Voltage240 Power25 Lumens2300 CCT3000 Beam Angle40 Dimmable OPTIONAL CRI80 Body ColourWHITE Cut Out125 Add to Enquiry Add Remove Remove
    Model No.S9525/125CW/WH Input Voltage240 Power25 Lumens2500 CCT4000 Beam Angle40 Dimmable OPTIONAL CRI80 Body ColourWHITE Cut Out125 Add to Enquiry Add Remove Remove
    Model No.S9525/125DL/WH Input Voltage240 Power25 Lumens2600 CCT5000 Beam Angle40 Dimmable OPTIONAL CRI80 Body ColourWHITE Cut Out125 Add to Enquiry Add Remove Remove
    Model No.S9525/145WW/WH Input Voltage240 Power35 Lumens3100 CCT3000 Beam Angle40 Dimmable OPTIONAL CRI80 Body ColourWHITE Cut Out145 Add to Enquiry Add Remove Remove
    Model No.S9525/145CW/WH Input Voltage240 Power35 Lumens3200 CCT4000 Beam Angle40 Dimmable OPTIONAL CRI80 Body ColourWHITE Cut Out145 Add to Enquiry Add Remove Remove
    Model No.S9525/145DL/WH Input Voltage240 Power35 Lumens3300 CCT5000 Beam Angle40 Dimmable OPTIONAL CRI80 Body ColourWHITE Cut Out145 Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
