• LED DOWNLIGHTS

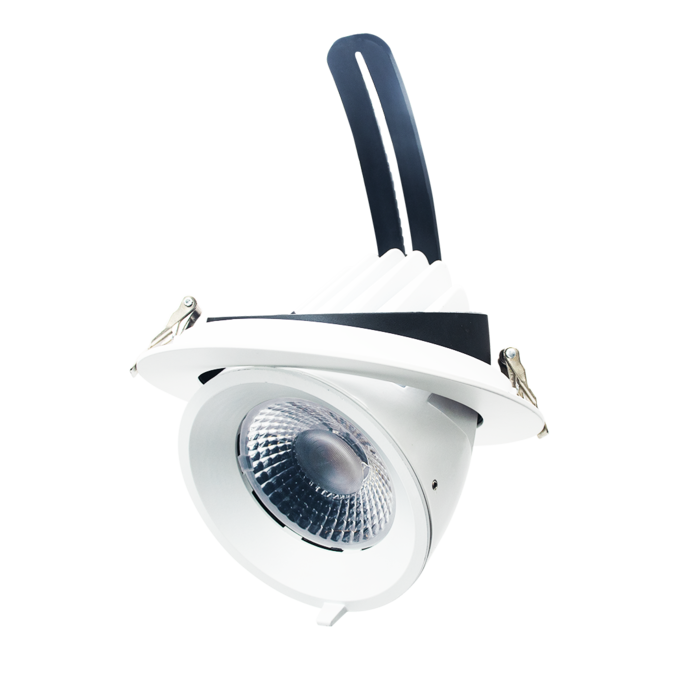

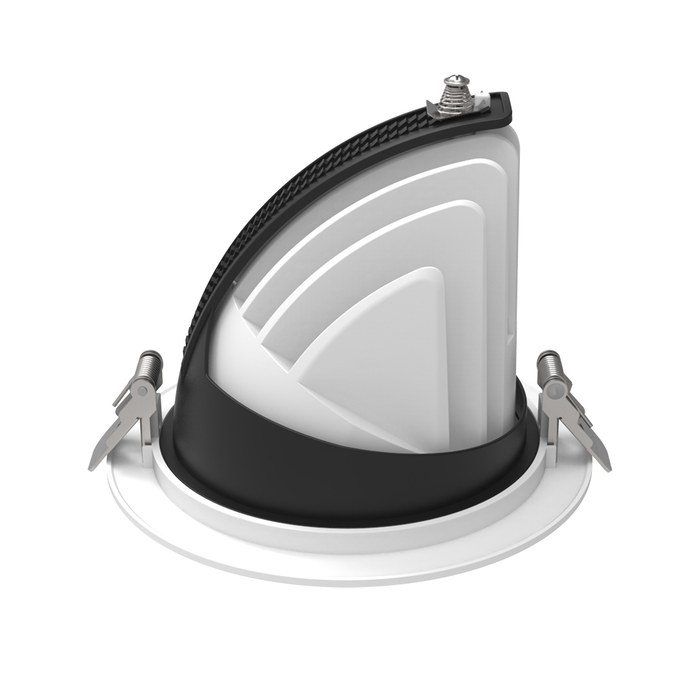

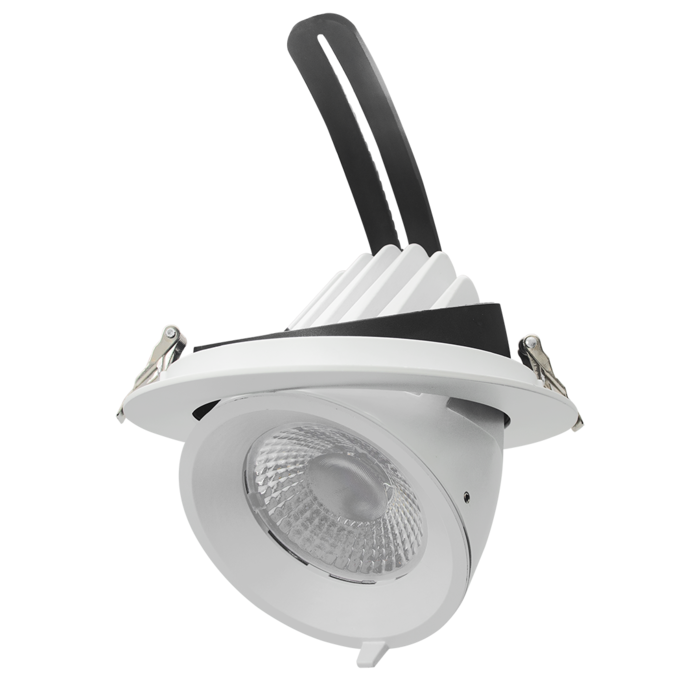

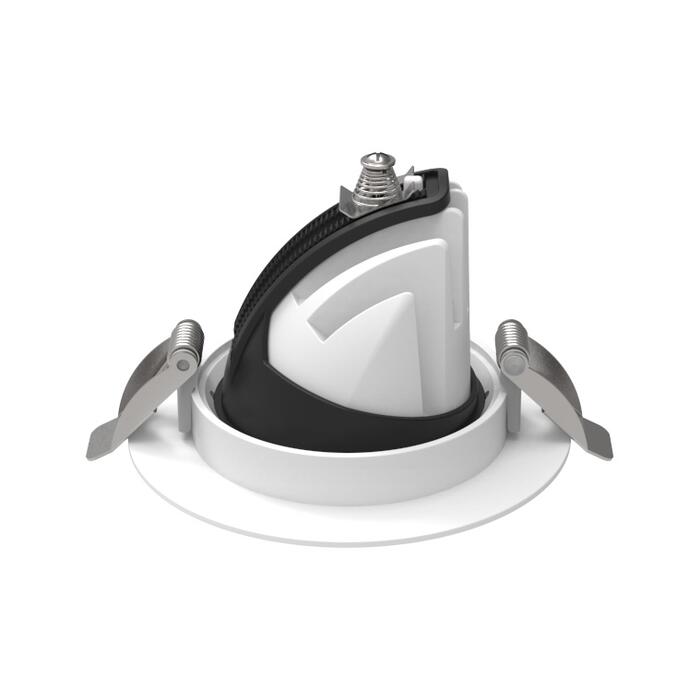

NEWMAN IV S9525TC - 12W / 35W

Retractable & rotatable LED Shoplight, with selectable CCT, selectable power and dimming options

Application

Ideal for any retail or commercial interior space

Design Specifications

  • Durable die-cast aluminium body profile in three convenient sizes

  • Stylish white powder coat finish

  • Optimum tilting function 340° horizontal plane, 60° vertical plane

  • High output LED optics, 36° beam distribution with a multi-faceted reflector system

  • Selectable CCT 2700/4000/6000K

  • Remote, flickerCONTROLLED LED driver with flex and plug and optional dimming and selectable power functions - 12 watt dimmable only or 15/20/25 watt or 25/30/35 watt with non-dimmable and selectable power functions.

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - Trailing edge, 1-10V, DALI / DSI
  • WARM WHITE2700K
  • COOL WHITE4000K
  • DAYLIGHT6000K
    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Multiple Wattage Lumens CCT Beam Angle Dimmable CRI Body Colour Cut Out Diameter Dim
      		Model No. S9525/92TC/WH Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 12 Lumens 850/1000/950 CCT 2700/4000/6000 Beam Angle 36 Dimmable YES CRI 90 Body Colour WHITE Cut Out 92 Diameter 105 Dim 72(H)
      		Model No. S9525MP125TC/WH Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 15/20/25 Lumens 2300/2650/2650 CCT 2700/4000/6000 Beam Angle 36 Dimmable NO CRI 90 Body Colour WHITE Cut Out 125 Diameter 140 Dim 115(H)
      		Model No. S9525MP145TC/WH Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 25/30/35 Lumens 3350/3700/3750 CCT 2700/4000/6000 Beam Angle 36 Dimmable NO CRI 90 Body Colour WHITE Cut Out 145 Diameter 163 Dim 130(H)

      Note: Lumens displayed are at maximum power

    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
