• LED DOWNLIGHTS

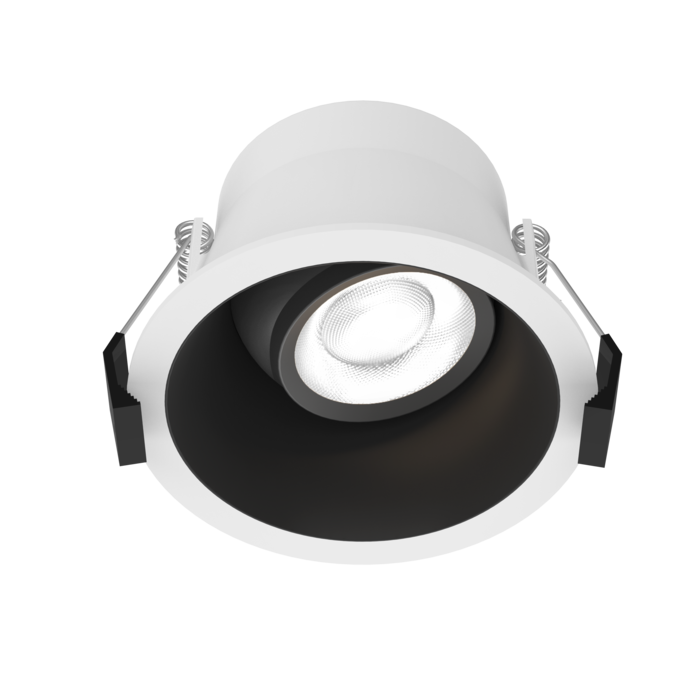

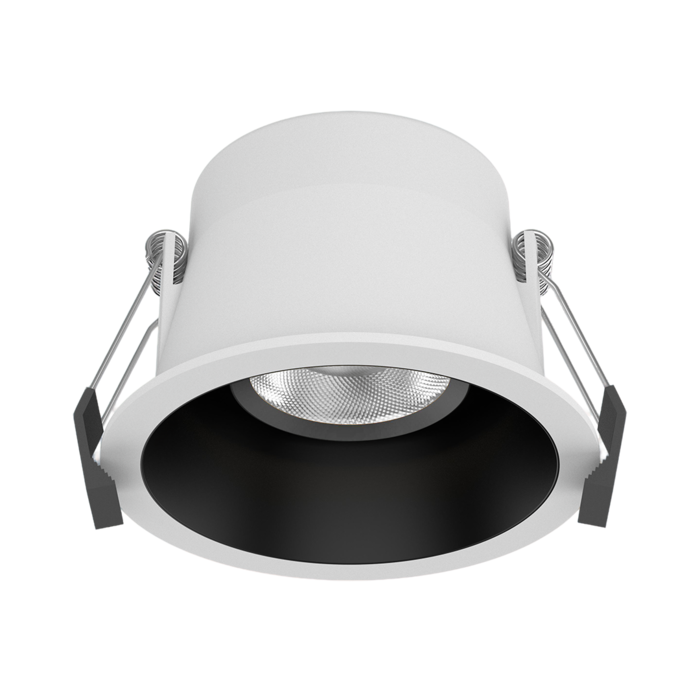

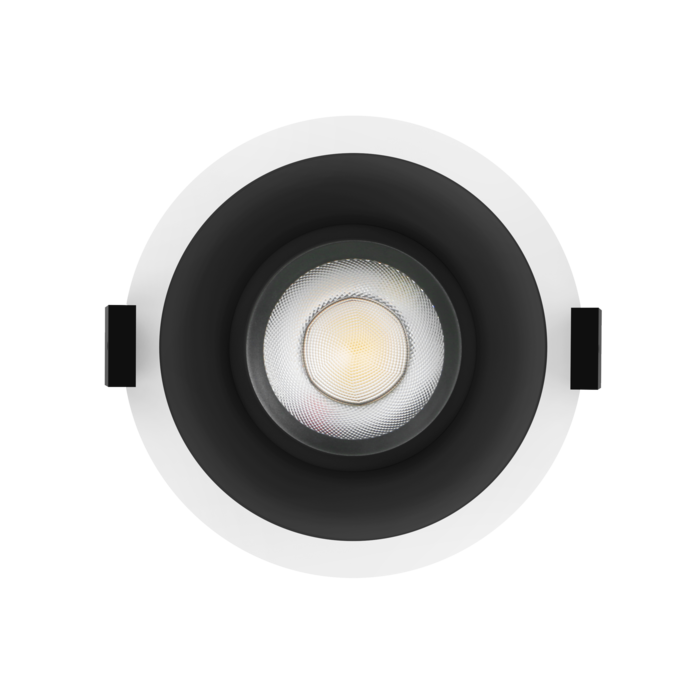

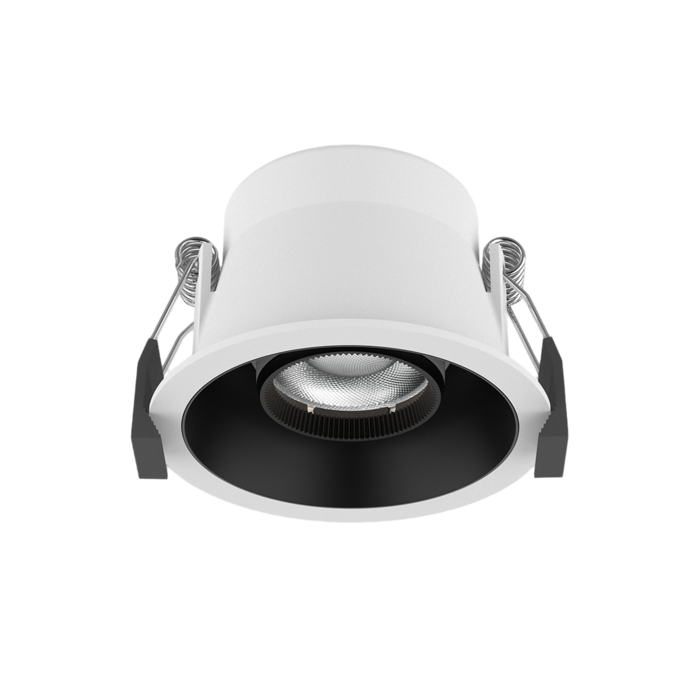

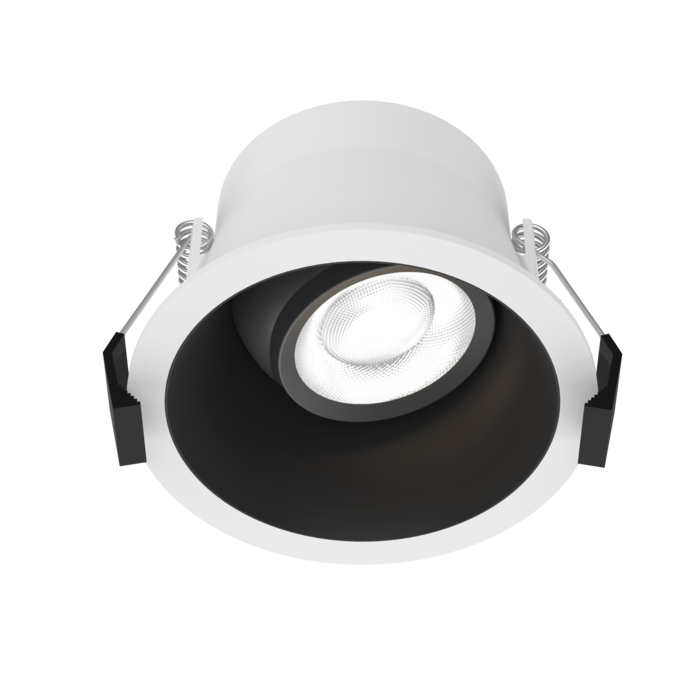

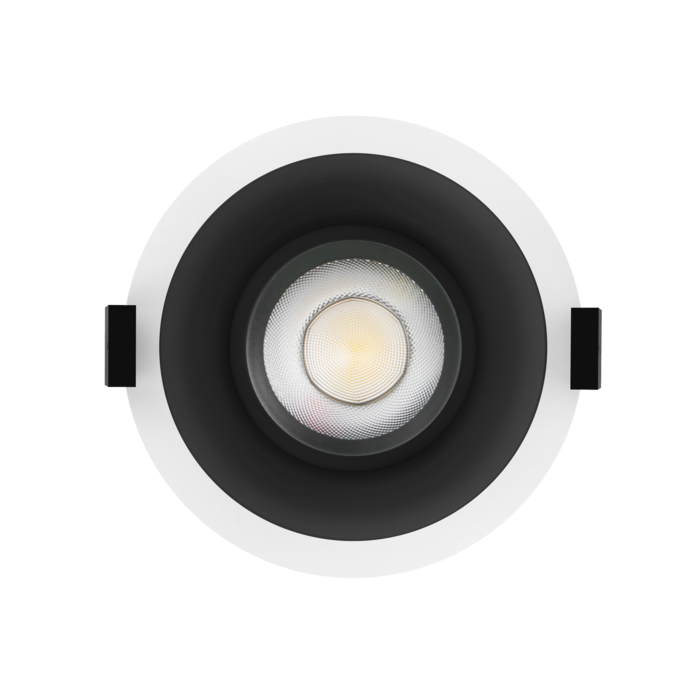

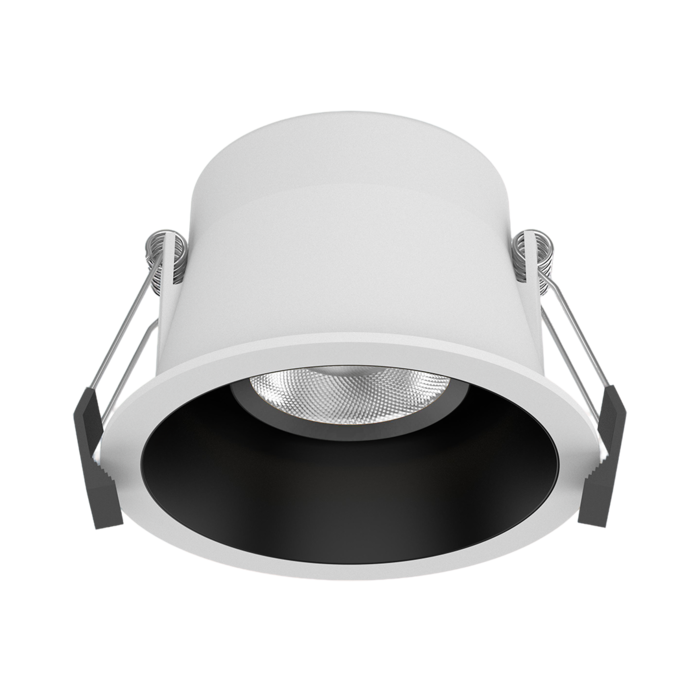

PARKES S914XTC - 8 / 11W

8 or 11 watt dimmable LED downlight with tilt function, UGR<12, selectable CCT and CRI>90

Application

Ideal for any retail, residential or commercial interior space

Design Specifications

  • Stylish white trim and recessed black profile

  • Choice of 8 watt (72mm cut-out) or 11 watt (92mm cut-out)

  • Remote, dimmable flickerCONTROLLED control gear

  • Selectable CCT 3000 / 4000 /5000K

  • High performance optics UGR<12, CRI>90, optical tilt 20°, beam distribution 36°.

  • IC-4 rated, electrical class II

Performance

  • Dimmable - YES
  • Dimmer Type - trailing edge
PARKES S914XTC -
PARKES S914XTC -
PARKES S914XTC -
PARKES S914XTC -
PARKES S914XTC -
COMING SOON
  • WARM WHITE3000K
  • COOL WHITE4000K
  • NEUTRAL DAYLIGHT5000K
    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Body Colour Cut Out Diameter Dim
      		Model No. S9142TC/WH Add to Enquiry Add Remove Remove Input Voltage 240 Power 8 Lumens 560/670/660 CCT 3000/4000/5700 Beam Angle 36 Dimmable YES CRI 90 Body Colour WHITE Cut Out 72 Diameter 84 Dim 56(H)
      		Model No. S9143TC/WH Add to Enquiry Add Remove Remove Input Voltage 240 Power 11 Lumens 750/870/830 CCT 3000/4000/5700 Beam Angle 36 Dimmable YES CRI 90 Body Colour WHITE Cut Out 92 Diameter 104 Dim 71(H)
    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
