• DOWNLIGHTS

PENTE S9086C5MP - 10W

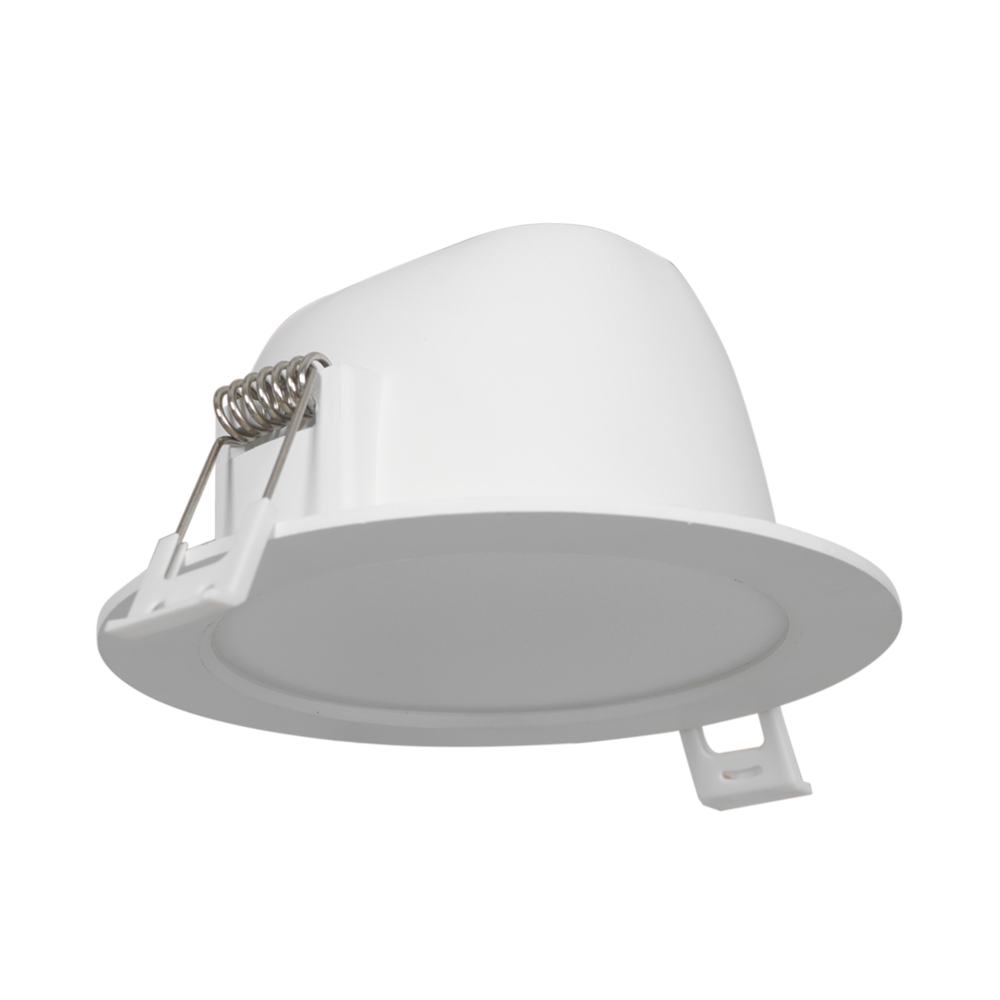

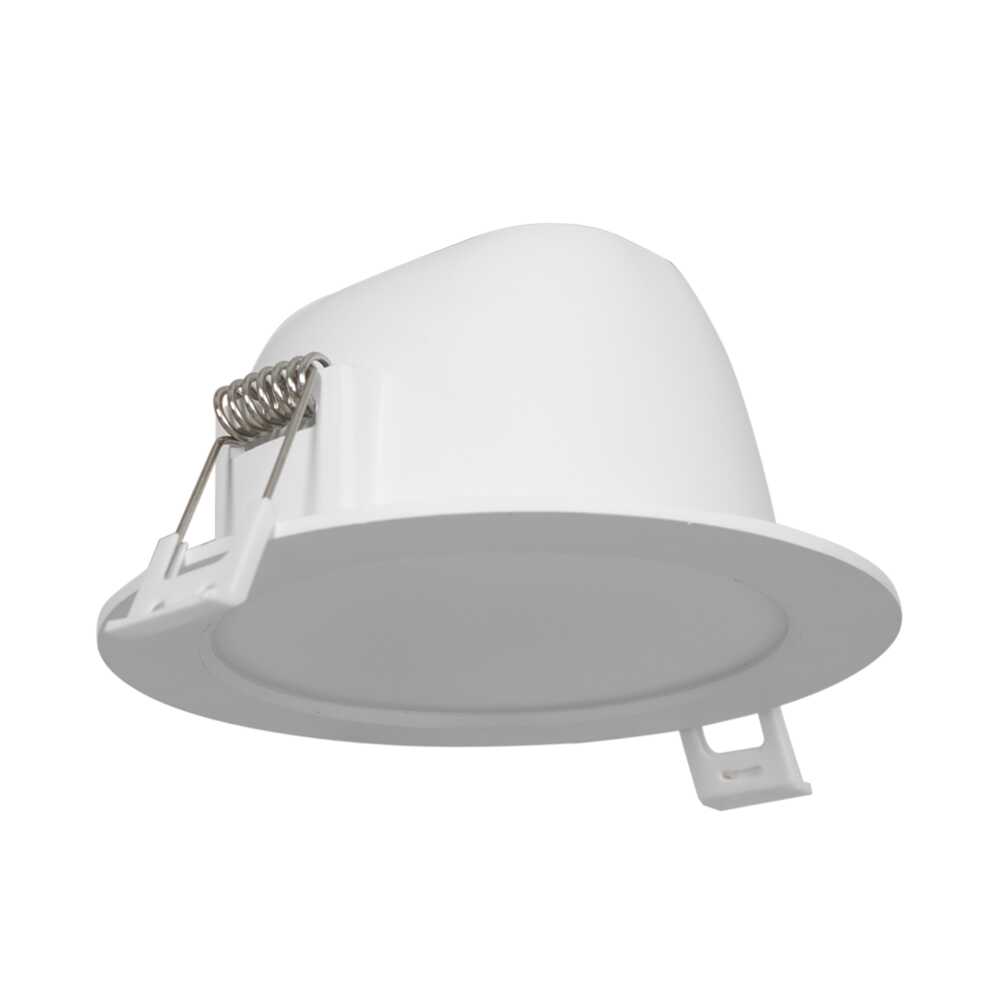

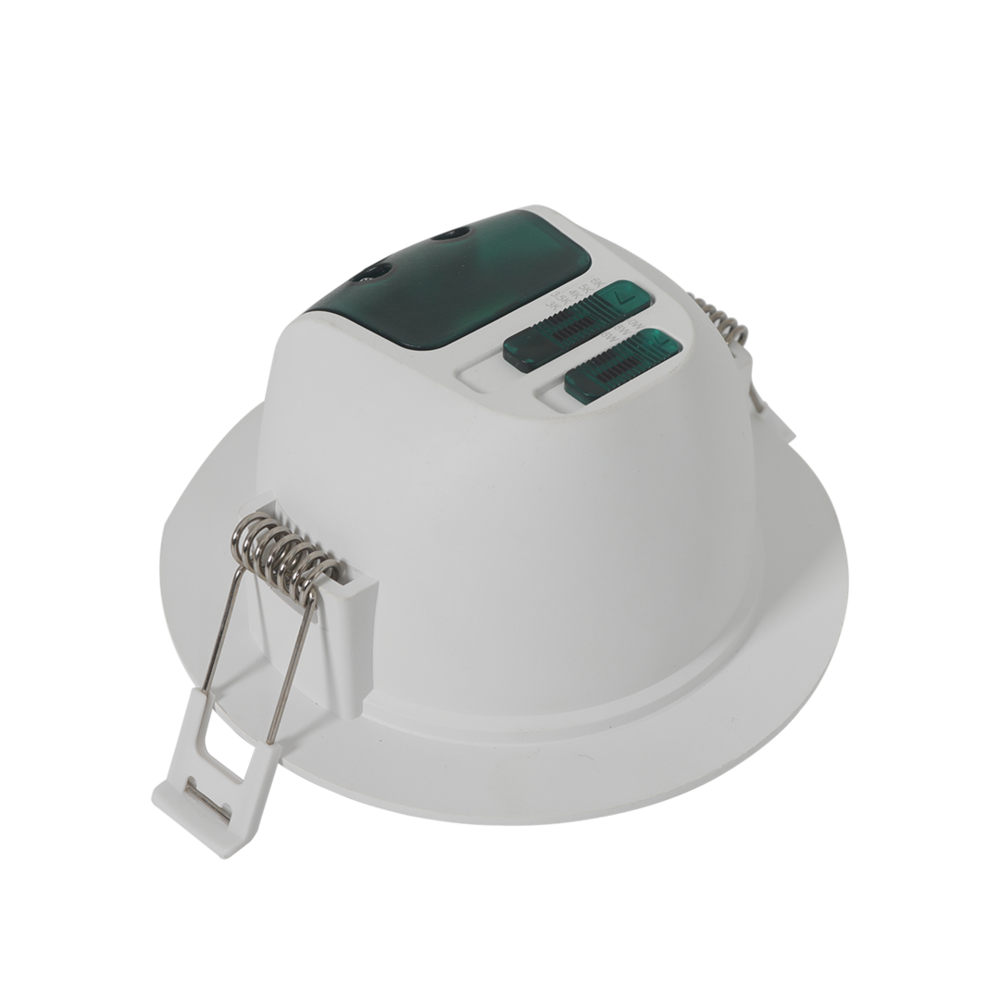

Dimmable LED downlight, CRI90 with 5 x selectable CCT and selectable power with flickerCONTROLLED technology, IP44

Application

Ideal for any residential or commercial interior space

Design Specifications

  • Selectable CCT 3000K/3500/4000K/5000/6000K

  • Opal polycarbonate diffuser and body

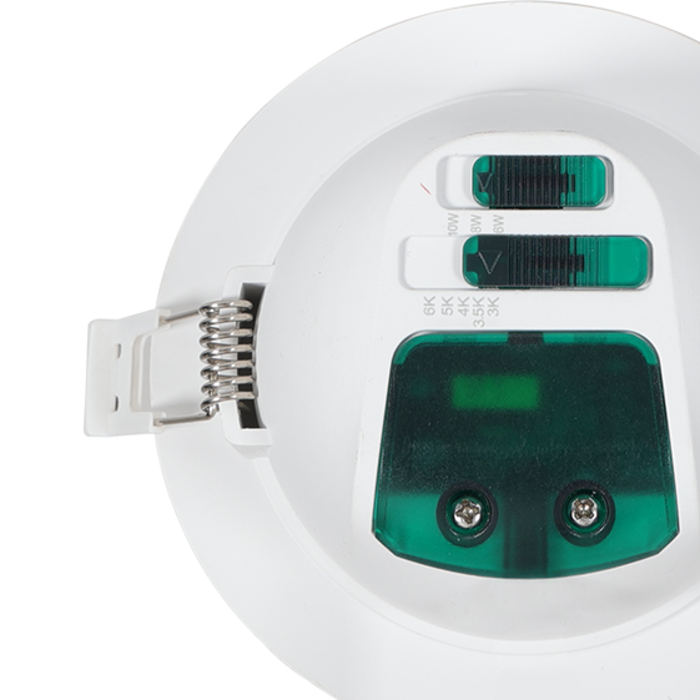

  • Integral flickerCONTROLLED trailing edge dimmable LED driver, with selectable functions 6/8/10 watt

  • High efficiency LED optics CRI>90

  • IC - 4 rated, double insulated, IP44 from below

  • Deco ring options:
    Satin Nickel (S9065SN/RING),
    Black (S9065BK/RING)

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing edge
  • Dimensions - Wiring Diagrams
  • Design Options
    Colour 1 Satin Nickel (S9065SN/RING)
    Colour 2 Black (S9065BK/RING)
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Multiple Wattage Lumens CCT Beam Angle Dimmable CRI Body Colour Cut Out Diameter Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.S9086C5MP Input Voltage240 Power10 Multiple Wattage6/8/10 Lumens1000/1050/1200/1100/1100 CCT3000/3500/4000/5000/6000 Beam Angle100 Dimmable YES CRI90 Body ColourWHITE Cut Out92 Diameter112 Dim60(H) Add to Enquiry Add Remove Remove
    Model No.S9065SN/RING Input Voltage Power Multiple Wattage Lumens CCT Beam Angle Dimmable CRI Body ColourSATIN NICKEL Cut Out Diameter Dim Add to Enquiry Add Remove Remove
    Model No.S9065BK/RING Input Voltage Power Multiple Wattage Lumens CCT Beam Angle Dimmable CRI Body ColourBLACK Cut Out Diameter Dim Add to Enquiry Add Remove Remove

    Note: Lumens (lm) displayed are at full power selection, refer installation instructions for switched details

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
