• LED DOWNLIGHTS

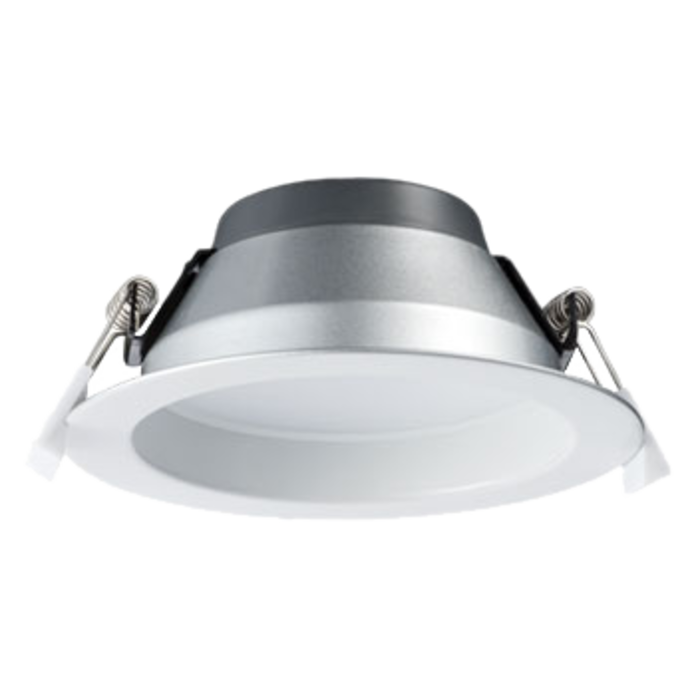

PREMIER S9072TC - 14W

Dimmable IP64 14W LED downlight with selectable colour

Application

Ideal for any residential, retail or commercial interior space

Design Specifications

  • Premium aluminium body profile, IC - 4 rated

  • Stylish white or silver powder coat finish

  • Quality opal polycarbonate diffuser

  • High efficiency SMD LED chips

  • Constant current trailing edge dimmable LED driver, with flex and plug

  • Dimming options: 1-10v analogue, DALI, DSI

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - TRAILING EDGE, DALI, DSI, 1-10V

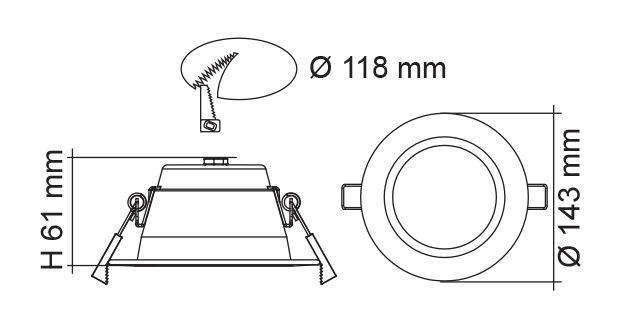

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Body Colour Cut Out Diameter Dim IPART REES Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close

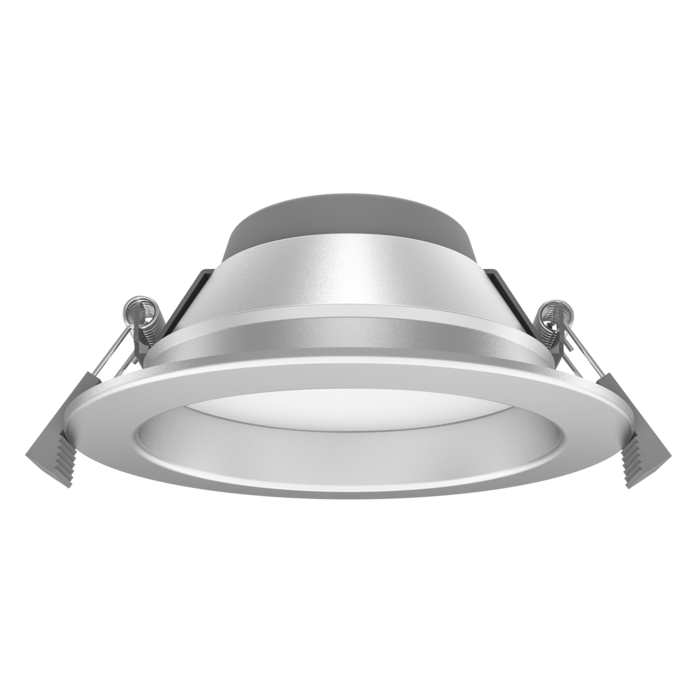

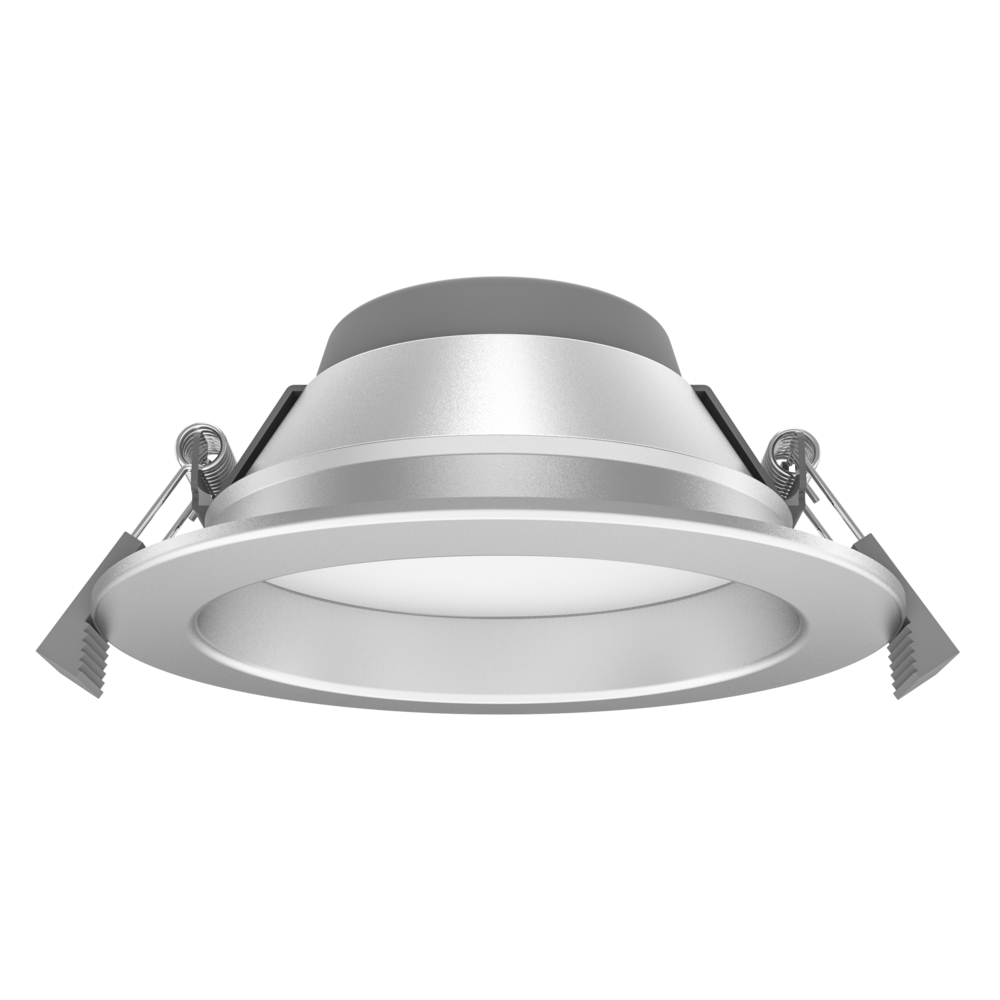

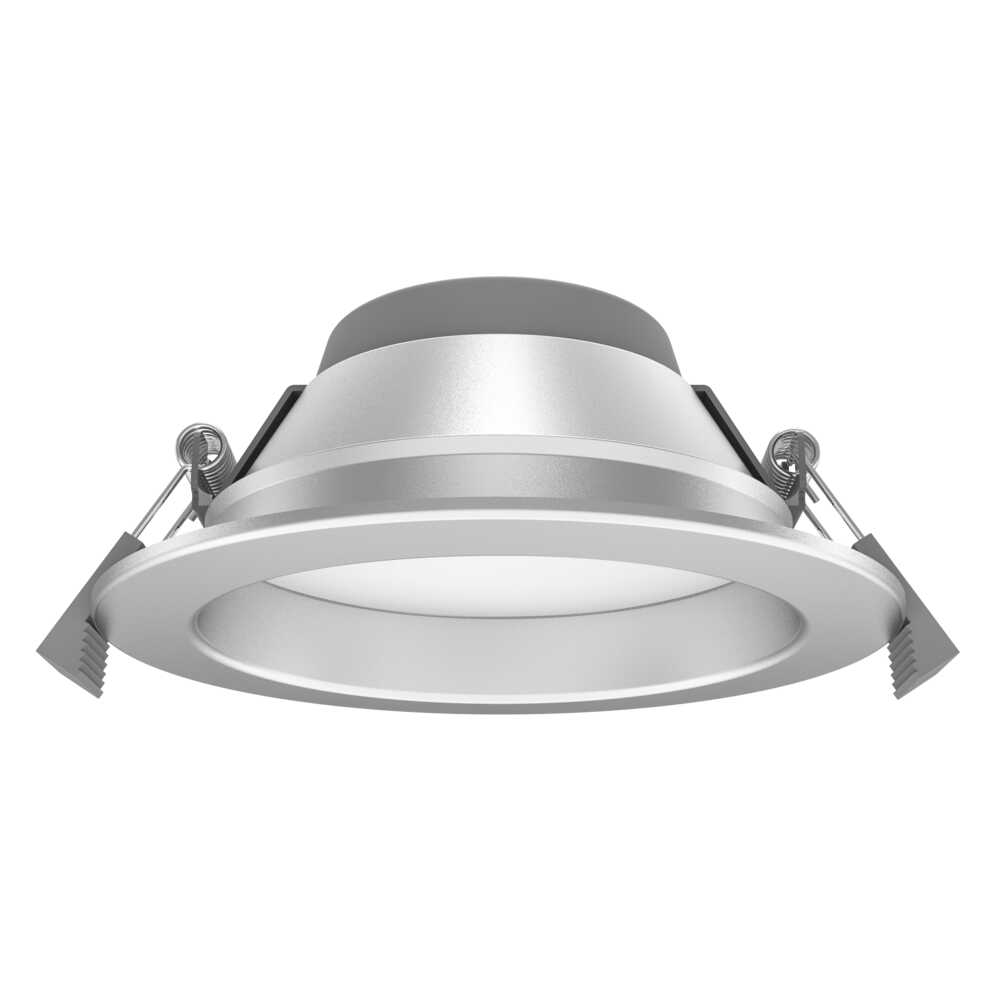

    Model No.S9072TC SL Input Voltage240 Power14 Lumens1000/1150/1150 CCT3000/4000/5700 Beam Angle90 Dimmable YES CRI80 Body ColourSILVER Cut Out118 Diameter143 Dim61(H) IPARTYES REESYES Add to Enquiry Add Remove Remove

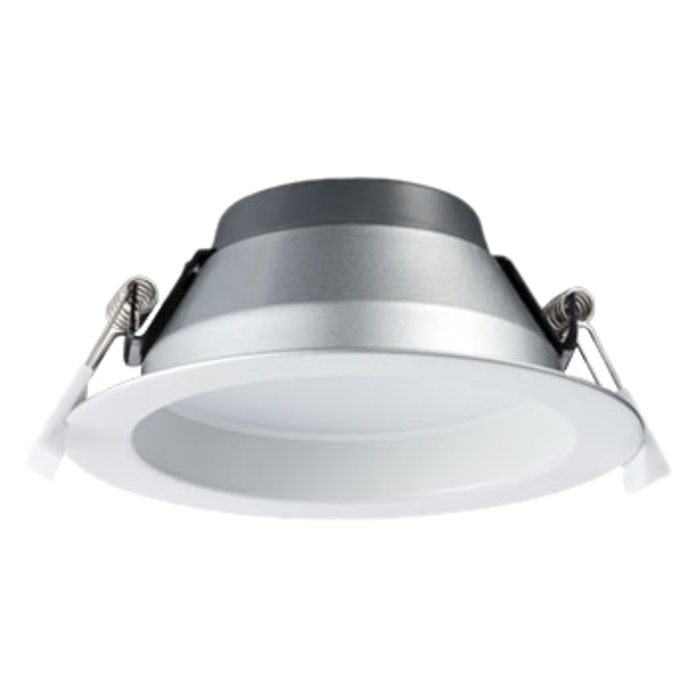

    Model No.S9072TC WH Input Voltage240 Power14 Lumens1000/1150/1150 CCT3000/4000/5700 Beam Angle90 Dimmable YES CRI80 Body ColourWHITE Cut Out118 Diameter143 Dim61(H) IPARTYES REESYES Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
