• LED DOWNLIGHTS

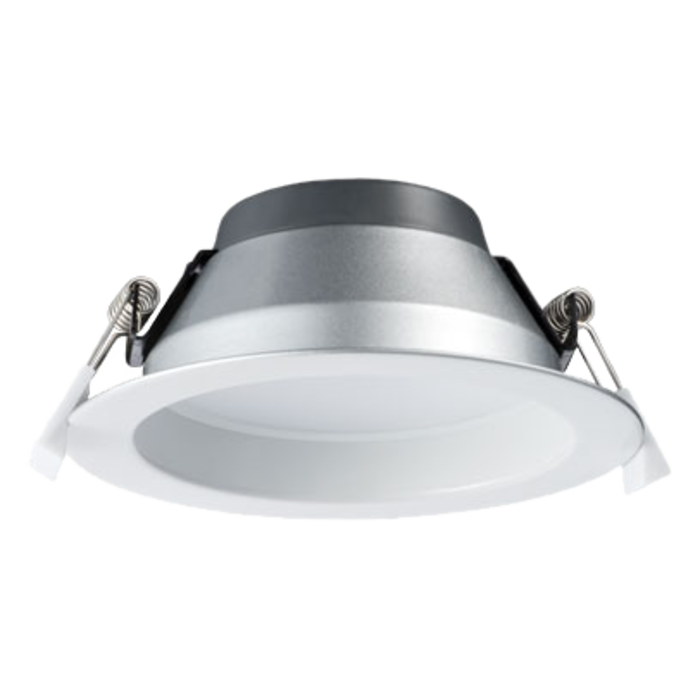

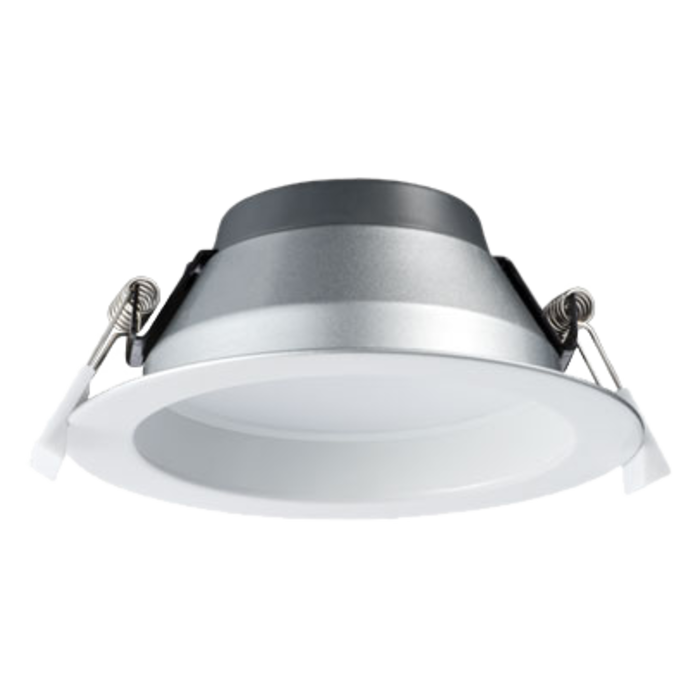

PREMIER S9073TC / DP - 13W/18W

Dimmable 13/18 watt LED downlight with selectable CCT and power, IP64

Application

Ideal for any residential or commercial interior space

Design Specifications

  • Premium aluminium body, IC-4 rated

  • Stylish white powder coat finish

  • Recessed opal polycarbonate diffuser

  • High efficiency LED optics CRI>90

  • Remote, trailing edge dimmable, dual power LED driver with flickerCONTROL technology and flex and plug

  • Double insulated

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing edge, optional 1-10V, DALI, DSI

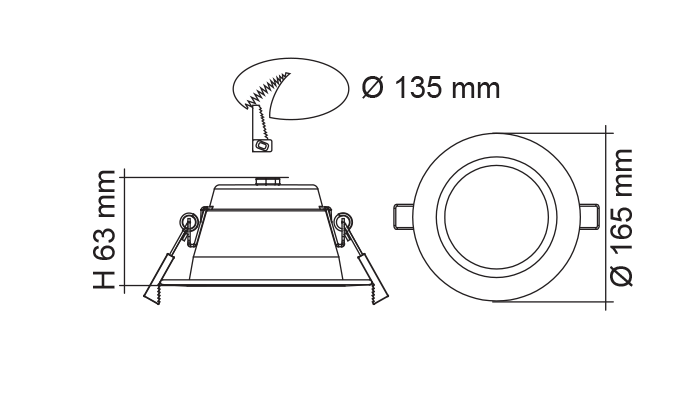

    • Dimensions - Wiring Diagrams
    • Design Options

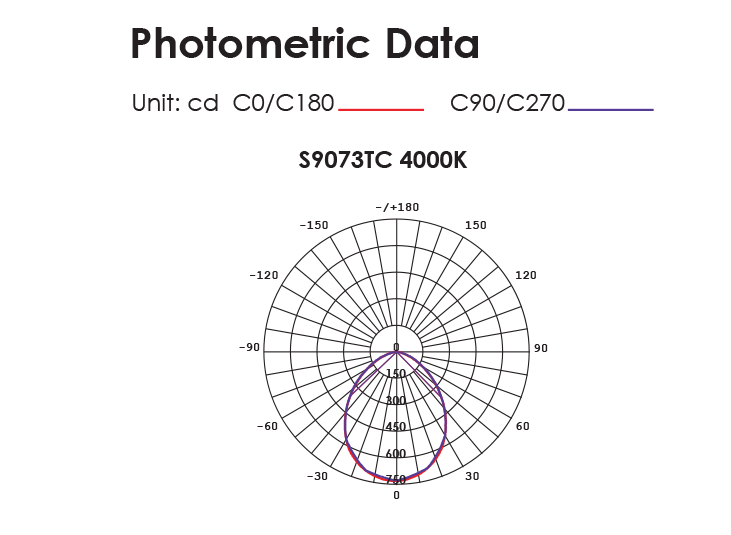

    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Multiple Wattage Lumens CCT Beam Angle Dimmable CRI Body Colour Cut Out Diameter Dim IPART VEET
      		Model No. S9073TC/WH/DP Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 13/18 Lumens 1500/1800/1600 CCT 3000/4000/5700 Beam Angle 90 Dimmable YES CRI 90 Body Colour WHITE Cut Out 135 Diameter 165 Dim 63(H) IPART YES VEET YES
      		Model No. S9073TC/SL/DP Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 13/18 Lumens 1500/1800/1600 CCT 3000/4000/5700 Beam Angle 90 Dimmable YES CRI 90 Body Colour SILVER Cut Out 135 Diameter 165 Dim 165(W) x 63(H)

      Note: Lumens (lm) shown are displayed at FULL power

    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
