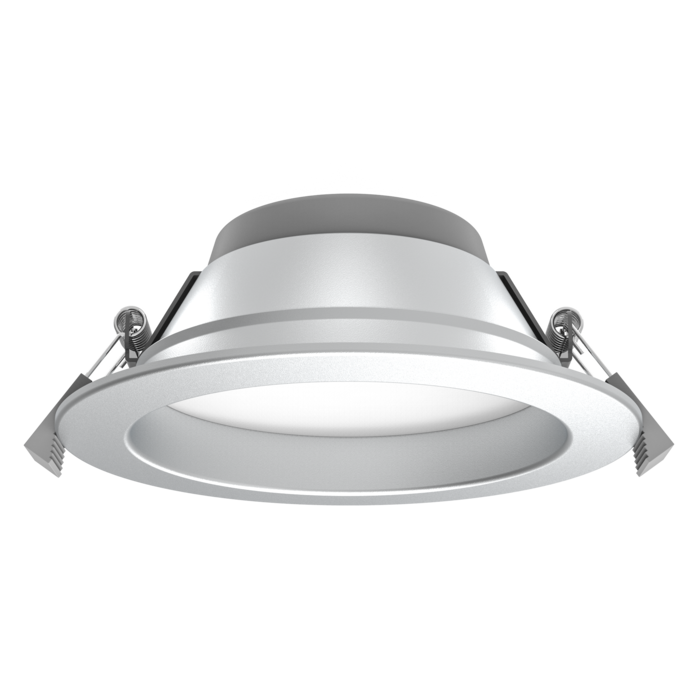

PREMIER S9073TC - 18W
Dimmable IP64 18W LED downlight with selectable CCT
Application
Ideal for any residential, retail or commercial interior spaces
Design Specifications
Premium aluminium body profile, CA90 rated
Stylish silver powder coat finish
- Quality opal acrylic diffuser
High efficiency LED optics
Remote constant current trailing edge dimmable LED driver, with flex and plug
Dimming options: 1-10V, DALI, DSI
Performance
- Dimmable - OPTIONAL
- Dimmer Type - TRAILING EDGE, 1-10V, DALI, / DSI
- Dimensions - Wiring Diagrams
- Photometric Data
-
- Technical Specifications
Product Model No. Input Voltage Power Lumens CCT Beam Angle CRI Body Colour Cut Out Diameter Dim Add to Enquiry - Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
Model No.S9073TC SL Input Voltage240 Power18 Lumens1400/1550/1550 CCT3000/4000/5700 Beam Angle90 CRI80 Body ColourSILVER Cut Out135 Diameter165 Dim63(H) Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
