• LED DOWNLIGHTS

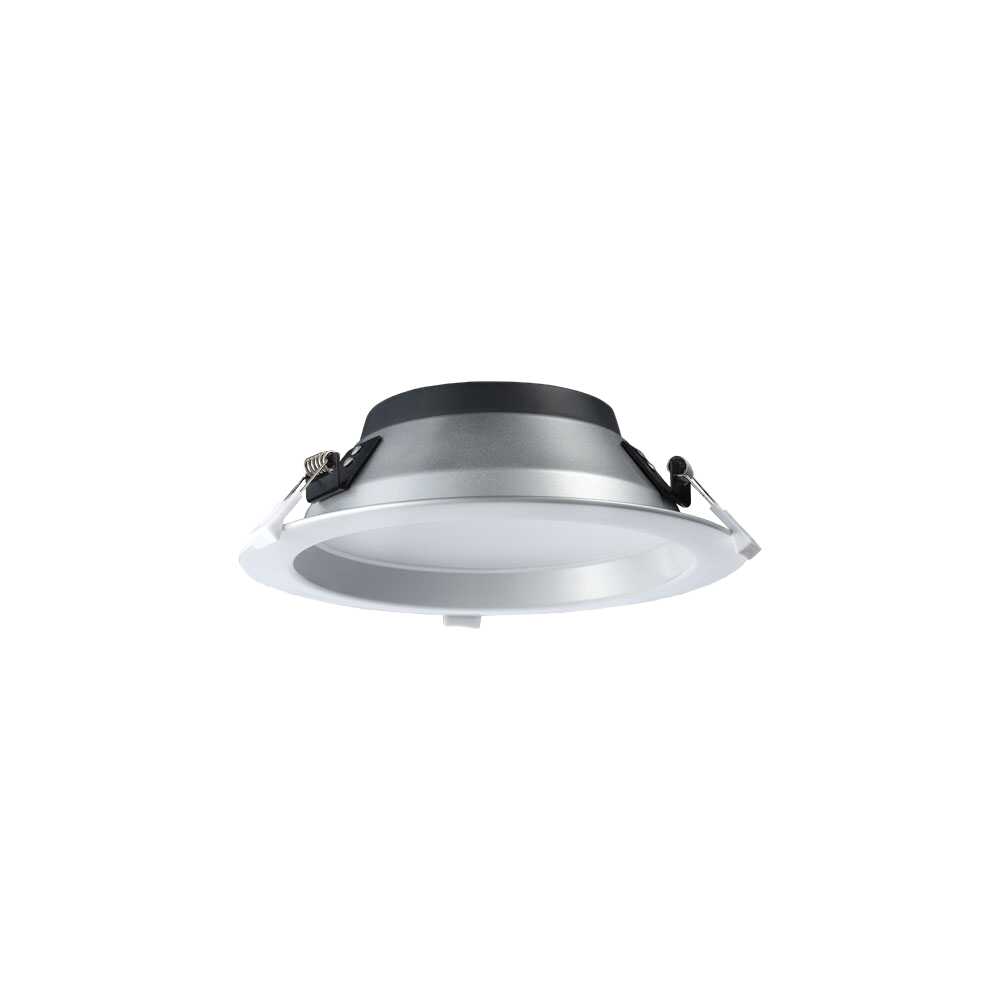

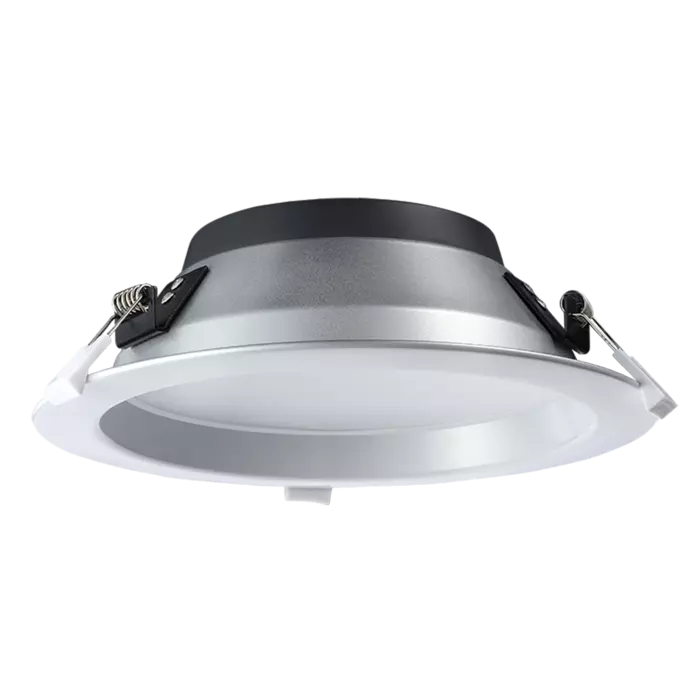

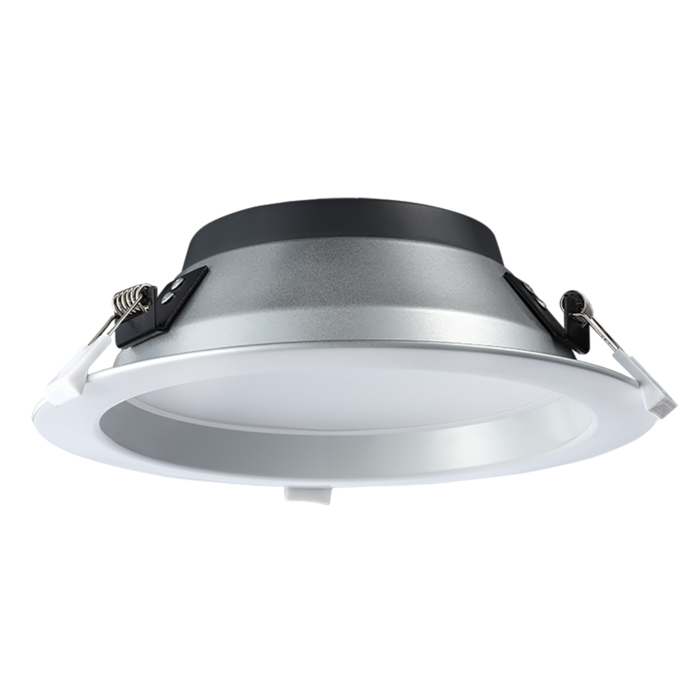

PREMIER S9075TC DP - 23W/30W

23/30 watt LED downlight with selectable CCT and power, IP64

Application

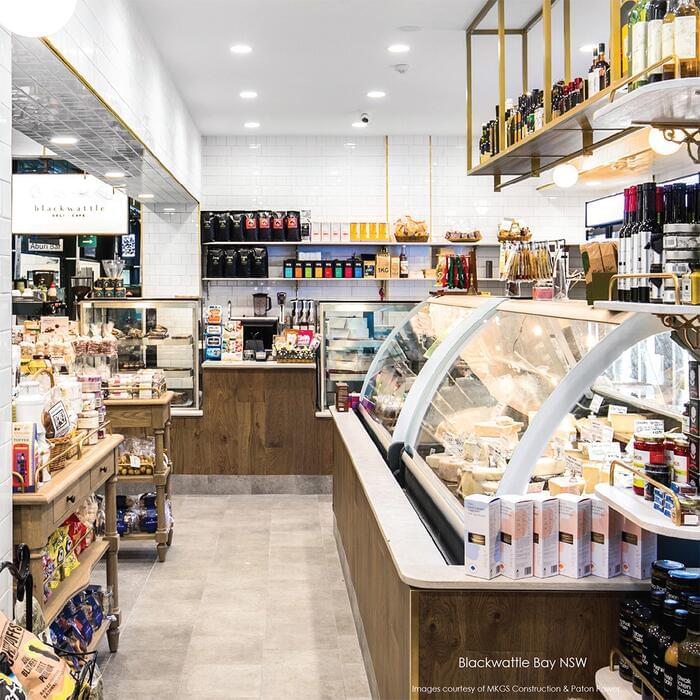

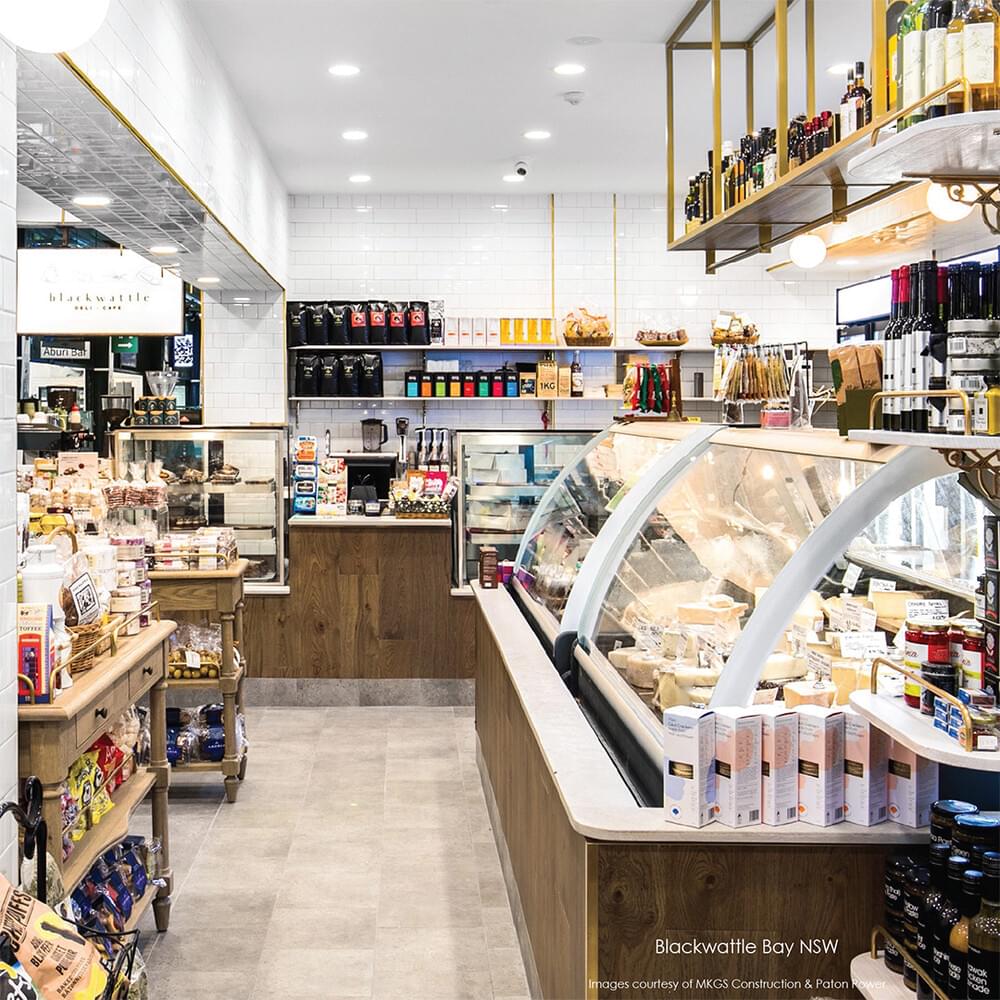

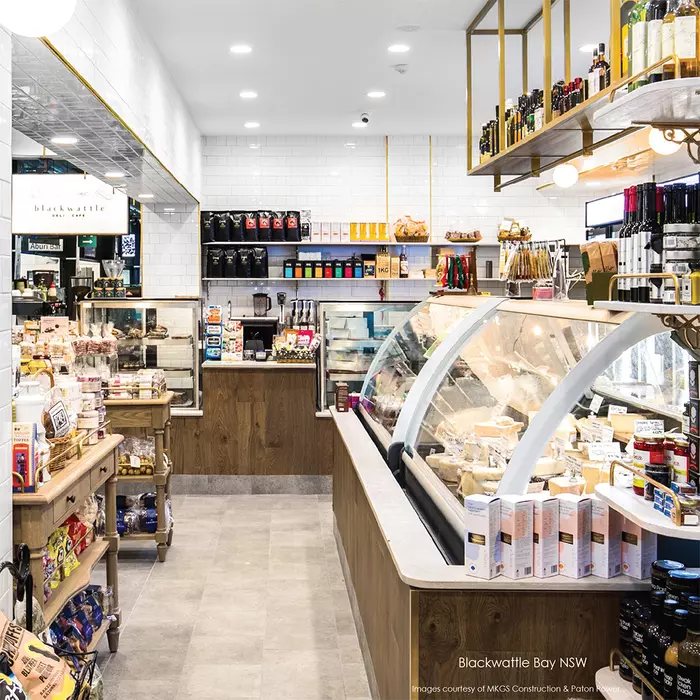

Ideal for any residential or commercial interior space

Design Specifications

  • Premium aluminium body, IC-4 rated

  • Selectable CCT 3000K / 4000K / 5700K

  • Stylish white trim

  • Recessed opal polycarbonate diffuser

  • High efficiency LED optics CRI>90

  • Remote, non-dimmable, dual power LED driver, with flickerCONTROL technology and flex and plug

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - Trailing edge, 1-10V, DALI/DSI

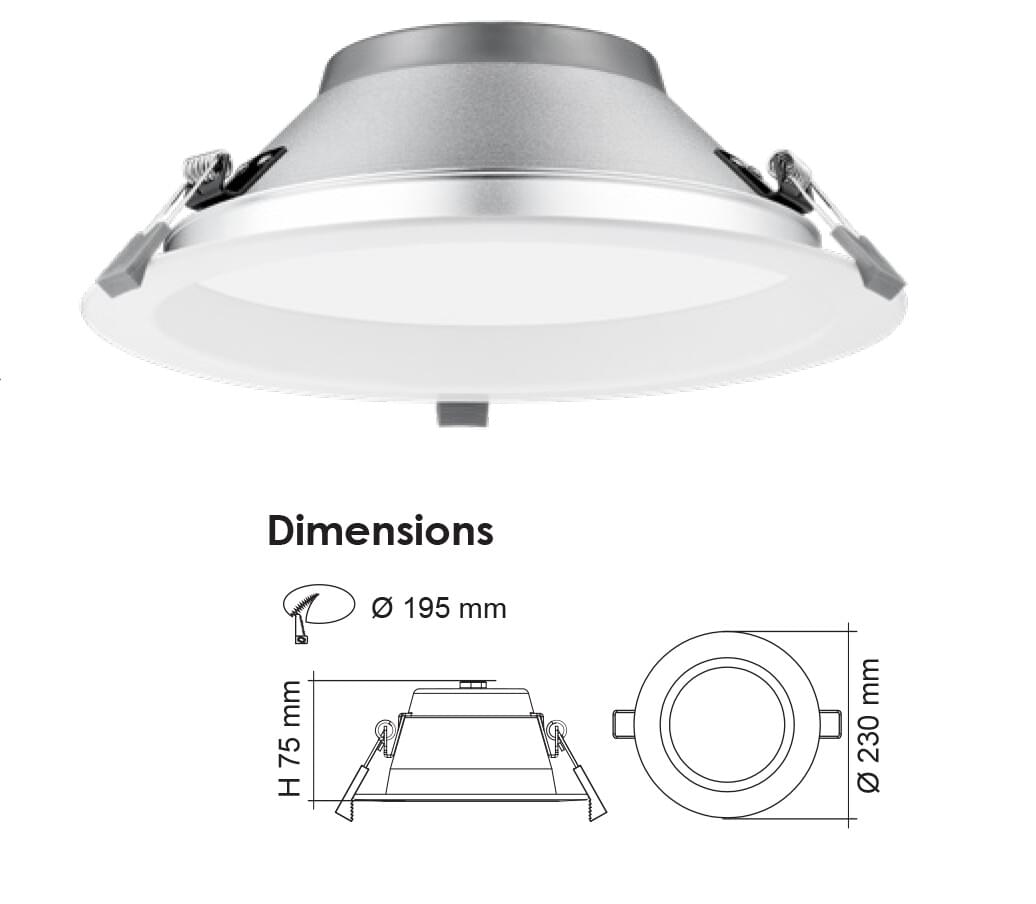

  • Dimensions - Wiring Diagrams
  • Design Options

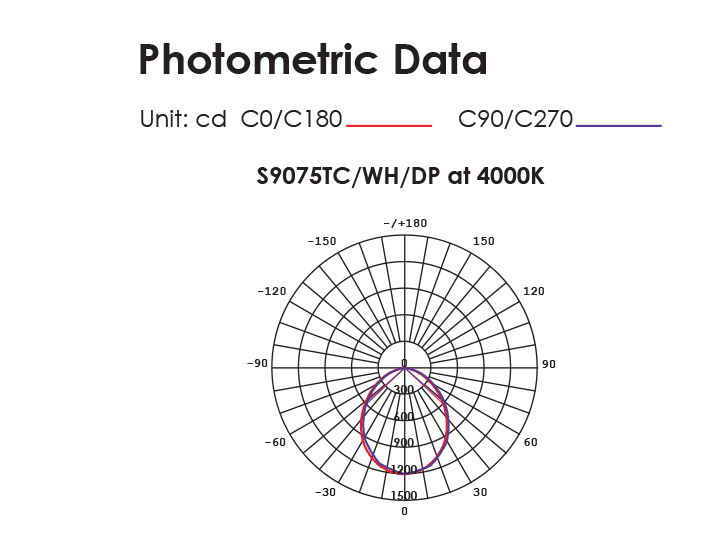

  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Multiple Wattage Lumens CCT Beam Angle Dimmable CRI Body Colour Cut Out Diameter Dim VEET Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.S9075TC/WH/DP Input Voltage240 Multiple Wattage23/30 Lumens2600/3100/2800 CCT3000/4000/5700 Beam Angle90 Dimmable OPTIONAL CRI90 Body ColourWHITE Cut Out195 Diameter230 Dim75(H) VEETYES Add to Enquiry Add Remove Remove

    Note: Lumens (lm) shown are at FULL power

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
