• DOWNLIGHTS

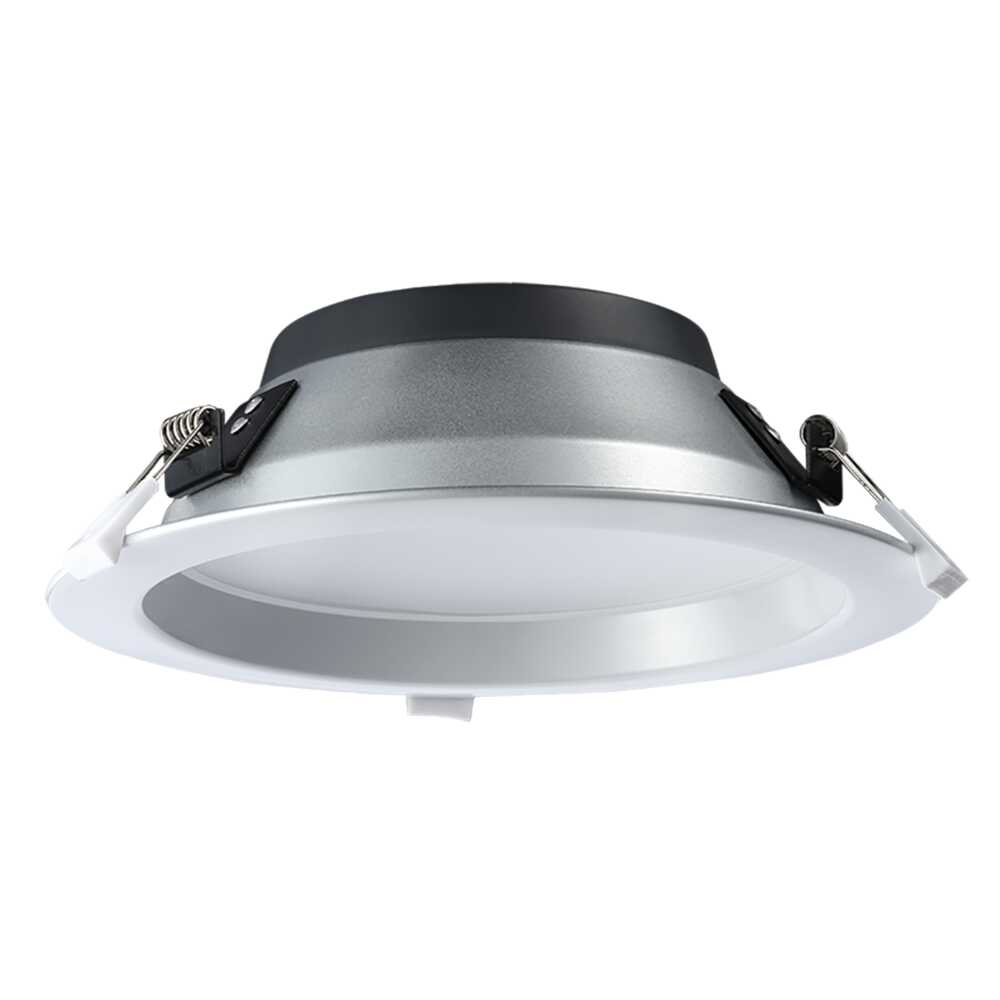

PREMIER S9076TC DP/HP - 18W/40W

Non-dimmable 18/40 watt LED downlight with selectable CCT and power, IP64

Application

Ideal for any residential, retail or commercial interior spaces

Design Specifications

  • Premium aluminium body, IC-4 rated

  • Stylish white powder coat finish

  • Recessed opal polycarbonate diffuser

  • High efficiency LED optics

  • Remote, non-dimmable, dual power LED driver, with flex and plug

  • Double insulated

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - Dual power, 1-10V, DALI / DSI - Half power, trailing edge, 1-10V, DALI / DSI

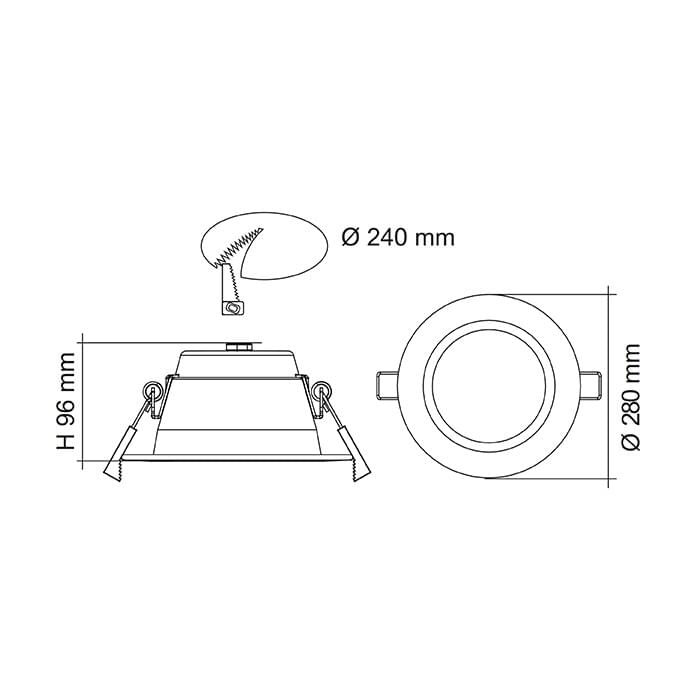

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Multiple Wattage Lumens CCT Beam Angle Dimmable CRI Body Colour Cut Out Diameter Dim IPART REES VEET Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.S9076TC/WH/HP Input Voltage240 Power18 Multiple Wattage Lumens2100/2300/2200 CCT3000/4000/5700 Beam Angle90 Dimmable OPTIONAL CRI80 Body ColourWhite Cut Out240 Diameter280 Dim96(H) IPARTYES REESYES VEET Add to Enquiry Add Remove Remove
    Model No.S9076TC/WH/DP Input Voltage240 Power Multiple Wattage30/40 Lumens3500/4200/3800 CCT3000/4000/5700 Beam Angle90 Dimmable OPTIONAL CRI80 Body ColourWhite Cut Out240 Diameter280 Dim96(H) IPART REES VEETYES Add to Enquiry Add Remove Remove

    Note: Lumens (lm) shown are displayed at maximum power rating

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
