• DOWNLIGHTS

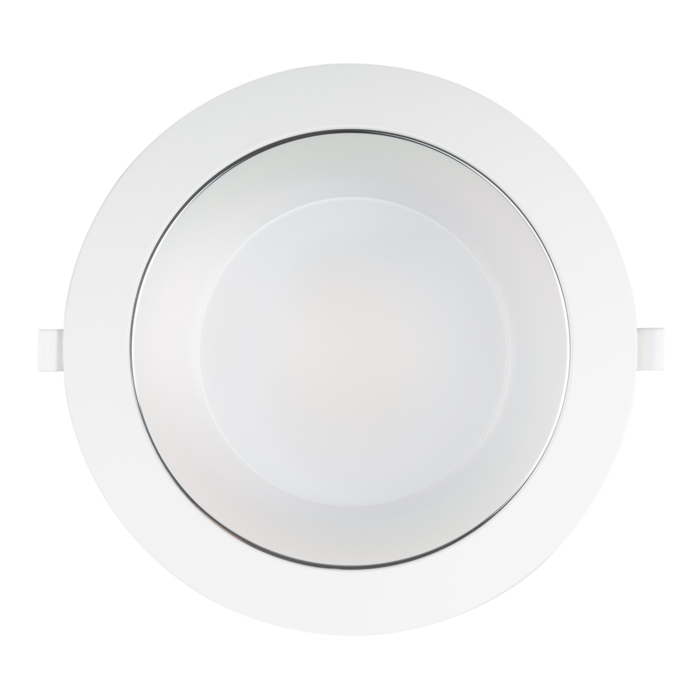

RENMARK S9083D35TC/DP - 24W/35W

24/35 watt LED downlight with selectable CCT and power, IP44

Application

Ideal for any retail, residential or commercial interior space

Design Specifications

  • Premium aluminium body profile

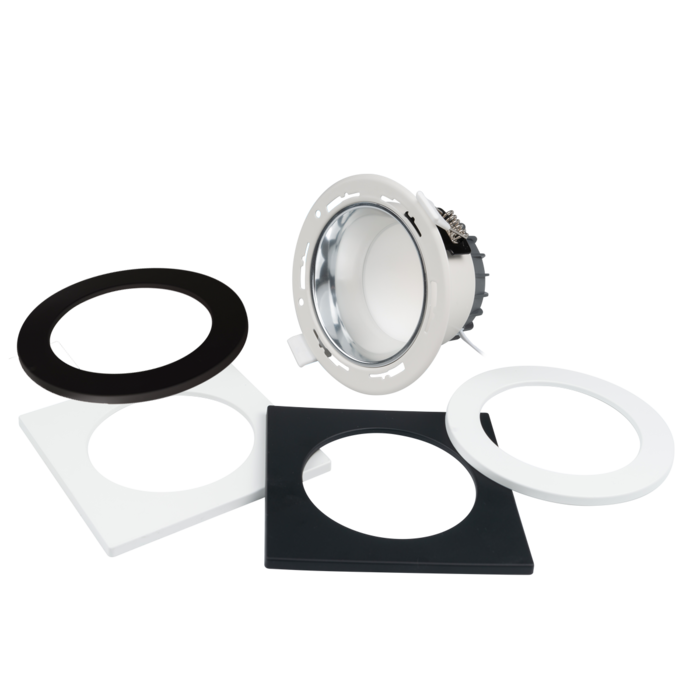

  • Stylish white body profile and WH trim with optional WH square, BK round or BK square quick connect plastic trims to order

  • High performance mirror optical system, beam distribution 80°

  • Remote, non-dimmable flickerCONTROLLED LED driver, with flex and plug

  • Selectable CCT 3000K / 4000K / 5700K

  • IC - 4 rated, double insulated

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - Trailing edge, 1-10V DALI / DSI

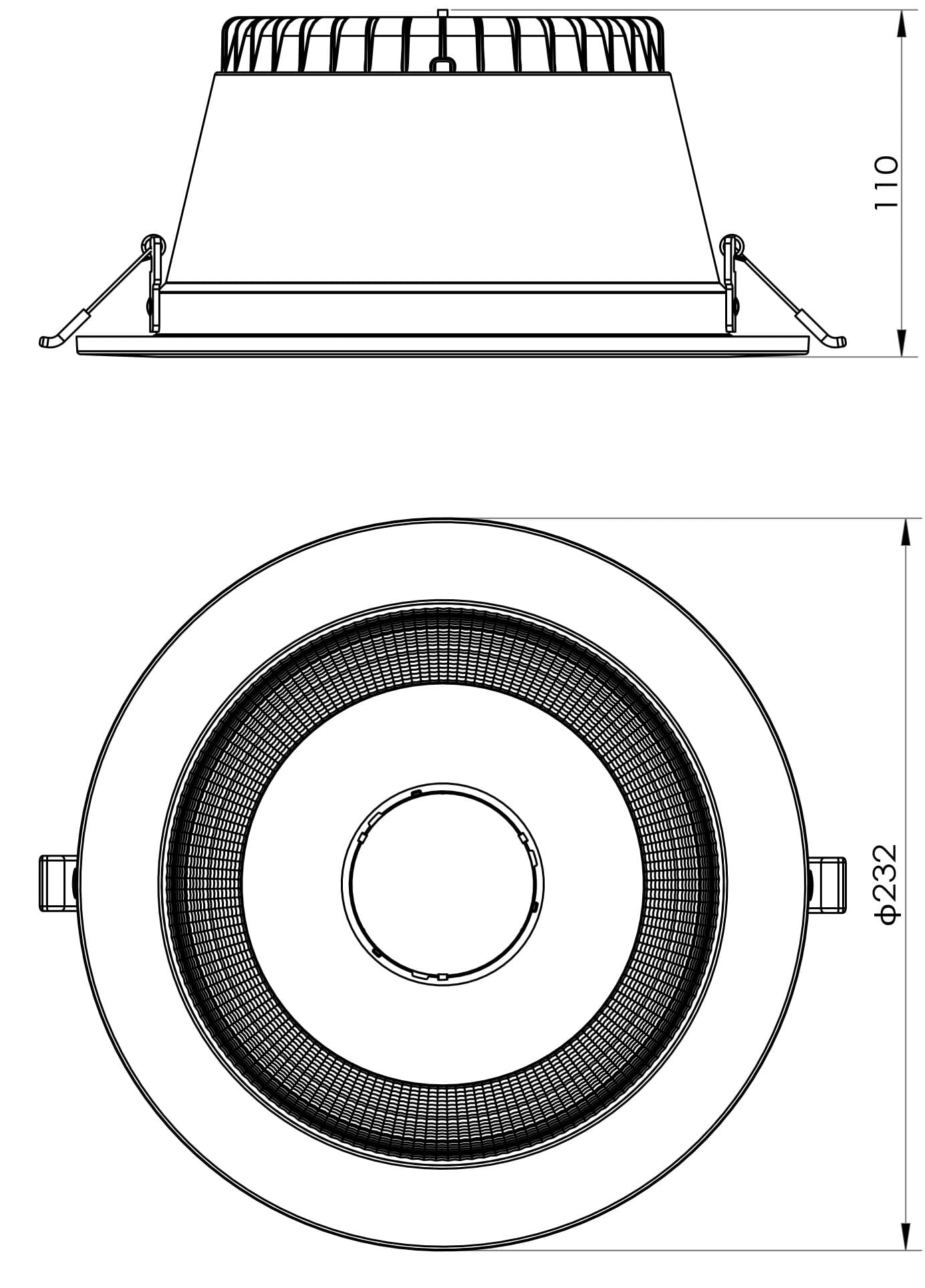

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Multiple Wattage Lumens CCT Beam Angle Dimmable CRI Body Colour Cut Out Diameter Dim IPART REES VEET Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.S9083D35TC/DP Input Voltage240 Multiple Wattage24/35 Lumens3500/4000/3850 CCT3000/4000/5700 Beam Angle80 Dimmable OPTIONAL CRI80 Body ColourWHITE Cut Out195 Diameter232 Dim110(H) IPARTN/A REESN/A VEETN/A Add to Enquiry Add Remove Remove
    Model No.S9083SQ/WH/P Input Voltage Multiple Wattage Lumens CCT Beam Angle Dimmable CRI Body ColourWHITE Cut Out195 Diameter Dim232(L) x 232(W) IPARTN/A REESN/A VEETN/A Add to Enquiry Add Remove Remove
    Model No.S9083RD/BK/P Input Voltage Multiple Wattage Lumens CCT Beam Angle Dimmable CRI Body ColourBLACK Cut Out195 Diameter232 Dim IPARTN/A REESN/A VEETN/A Add to Enquiry Add Remove Remove
    Model No.S9083SQ/BK/P Input Voltage Multiple Wattage Lumens CCT Beam Angle Dimmable CRI Body ColourBLACK Cut Out195 Diameter Dim232(L) x 232(W) IPARTN/A REESN/A VEETN/A Add to Enquiry Add Remove Remove

    NOTE: lumens (lm) displayed are at MAXIMUM power

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
