RENMARK S9083R35TC/DP - 24/35W

24/35 watt LED downlight with selectable CCT and power, IP64

Application

Ideal for any retail, residential or commercial interior space

Design Specifications

  • Premium aluminium body profile

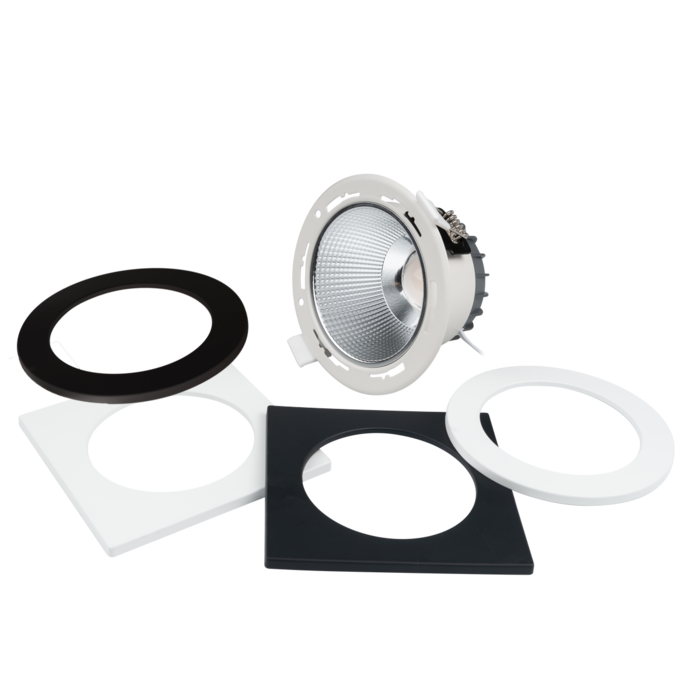

  • Stylish white body profile and WH trim with optional WH square, BK round or BK square quick connect plastic trims to order

  • High performance faceted reflector profile, beam 60° , UGR <19

  • Remote, non-dimmable flickerCONTROLLED LED driver, with flex and plug

  • Selectable CCT 3000, 4000, 5700K

  • IC - 4 rated, double insulated

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - Trailing edge, 1-10V DALI / DSI

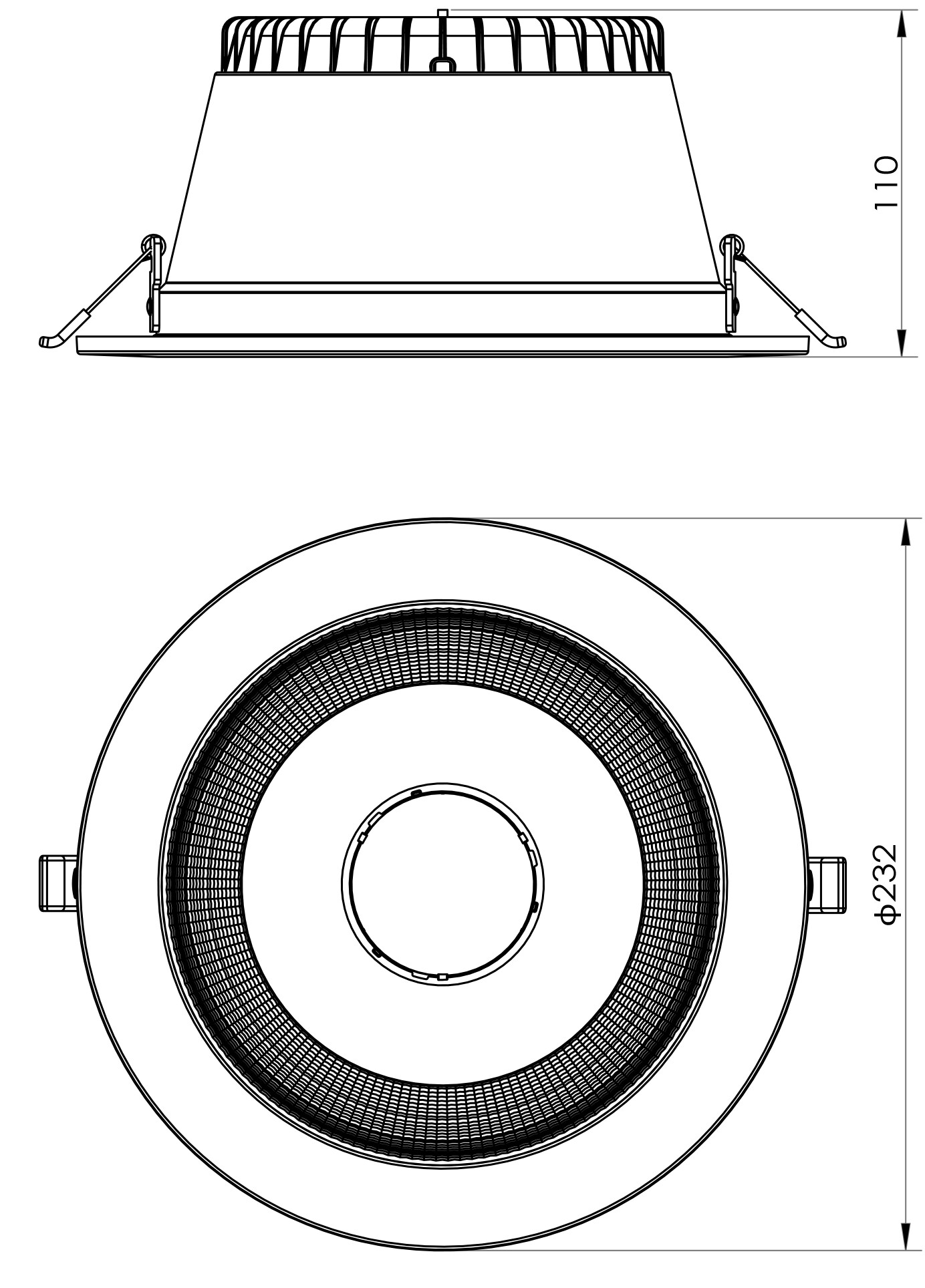

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Multiple Wattage Lumens CCT Beam Angle Dimmable CRI Body Colour Cut Out Diameter Dim IPART REES VEET
      		Model No. S9083R35TC/DP Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 24/35 Lumens 3000/3300/3150 CCT 3000/4000/5700 Beam Angle 60 Dimmable OPTIONAL CRI 90 Body Colour WHITE Cut Out 195 Diameter 232 Dim 110(H) IPART N/A REES N/A VEET N/A
      		Model No. S9083SQ/WH/P Add to Enquiry Add Remove Remove CRI 90 Body Colour WHITE Cut Out 195 Dim 232(L) x 232(W) IPART N/A REES N/A VEET N/A
      		Model No. S9083RD/BK/P Add to Enquiry Add Remove Remove CRI 90 Body Colour BLACK Cut Out 195 Diameter 232 IPART N/A REES N/A VEET N/A
      		Model No. S9083SQ/BK/P Add to Enquiry Add Remove Remove CRI 90 Body Colour BLACK Cut Out 195 Dim 232(L) x 232(W) IPART N/A REES N/A VEET N/A

      NOTE: lumens (lm) displayed are at MAXIMUM power

    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
