• LED DOWNLIGHTS

STAR SPOT II S9363WW - 7W

Compact design LED 7 watt downlight, IP54

Application

Ideal for any residential feature lighting, home theatre, restaurants or commercial interior spaces

Design Specifications

  • 55mm diameter trim face, low profile design, 50mm cut-out

  • Available in White or Black finish

  • Durable aluminium body profile

  • CCT 3000K, 470 lumens, CRI>80

  • High output LED optics, 30° beam distribution

  • Designed with a dimmable remote driver, complete with flex and plug, double insulated

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing Edge
  • WARM WHITE3000K

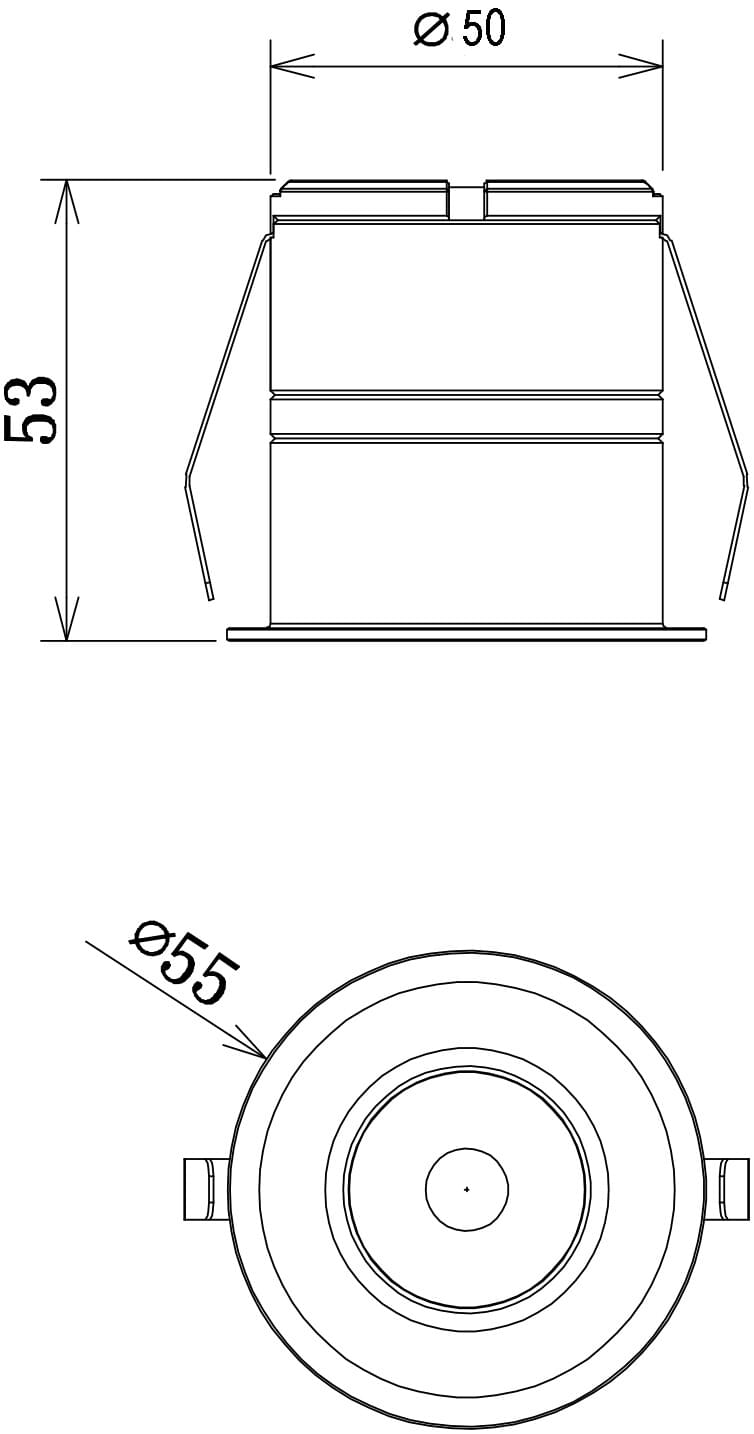

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Body Colour Cut Out Diameter Dim
      		Model No. S9363WW/WH Add to Enquiry Add Remove Remove Input Voltage 240 Power 7 Lumens 470 CCT 3000 Beam Angle 30 Dimmable YES CRI 80 Body Colour WHITE Cut Out 50 Diameter 55 Dim 53(H)
      		Model No. S9363WW/BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 7 Lumens 470 CCT 3000 Beam Angle 30 Dimmable YES CRI 80 Body Colour BLACK Cut Out 50 Diameter 55 Dim 53(H)
    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
