• DOWNLIGHTS

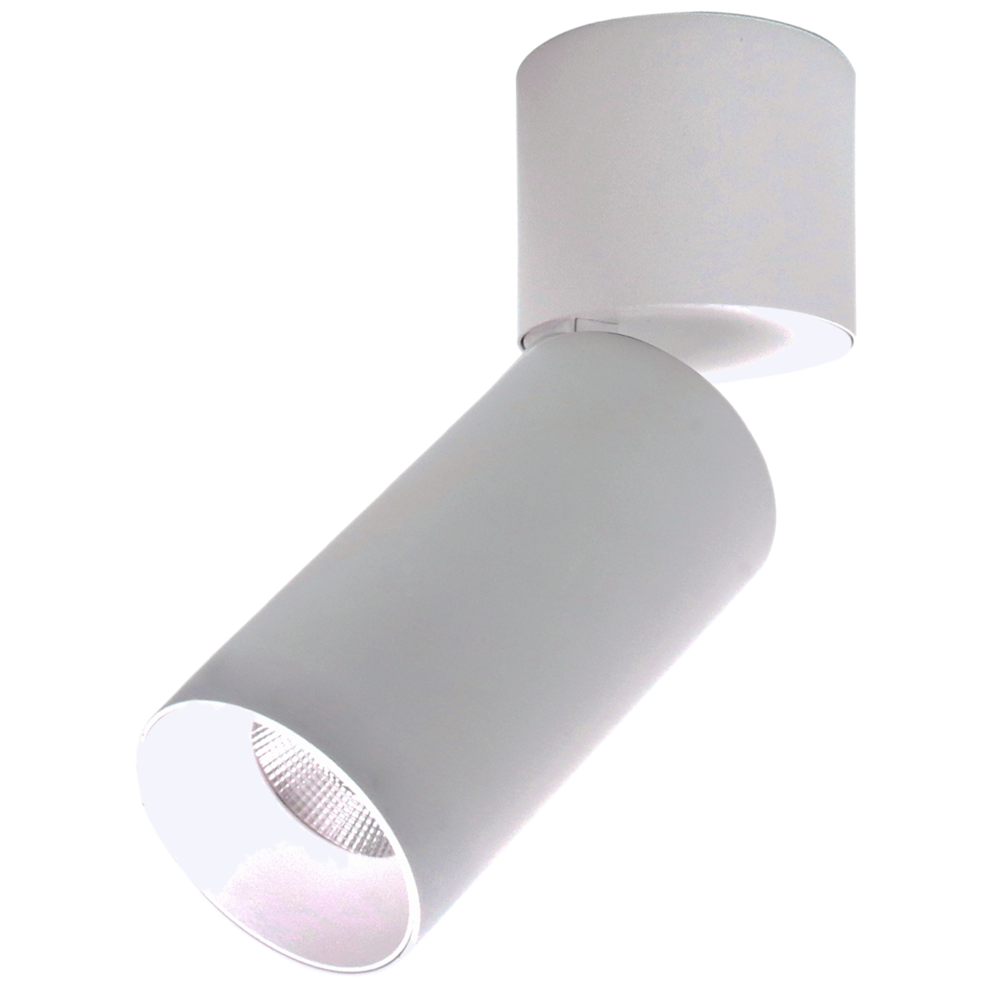

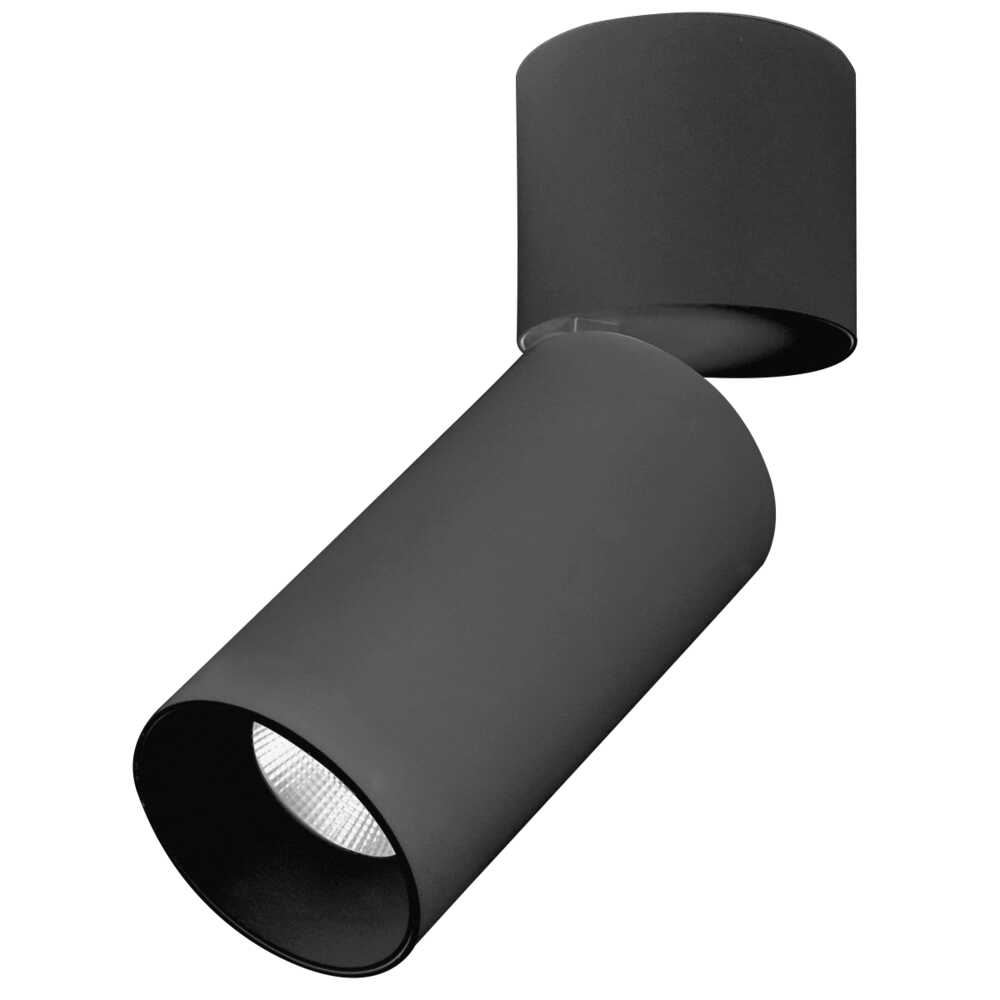

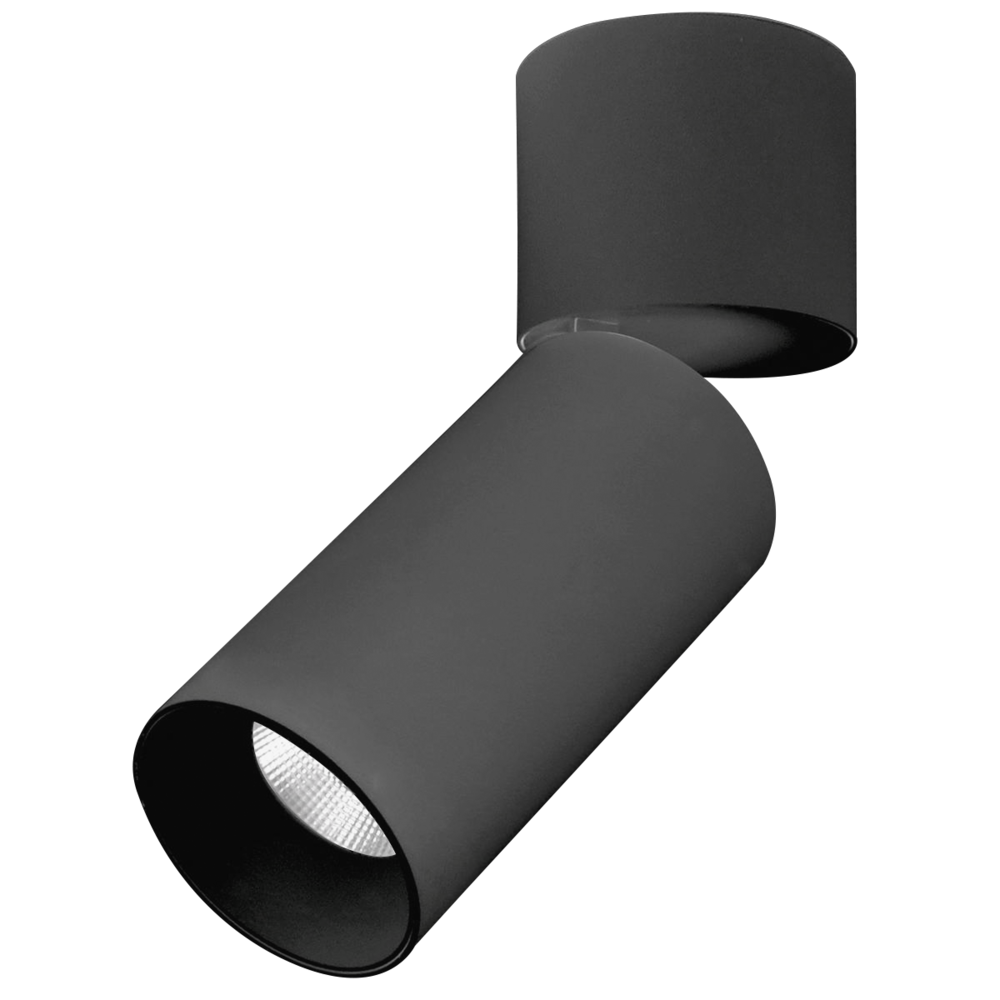

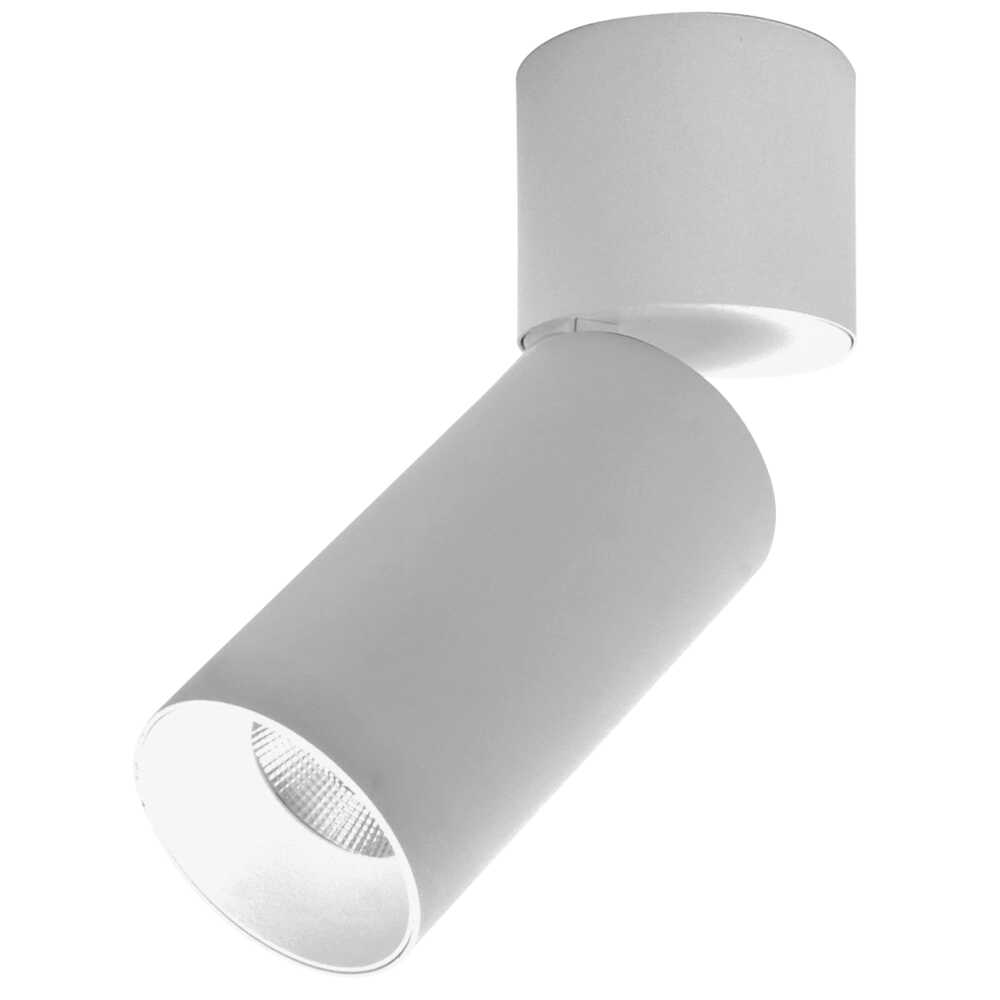

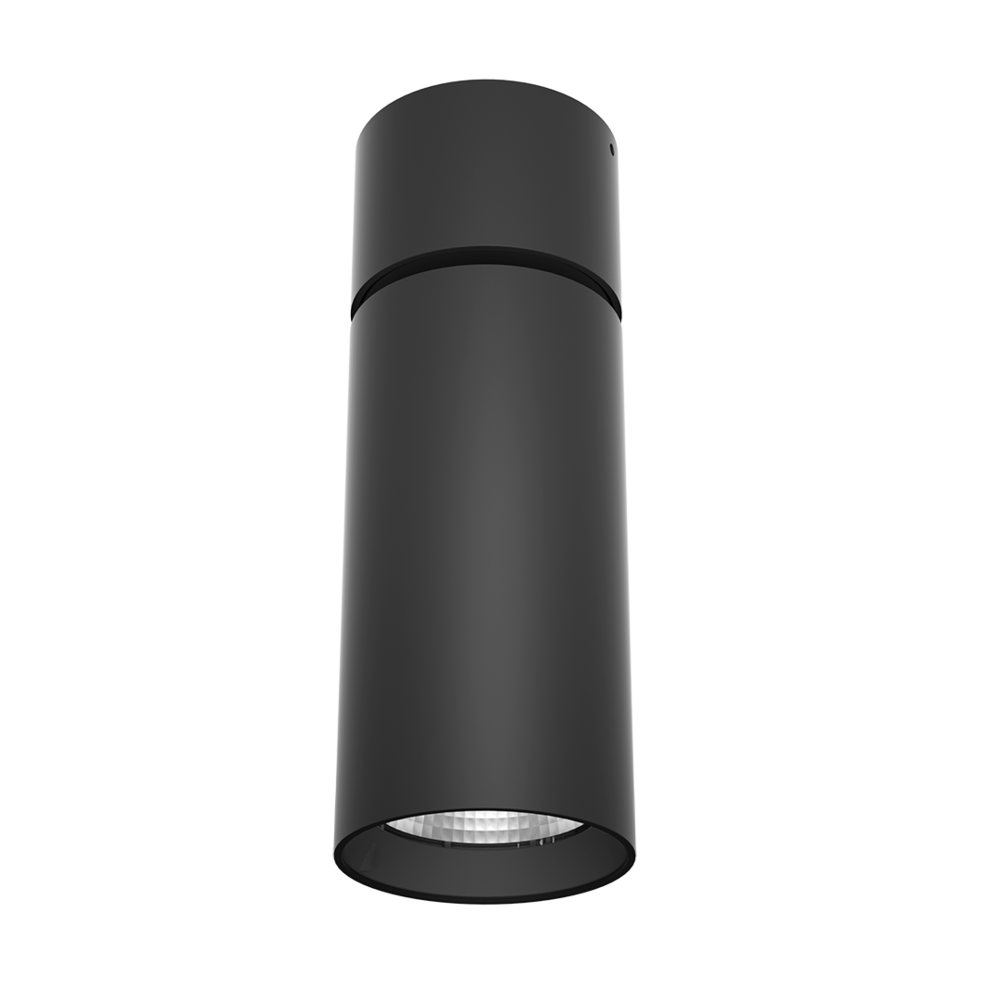

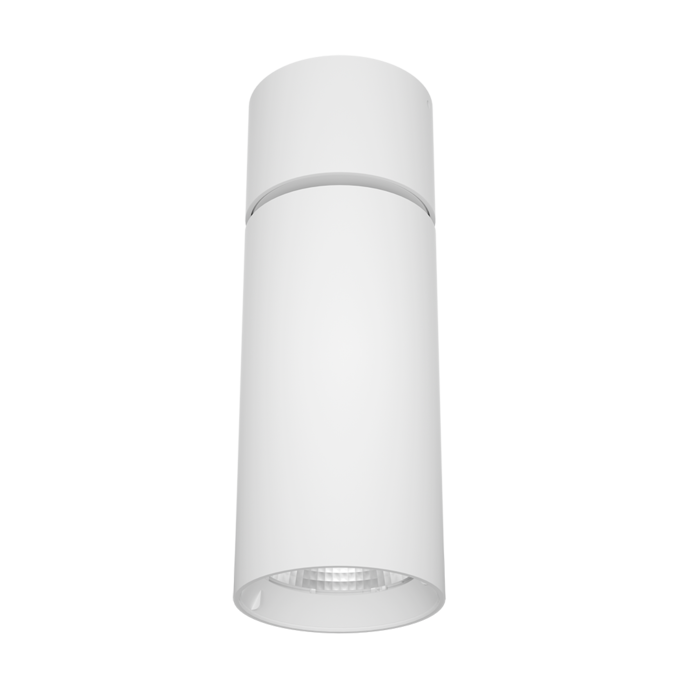

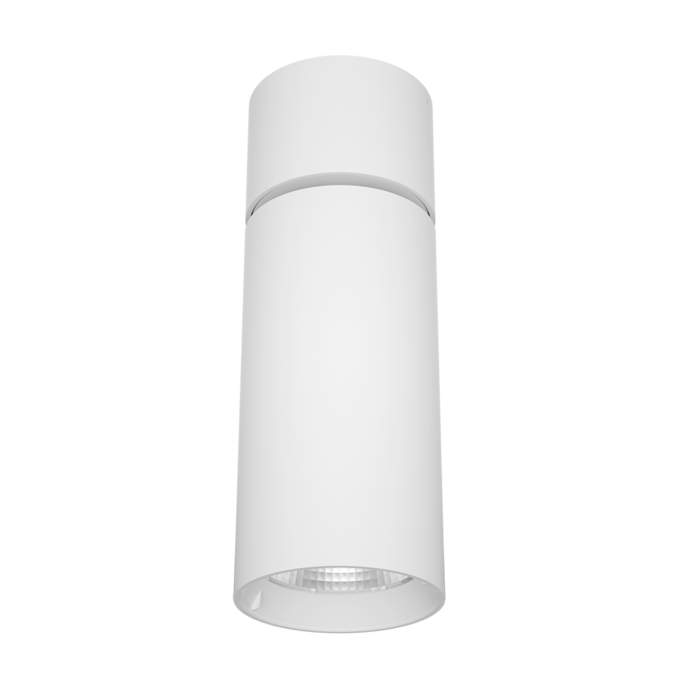

SURFACE SPOT SMT9017TC - 10/15W

Dimmable 10/15 watt LED downlight with selectable CCT and power.

Application

Ideal for any residential feature lighting or commercial interior space

Design Specifications

  • Durable Polyamide body profile

  • High performance COB LED, CRI > 80, selectable CCT

  • Surface mount

  • Integral, dimmable control gear with selectable power

  • Choice of Black or White finish,
    40º beam distribution, optional 60º, CRI>80

  • Double insulated

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing edge
  • Dimensions - Wiring Diagrams
  • Design Options

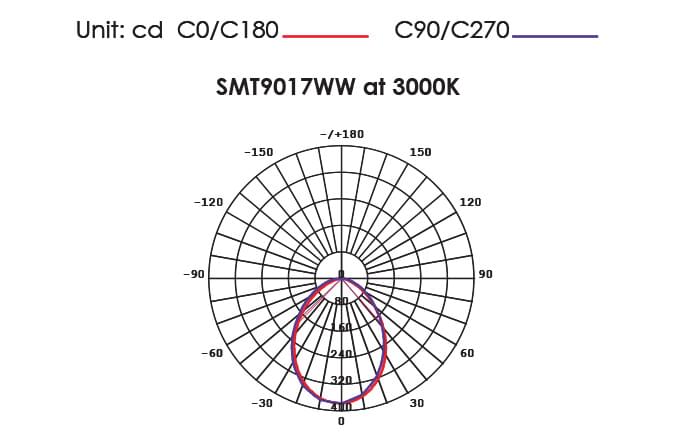

  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Multiple Wattage Lumens CCT Beam Angle Dimmable CRI Body Colour Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SMT9017TC/BK Input Voltage240 Multiple Wattage10/15 Lumens1000/1150/1100 CCT3000/4000/5700 Beam Angle40 Dimmable YES CRI80 Body ColourBLACK Dim70(W) x 195(H) Add to Enquiry Add Remove Remove
    Model No.SMT9017TC/WH Input Voltage240 Multiple Wattage10/15 Lumens1000/1150/1100 CCT3000/4000/5700 Beam Angle40 Dimmable YES CRI80 Body ColourWHITE Dim70(W) x 195(H) Add to Enquiry Add Remove Remove
    Model No.STR9017/15R60P Input Voltage Multiple Wattage Lumens CCT Beam Angle60 Dimmable CRI Body Colour60 DEG BEAM INSERT Dim Add to Enquiry Add Remove Remove

    note: Lumens (lm) are displayed at full power

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
