• LED DOWNLIGHTS

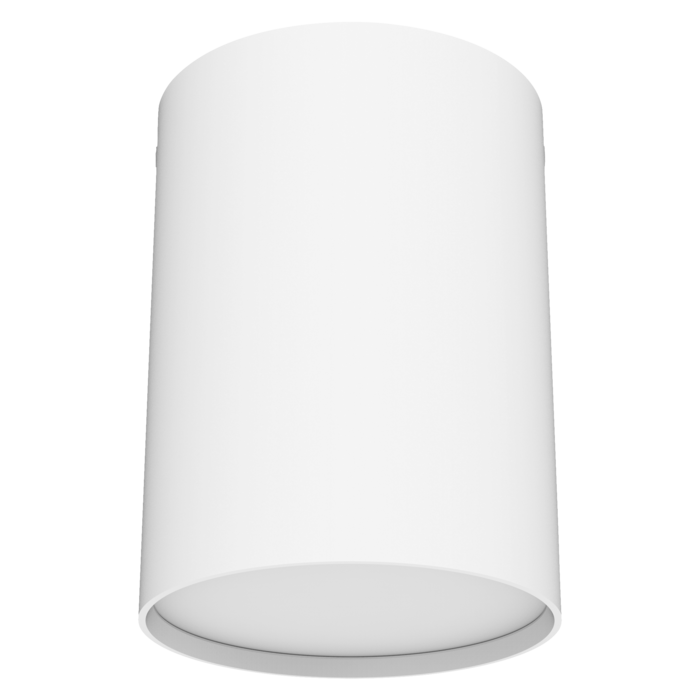

TRADEGEM S9141TCSM - 9W

Dimmable IP20 9 watt surface mount LED downlight with selectable CCT

Application

Ideal for any residential or commercial interior space

Design Specifications

  • Selectable CCT 3000K/4000K/5700K

  • Durable aluminium surface mount body profile, IP20

  • Stylish white or black powder coat finish

  • Opal polycarbonate diffuser

  • High efficiency LED optics

  • Integral constant current trailing edge dimmable LED driver

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing edge

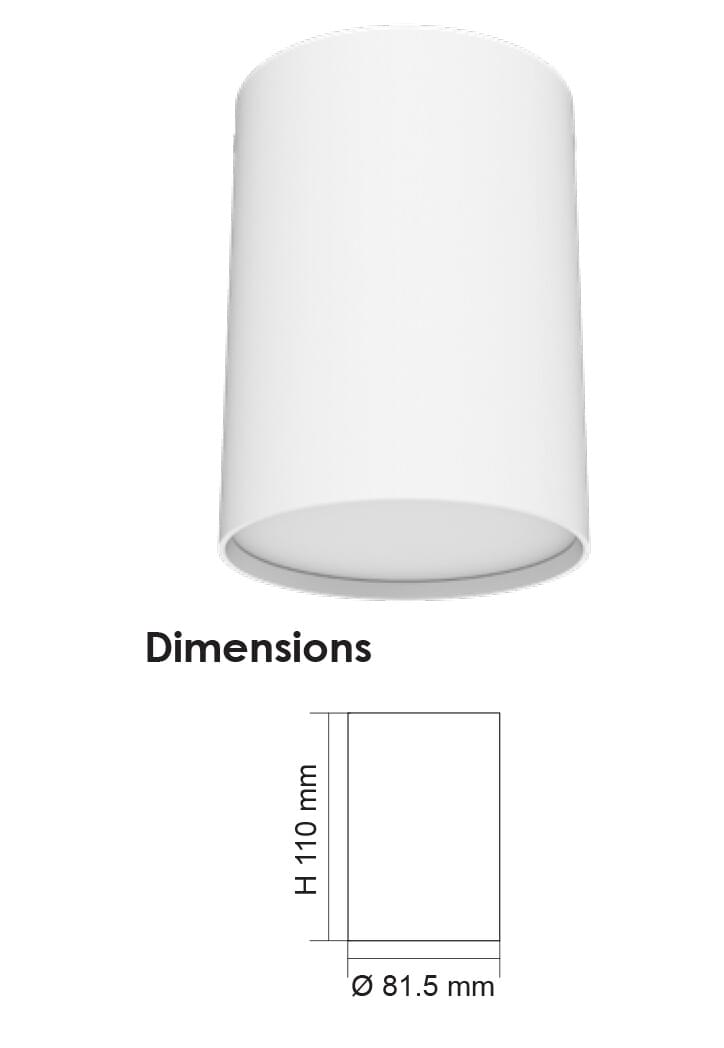

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Body Colour Diameter Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close

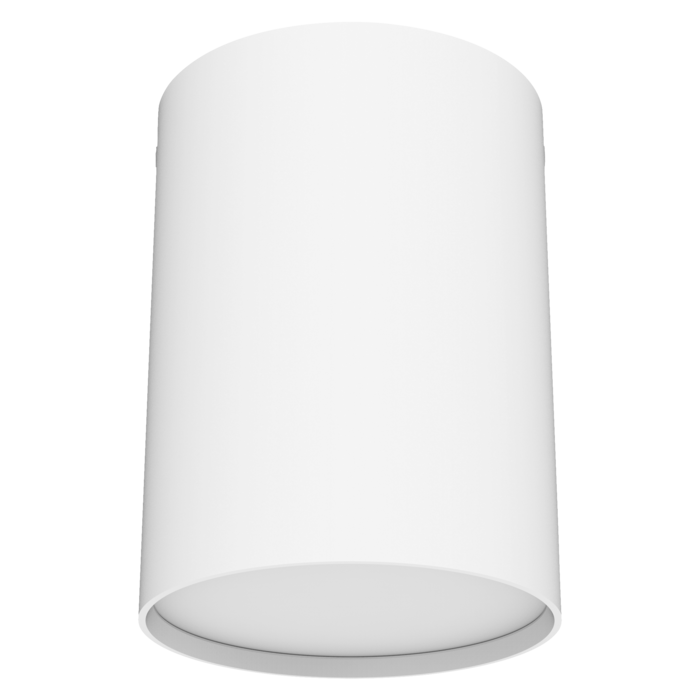

    Model No.S9141TC/WH/SM Input Voltage240 Power9 Lumens700/850/800 CCT3000/4000/5700 Beam Angle110 Dimmable YES CRI80 Body ColourWHITE Diameter82 Dim81.5(W) x 110(H) Add to Enquiry Add Remove Remove

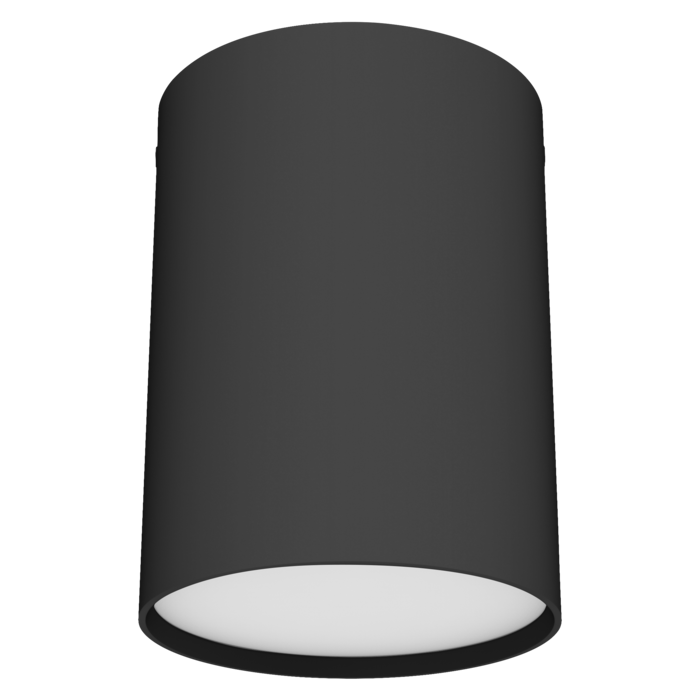

    Model No.S9141TC/BK/SM Input Voltage240 Power9 Lumens700/850/800 CCT3000/4000/5700 Beam Angle110 Dimmable YES CRI80 Body ColourBLACK Diameter82 Dim81.5(W) x 110(H) Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
