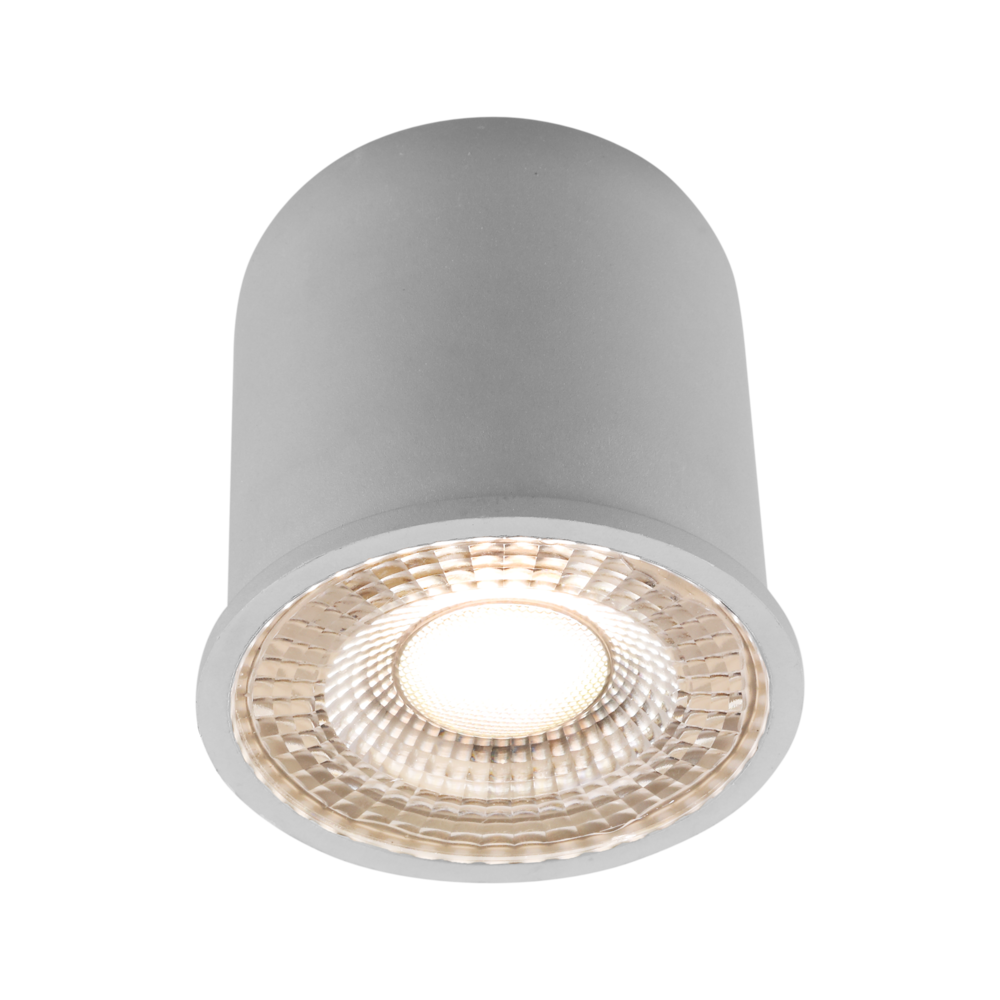

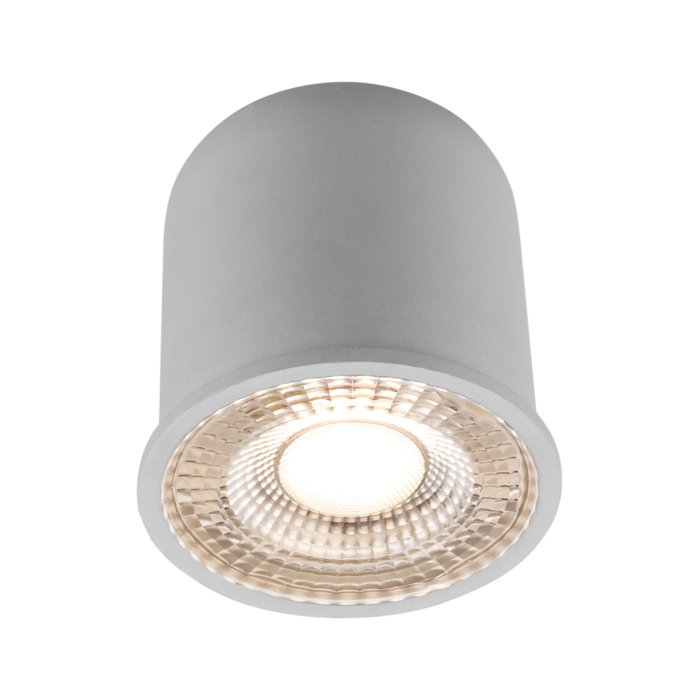

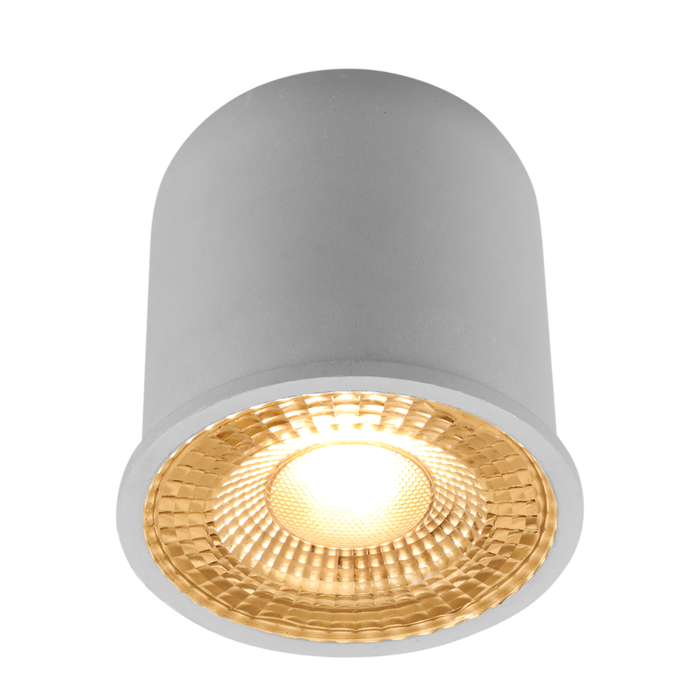

UNIFIT COMPACT S9054TC/GY - 8W

Dimmable 8 watt integral LED module, with selectable CCT

Application

Ideal for any residential or commercial interior space

Design Specifications

  • Polyamide coated aluminium body profile

  • High output 8 watt LED optics, CRI >80

  • Prismatic visor, 60° beam distribution

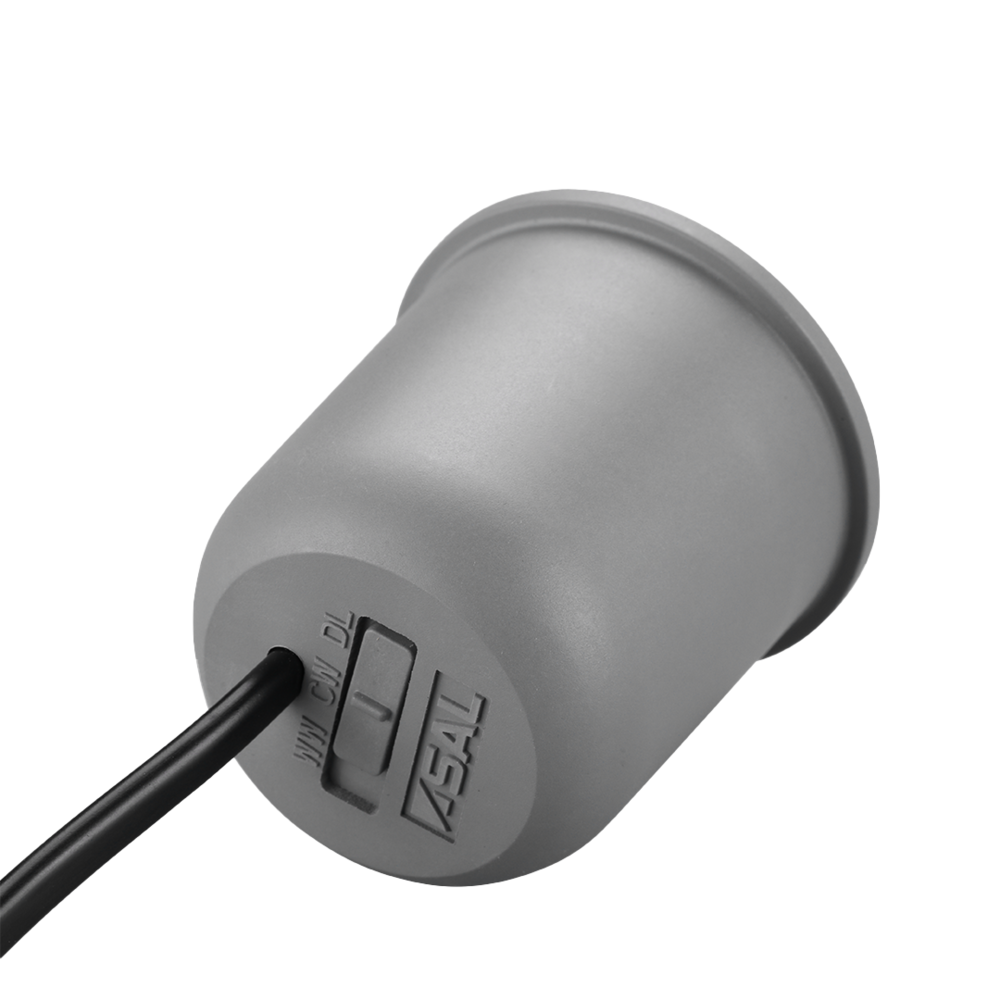

  • Selectable CCT 3000/4000/5700K

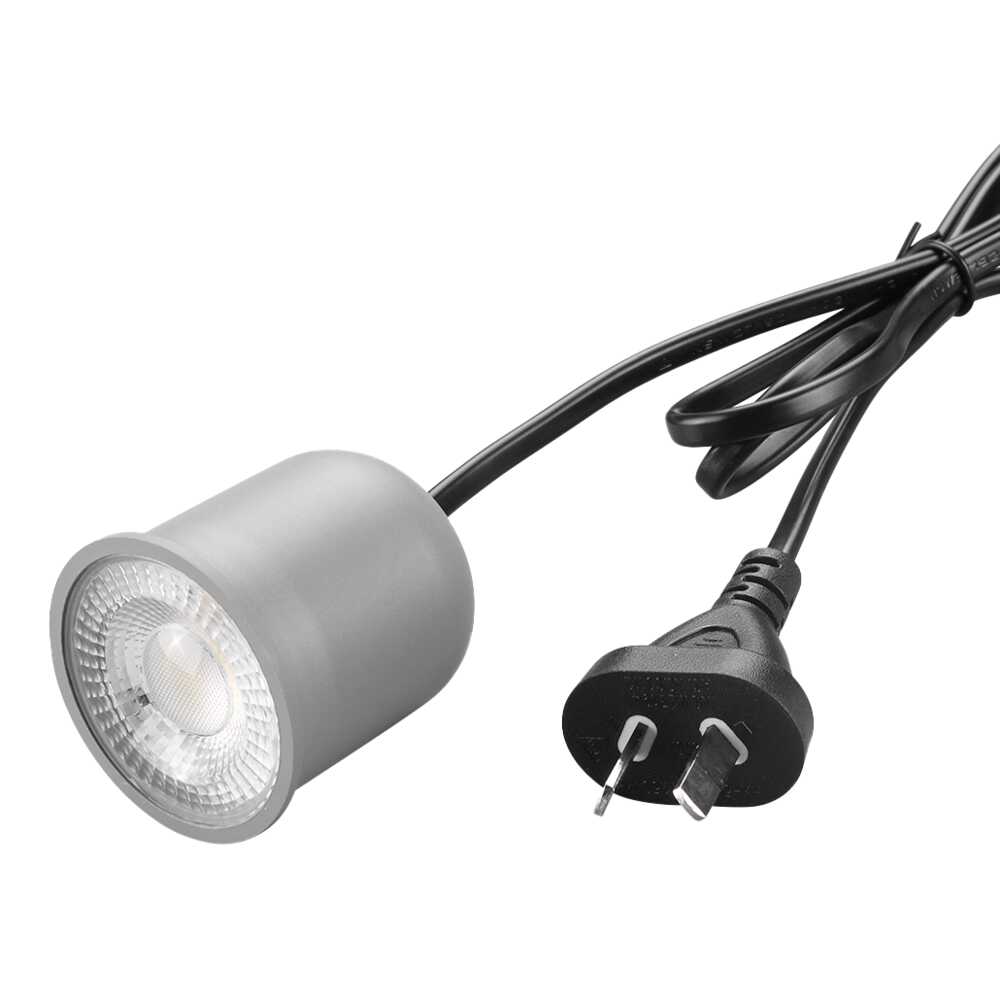

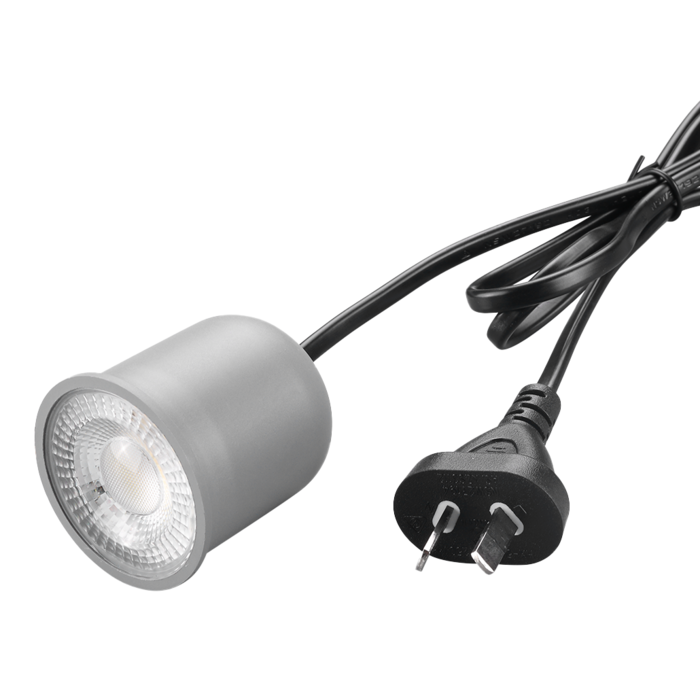

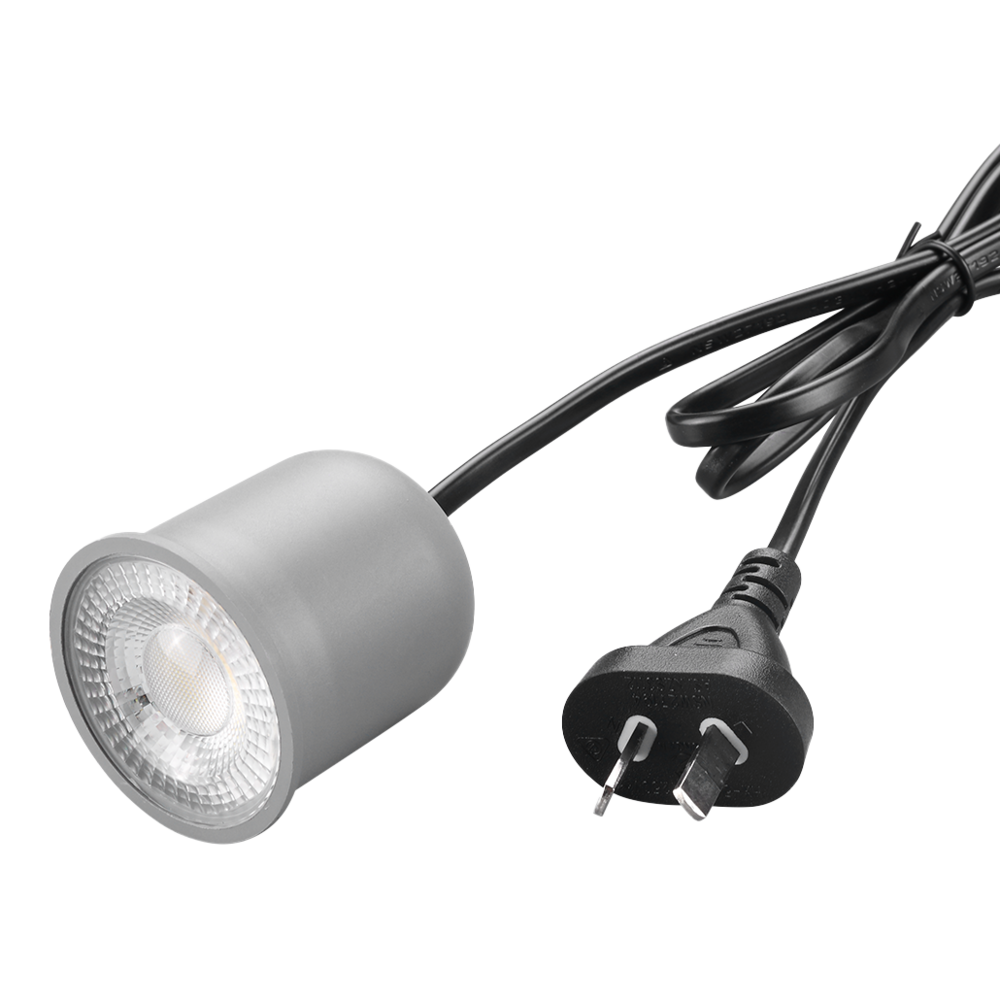

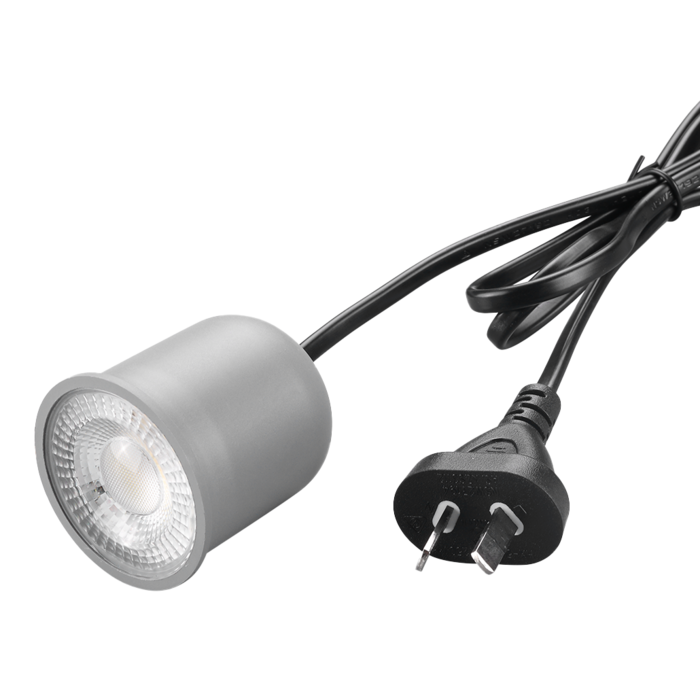

  • Integral flickerCONTROLLED dimmable control gear with plug and play flex and plug, double insulated

  • Downlight trim ordered separately, 50mm Ø trim face,

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing edge

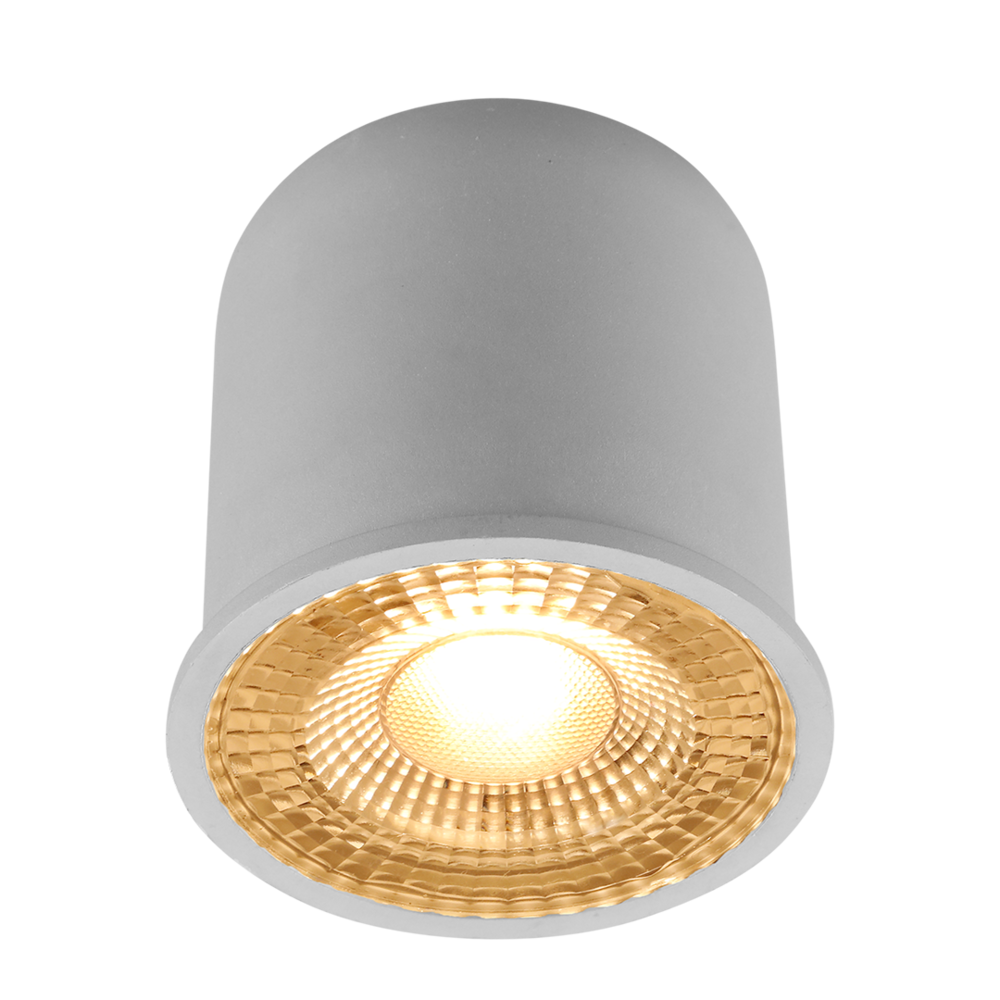

  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT5700K
    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Body Colour Diameter Dim
      		Model No. S9054TC/GY Add to Enquiry Add Remove Remove Input Voltage 240 Power 8 Lumens 680/720/680 CCT 3000/4000/5700 Beam Angle 60 Dimmable YES CRI 80 Body Colour GREY Diameter 50 Dim 50(H)
    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
