• DOWNLIGHTS

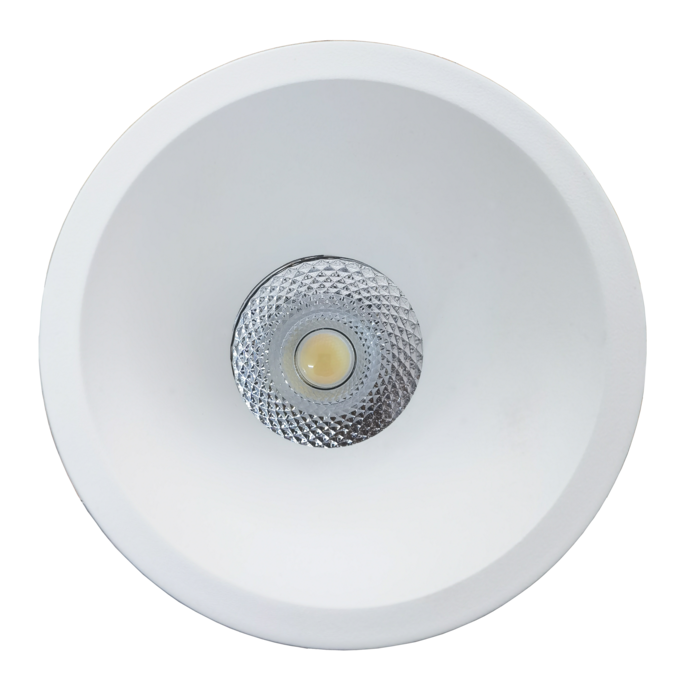

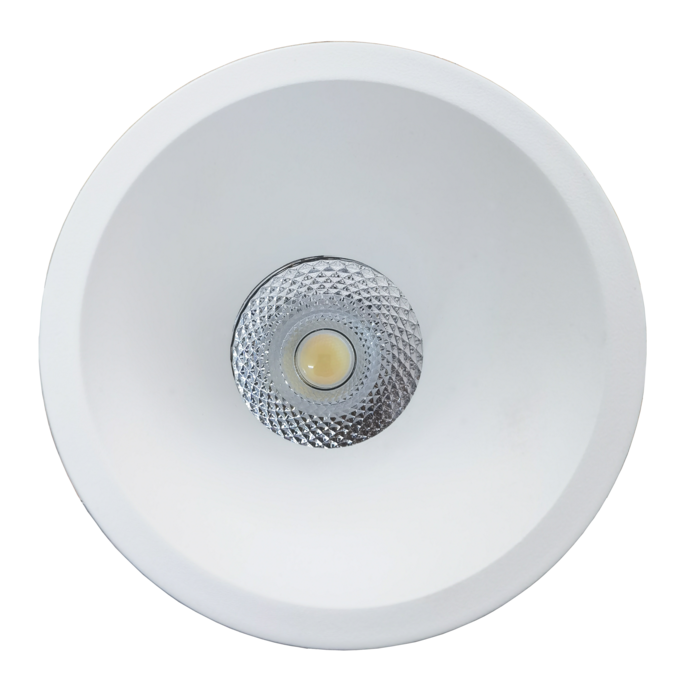

UNIFIT S9011TC2 - 10W

Fixed dimmable 10 watt LED downlight, with selectable CCT

Application

Ideal for any residential or commercial interior space

Design Specifications

  • Die cast aluminium body profile

  • Stylish white or black powder coat finish

  • High output LED optics

  • High output LED optics, polycarbonate lens, 60° beam distribution

  • Polycarbonate optical lens, CRI>80

  • Remote, trailing edge dimmable LED driver with flex and plug
    Double insulated

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing edge, optional 1-10V, DALI / DSI

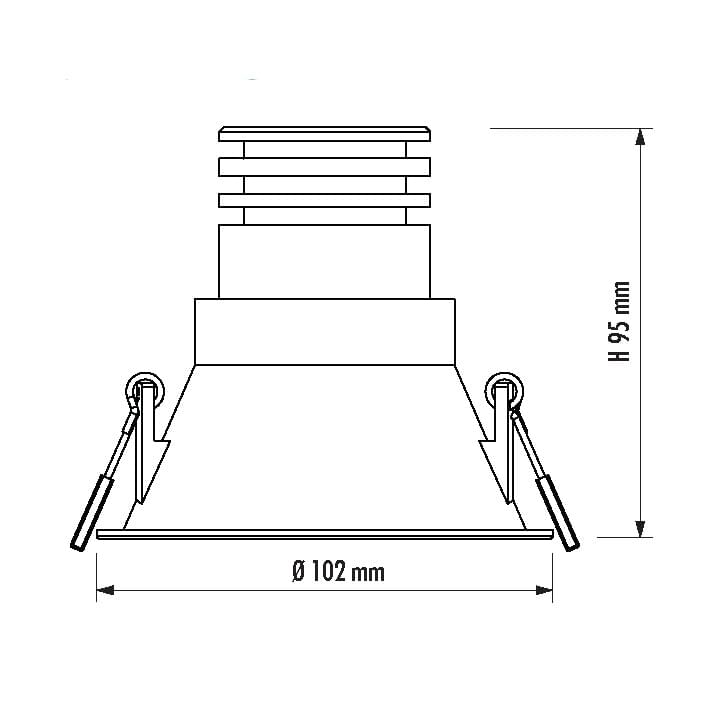

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Body Colour Cut Out Diameter Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close

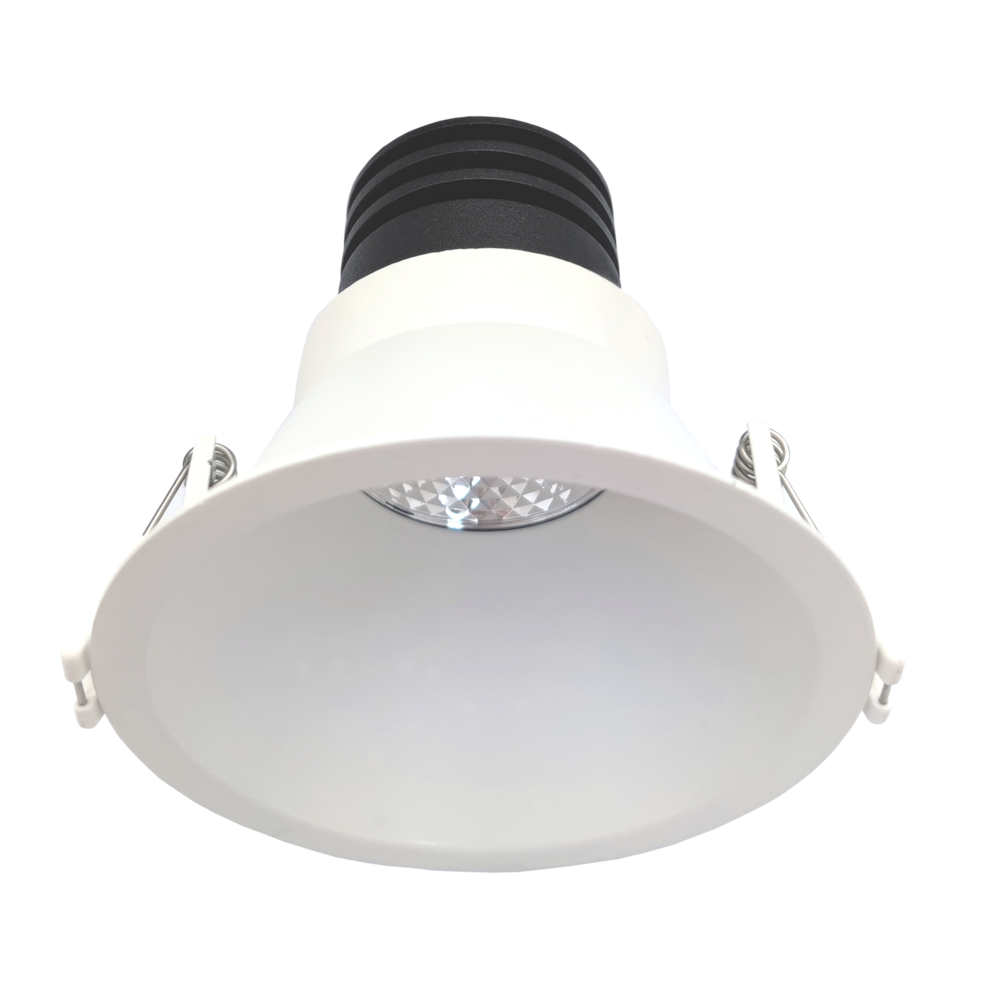

    Model No.S9011TC2WH Input Voltage240 Power10 Lumens750/900/850 CCT3000/4000/5700 Beam Angle60 Dimmable YES CRI80 Body ColourMATT WHITE Cut Out92 Diameter102 Dim95(H) Add to Enquiry Add Remove Remove

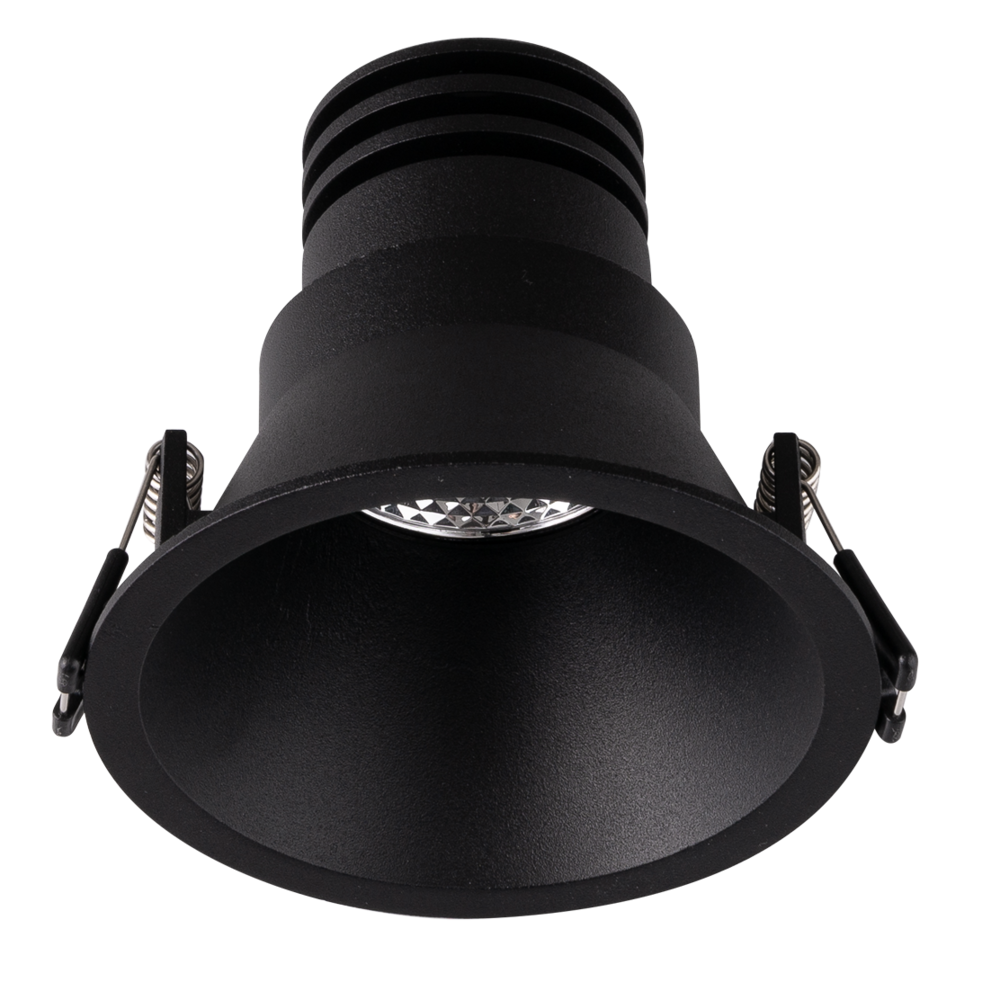

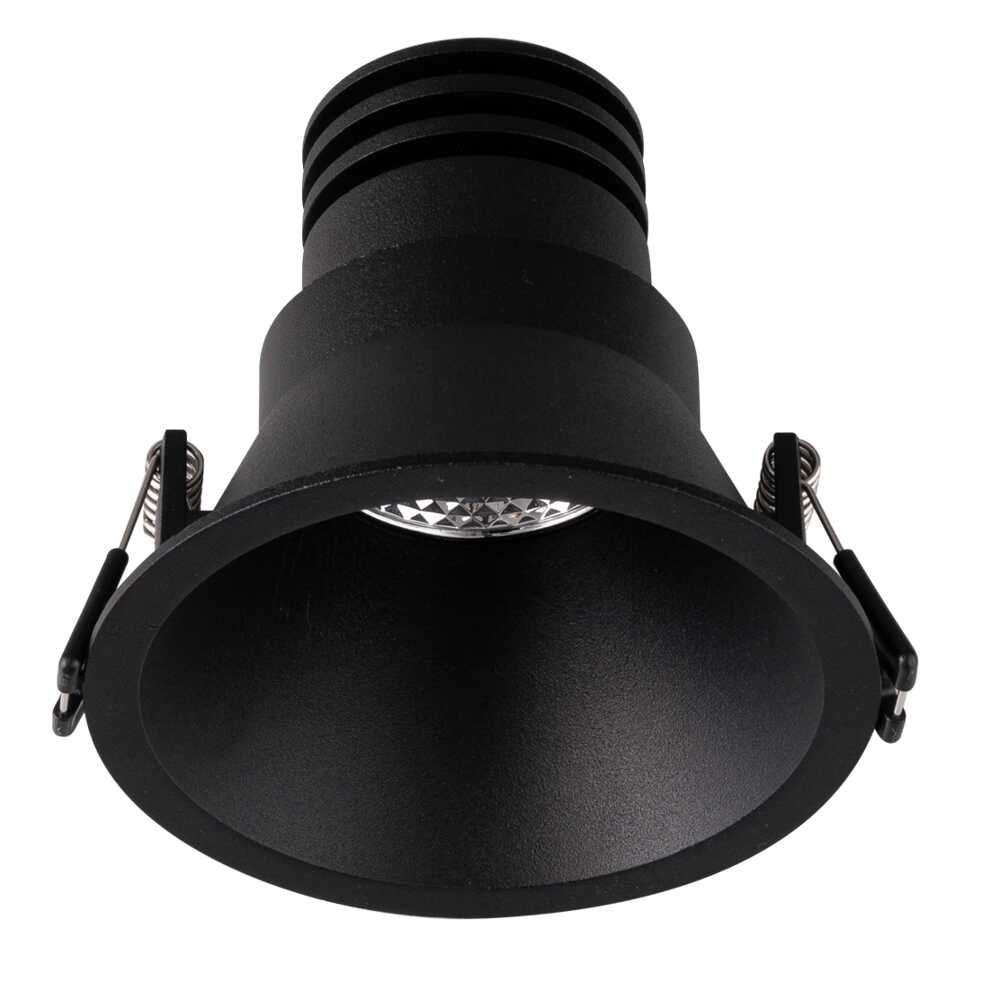

    Model No.S9011TC2BK Input Voltage240 Power10 Lumens750/900/850 CCT3000/4000/5700 Beam Angle60 Dimmable YES CRI80 Body ColourMATT BLACK Cut Out92 Diameter102 Dim95(H) Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
