• DOWNLIGHTS

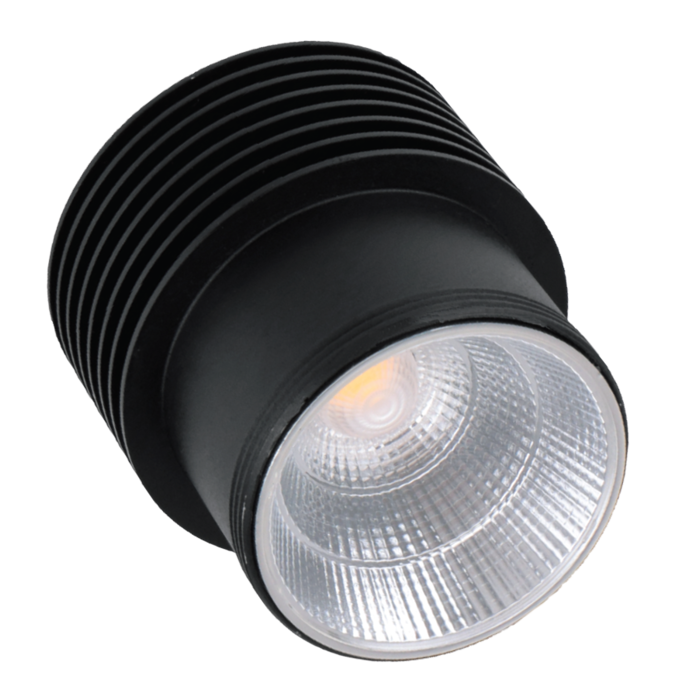

UNIFIT S9053/15W/WP - 15W

Dimmable 15 watt LED Module

Application

Ideal for any residential or commercial interior space

Design Specifications

  • Efficient die-cast aluminium heat sink

  • High output LED optics

  • Changeable multi-faceted reflector system, 60° standard beam, 25° and 40° optional

  • Polycarbonate optical lens

  • Remote constant current flickerCONTROLLED, trailing edge dimmable LED driver, fitted with flex and plug for plug and play

  • Versatile selection of trims available, refer model numbers

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing edge, optional 1-10V, DALI / DSI
  • WARM WHITE3000K

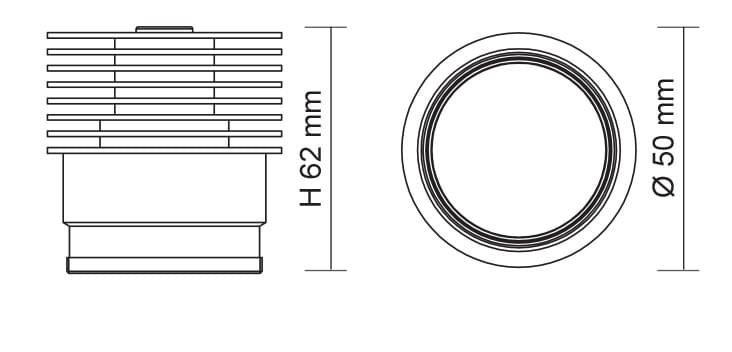

  • Dimensions - Wiring Diagrams

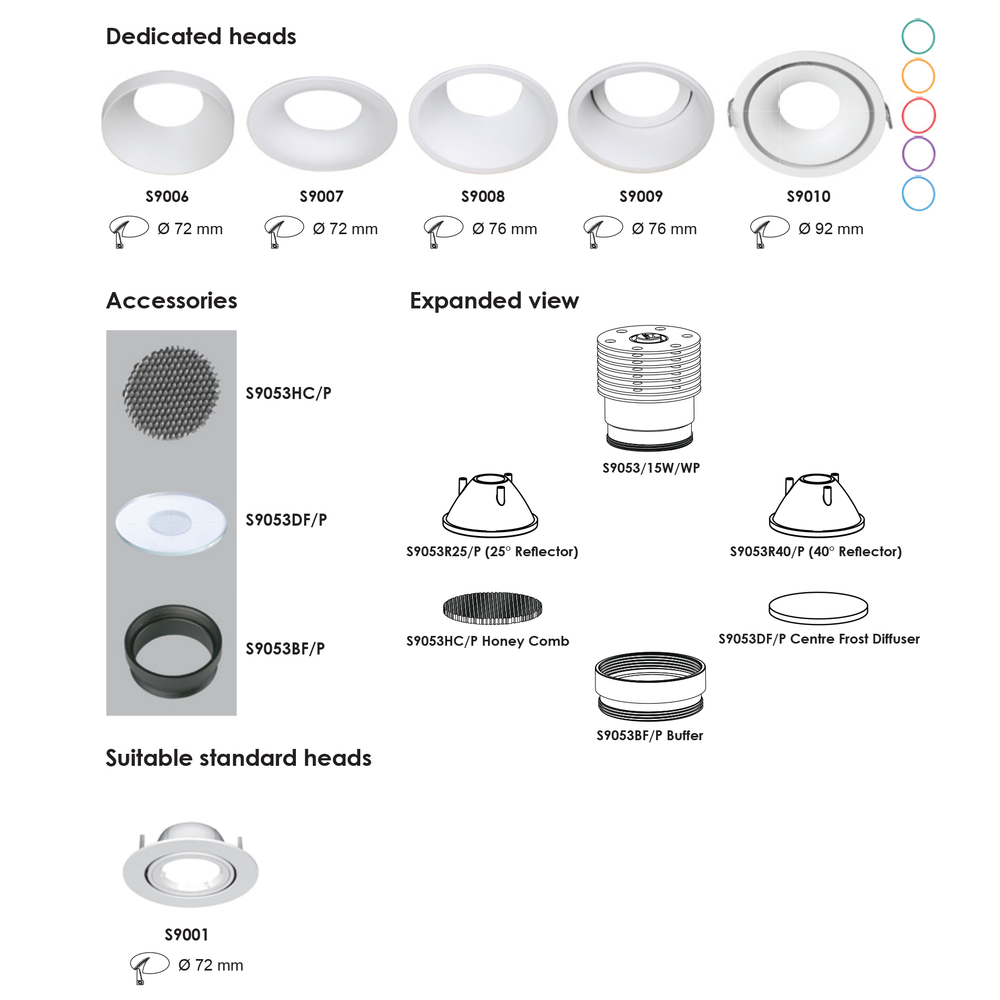

  • Design Options

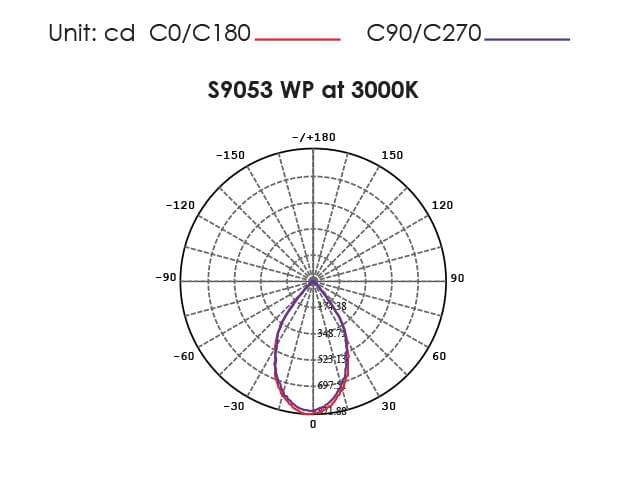

  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Body Colour Cut Out Diameter Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.S9053/15W/WP Input Voltage240 Power15 Lumens1150 CCT3000 Beam Angle60 Dimmable YES CRI80 Body Colour Cut Out Diameter50 Dim62(H) Add to Enquiry Add Remove Remove

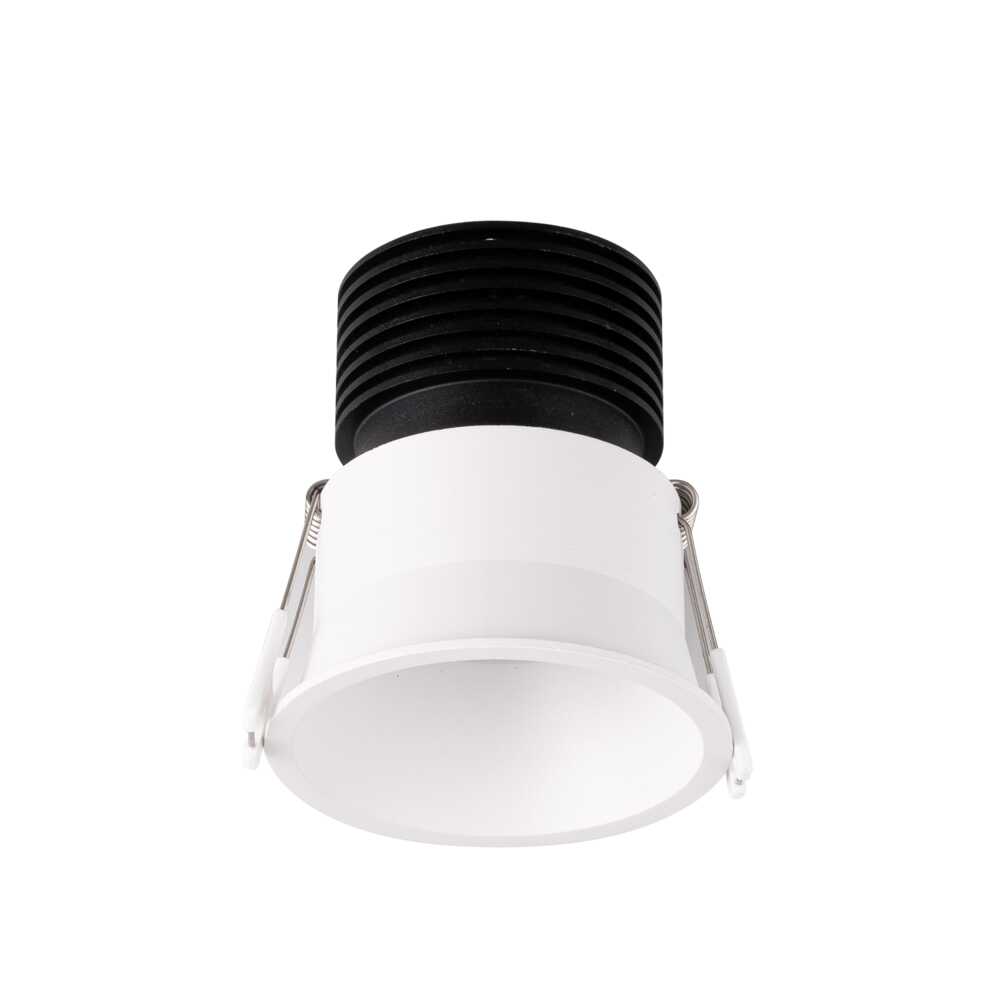

    Model No.S9008/15WW/WH Input Voltage240 Power15 Lumens1150 CCT3000 Beam Angle60 Dimmable YES CRI80 Body ColourMATT WHITE Cut Out76 Diameter82 Dim80(H) Add to Enquiry Add Remove Remove

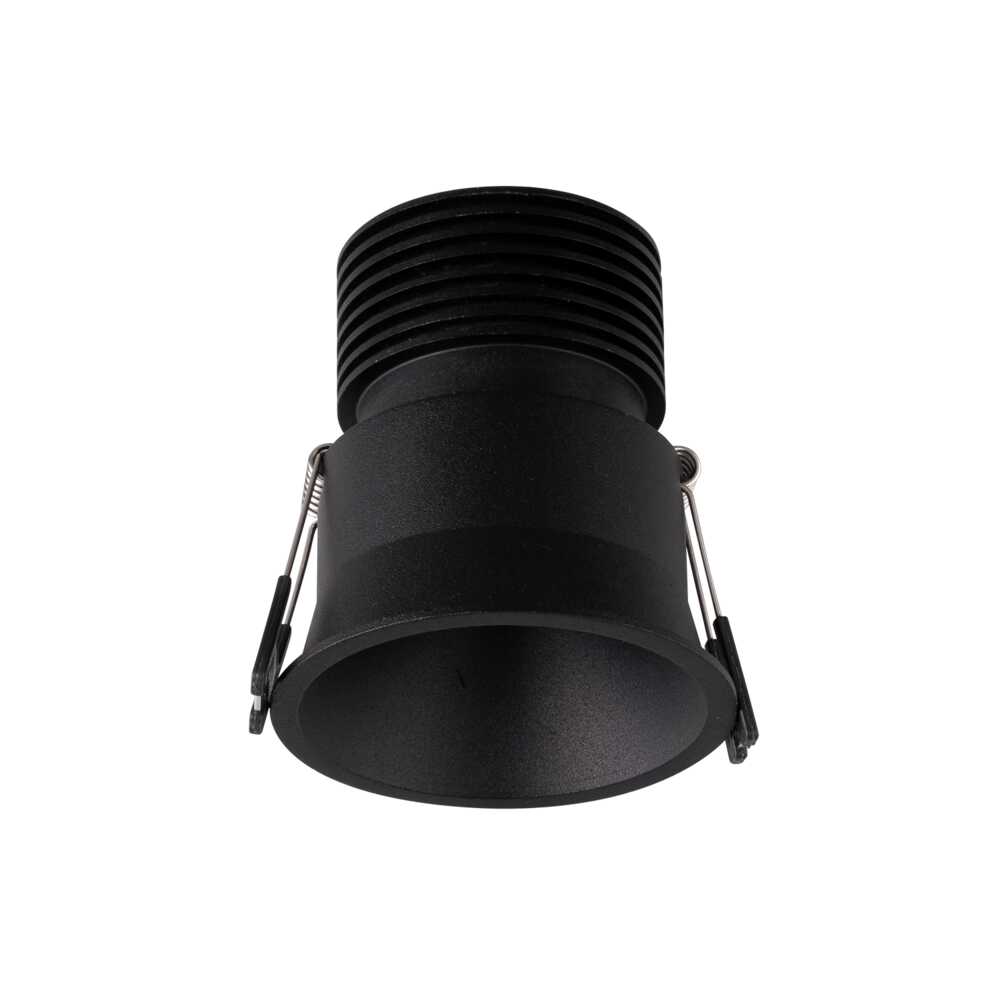

    Model No.S9008/15WW/BK Input Voltage240 Power15 Lumens1150 CCT3000 Beam Angle60 Dimmable YES CRI80 Body ColourMATT BLACK Cut Out76 Diameter82 Dim80(H) Add to Enquiry Add Remove Remove

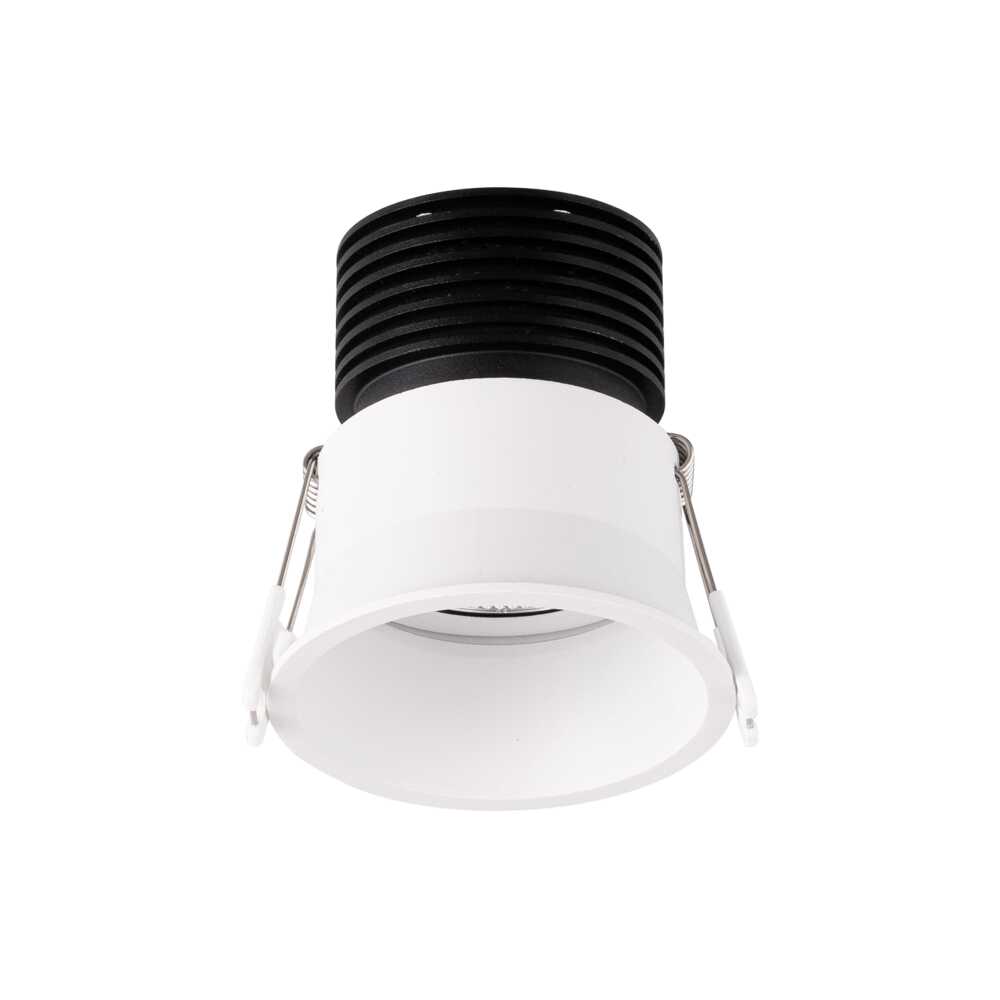

    Model No.S9009/15WW/WH Input Voltage240 Power15 Lumens1150 CCT3000 Beam Angle60 Dimmable YES CRI80 Body ColourMATT WHITE Cut Out76 Diameter82 Dim80(H) Add to Enquiry Add Remove Remove

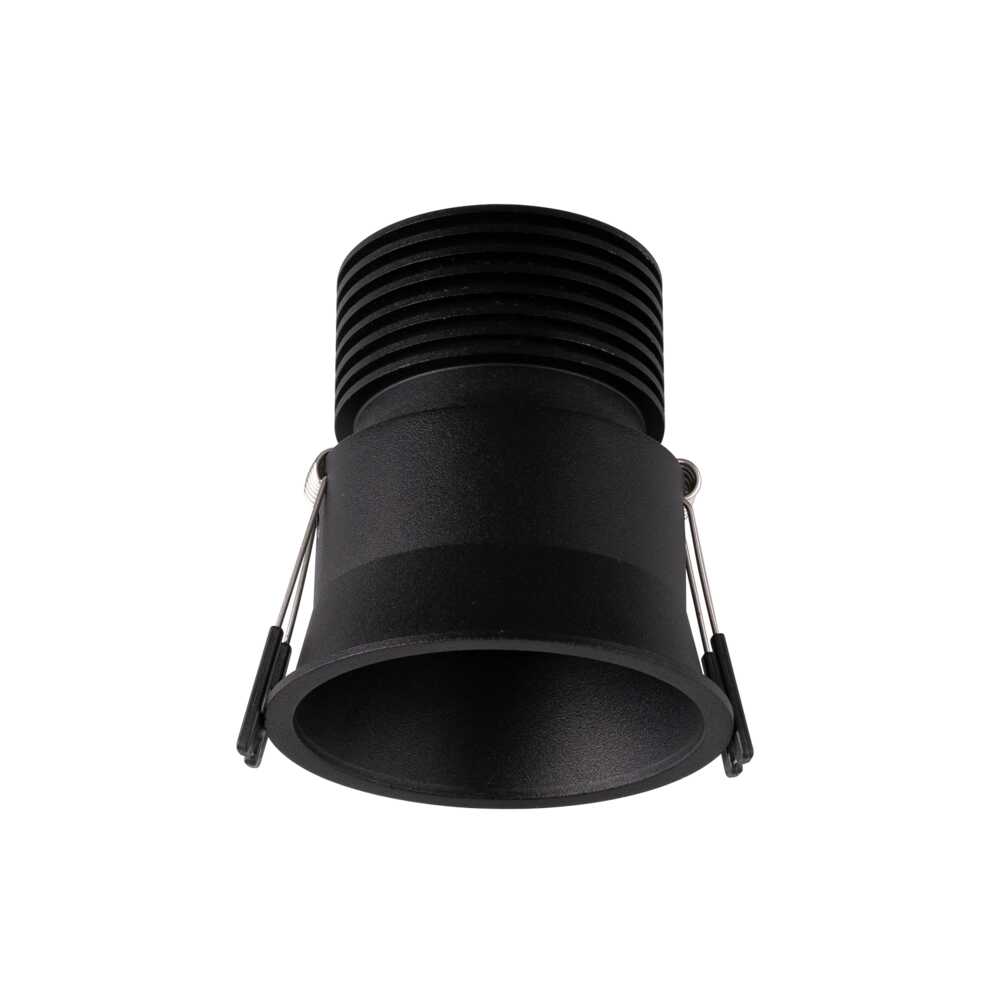

    Model No.S9009/15WW/BK Input Voltage240 Power15 Lumens1150 CCT3000 Beam Angle60 Dimmable YES CRI80 Body ColourMATT BLACK Cut Out76 Diameter82 Dim80(H) Add to Enquiry Add Remove Remove

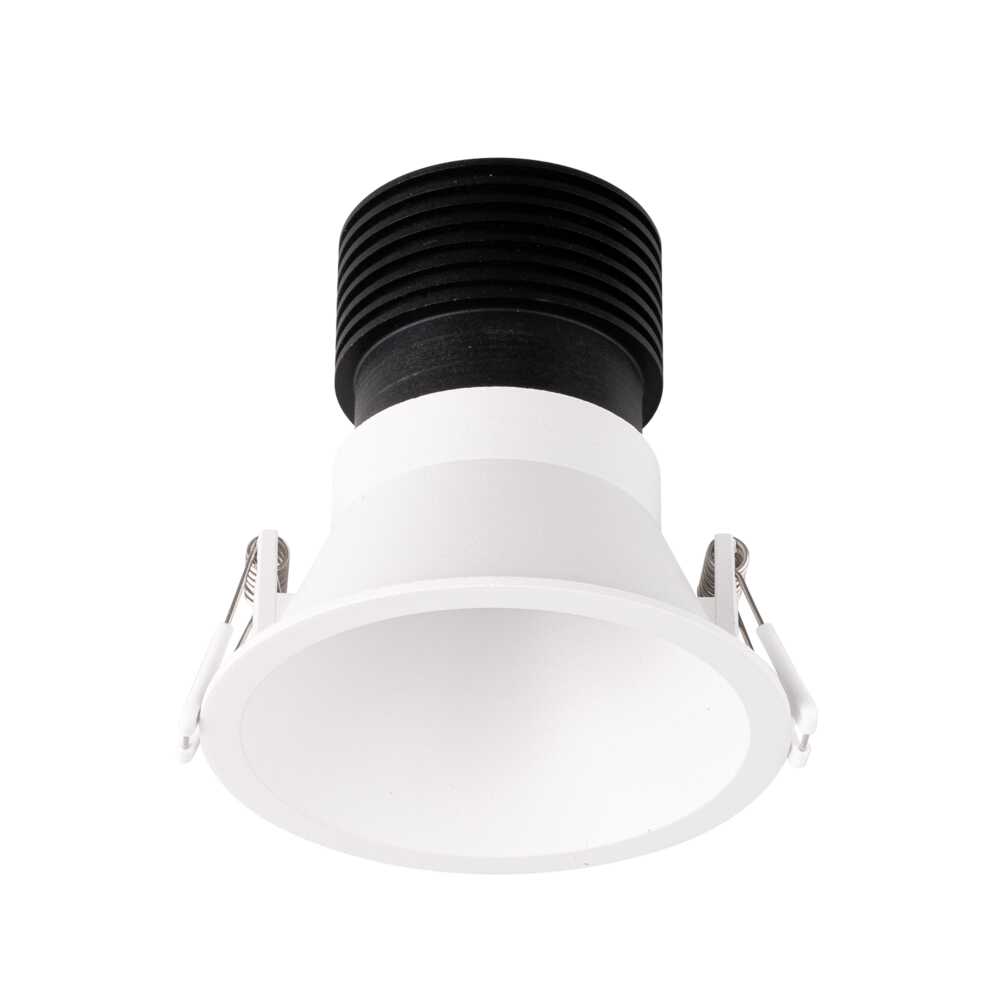

    Model No.S9011/15WW/WH Input Voltage240 Power15 Lumens1150 CCT3000 Beam Angle60 Dimmable YES CRI80 Body ColourMATT WHITE Cut Out92 Diameter102 Dim95(H) Add to Enquiry Add Remove Remove

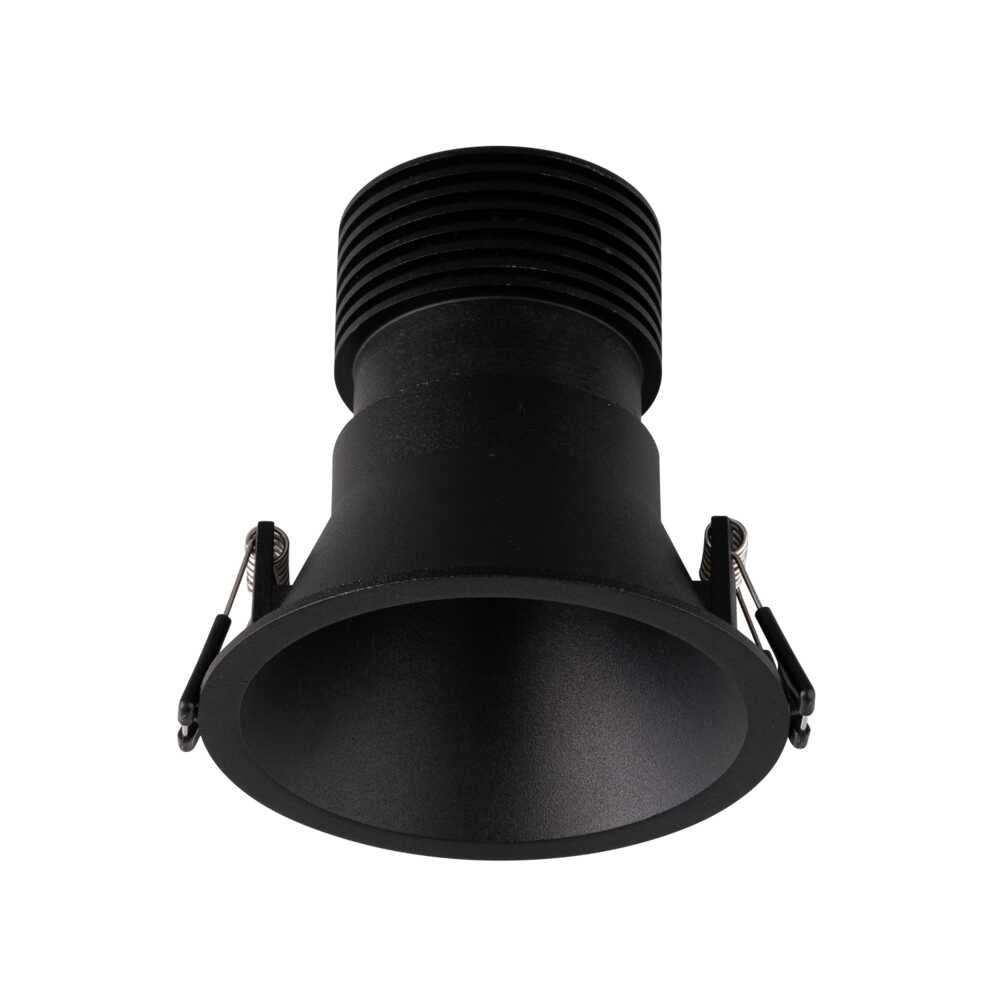

    Model No.S9011/15WW/BK Input Voltage240 Power15 Lumens1150 CCT3000 Beam Angle60 Dimmable YES CRI80 Body ColourMATT BLACK Cut Out92 Diameter102 Dim95(H) Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
