• LED DOWNLIGHTS

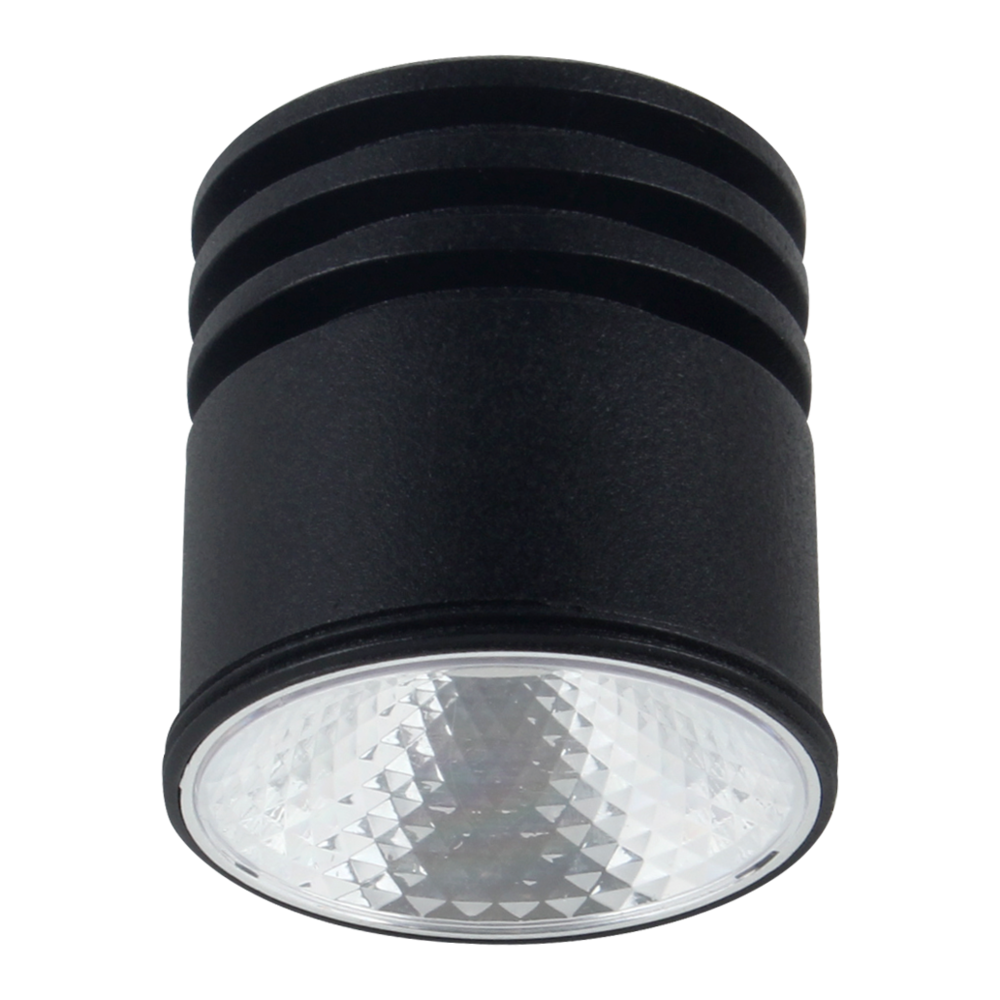

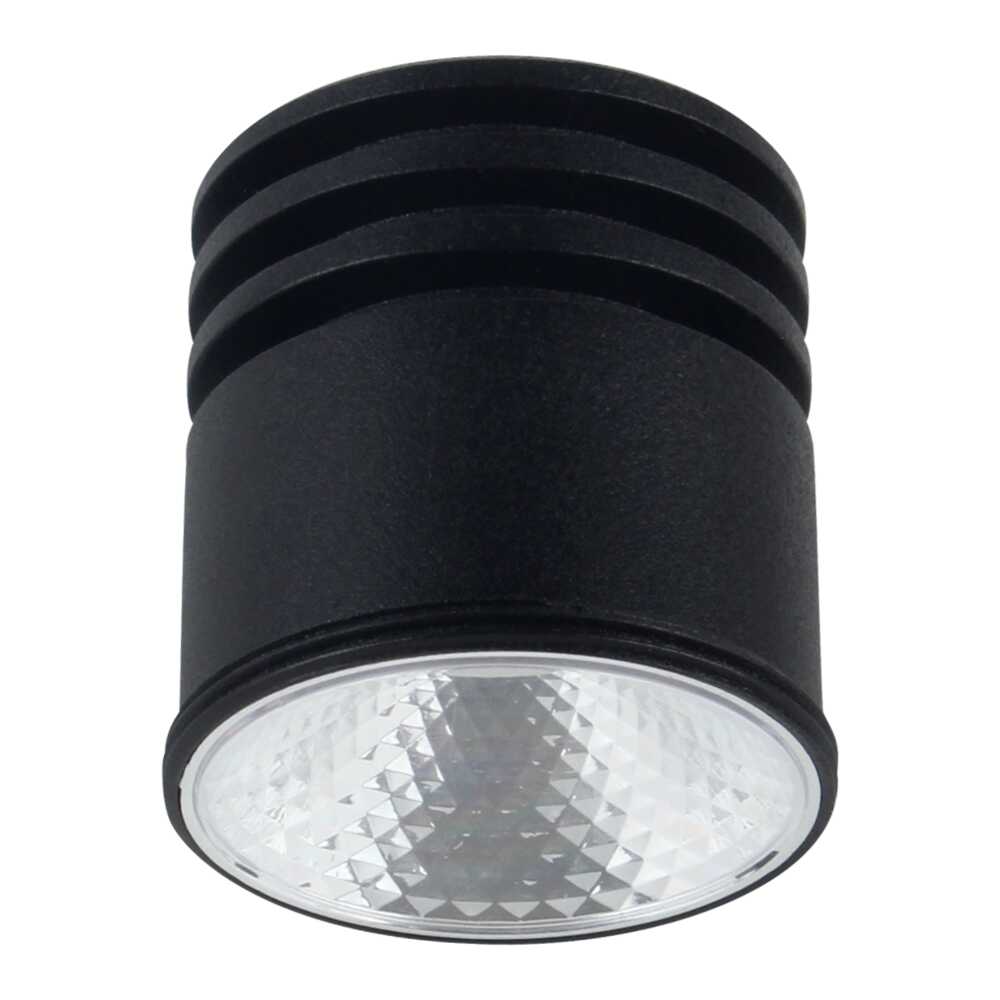

UNIFIT S9053TCP2 - 10W

Dimmable 10 watt LED module, with selectable CCT

Application

Ideal for any residential or commercial interior space

Design Specifications

  • Efficient die-cast aluminium heat sink

  • High performance LED optics

  • Multi-faceted reflector system, 60° beam distribution

  • Polycarbonate optical lens

  • Remote, trailing edge dimmable LED driver, fitted with flex and plug

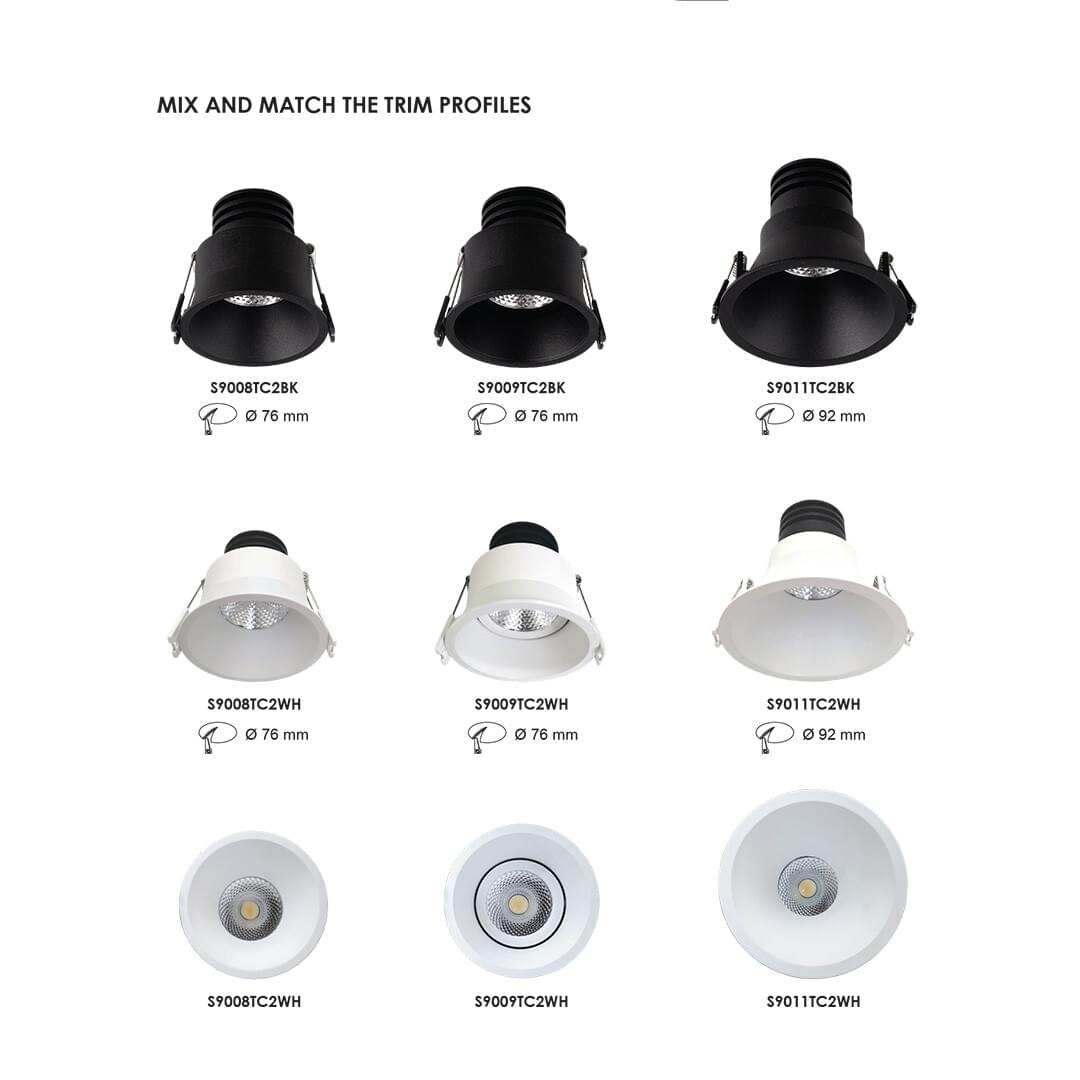

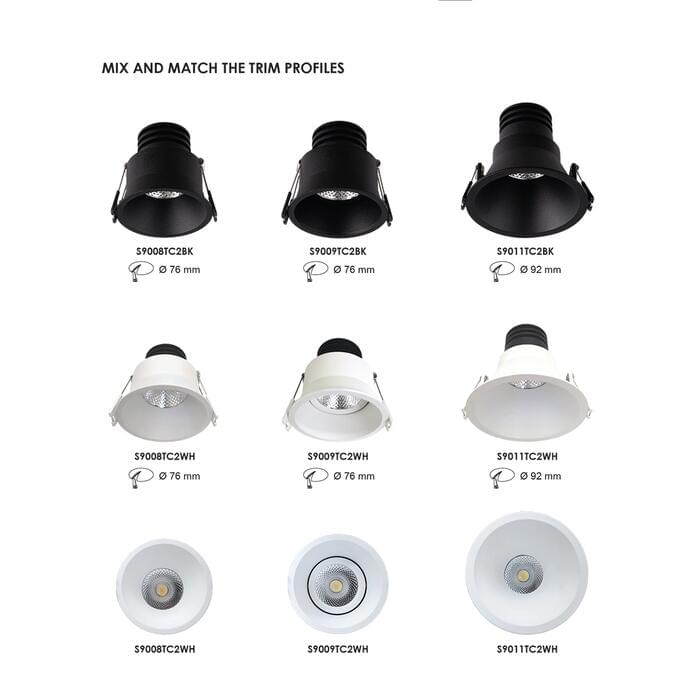

  • A comprehensive range of downlight trims are available, see MIX & MATCH model numbers
    Double insulated

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing edge, optional 1-10V, DALI / DSI

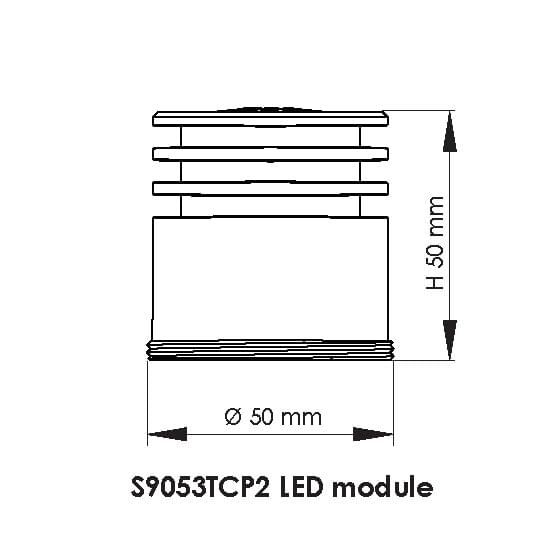

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Body Colour Cut Out Diameter Dim
      		Model No. S9053TCP2 Add to Enquiry Add Remove Remove Input Voltage 240 Power 10 Lumens 750/900/850 CCT 3000/4000/5700 Beam Angle 60 Dimmable YES CRI 80 Diameter 50 Dim 50(H)
      		Model No. S9008TC2WH Add to Enquiry Add Remove Remove Input Voltage 240 Power 10 Lumens 750/900/850 CCT 3000/4000/5700 Beam Angle 60 Dimmable YES CRI 80 Body Colour MATT WHITE Cut Out 76 Diameter 82 Dim 80(H)
      		Model No. S9008TC2BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 10 Lumens 750/900/850 CCT 3000/4000/5700 Beam Angle 60 Dimmable YES CRI 80 Body Colour MATT BLACK Cut Out 76 Diameter 82 Dim 80(H)
      		Model No. S9009TC2WH Add to Enquiry Add Remove Remove Input Voltage 240 Power 10 Lumens 750/900/850 CCT 3000/4000/5700 Beam Angle 60 Dimmable YES CRI 80 Body Colour MATT WHITE Cut Out 76 Diameter 82 Dim 80(H)
      		Model No. S9009TC2BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 10 Lumens 750/900/850 CCT 3000/4000/5700 Beam Angle 60 Dimmable YES CRI 80 Body Colour MATT BLACK Cut Out 76 Diameter 82 Dim 80(H)
      		Model No. S9011TC2WH Add to Enquiry Add Remove Remove Input Voltage 240 Power 10 Lumens 750/900/850 CCT 3000/4000/5700 Beam Angle 60 Dimmable YES CRI 80 Body Colour MATT WHITE Cut Out 92 Diameter 102 Dim 95(H)
      		Model No. S9011TC2BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 10 Lumens 750/900/850 CCT 3000/4000/5700 Beam Angle 60 Dimmable YES CRI 80 Body Colour MATT BLACK Cut Out 92 Diameter 102 Dim 95(H)
    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
