UNIFIT rippleSHIELD S9053WP/RS - 9W
Dimmable 9 watt LED module, with selectable CCT and rippleSHIELD
Application
Ideal for any residential or commercial interior space, experiencing nuisance ripple induced flicker
Design Specifications
Combined with the SAL SDD400SFI rippleSHIELD dimmer, the rippleSHIELD Unifit series eliminates nuisance ripple induced flicker between 750-1050Hz once and for all, typically found in the QLD and NSW regions.
Remote rippleSHIELD dimmable LED driver, with smooth dimming performance down to 1.0% of light output, designed with flex & plug
High output LED optics, 3000K CCT, CRI>80
A comprehensive range of downlight trims are available, see MIX & MATCH model numbers
Double insulated
Need more info......slide to the FAQ's below
Performance
- Dimmable - YES
- Dimmer Type - dim only with SDD400SFI
- WARM WHITE3000K

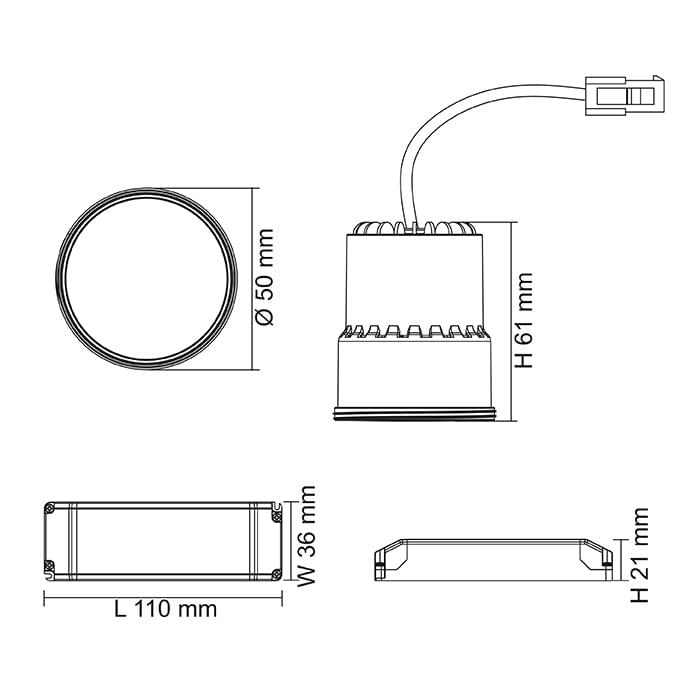

- Dimensions - Wiring Diagrams
- Technical Specifications
Product Model No. Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Body Colour Cut Out Diameter Dim Add to Enquiry - Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
Model No.S9053WP/SFI Input Voltage240 Power9 Lumens700 CCT3000 Beam Angle60 Dimmable YES CRI80 Body Colour Cut Out Diameter50 Dim60(H) Add to Enquiry Add Remove Remove

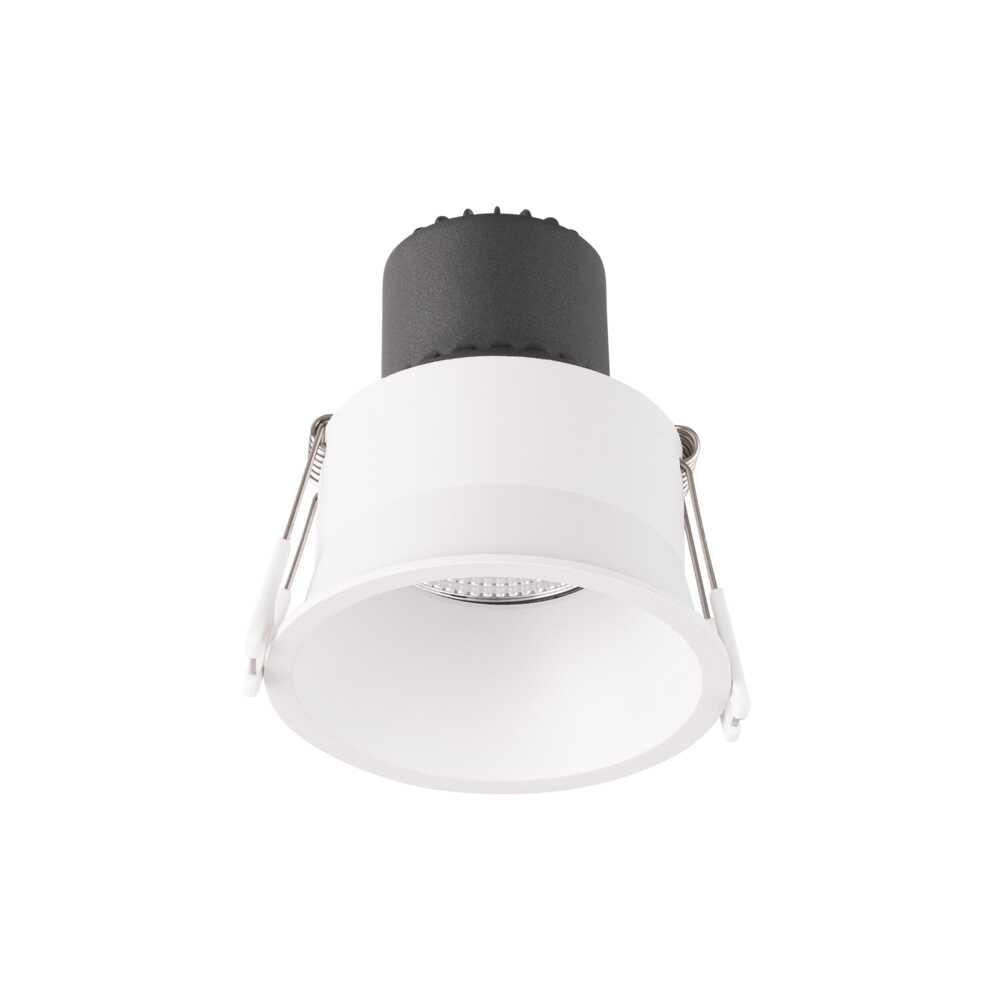

Model No.S9008WW/WH/SFI Input Voltage240 Power9 Lumens700 CCT3000 Beam Angle60 Dimmable YES CRI80 Body ColourMATT WHITE Cut Out76 Diameter82 Dim80(H) Add to Enquiry Add Remove Remove

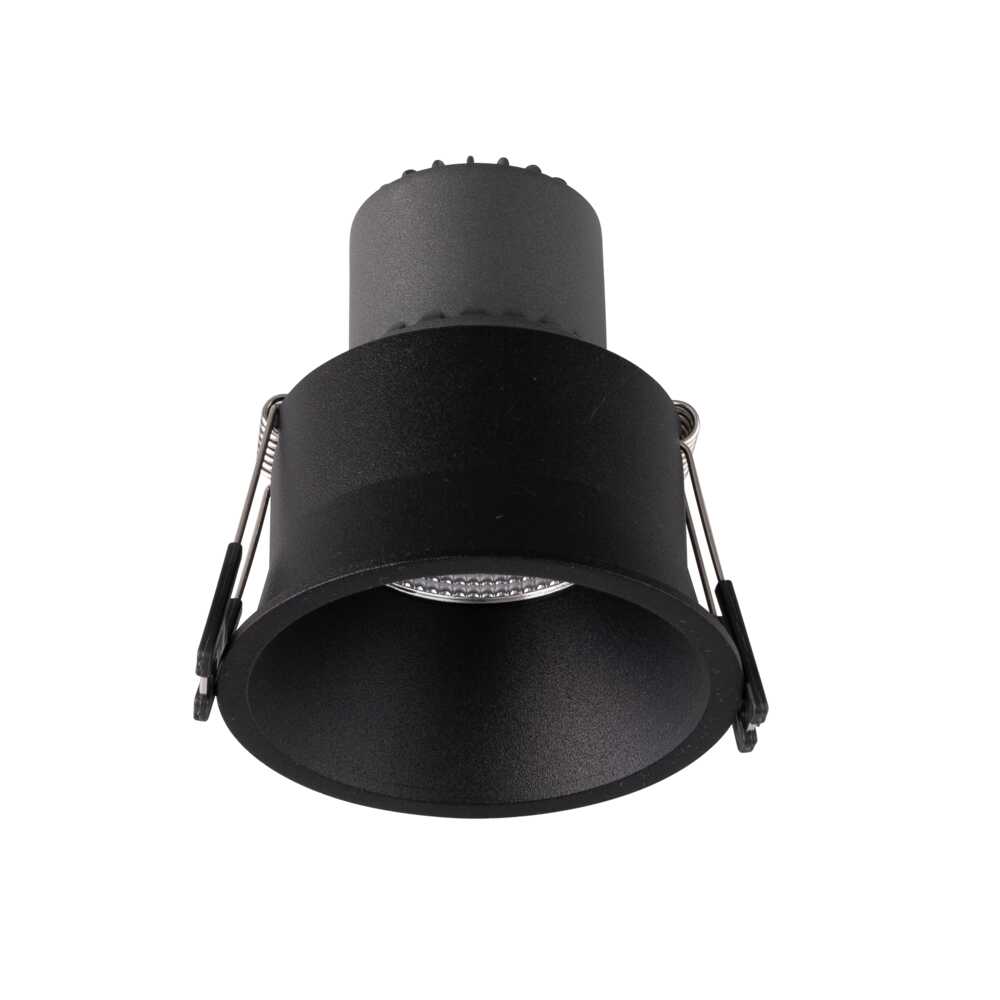

Model No.S9008WW/BK/SFI Input Voltage240 Power9 Lumens700 CCT3000 Beam Angle60 Dimmable YES CRI80 Body ColourMATT BLACK Cut Out76 Diameter82 Dim80(H) Add to Enquiry Add Remove Remove

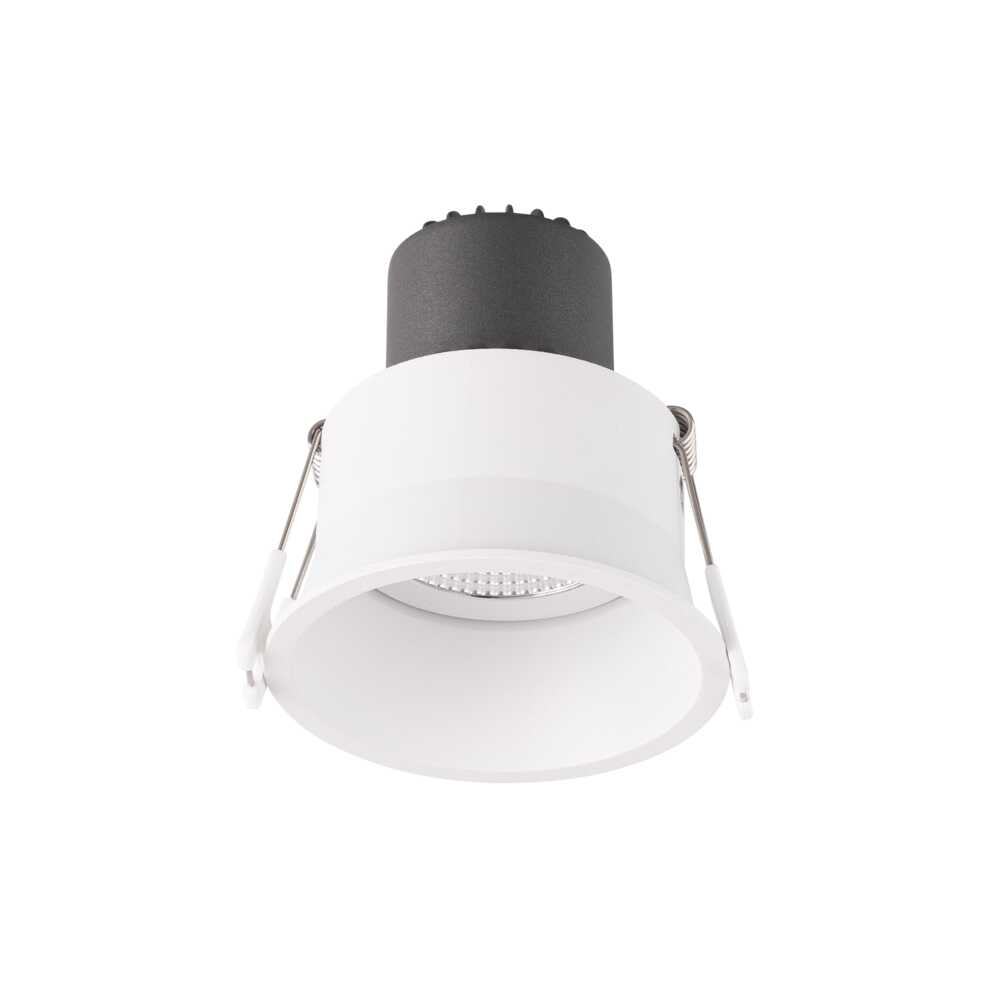

Model No.S9009WW/WH/SFI Input Voltage240 Power9 Lumens700 CCT3000 Beam Angle60 Dimmable YES CRI80 Body ColourMATT WHITE Cut Out76 Diameter82 Dim80(H) Add to Enquiry Add Remove Remove

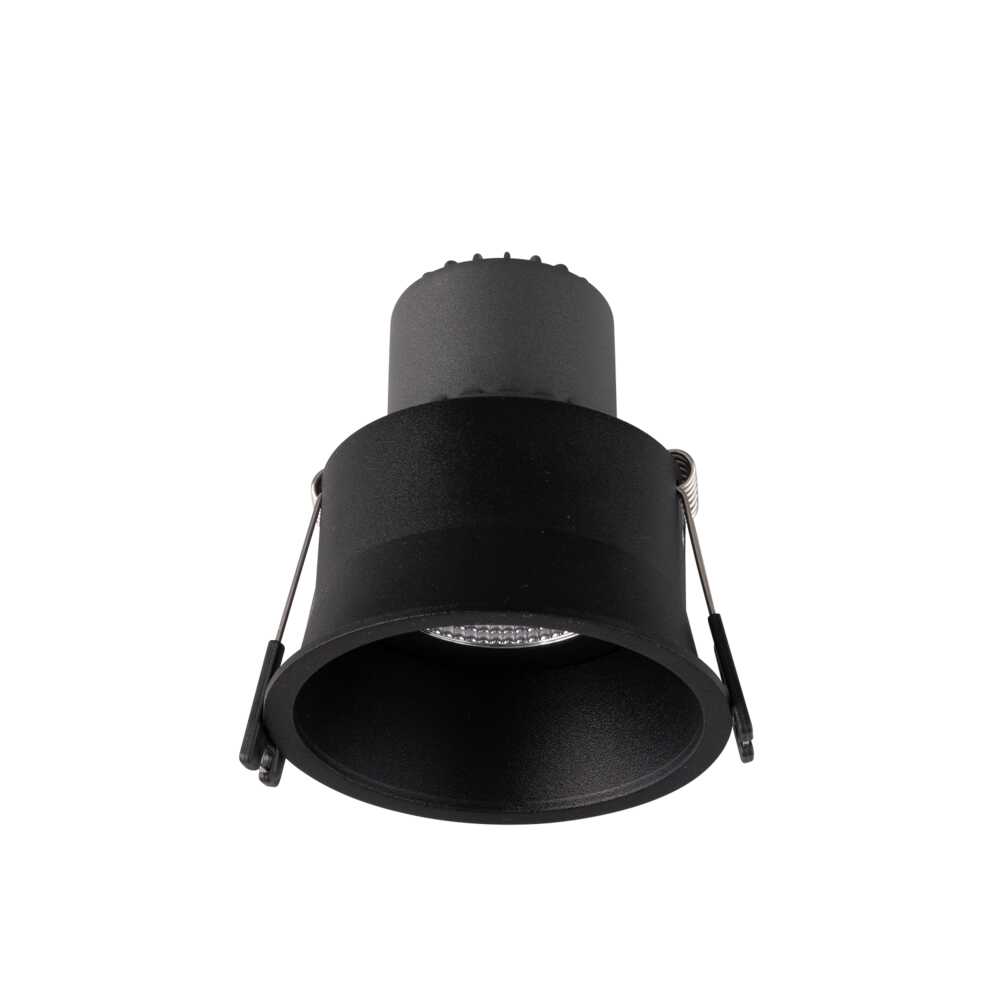

Model No.S9009WW/BK/SFI Input Voltage240 Power9 Lumens700 CCT3000 Beam Angle60 Dimmable YES CRI80 Body ColourMATT BLACK Cut Out76 Diameter82 Dim80(H) Add to Enquiry Add Remove Remove

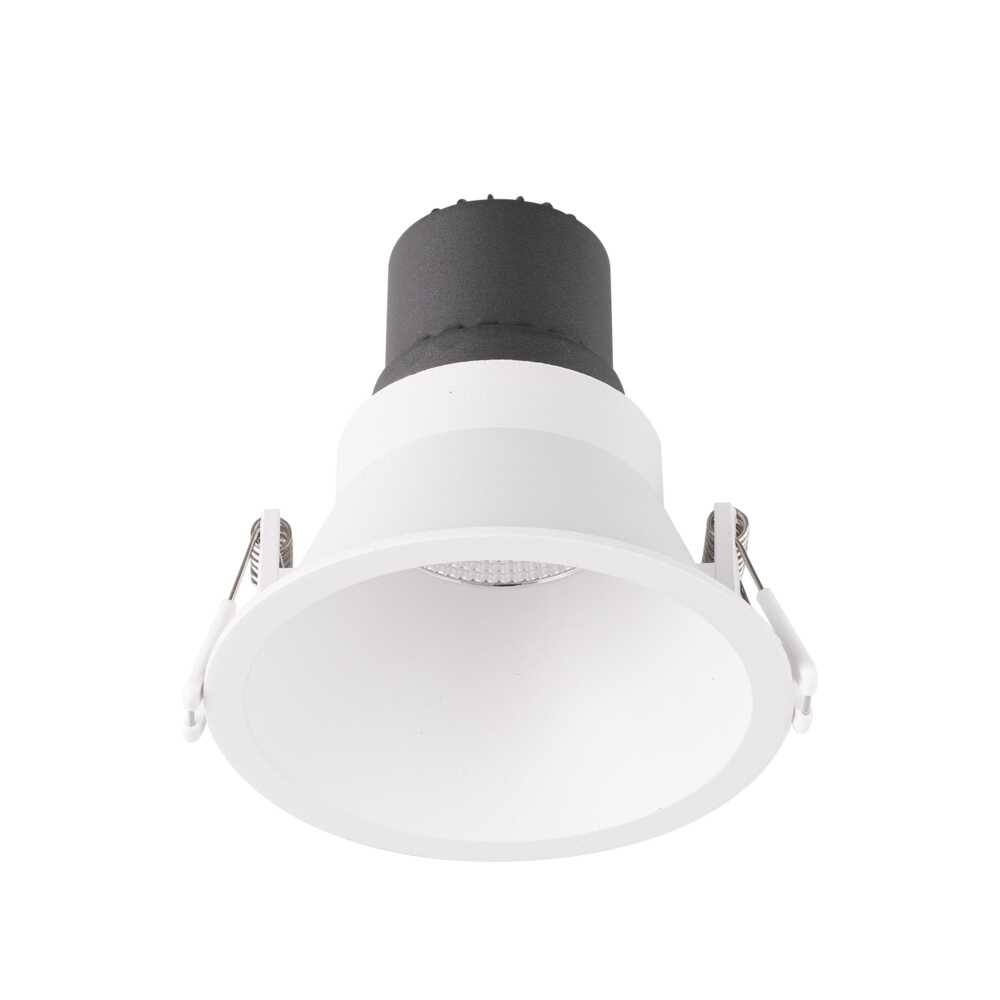

Model No.S9011WW/WH/SFI Input Voltage240 Power9 Lumens700 CCT3000 Beam Angle60 Dimmable YES CRI80 Body ColourMATT WHITE Cut Out92 Diameter102 Dim95(H) Add to Enquiry Add Remove Remove

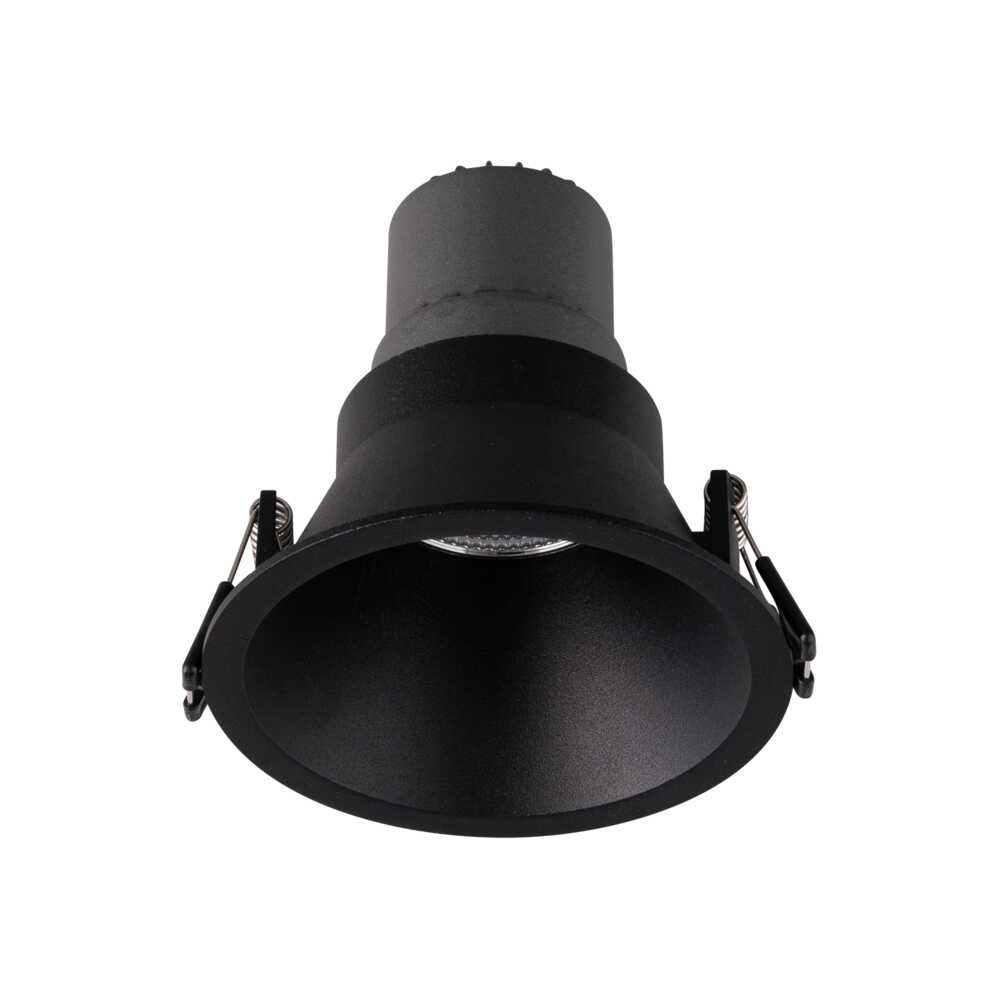

Model No.S9011WW/BK/SFI Input Voltage240 Power9 Lumens700 CCT3000 Beam Angle60 Dimmable YES CRI80 Body ColourMATT BLACK Cut Out92 Diameter102 Dim95(H) Add to Enquiry Add Remove Remove
Model No.SDD400SFI Input Voltage240 Power250 Lumens CCT Beam Angle Dimmable YES CRI Body ColourWHITE CAP Cut Out Diameter Dim42(L) x 24(W) x 24(H) Add to Enquiry Add Remove Remove Patent pending
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
