• LED DOWNLIGHTS

UNI LED S9658 - 50W

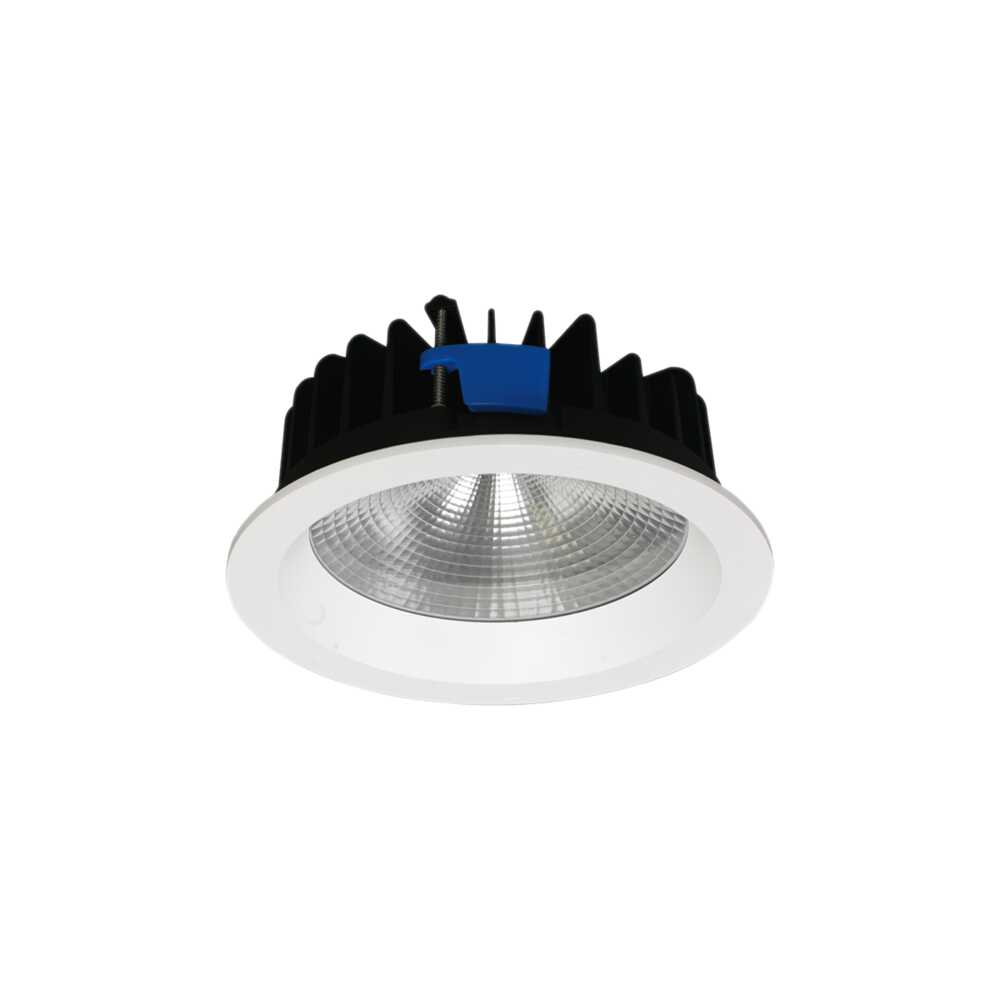

Round profile IP54 LED downlights

Application

Ideal for commercial interior spaces such as foyers and office areas

Design Specifications

  • Durable die-cast aluminium body profile with a round trim profile

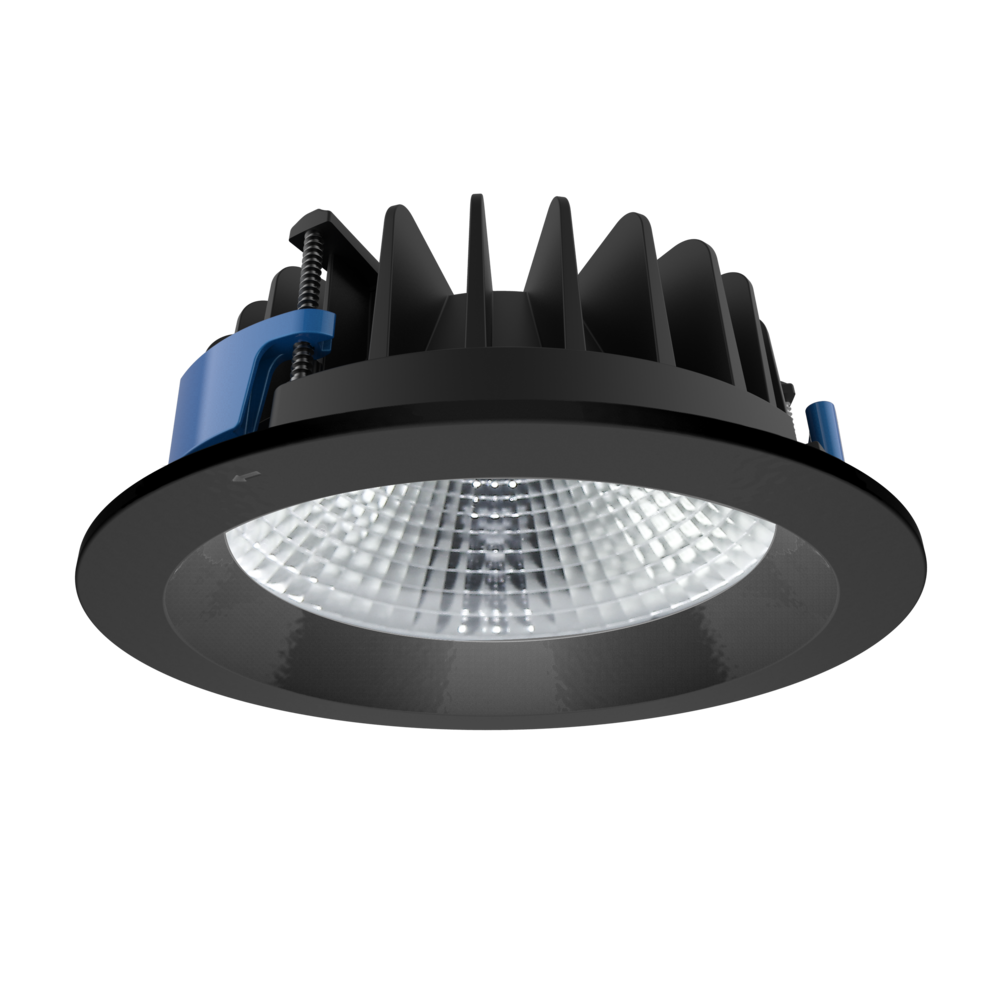

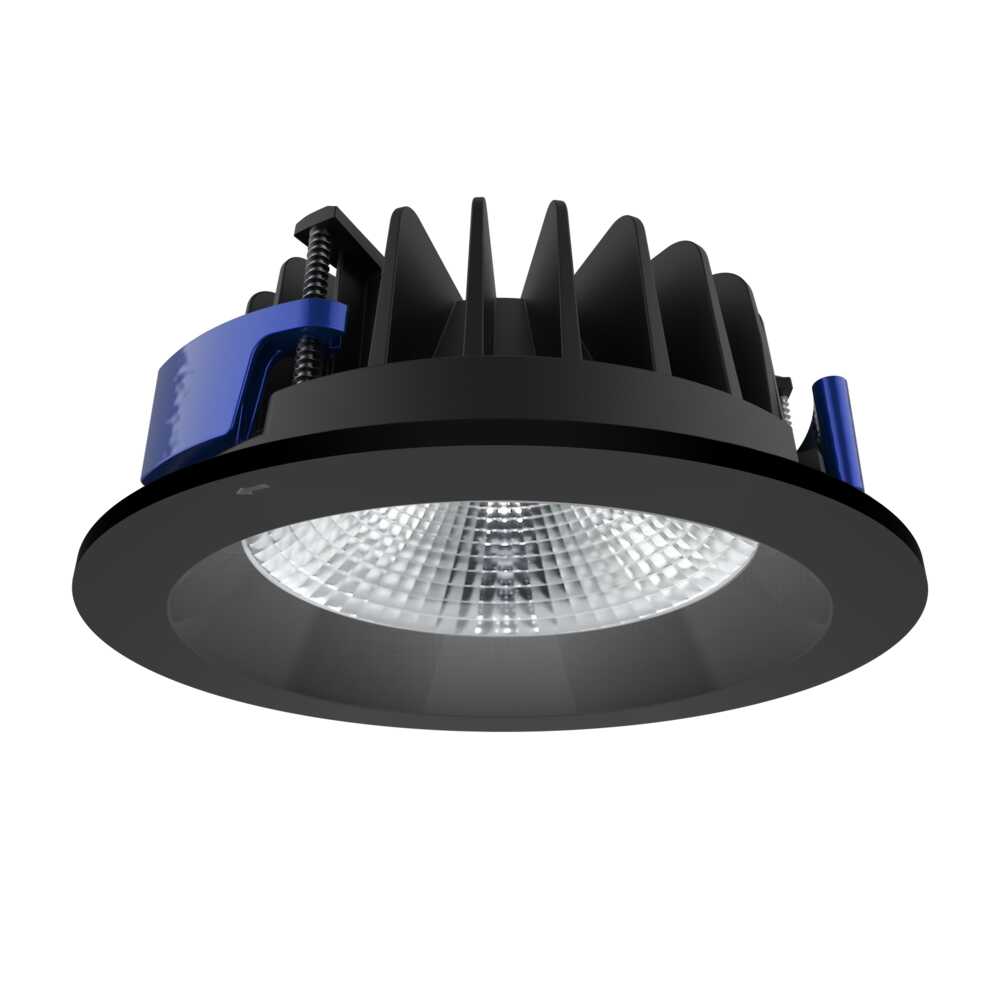

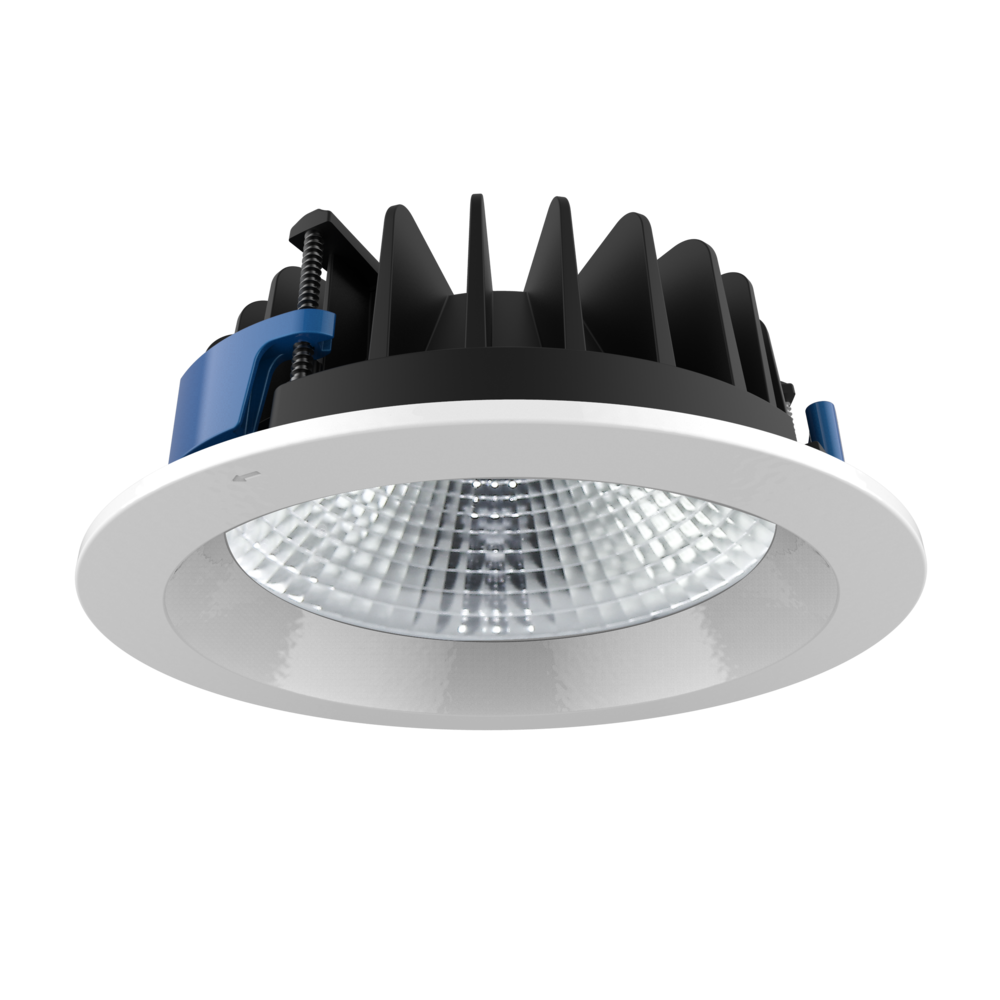

  • Stylish white or black powder coat finish

  • High output COB LED chip
  • Multi-faceted reflector system

  • Remote constant current LED driver for easy installation,
    with flex and plug

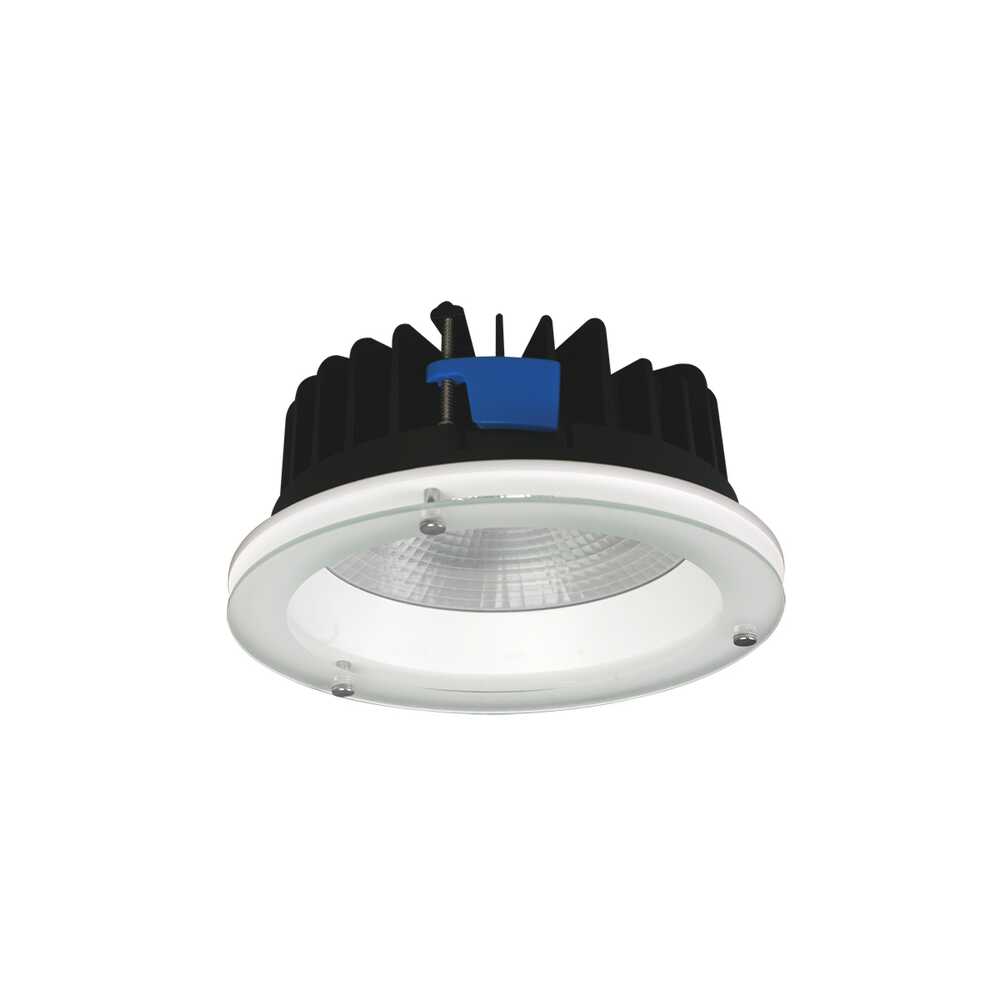

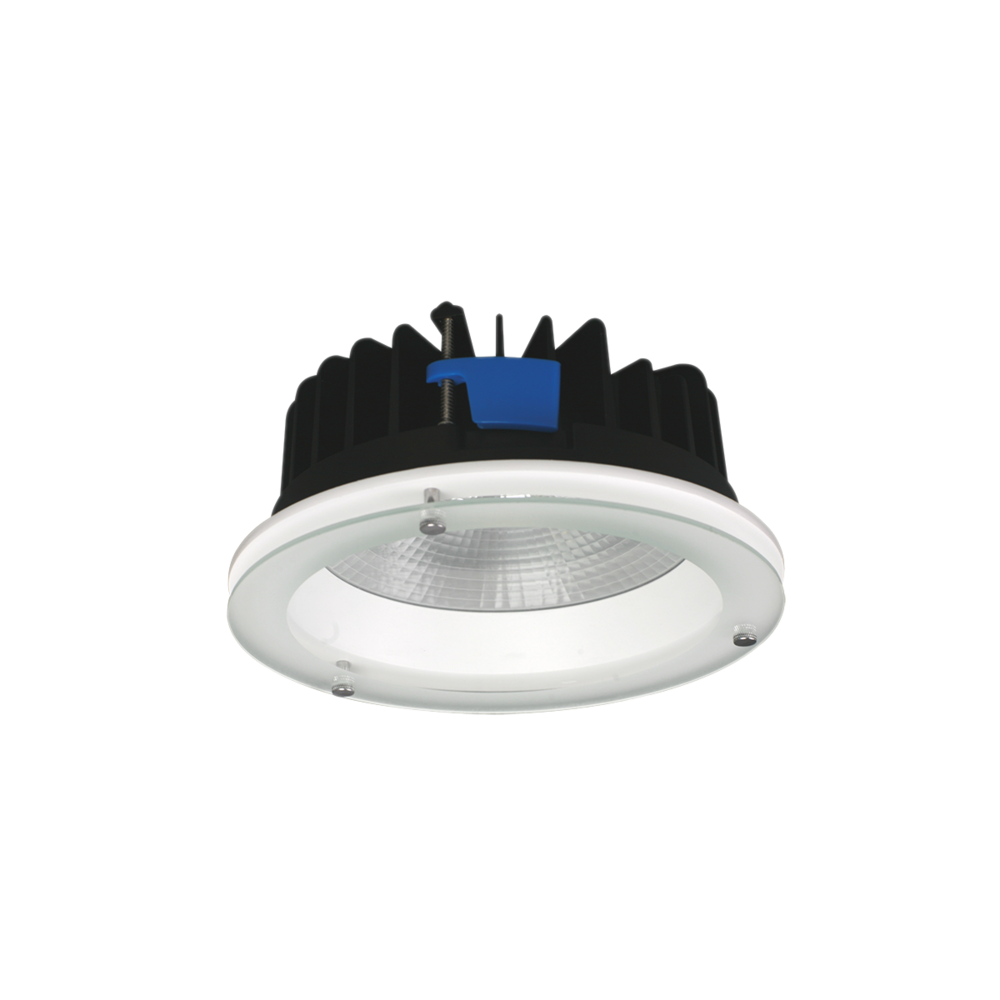

  • Optional dropped glass accessory

Performance

Dimmable - OPTIONAL
Dimmer Type - 1-10V, DALI / DSI

  • WARM WHITE3000K
  • COOL WHITE4000K
  • WARM WHITE3000K
  • COOL WHITE4000K

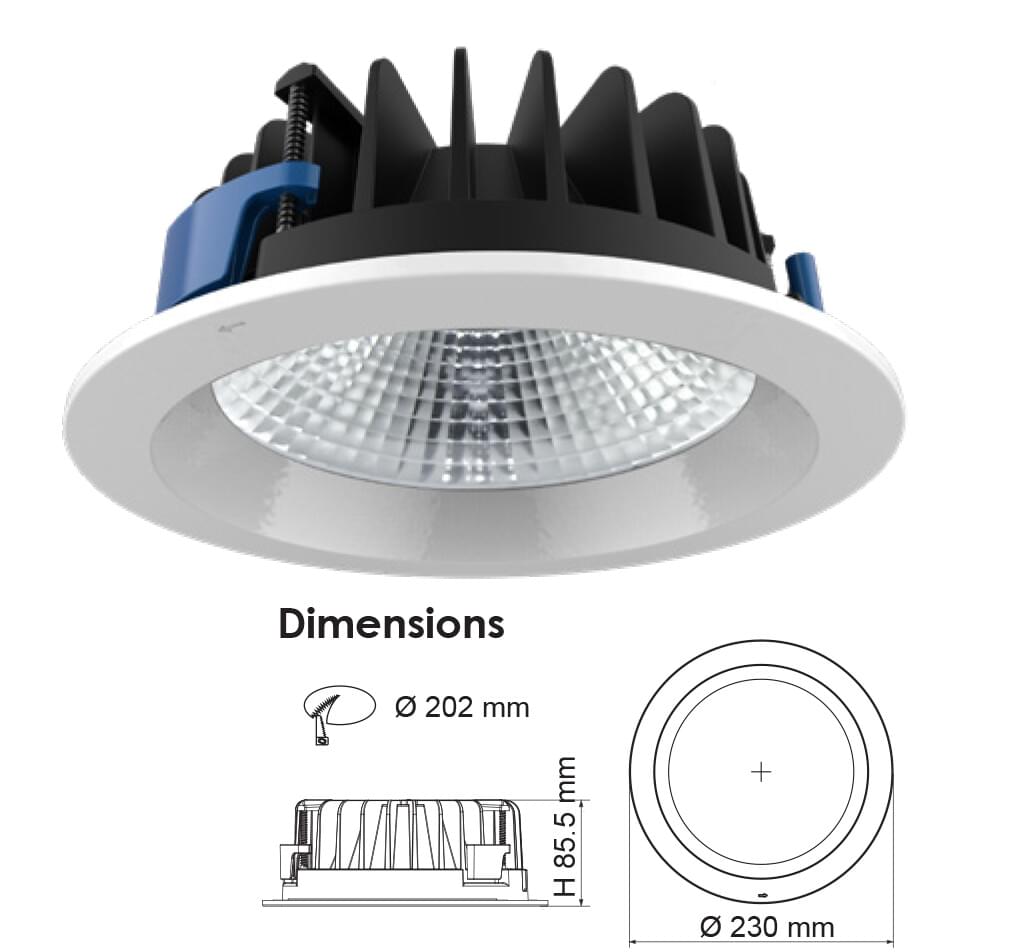

  • Dimensions - Wiring Diagrams
  • Design Options

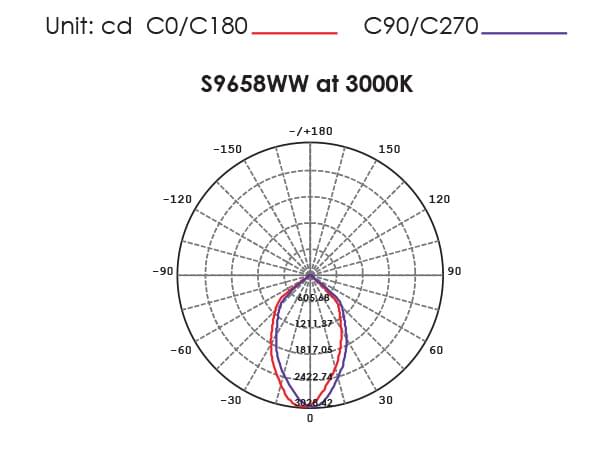

  • Photometric Data
  • Technical Specifications
    Model No. Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Body Colour Cut Out Diameter Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.S9658WW WH Input Voltage240 Power50 Lumens4000 CCT3000 Beam Angle90 Dimmable OPTIONAL CRI80 Body ColourWHITE Cut Out202 Diameter230 Dim86(H) Add to Enquiry Add Remove Remove
    Model No.S9658WW BK Input Voltage240 Power50 Lumens4000 CCT3000 Beam Angle90 Dimmable OPTIONAL CRI80 Body ColourBLACK Cut Out202 Diameter230 Dim86(H) Add to Enquiry Add Remove Remove
    Model No.S9658WW WH RG Input Voltage240 Power50 Lumens4000 CCT3000 Beam Angle90 Dimmable OPTIONAL CRI80 Body ColourWHITE Cut Out202 Diameter230 Dim86(H) Add to Enquiry Add Remove Remove
    Model No.S9658CW WH Input Voltage240 Power50 Lumens4200 CCT4000 Beam Angle90 Dimmable OPTIONAL CRI80 Body ColourWHITE Cut Out202 Diameter230 Dim86(H) Add to Enquiry Add Remove Remove
    Model No.S9658CW BK Input Voltage240 Power50 Lumens4200 CCT4000 Beam Angle90 Dimmable OPTIONAL CRI80 Body ColourBLACK Cut Out202 Diameter230 Dim86(H) Add to Enquiry Add Remove Remove
    Model No.S9658CW WH RG Input Voltage240 Power50 Lumens4200 CCT4000 Beam Angle90 Dimmable OPTIONAL CRI80 Body ColourWHITE Cut Out202 Diameter230 Dim86(H) Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
