• LED DOWNLIGHTS

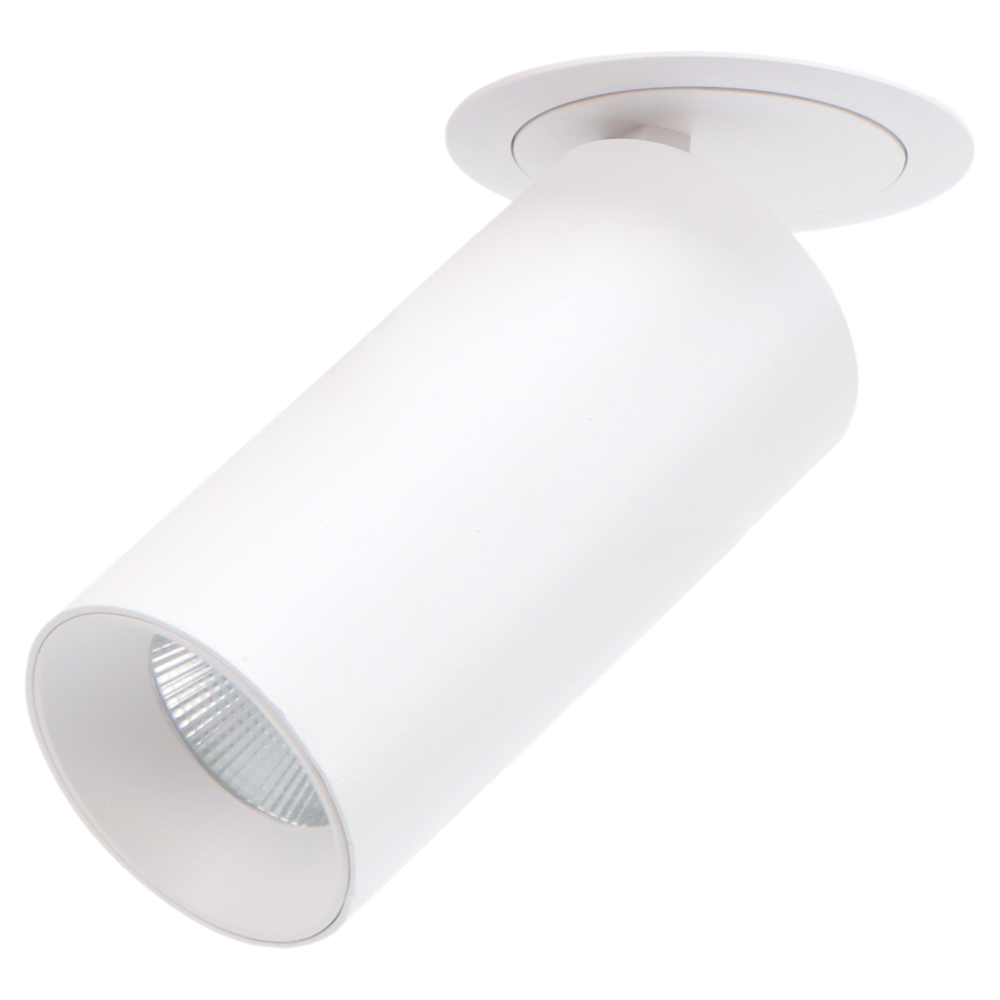

UNITREK SRC9017TC - 9W

Unitrek, architectural cylindrical recessed mount profile, with selectable CCT and dual power

Application

Designed for decorative retail or residential applications

Design Specifications

  • Polyamide cylindrical body profile

  • High efficiency LED, with selectable CCT

  • Multi-faceted reflector system, standard beam distribution 40 degree

  • Polycarbonate optical lens

  • Integral constant current trailing edge dimmable LED driver, with selectable power

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing edge

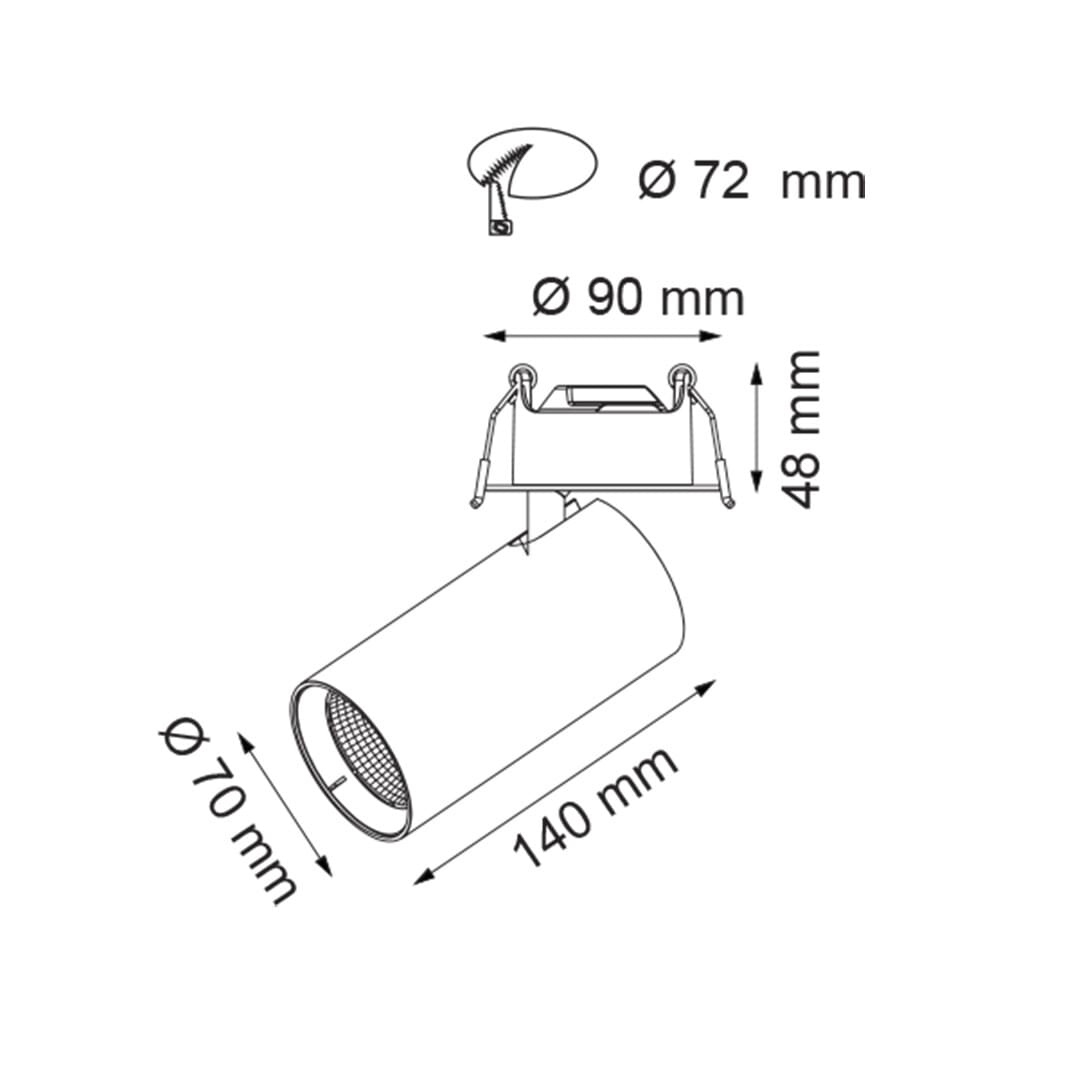

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Multiple Wattage Lumens CCT Beam Angle Dimmable CRI Body Colour Cut Out Diameter Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close

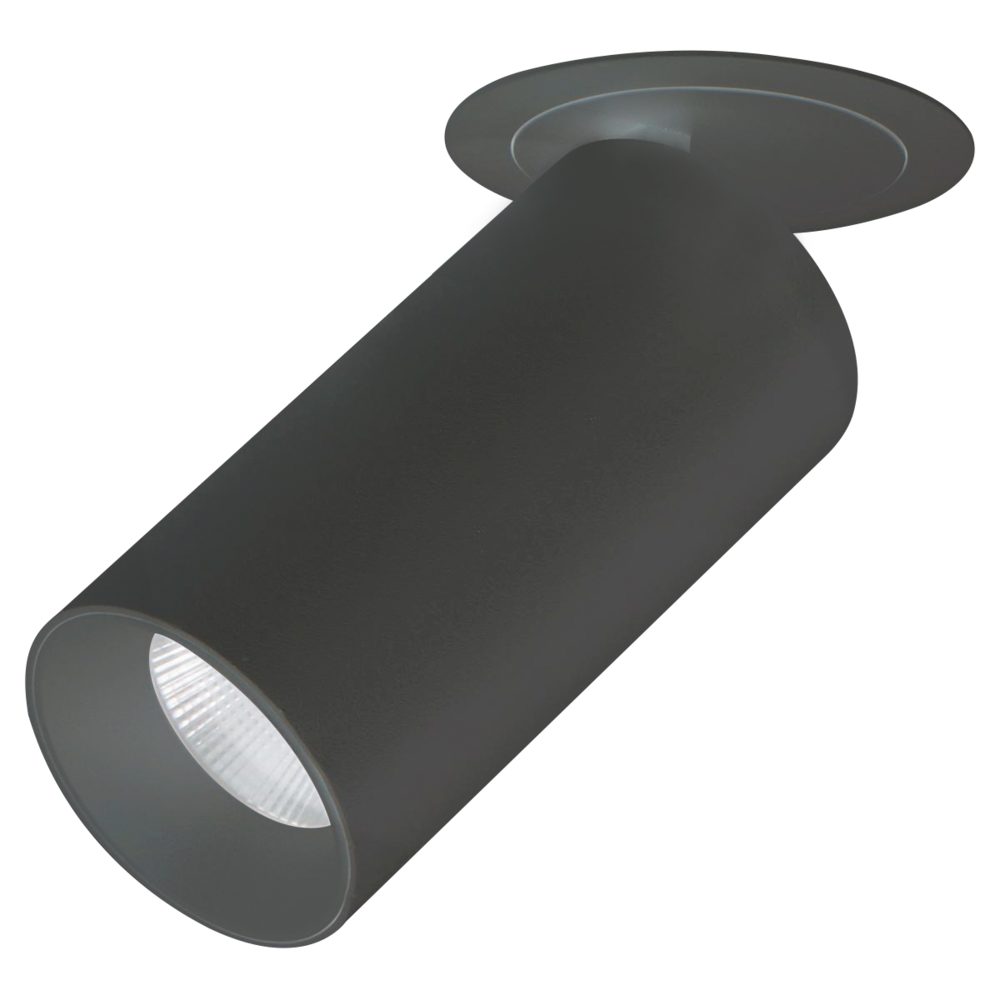

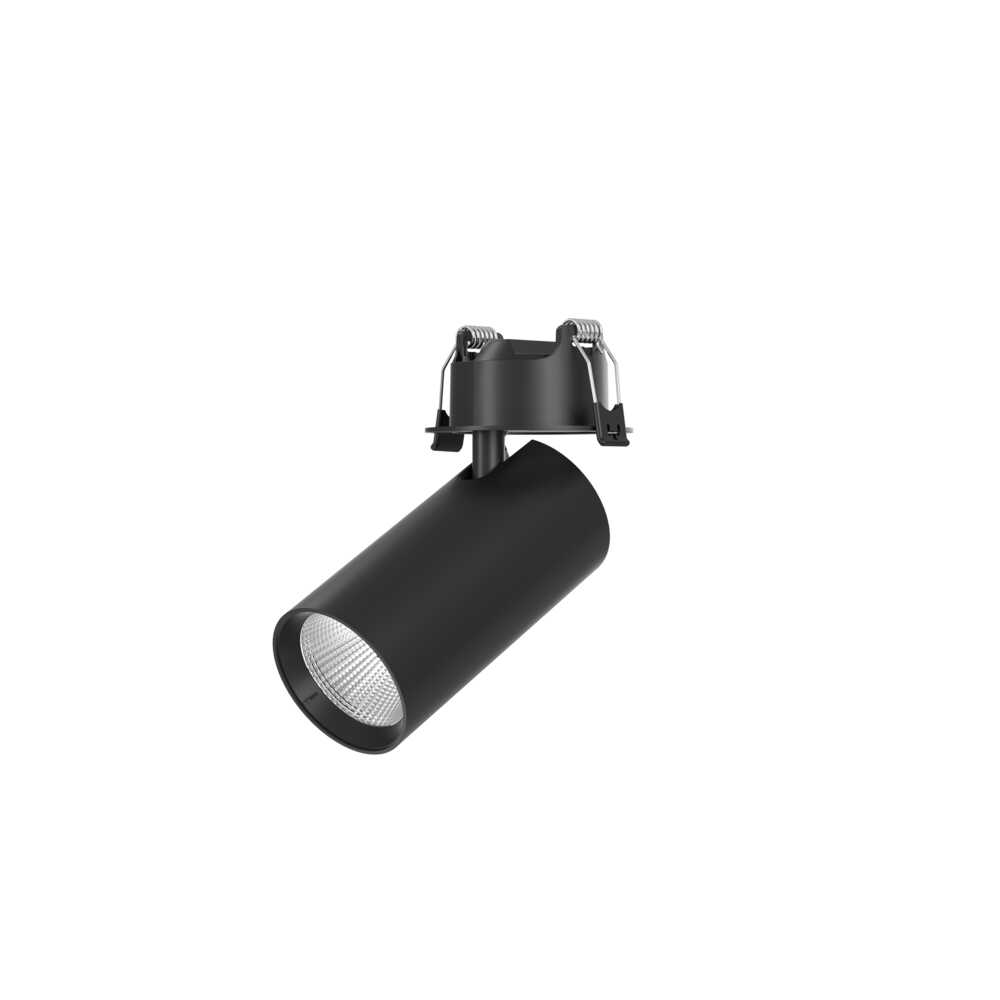

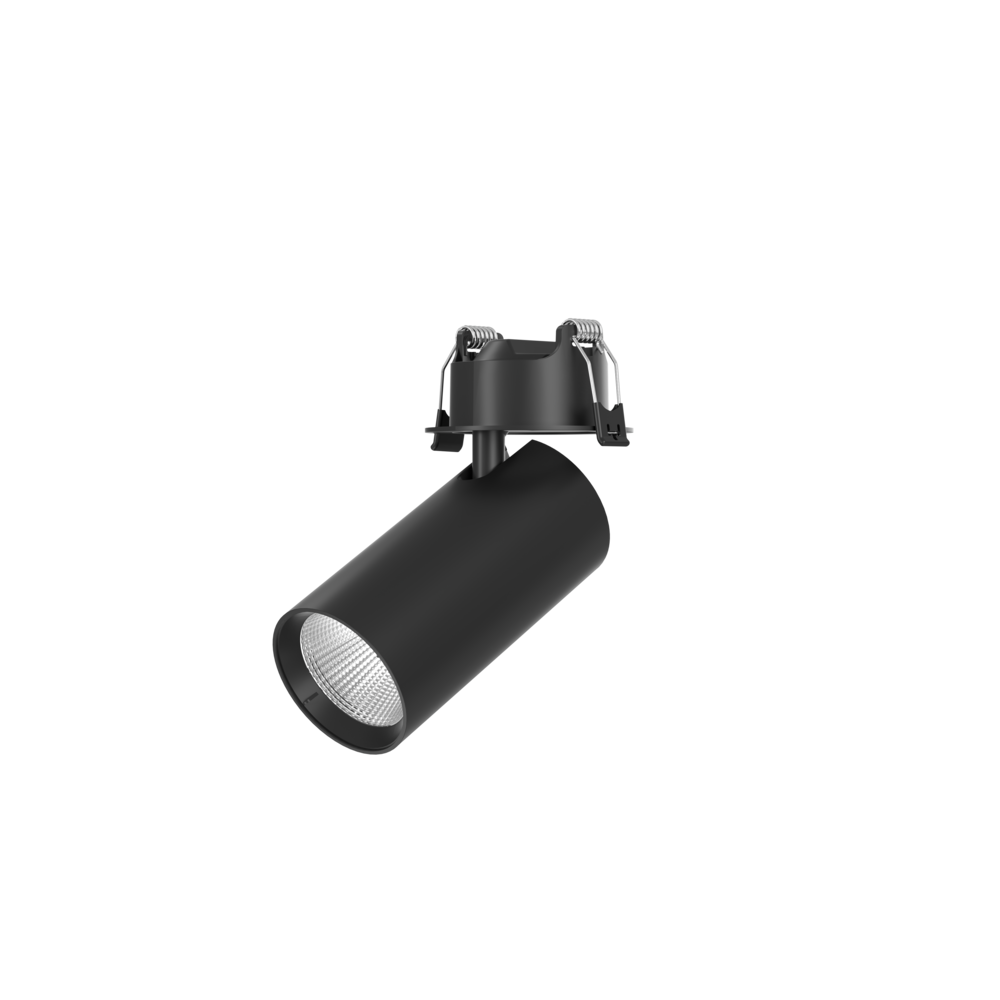

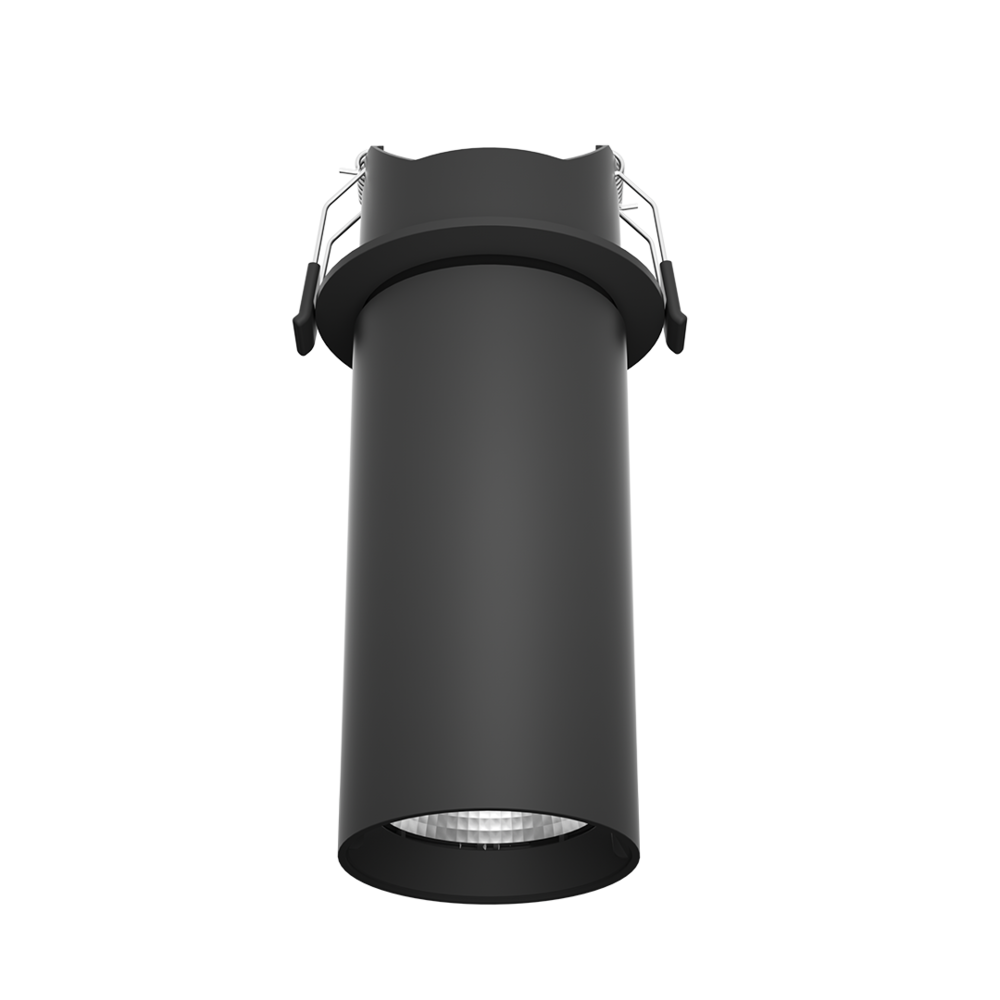

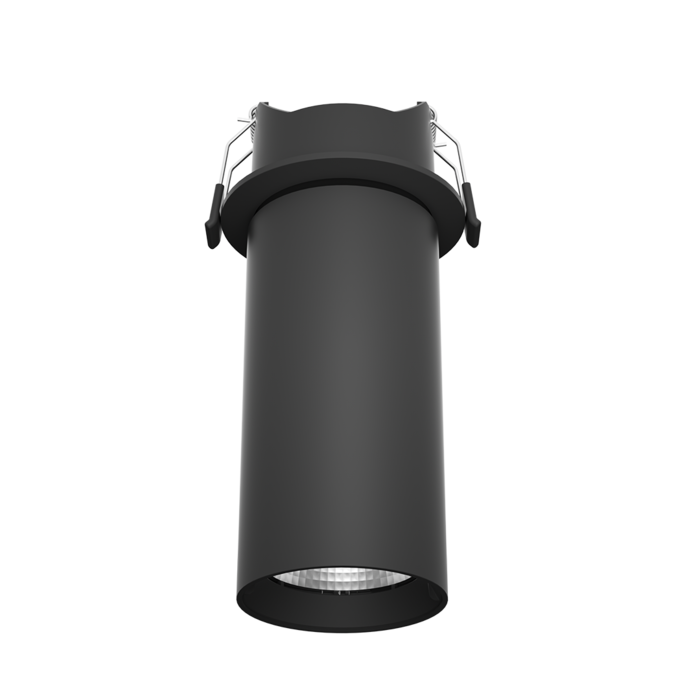

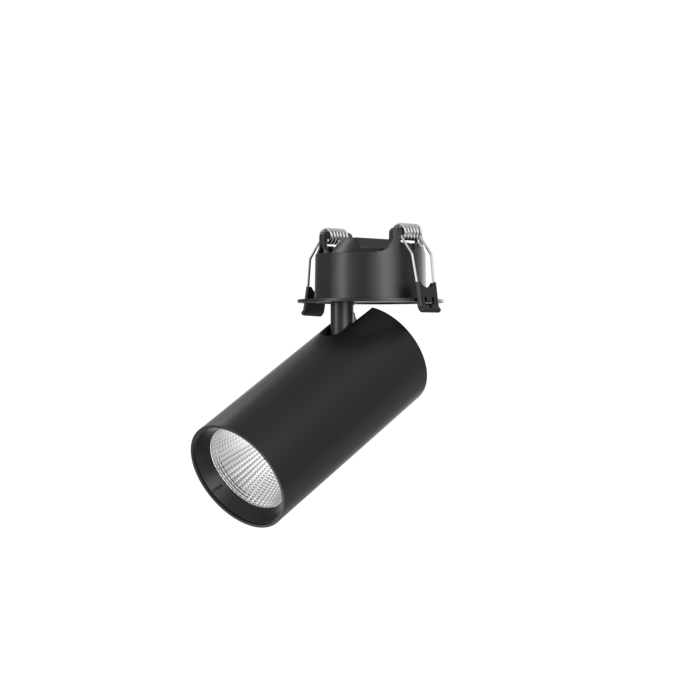

    Model No.SRC9017TC/BK Input Voltage240 Multiple Wattage10/15 Lumens1000/1150/1100 CCT3000/4000/5700 Beam Angle40 Dimmable YES CRI80 Body ColourBLACK Cut Out72 Diameter90 Dim195(L) Add to Enquiry Add Remove Remove

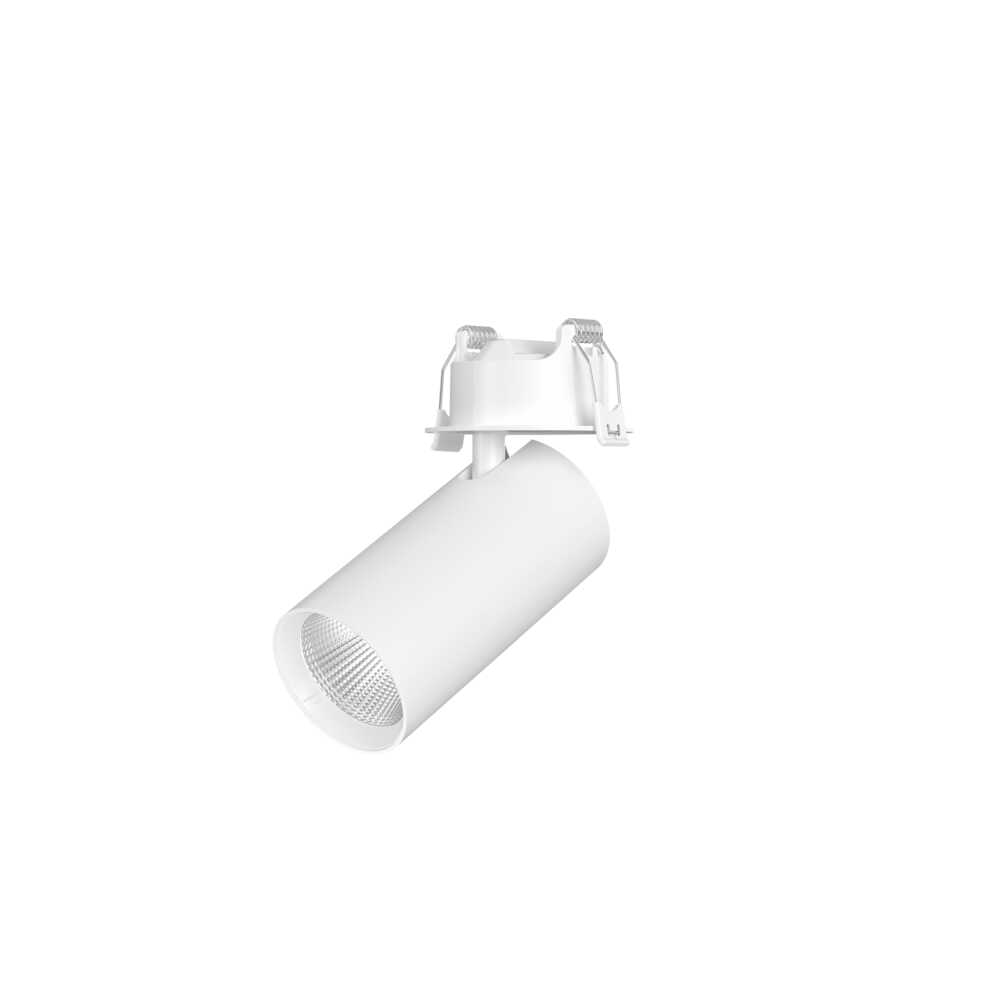

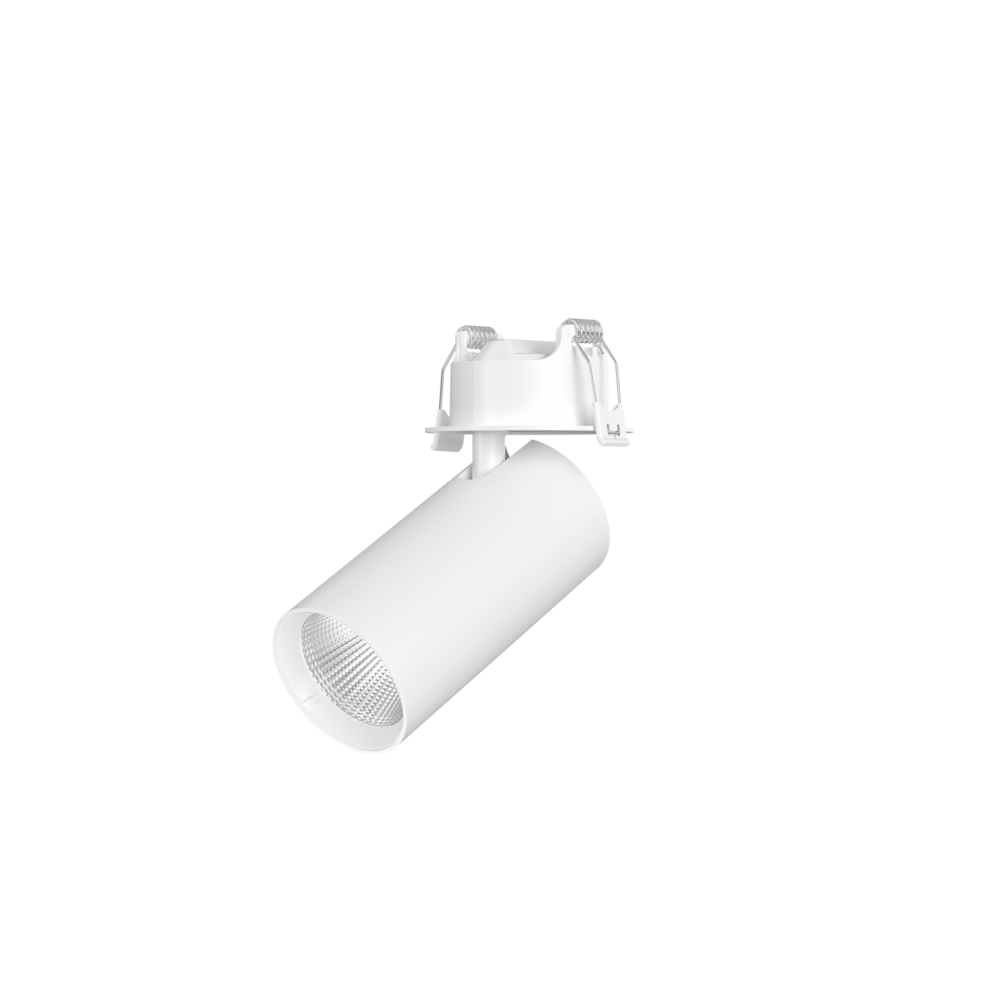

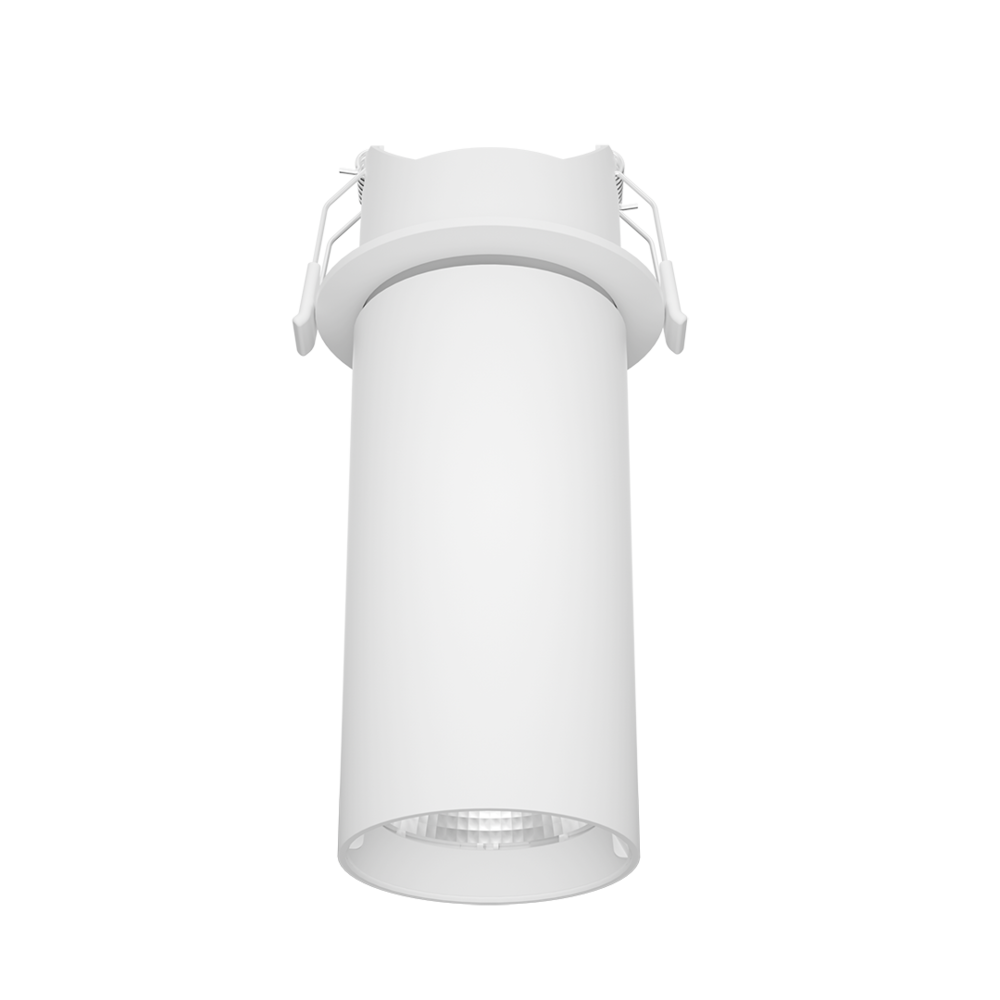

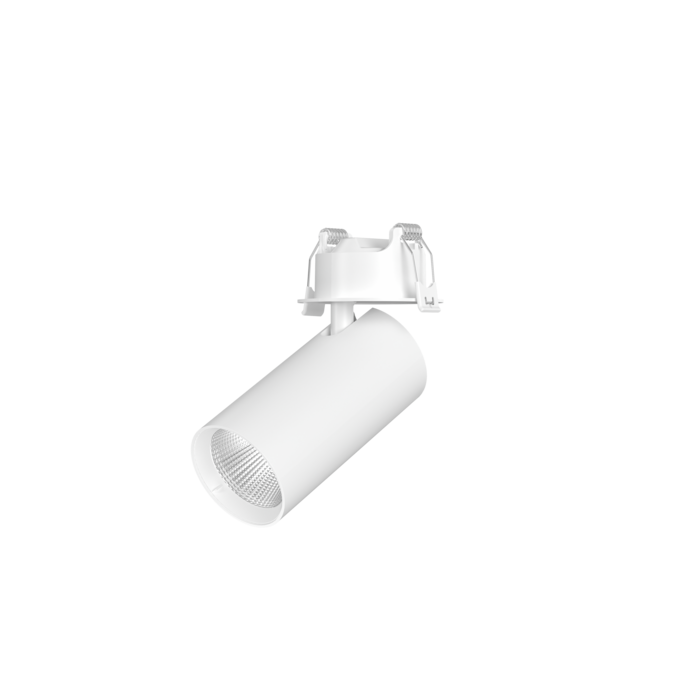

    Model No.SRC9017TC/WH Input Voltage240 Multiple Wattage10/15 Lumens1000/1150/1100 CCT3000/4000/5700 Beam Angle40 Dimmable YES CRI80 Body ColourWHITE Cut Out72 Diameter90 Dim195(L) Add to Enquiry Add Remove Remove
    Model No.STR9017/15R60P Input Voltage Multiple Wattage Lumens CCT Beam Angle60 Dimmable CRI Body Colour60 DEG BEAM INSERT Cut Out Diameter Dim Add to Enquiry Add Remove Remove

    Note: Lumen (lm) displayed are at FULL power

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
