• LED DOWNLIGHTS

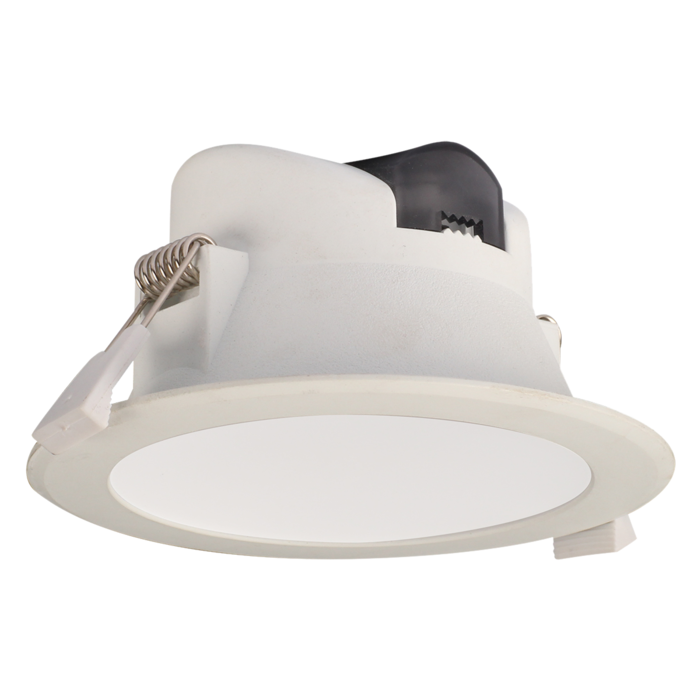

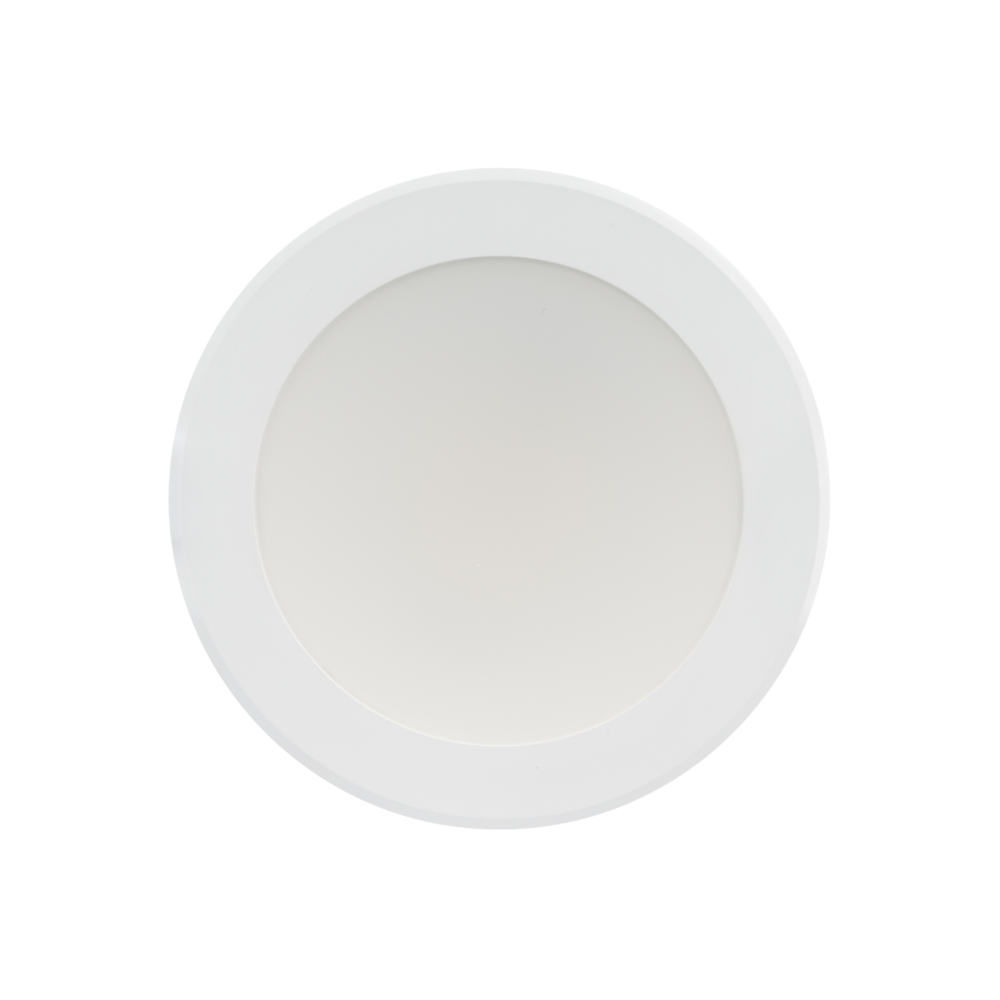

WAVE S9065TC - 9W

Dimmable IP44 LED downlight with selectable colour temperature

Application

Ideal for any residential or commercial interior space

Design Specifications

  • Easy selectable colour temperature with an inbuilt DIP switch, 3000K/4000K/5700K

  • Poly covered aluminium body, double insulation, IC - 4 rated

  • Quality opal polycarbonate diffuser

  • Integral constant current trailing edge dimmable
    LED driver, with flex and plug

  • High efficiency SMD LED chips

  • Deco ring options - Satin Nickel (S9065SN/RING), Black (S9065BK/RING)

Performance

Dimmable - YES
Dimmer Type - Trailing edge

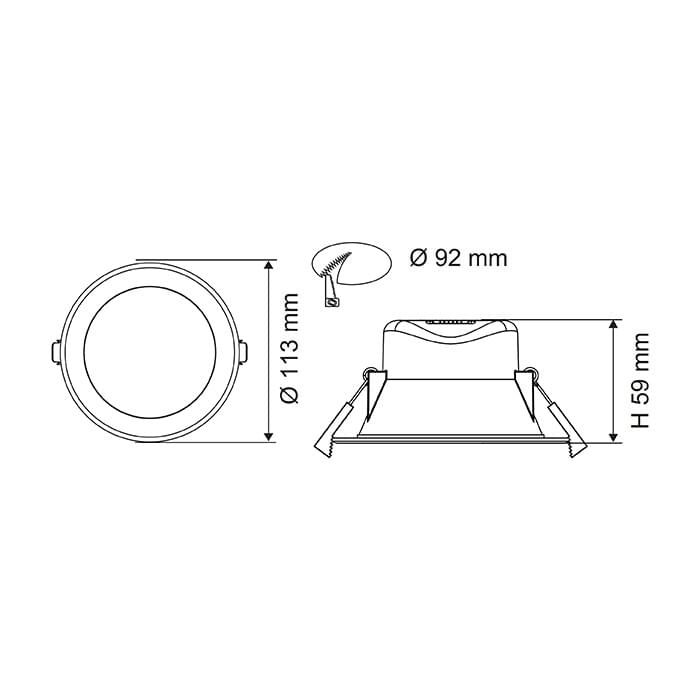

  • Dimensions - Wiring Diagrams
  • Design Options
    Colour 1 Satin Nickel S9065SN/RING
    Colour 2 Black (S9065BK/RING)

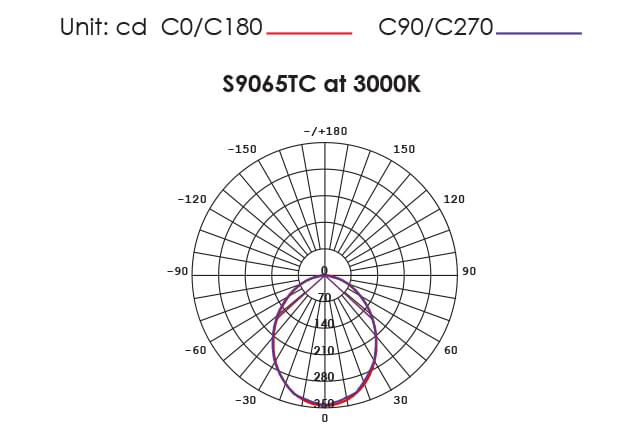

  • Photometric Data
  • Technical Specifications
    Model No. Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Body Colour Cut Out Diameter Dim IPART REES VEET Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.S9065TC WH Input Voltage240 Power9 Lumens750/900/800 CCT3000/4000/5700 Beam Angle90 Dimmable YES CRI80 Body ColourWHITE Cut Out92 Diameter113 Dim59(H) IPARTYES REESYES VEETYES Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
