• LED DOWNLIGHTS

PREMIER S9074TC / DP - 15/20W

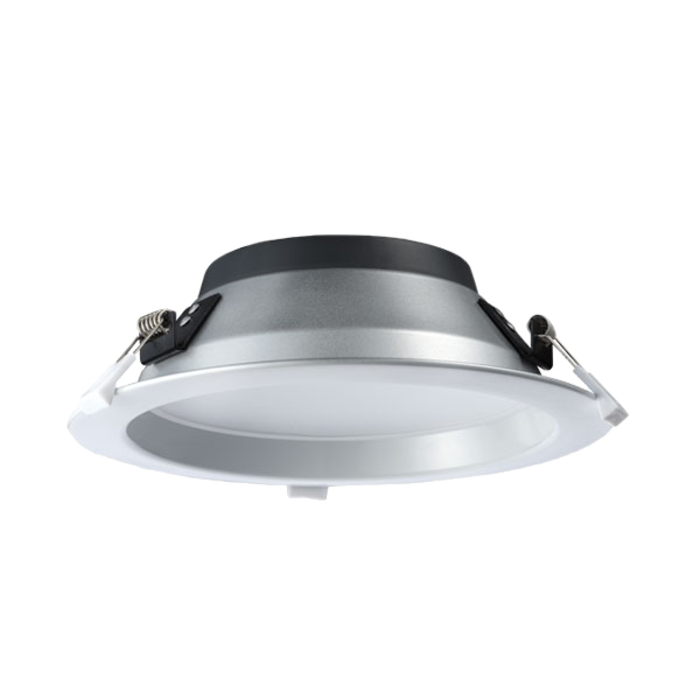

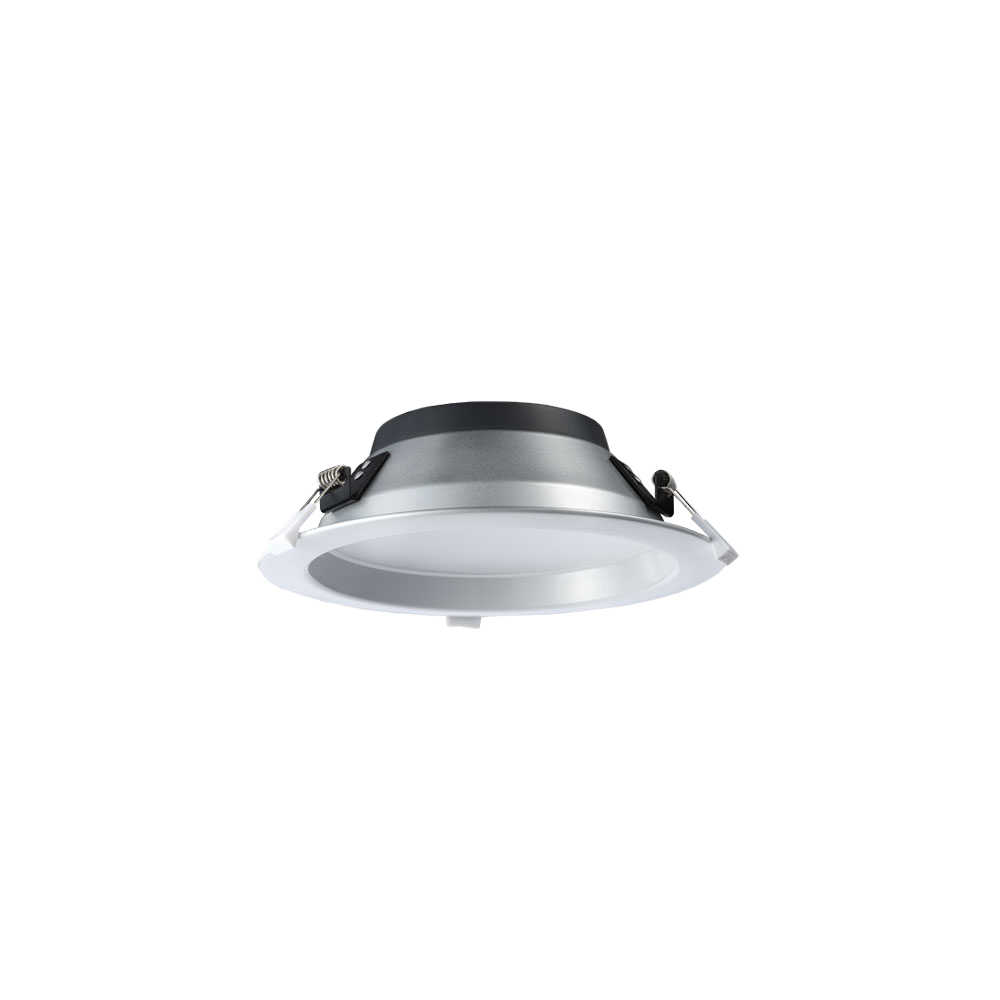

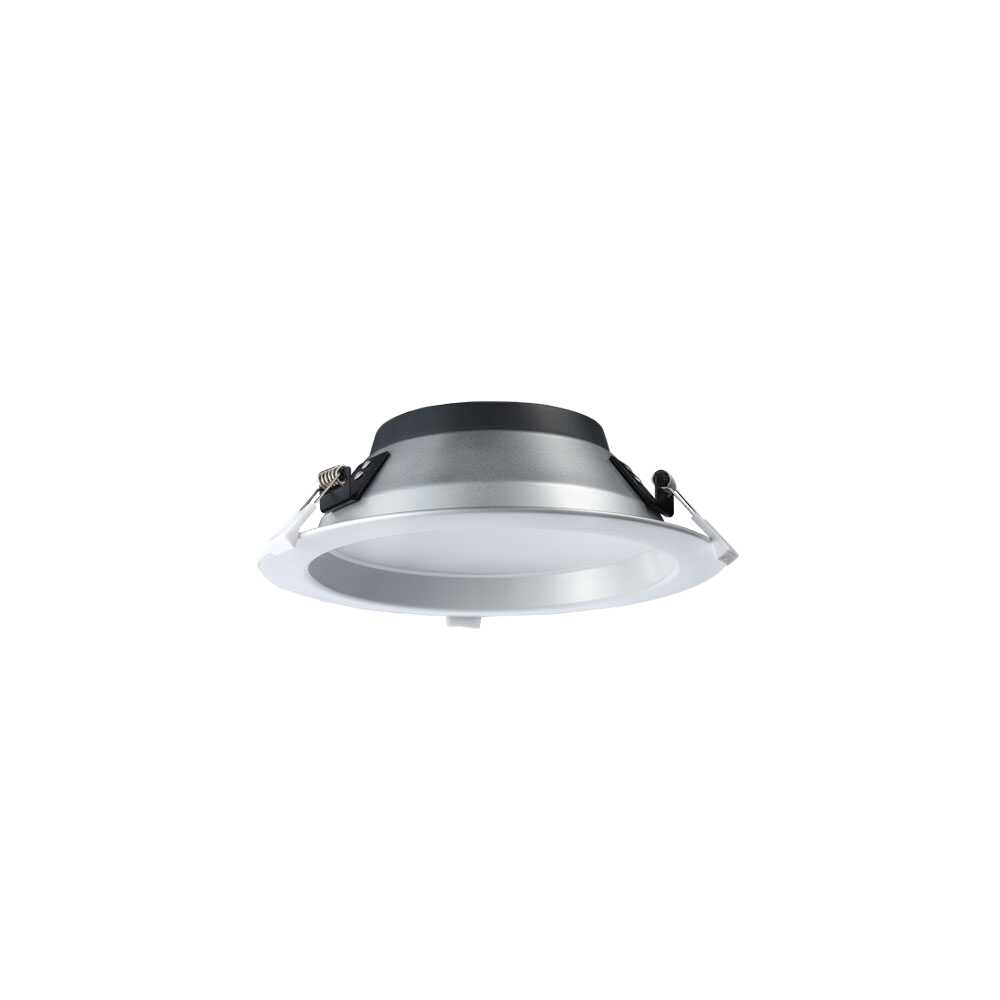

IP64 DUAL POWER 15/20W LED non-dimmable downlight with selectable colour temperature

Application

Ideal for any commercial interior spaces looking for an economical lighting choice and design flexibility

Design Specifications

  • Premium aluminium body profile, CA90 rated

  • Stylish white powder coat finish

  • Quality opal polycarbonate diffuser

  • High efficiency SMD LED chips

  • Remote constant current non - dimmable LED driver, with flex and plug and integral dual power 15/20w selections

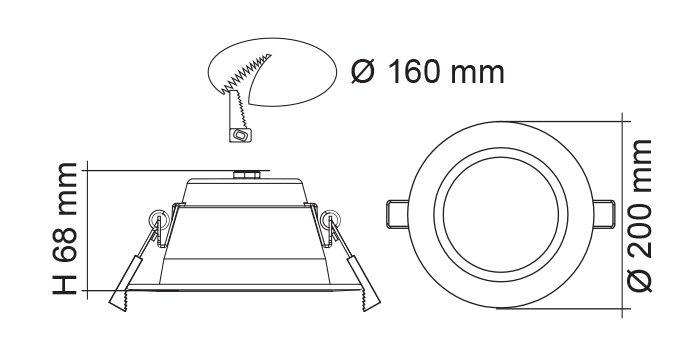

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • Technical Specifications
    Model No. Description Input Voltage Multiple Wattage Lumens CCT Beam Angle Dimmable CRI Body Colour Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.S9074TC/WH/DP DescriptionLED D/L 15/20W IP64 3/4/5.7K WH / DP Input Voltage240 Multiple Wattage15/20 Lumens1600/1900/1700 CCT3000/4000/5700 Beam Angle90 Dimmable OPTIONAL CRI80 Body ColourWHITE Dim200(W) x 68(H) Add to Enquiry Add Remove Remove

    Note: Lumens (lm) shown are displayed at FULL power selection

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
