• LED EMERGENCY

S-FIRE SELK1500ISF - 1.6W

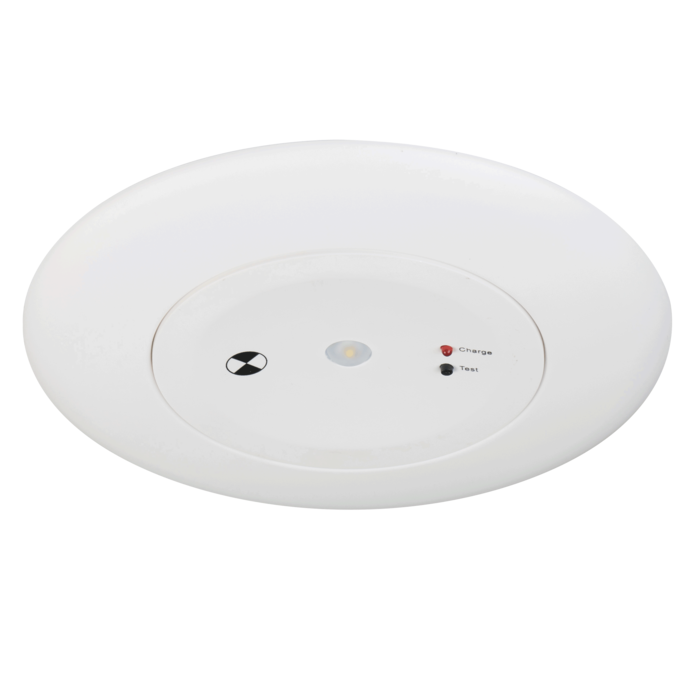

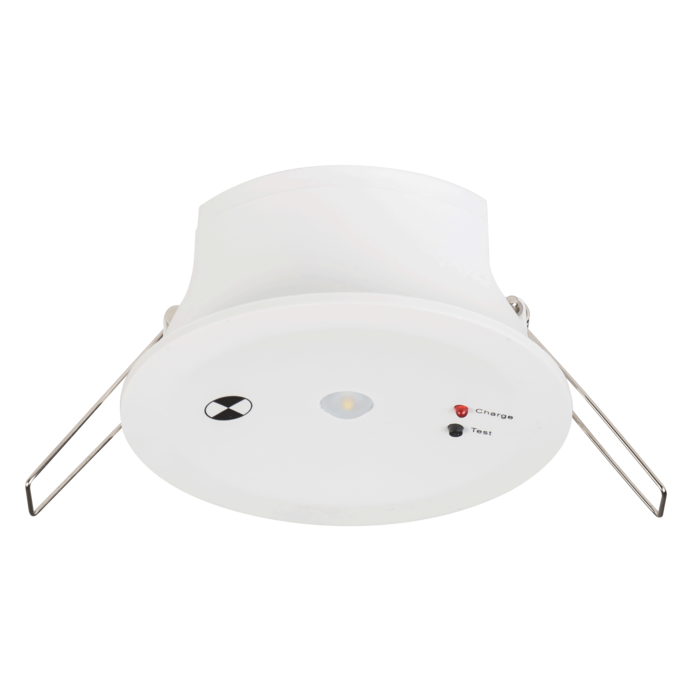

NON-MAINTAINED - SELK1500ISF S-FIRE LED emergency luminaire, complete with adapter ring

Application

A perfect choice for apartments or commercial spaces

Design Specifications

  • Compliant to AS/NZS 2293, emergency spacing classification D32, non-maintained

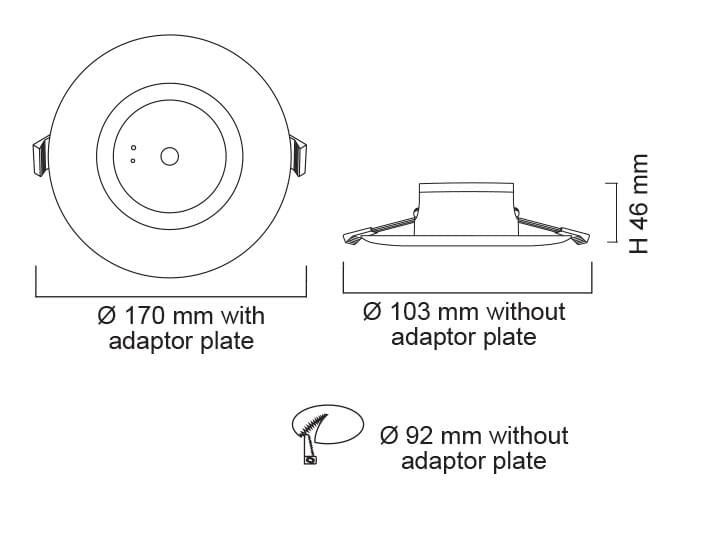

  • Polycarbonate body profile, IP20, double insulation, Ø92 mm cut-out, adaptor plate suits cutout Ø110 mm - Ø150 mm, outside plate Ø170 mm

  • LED charge status display and test switch

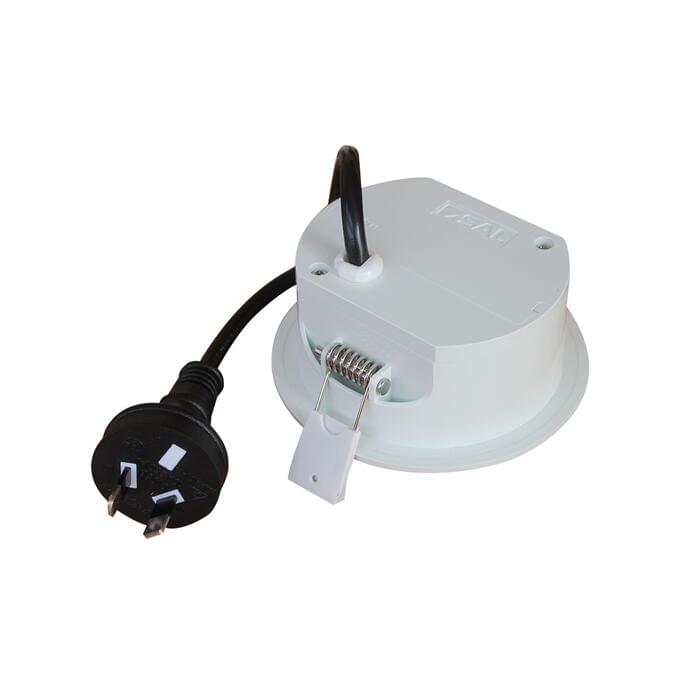

  • 1.2 m flex & 3 pin plug fitted for easy plug and play installation, IC-4 rated

  • Integral converter and replaceable battery pack LiFePO4 3.2V 1.5Ah (SELK1500ISF BATTERY)

  • Guaranteed 90 minutes emergency function, intelligent automatic recharging function, 16 hour recharge time and deep discharge protection

Performance

  • Dimmable - NO
  • COOL WHITE4000K
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power CCT Body Colour Diameter Dim Cut Out Mass Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SELK1500ISF Input Voltage240 Power1.6 CCT4000 Body ColourWHITE Diameter103 Dim46(H) Cut Out90 Mass0.38 Add to Enquiry Add Remove Remove

    Replacement battery - (SELK1500ISF/BAT)
    Important notes: (1) Battery warranty twelve (12) months (2) In the interest of transport and safety, emergency products are supplied with the battery disconnected. (3) In addition to specific emergency commissioning instructions, the battery MUST be connected at the time of installation. (4) Continual use in emergency mode greater than 240 hours without recharge, will result in battery failure and void battery warranty.

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
