• LED EMERGENCY

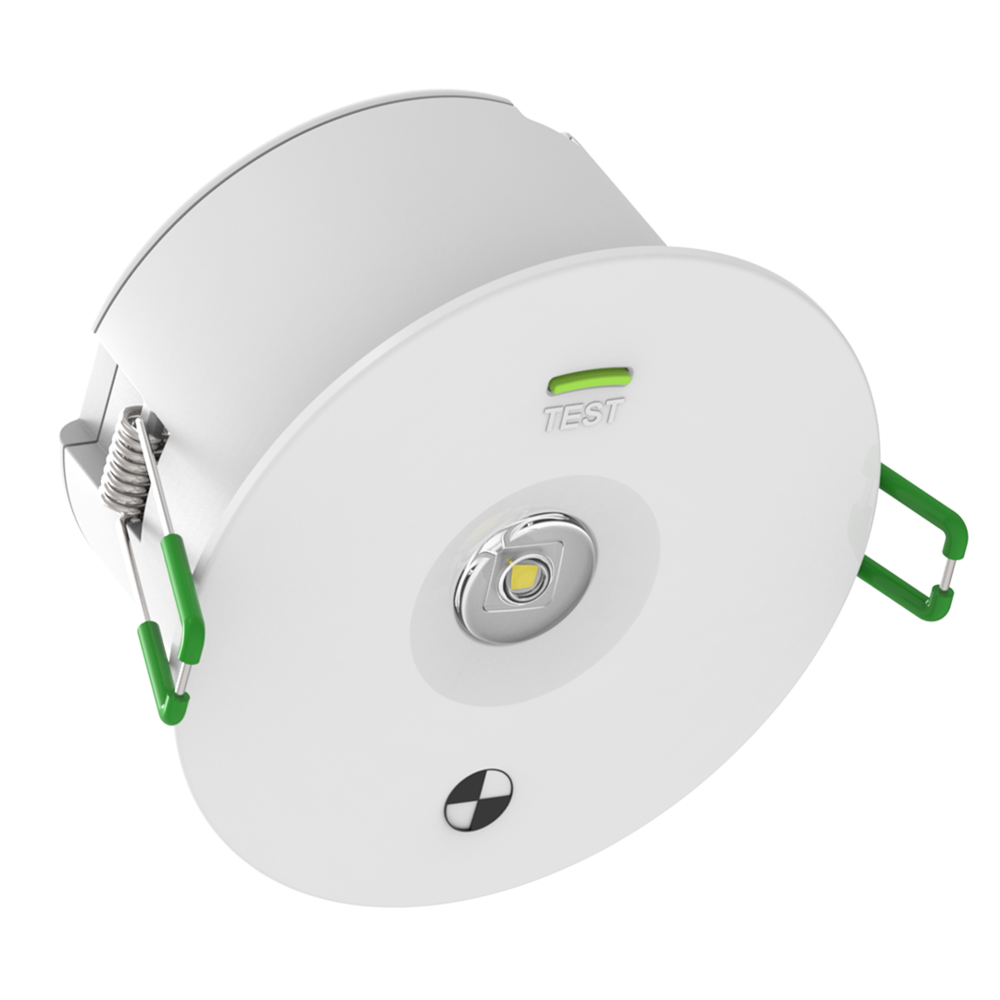

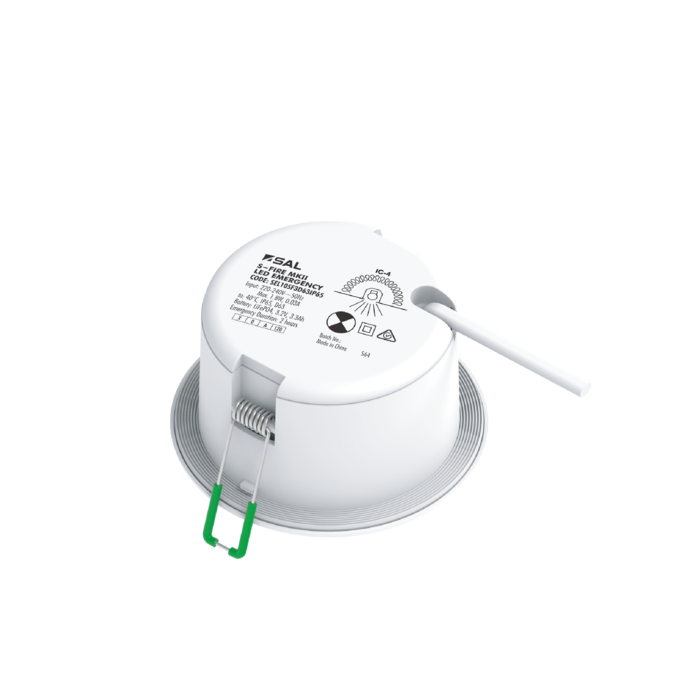

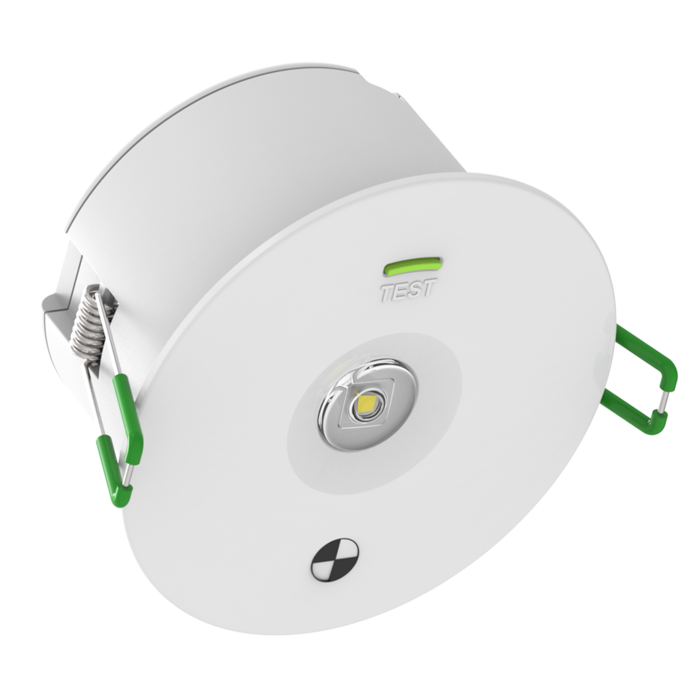

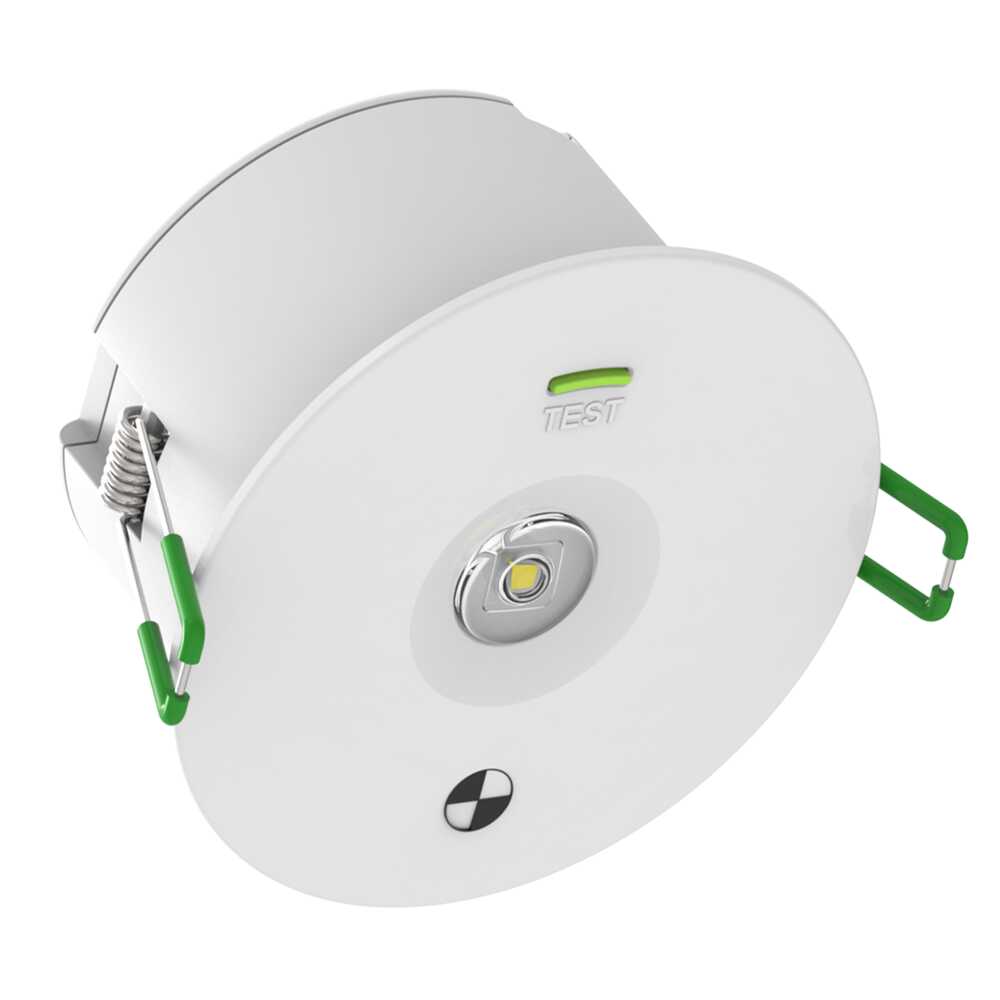

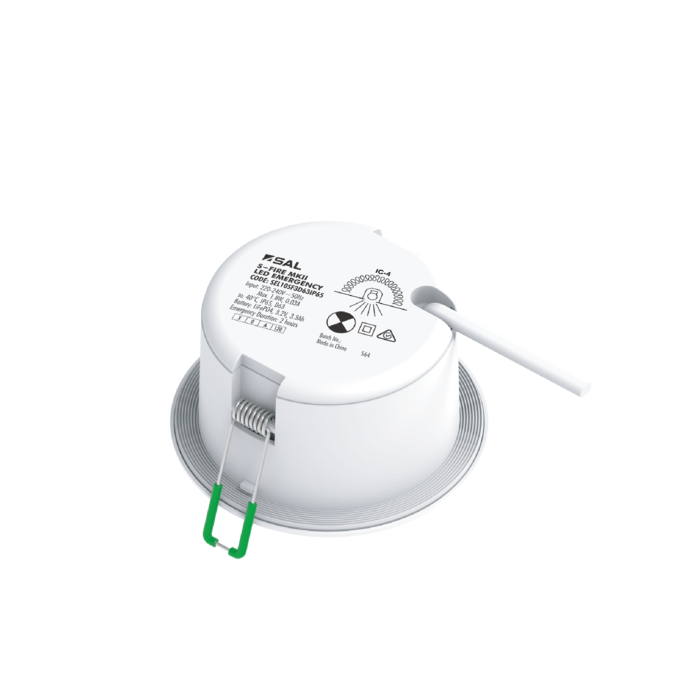

S-FIRE MKII SEL10SF3D63IP65 - 1.8W

NON-MAINTAINED - IP65 recessed 1.8 watt emergency luminaire, D63 classification

Application

A perfect choice for apartments or commercial spaces requiring compliance to AS/NZS 2293

Design Specifications

  • Compliant to AS/NZS2293, with an impressive D63 emergency lighting classification, non-maintained

  • Polycarbonate white body profile, double insulation, Ø90mm cut-out, complete with a Ø170mm adaptor ring accessory

  • 1.8 watt system, combined LED charge status display and test button, with integral control gear and high performance integral Lithium battery

  • 1.2 m flex & 2 pin plug fitted, IC-4 rated

  • Guaranteed 90 minutes emergency function.

Performance

  • Dimmable - NO
  • DAYLIGHT6500K
    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Power CCT CRI Body Colour Diameter Dim Cut Out Mass
      		Model No. SEL10SF3D63IP65 Add to Enquiry Add Remove Remove Input Voltage 240 Power 1.8 CCT 6500 CRI 80 Body Colour WHITE Diameter 104 Dim 66(H) Cut Out 90 Mass 0.37

      Important notes: (1) Continual use in emergency mode greater than 240 hours without recharge, will result in battery failure and void battery warranty.

    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
