STEWARD - SEL416TS
240V rated 16A four pole emergency lighting test switch
Application
Interior commercial emergency lighting designs
Design Specifications
90 and 120 minute test functions with LED indicators
Conventional 35mm DIN rail profile
Versatile 4mm² terminals accommodating the 240V rated 4 pole 16A relay design
Lockable key test function feature
Electrical class II design, device power consumption 2 watt
-

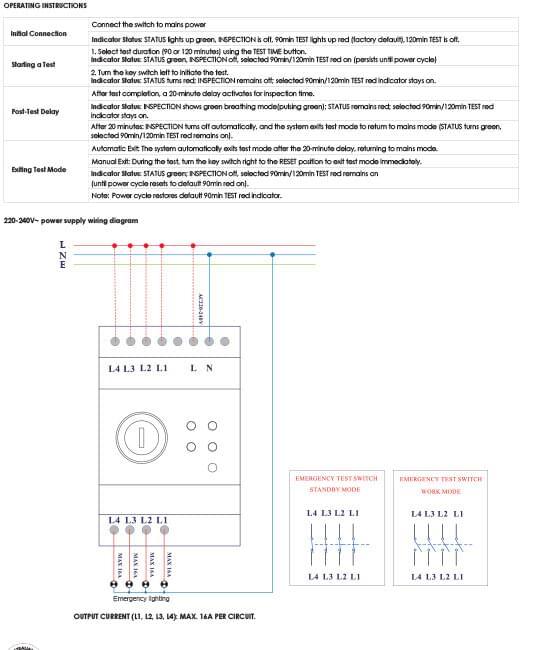

Dimensions - Wiring Diagrams
-
-
Technical Specifications
Product Model No. Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickInput Voltage Power Body Colour Dim Mass
Model No. SEL416TS Add to Enquiry Add Remove Remove Input Voltage 240 Power 2 Body Colour GREEN Dim 65(L) x 75(W) x 60(H) Mass 0.24
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
